WP1000A
WELPING
580100
| Quantity: | |
|---|---|
Product Description
Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding can provide perfect sealed joints.
To achieve a good jointing, a steady, precise, robust butt welding machine is critical. WELPING had been developing, manufacturing and distributing hydraulic and manual butt welding equipment since 2005. It's our pleasure to help you build reputation in the piping project.

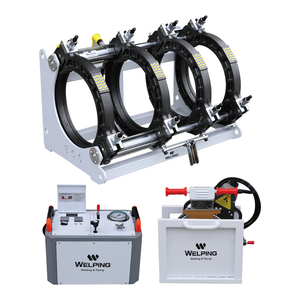

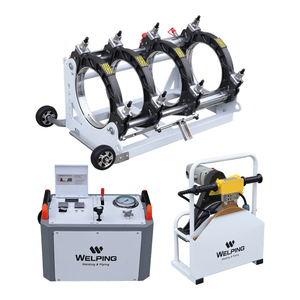

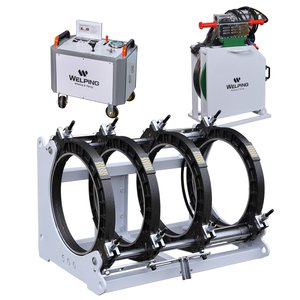

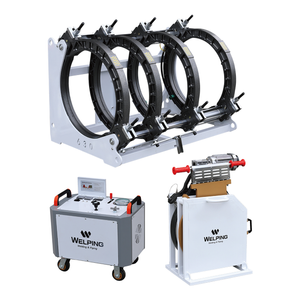

The Hydraulic butt fusion welding machine, mainly consists of 3 major parts: Carriage (also called frame or base), planing tool (also called trimmer or facer) and heater, hydraulic station with control device. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating, hydraulic station provides actuation and control.
Product Characteristics
1. Metal fabrication clamping sets of precision welding, strong and lightweight
2. Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin
3. Hydraulic station of integrated enclosure shielding splash and dirt, built-in pressure stablizer
4. Data logging device optional
Data Sheet
Model | WP1000A |
Welding range (mm) | 800-1000 |
Standard reducers (mm) | 800-900-1000 |
Power supply | 380V/50Hz, 3PH |
Total power | 24.5 KW |
Heating plate | 17.5 KW |
Planing tool | 3 KW |
Hydraulic station | 4 KW |
Pressure adjusting range | 0-16 MPa |
Max Temperature of heating plate | 270ºC |
| Temperature Deviation | ±7ºC |
| Piston area | 36.52 CM2 |
