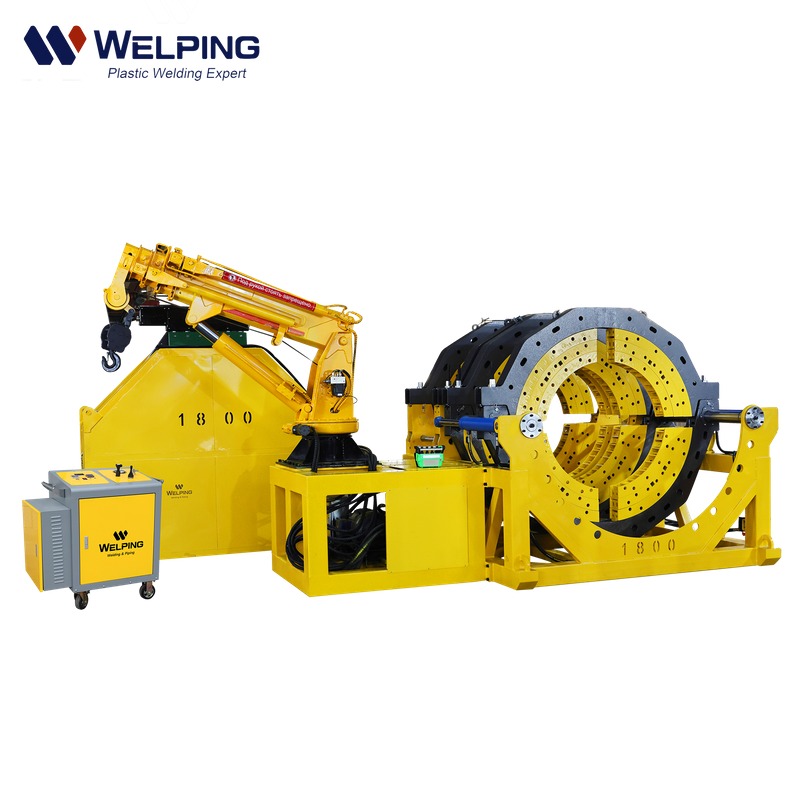

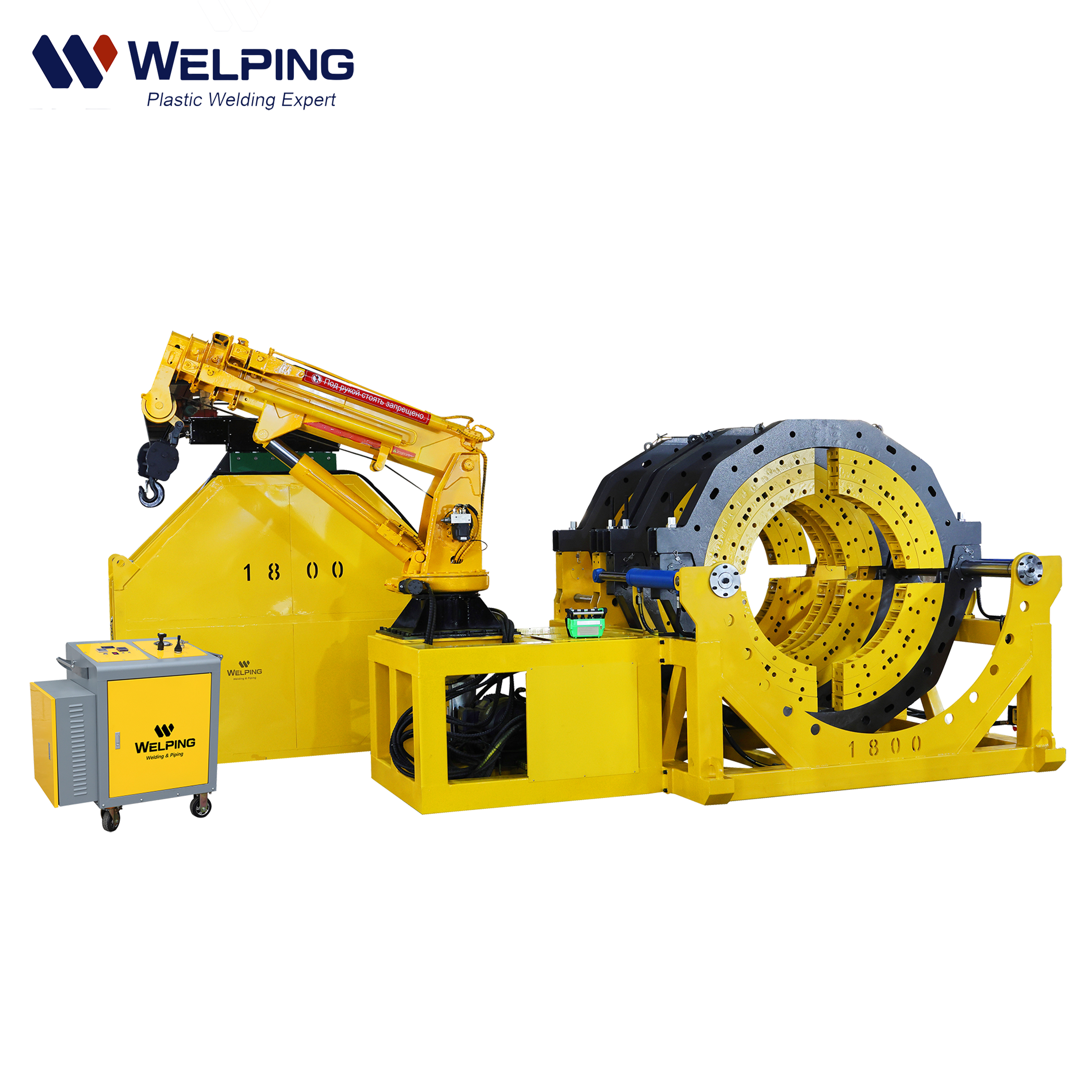

1800mm HDPE Pipe Butt Fusion Welding Machine Factory

Name: 1800mm HDPE Pipe Butt Fusion Welding Machine Factory
Brand: WELPING
Rating: 5.0 (29 reviews)

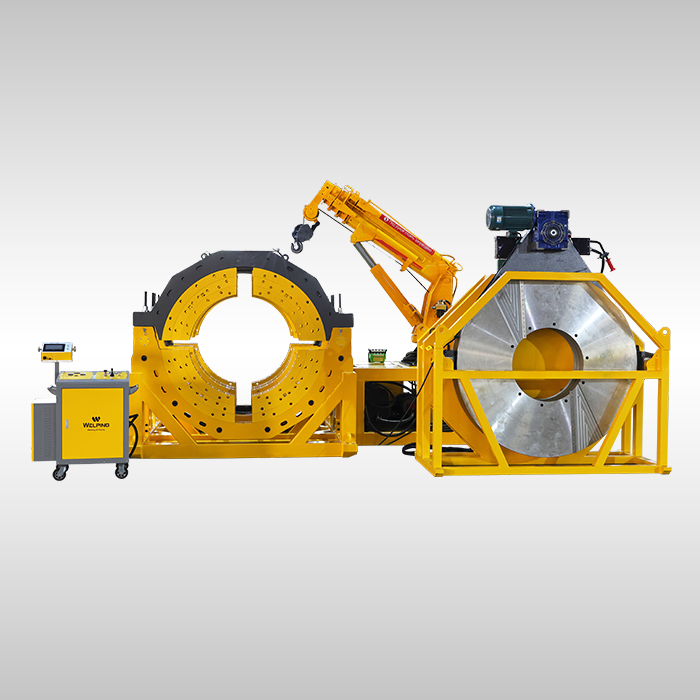

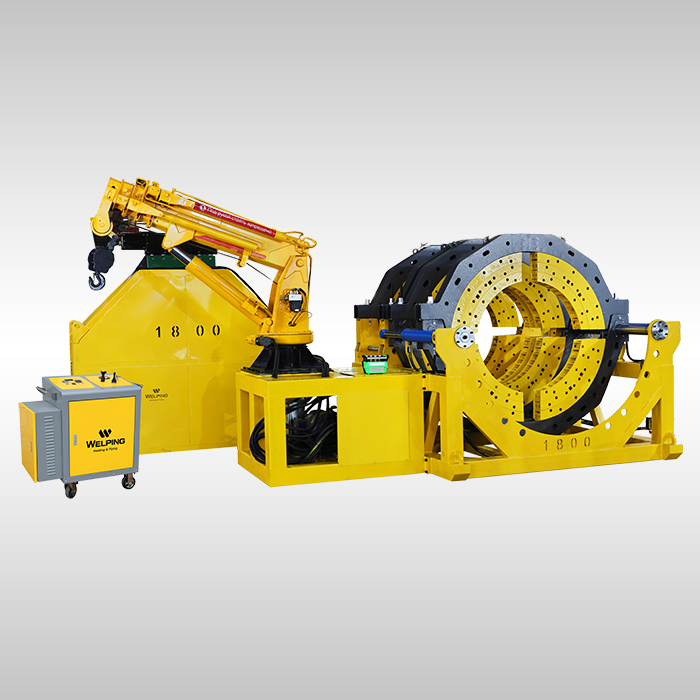

Welping unique design 1800mm large size HDPE pipe butt welding machine.
Butt fusion welding is an effective, reliable connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding can provide excellent butt joints, just like a whole pipe. WP1800A provides standard welding range of 1200mm to 1800mm.

Model:
WP1600A
Brand:
WELPING
Code:
580160

Availability:

Quantity:



Inquire Add to Basket

Product Description

DETAILS

HDPE pipe has been used extensively in the piping applications of municipal, industrial, marine, mining, landfill, duct and agricultural industries. Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding machine can provide reliable joints, even as strong as the complete pipe.

The 1800mm butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.

The Butt Fusion Machine is designed to butt fuse pipe sizes 1200mm to 1800mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.

Fusion with Excellence

※ Special designed

※ Built for heavy-duty welding

STANDARD ACCESSORIES
Main Frame	1 Set
Heating Plate	1 Set
Trimmer	1 Set
Reducers	1 Set
Tool Box	1 Set

PARAMETER

Mode	WP1800A
Suitable materials	PE,PP, PB. PVDF
Range	Standard 1200-1800mm
Range	Standard 1200-1800mm
Power supply	380V/50Hz 3PH
Rated power (kw)	78
Heater	65
Facer	7.5
Hydraulic station	5.5
Pressure	0-16Mpa
Working Temp.	170-250℃
Temp. deviation	±10℃
Piston area (cm2)	100.48
Hydraulic oil	46#
Viscosity	41.4 - 50.6 cSt

PRODUCT DETAILS MAP

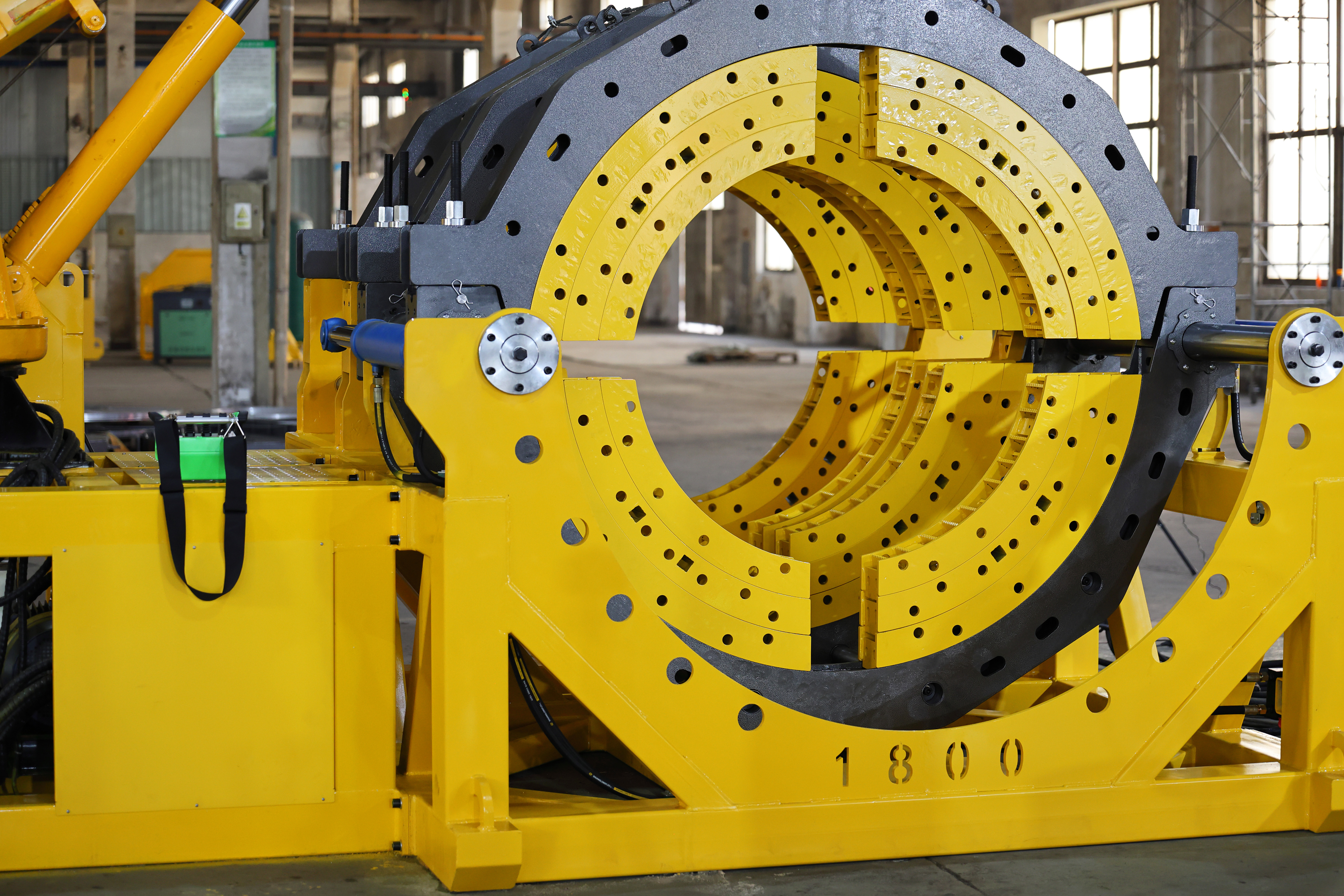

Frame(Carriage)

· Complete steel welded design, with complex reinforced structure, heavy-duty

· Featuring a 3+1 detachable frame structure, the WP1800A offers flexible configuration for pipe fittings as well as easy transportation

· Clamping part with inner anti-slip teeth Independent hydraulic cylinders provide 008 reliable performance and easy maintenance

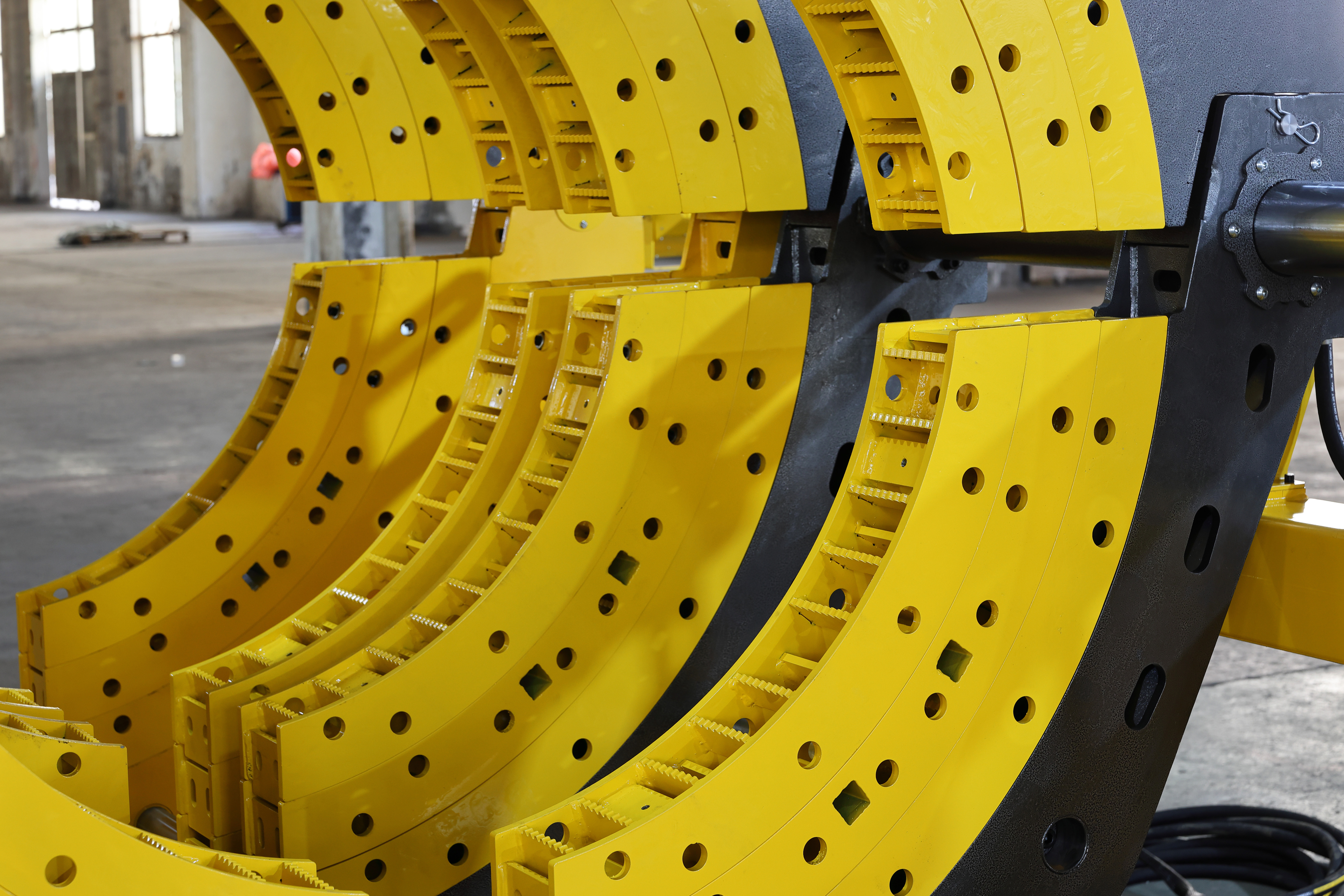

Wide reducers

· Laser-cut, precision-welded clamp inserts for a perfect fit and stable grip

· Multiple anti-slip ridges inside the clamp inserts to enhance pipe gripping force

· 4-piece widened design ensures both easy installation/removal and reliable clamping performance

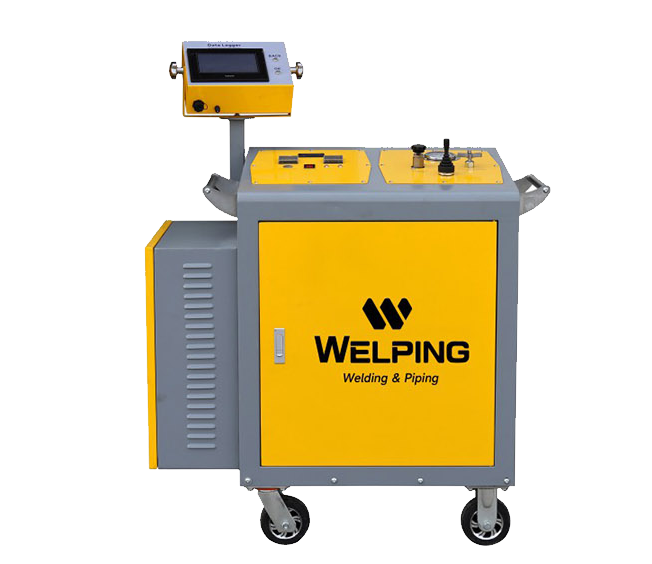

Hydraulic station

· Integrated hydraulic and electrical control, for easy operation access

· Compact and Enclosure design, shielding splash and dirt

· Equipped with branded electronic parts WELPING to ensure long-term stable operation Welding &Piping

· Standard data logger available to support efficient welding operations

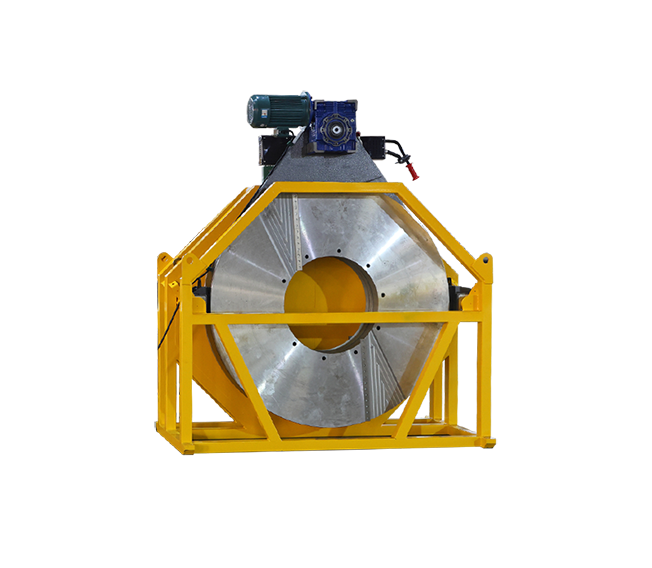

Facer (Milling Cutter)

· Thickened milling cutter plates, solid and reliable

· Dual-blade, HSS material, ensures precise cutting and high efficiency

· Equipped with an internal dual-chain drive system and auto-tensioning mechanism, for heavy-duty applications and long-term

usage without loosening

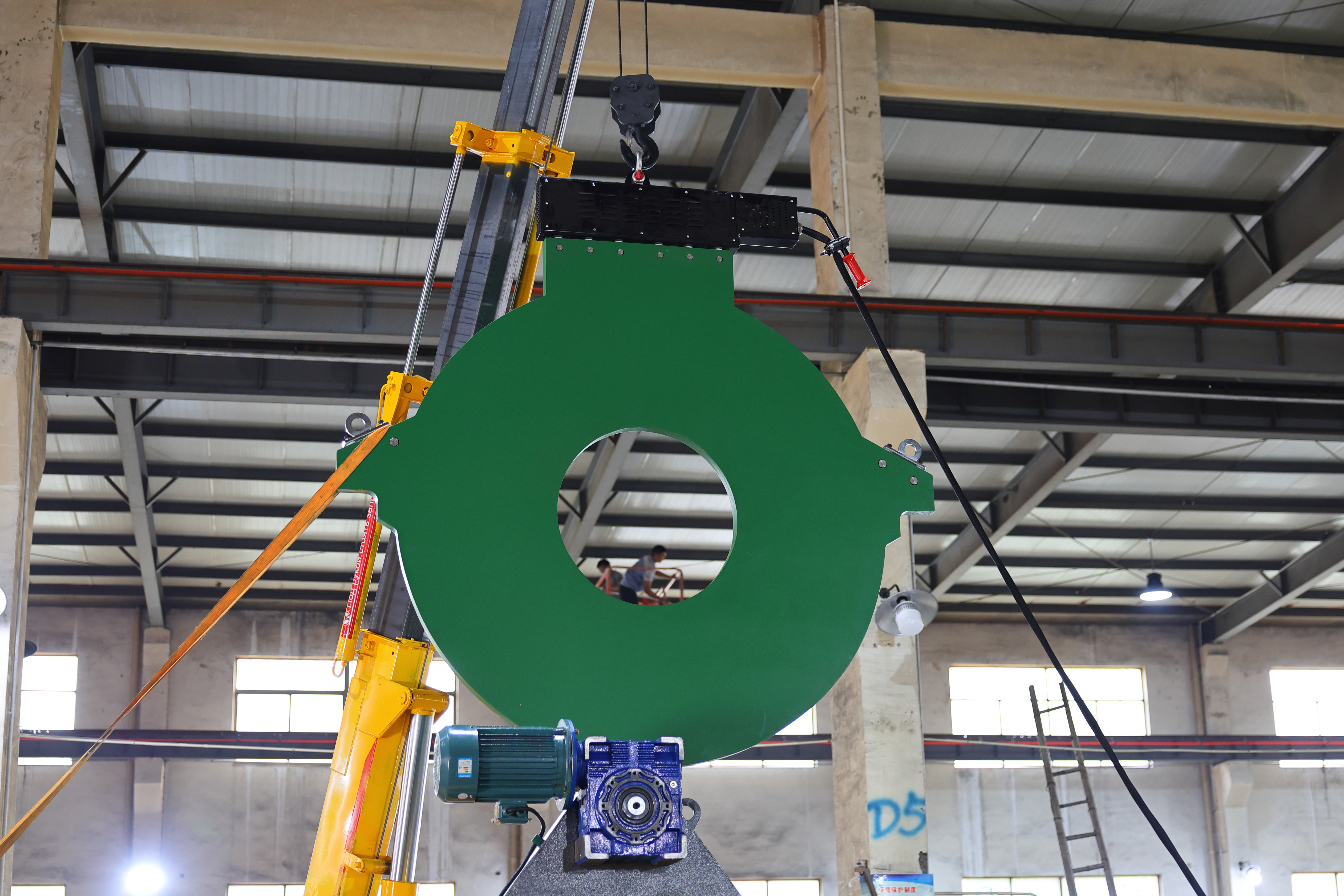

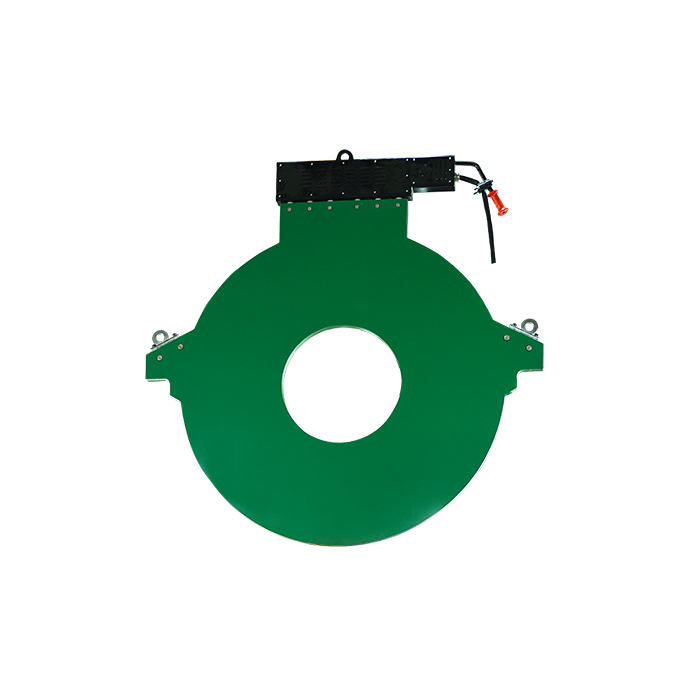

Heating plate

· Thickened cast aluminum body with well-structured internal heating elements, ensuring fast heat-up and excellent temperature deviation control within ±10°℃

· Non-stick PTFE coating supplied by Daikin provides excellent resistance to sticking

· A specialized coating process ensures long-lasting adhesion without peeling
