Wp315A PRO
WELPING
| Quantity: | |
|---|---|

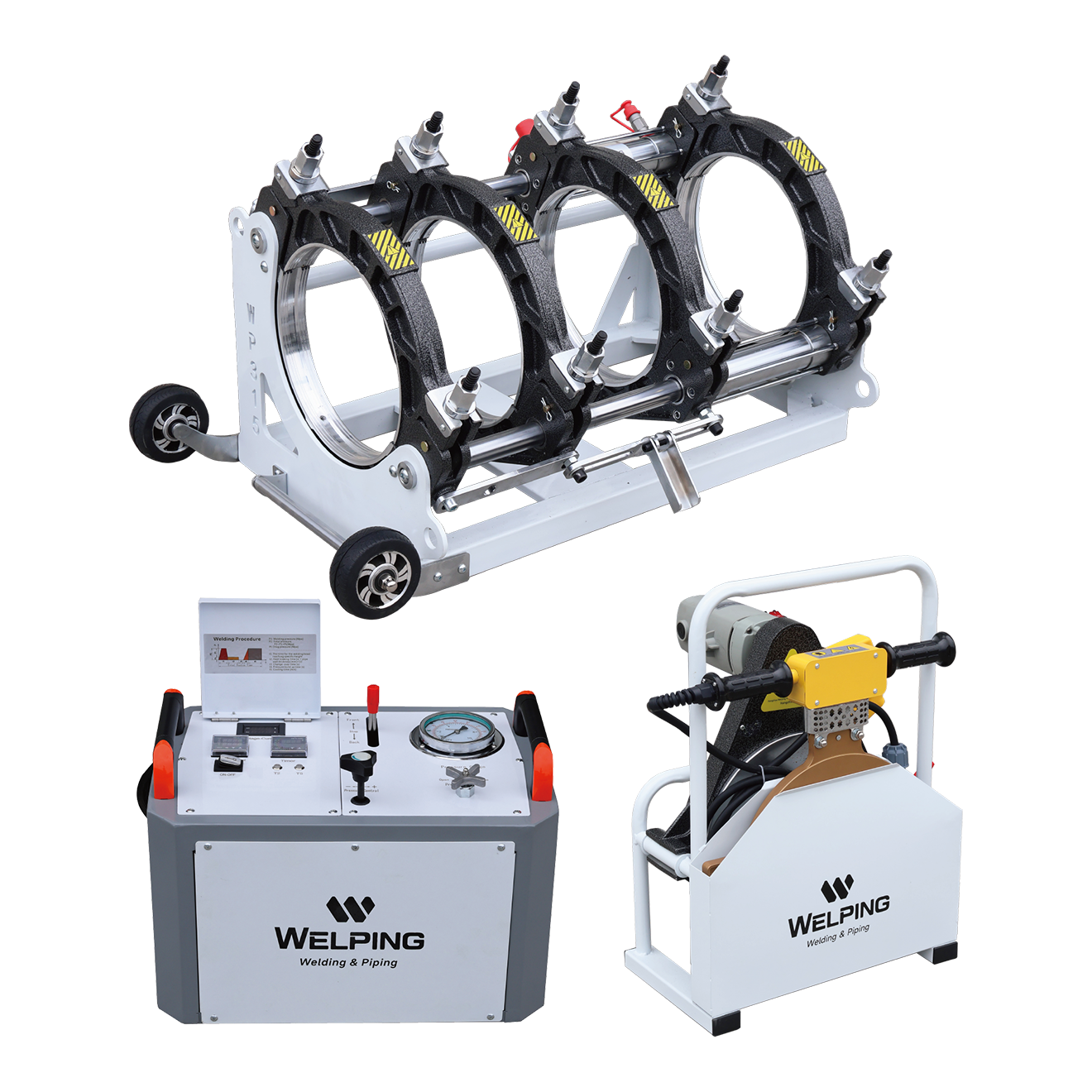

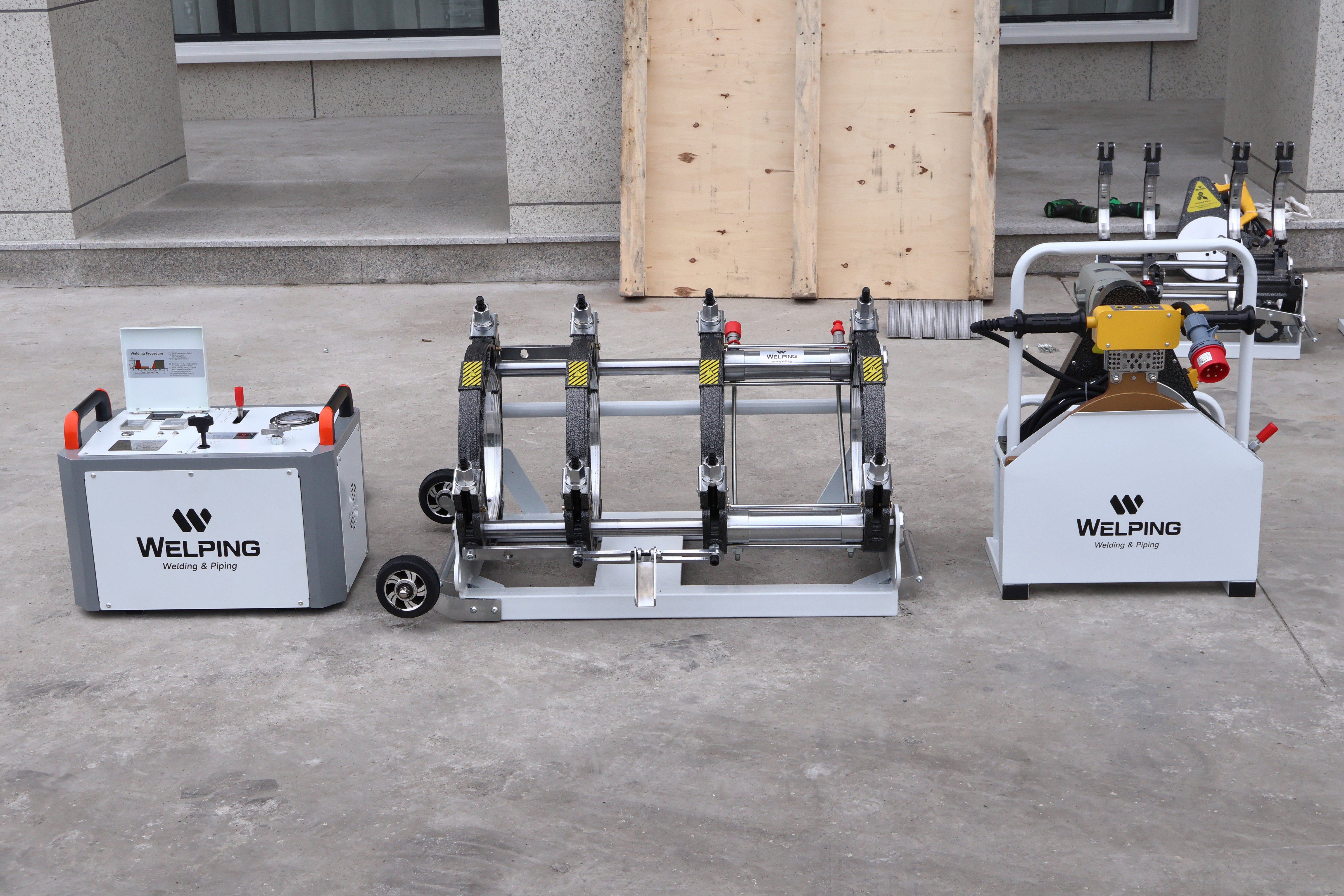

The High-End Series WP315A PRO butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.

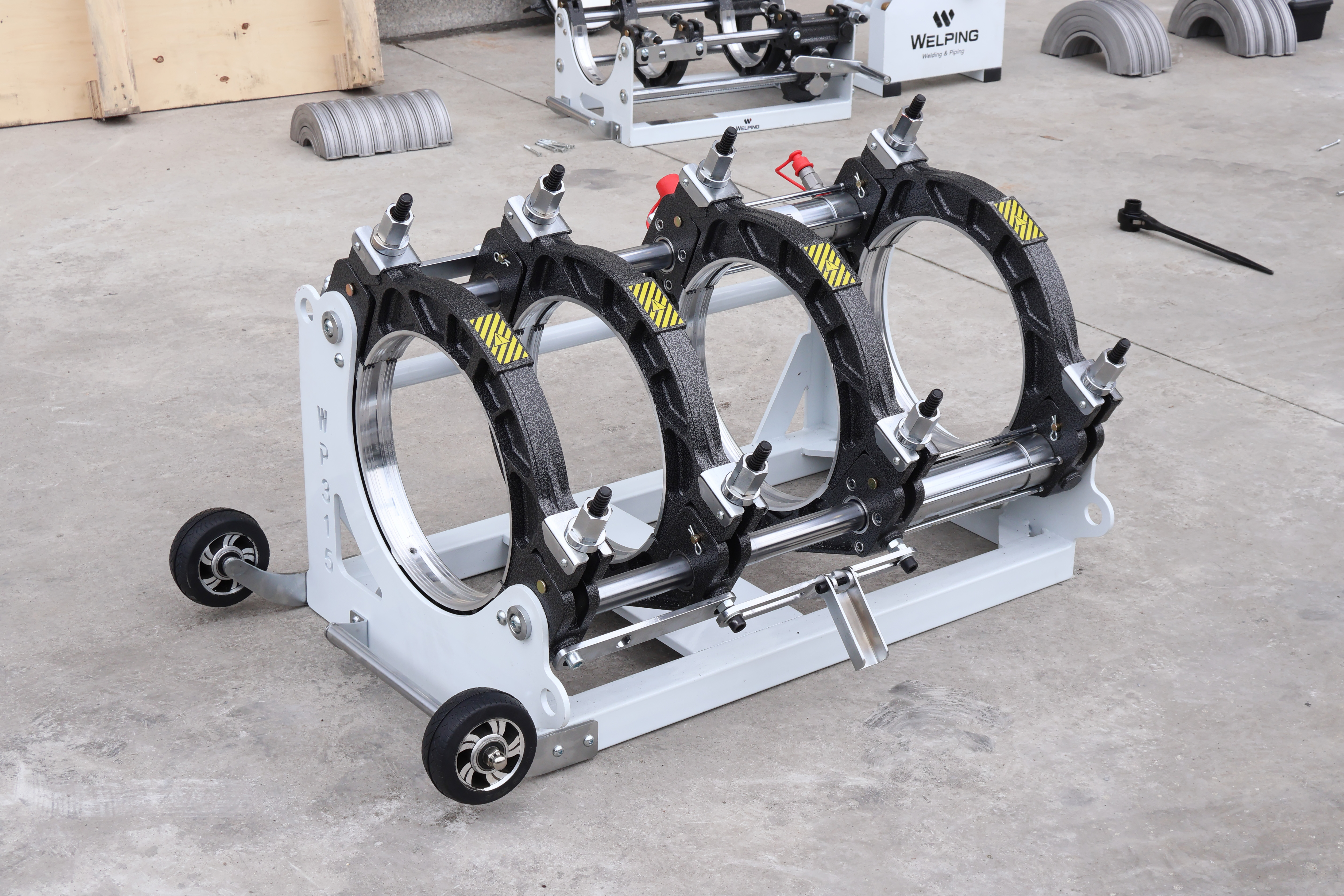

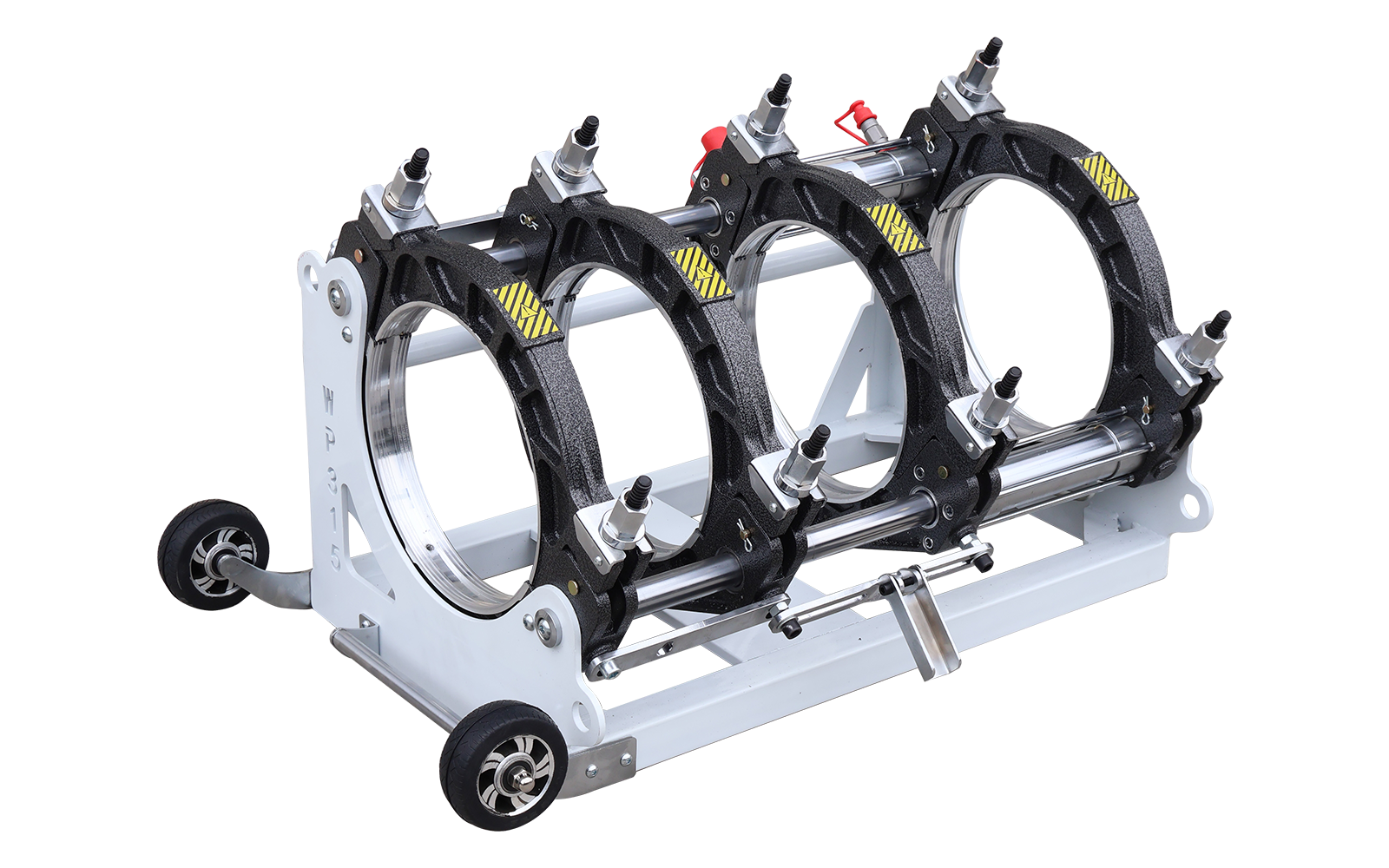

The Butt Fusion Machine is designed to butt fuse pipe sizes 90mm to 315mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.
| Model NO. | WP315A Pro | Control | Semi-Automatic |
| Frequency Range | Low Frequency | Electric Current | AC |
| Type | Semi-Automatic | Weldable Material | HDPE/PP/PVDF |
| Rated Voltage | AC 220V, 50Hz, 1PH | Hydraulic | Enclosure Housing |
| Certificate | CE, SGS | Warranty | 12 Months |
| Rated Power | 5.85kW | Heating Plate | 3.1kW |
| Trimmer | 2.0kw | Hydraulic Unit | 0.75kw |
| Transport Package | Plywood Cases | Specification | Hydraulic drive |
| Trademark | WELPING | Origin | China |
| HS Code | 8515809090 | Production Capacity | 20000pieces/Year |

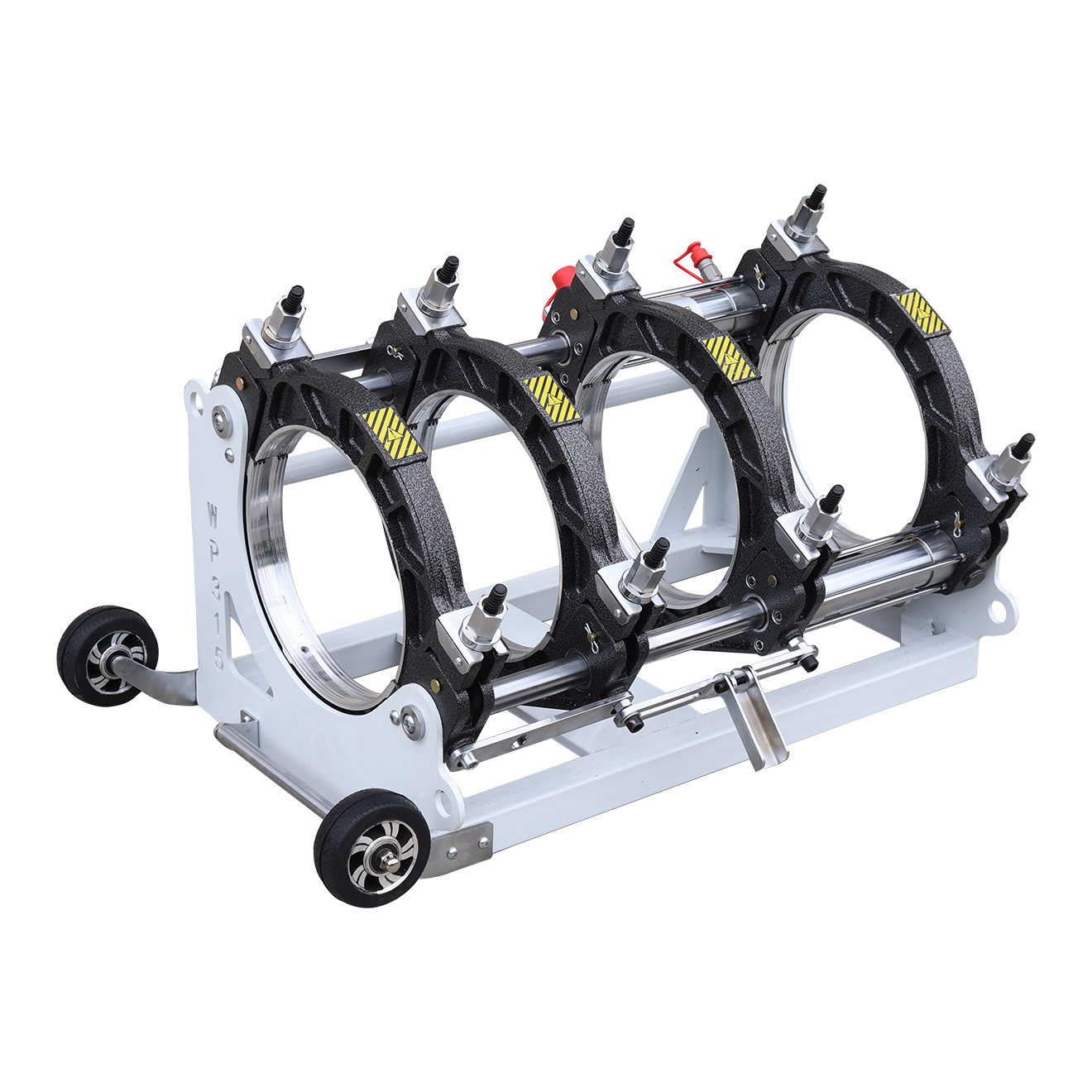

· Complete steel welded design, with complex reinforced structure, heavy-duty

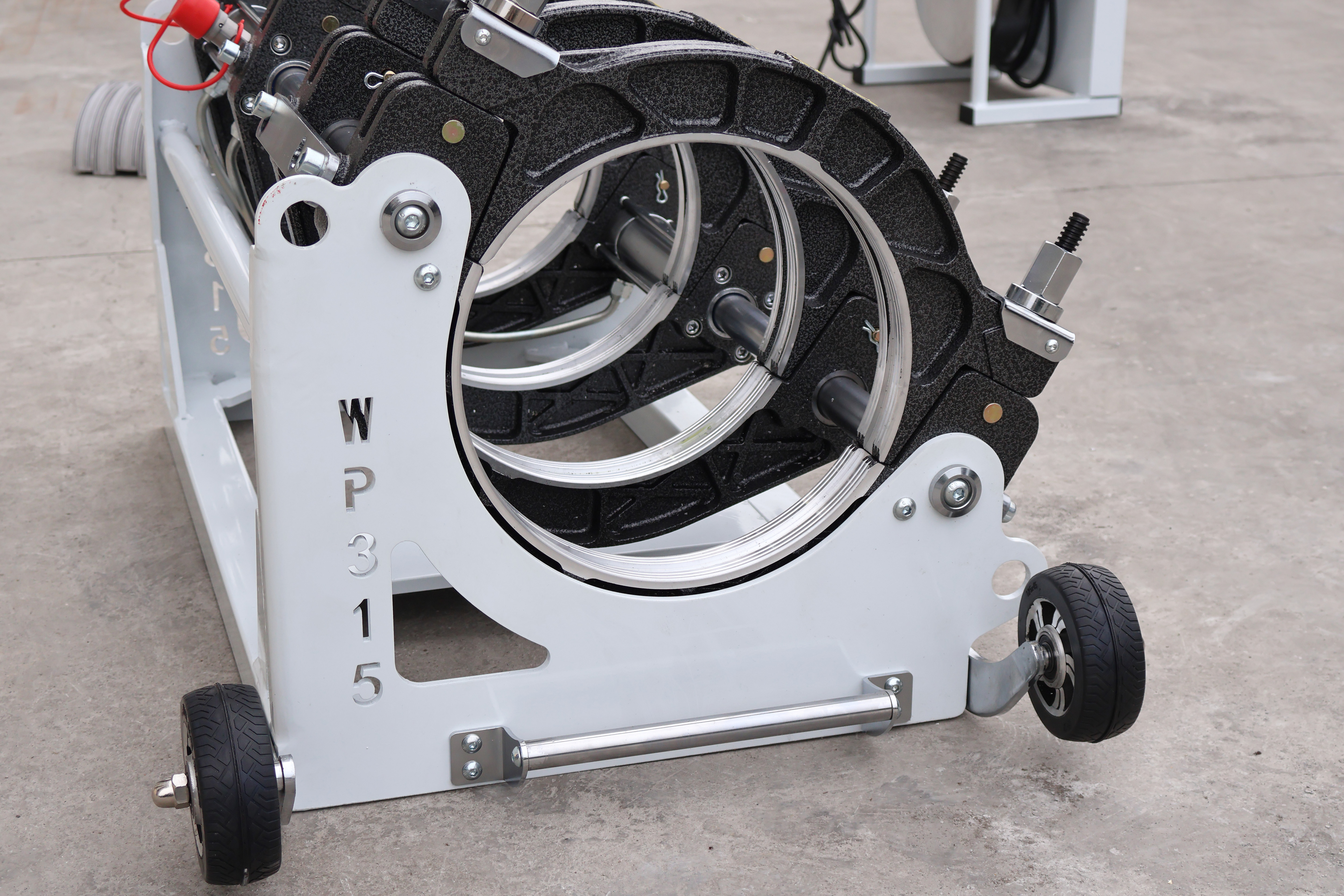

· Clamping part, inner fine-machined
· Standard equipped with carrying handles and wheels, for easy transportation

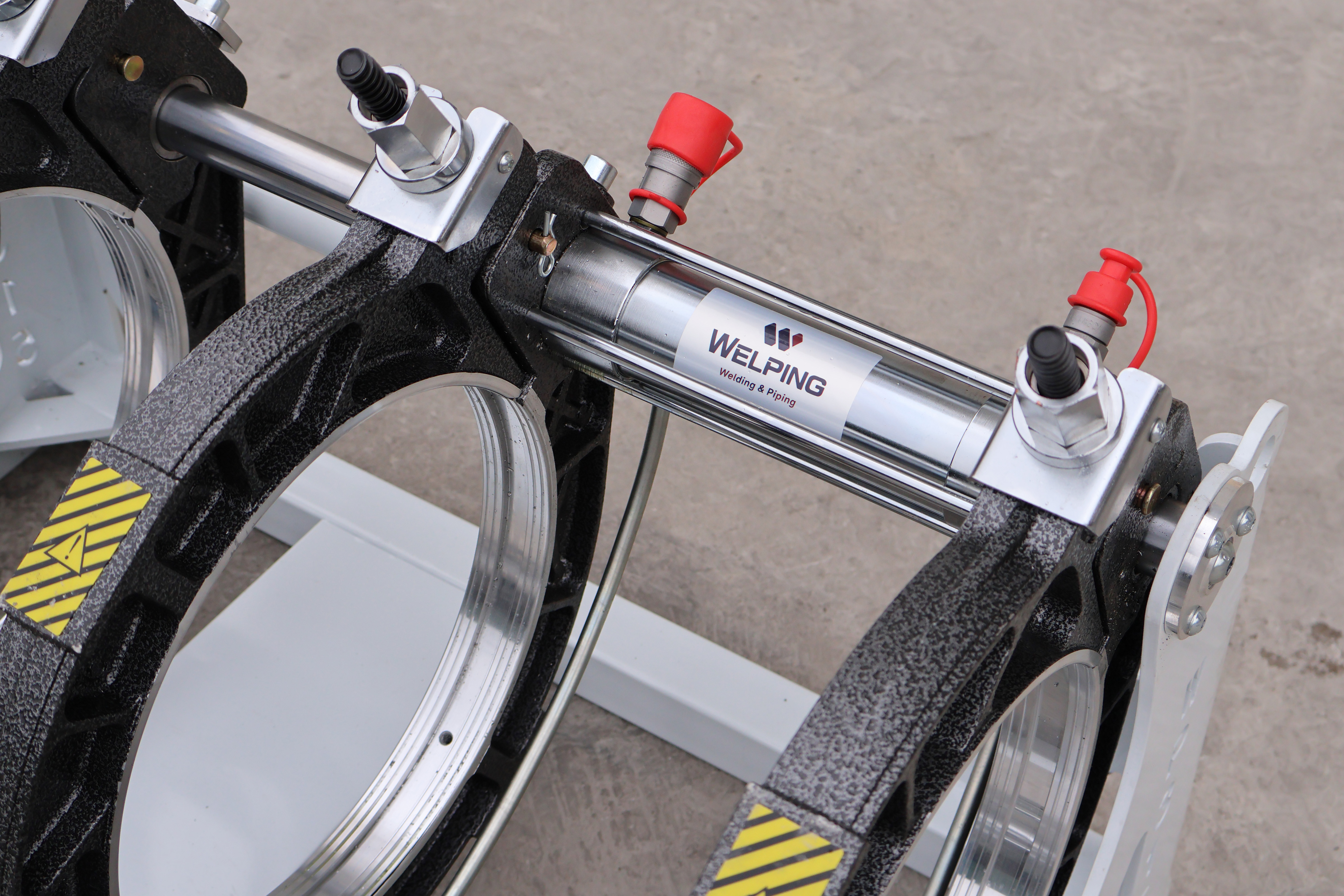

· Qualified hydraulic cylinder with quick couplings, for easy installation
· Integrated hydraulic and electrical control, for easy operation access

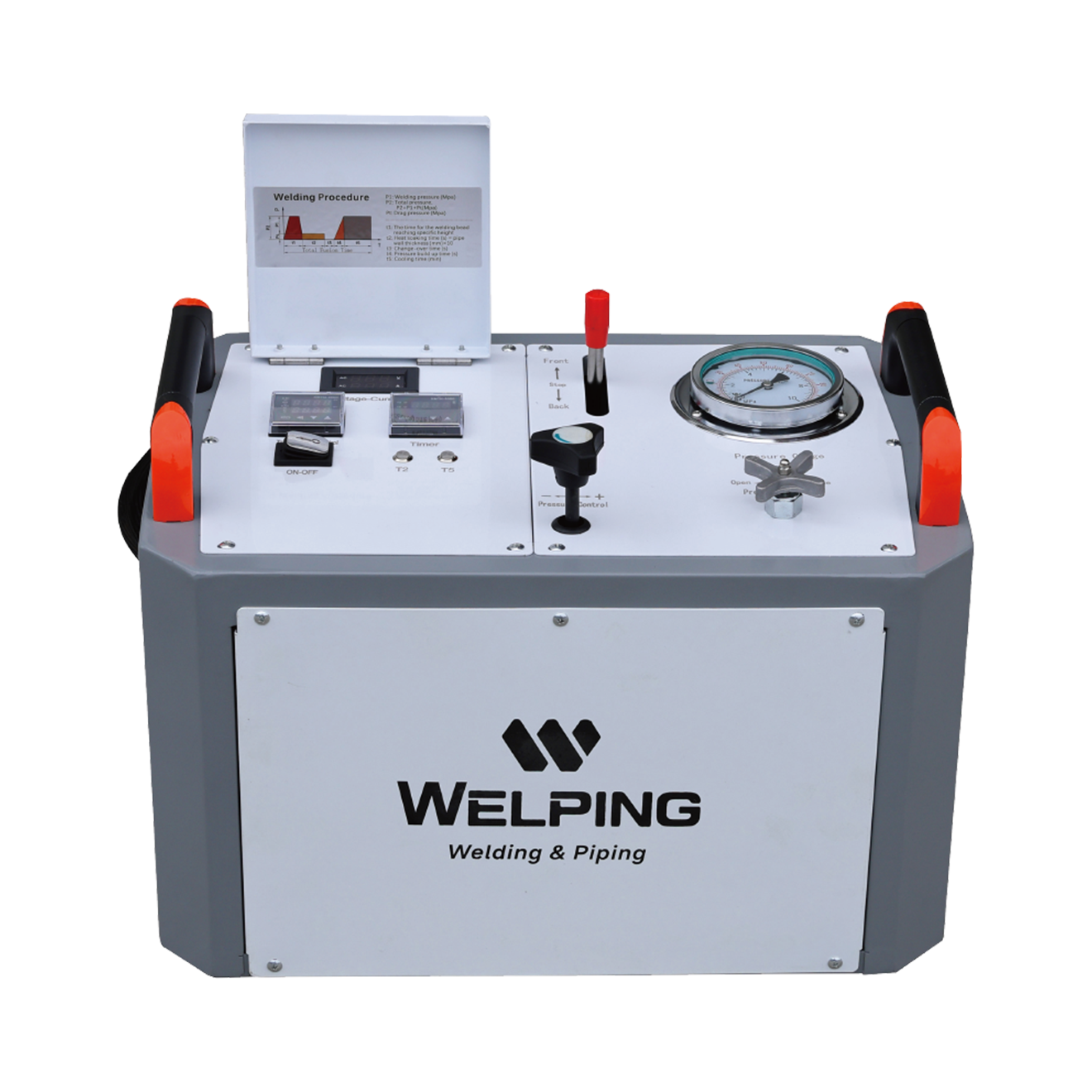

· All-in-one control panel: hydraulic actuation, pressure setting, timing, electric info display, temperature setting
· Enclosure design, shielding splash and dirt
· Qualified Siemens electrical parts

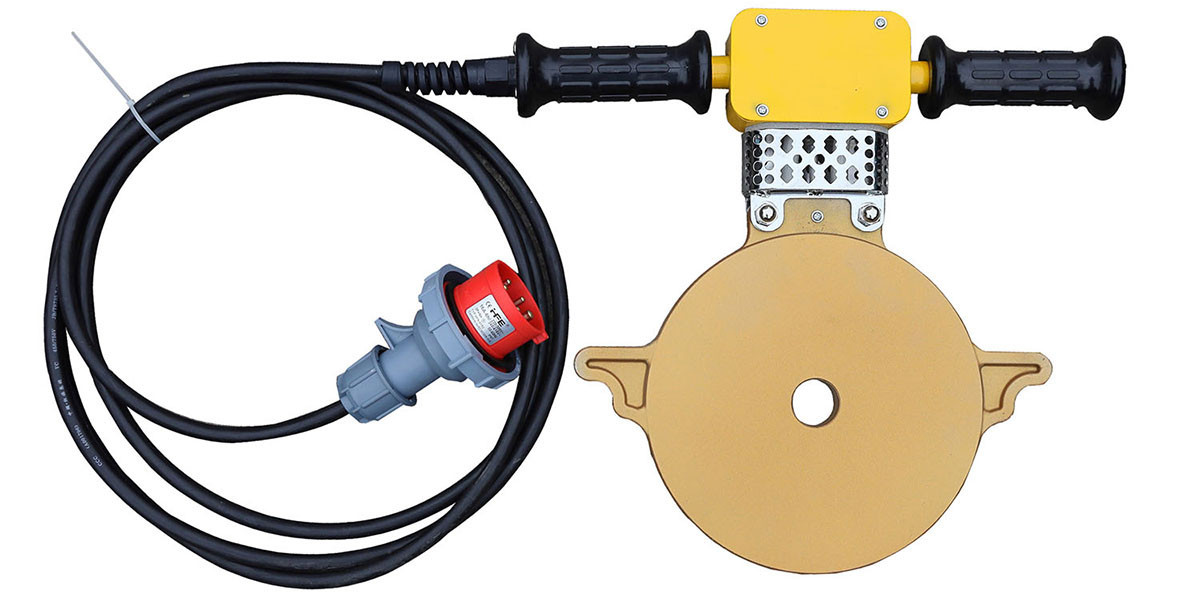

· Cast aluminum body with built-in heating elements
· Anti-stick PEFT coating from Daikin
· Qualified aviation plug and heavy duty cable ensure operation safety

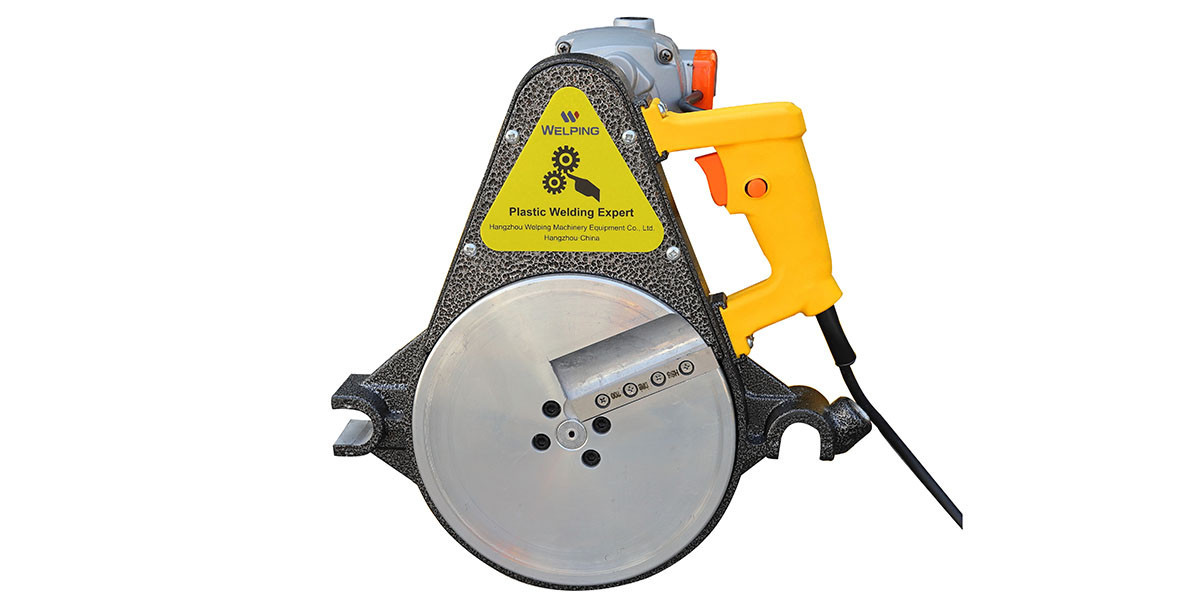

· Full gear transmission structure, for steady and long-life performance
· Powerful copper-wiring motor
· Durable, double edges HSS blades

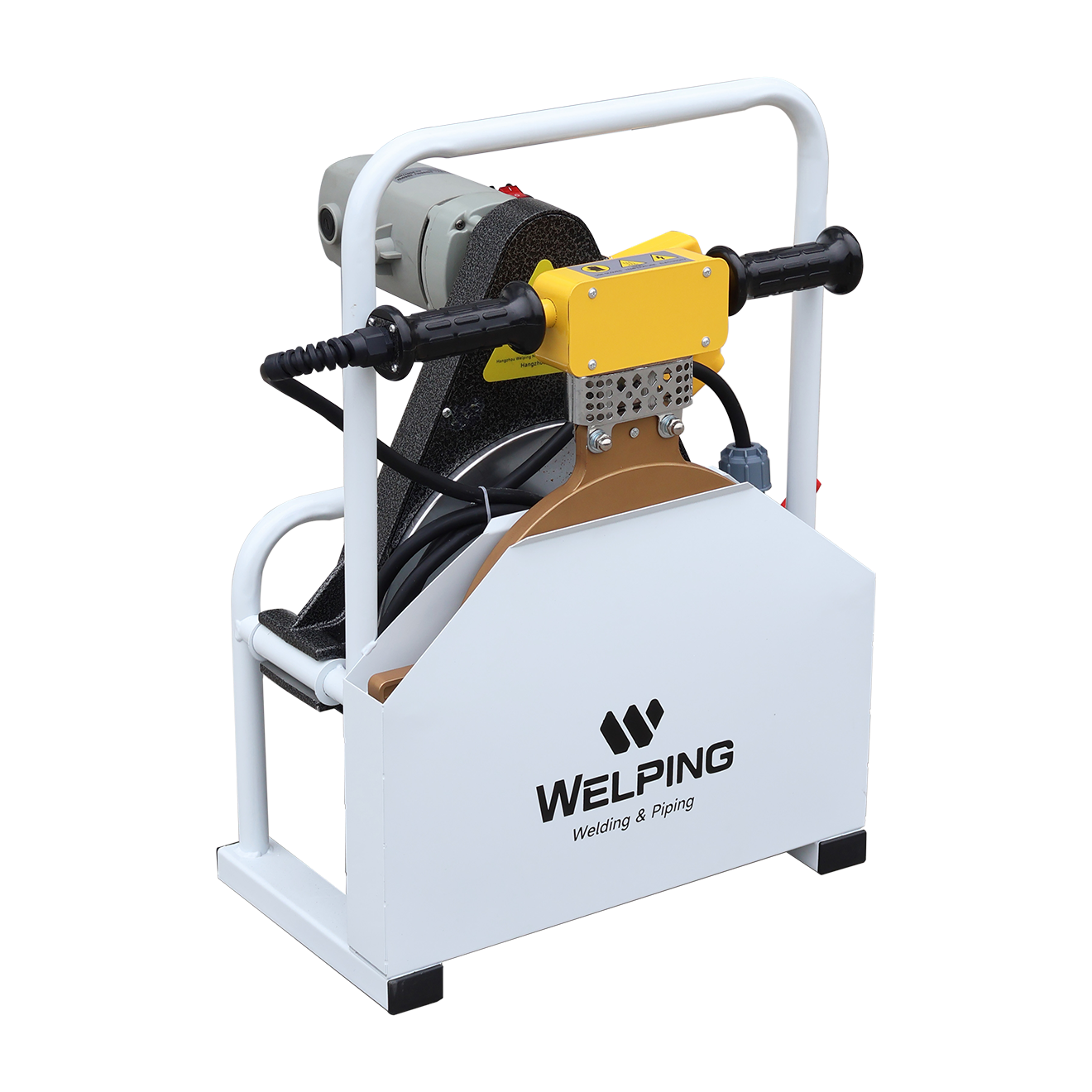

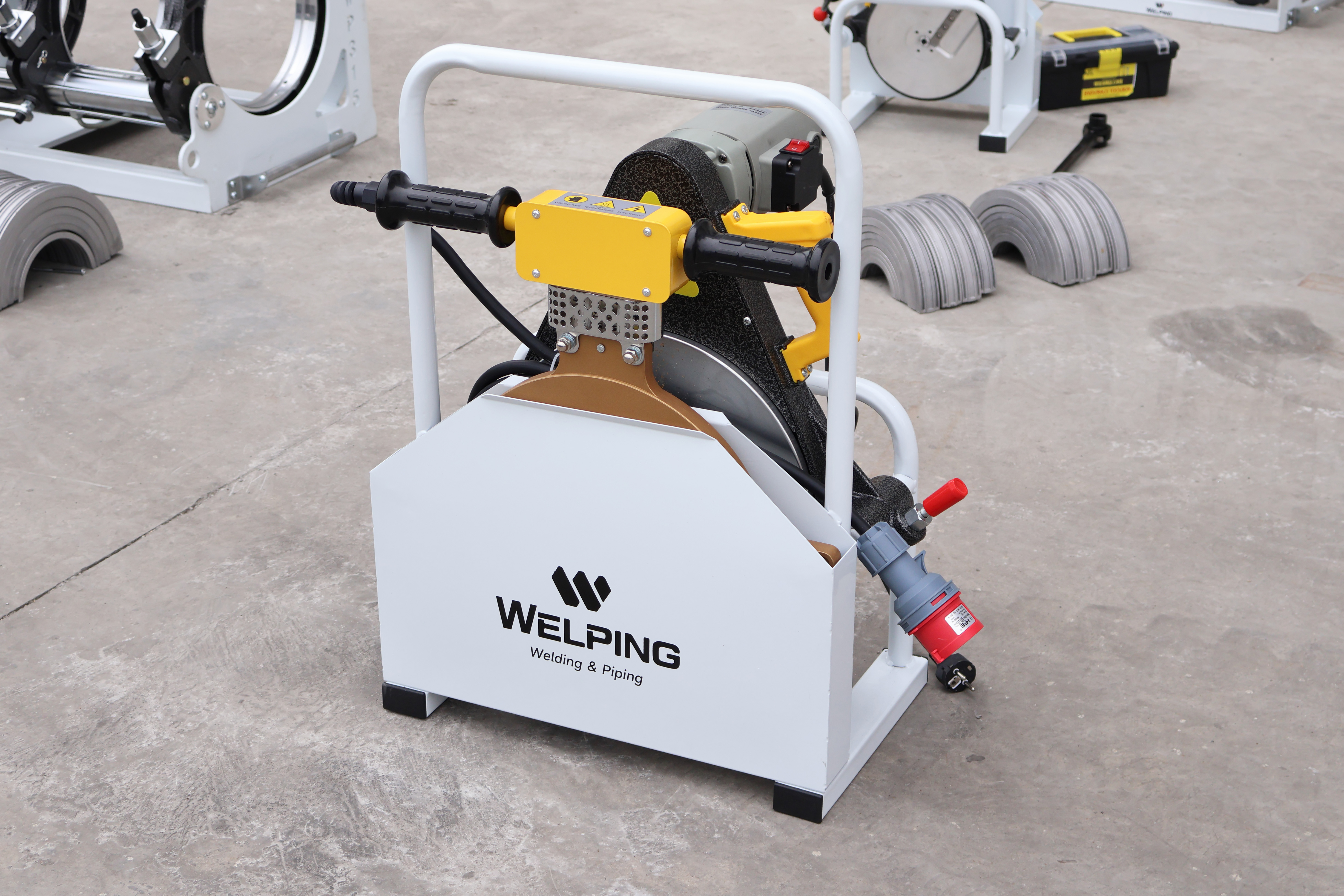

· Complete heating plate covers for better protection and heating conservation
· Wider and longer handles for better mobility
