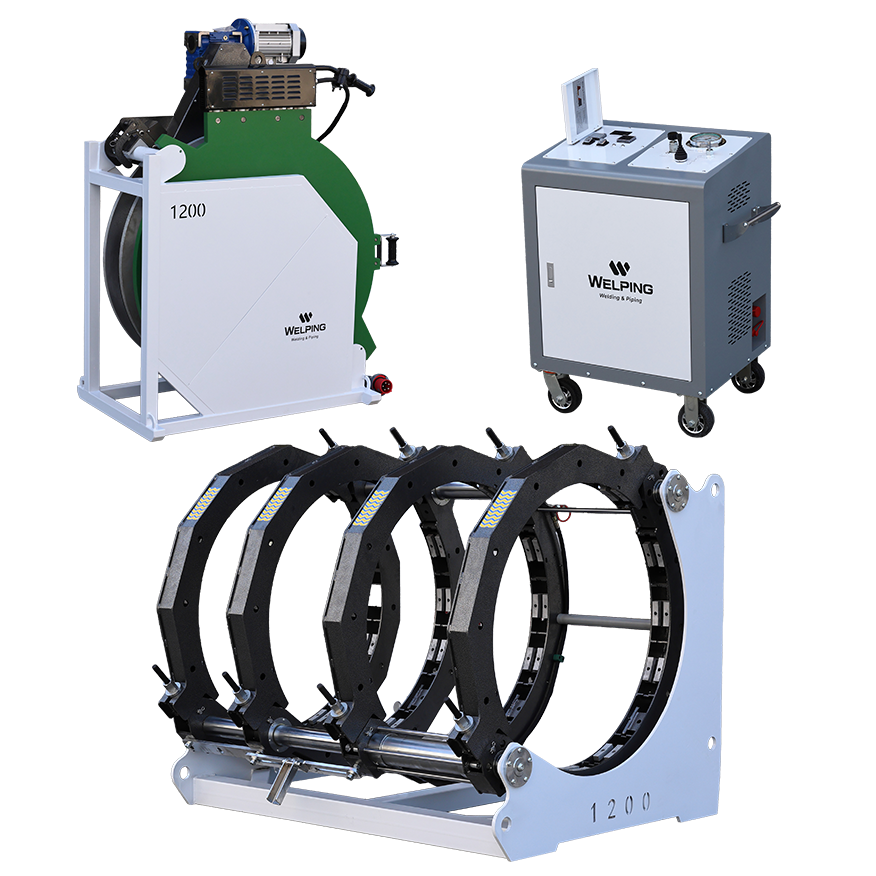

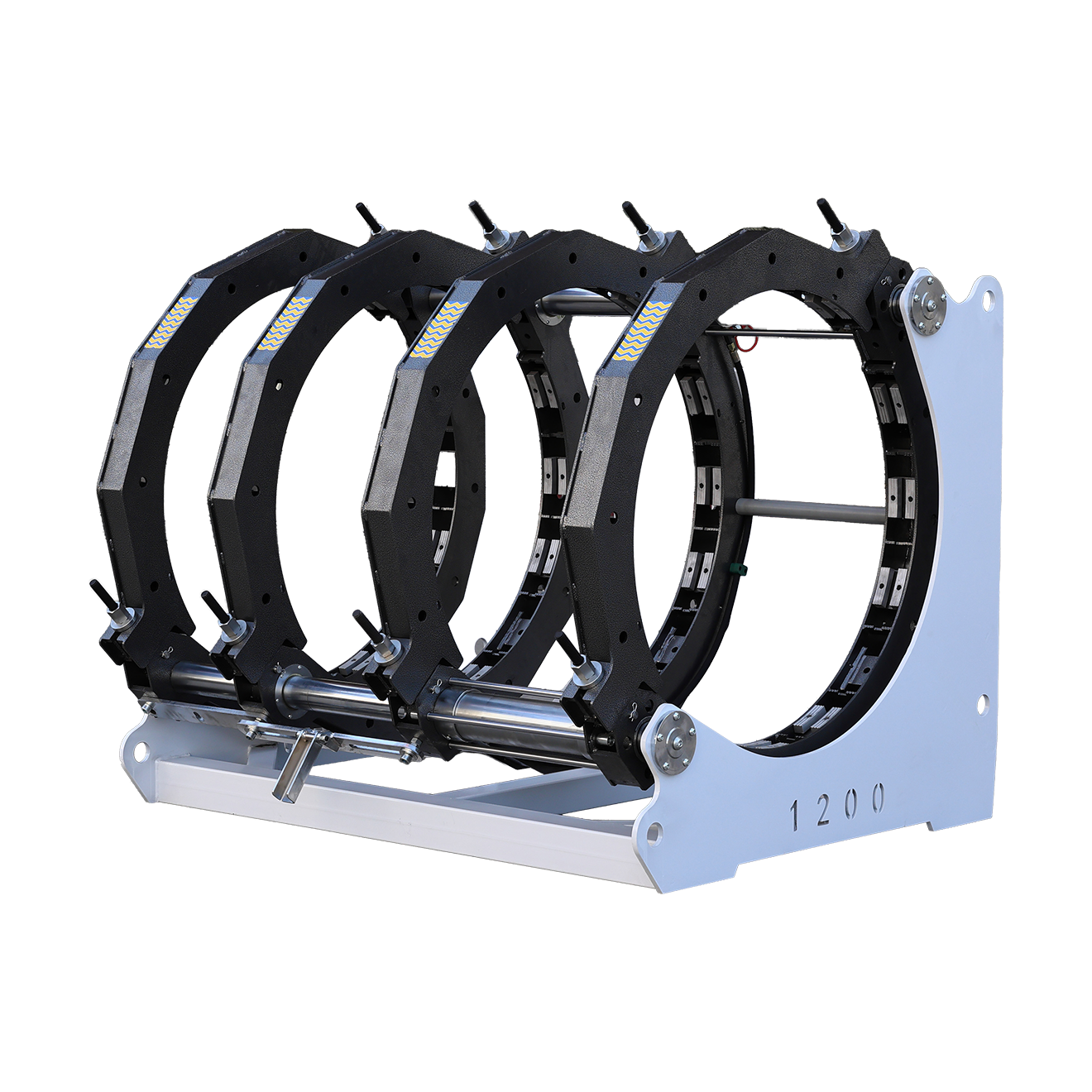

HDPE Butt Fusion Welding Machine 1200mm | Hydraulic Pipe Fusion Machine WP1200A PRO

Name: HDPE Butt Fusion Welding Machine 1200mm | Hydraulic Pipe Fusion Machine WP1200A PRO
Brand: WELPING
Rating: 5.0 (13 reviews)

It is a versatile machine designed for butt fusion of 1000mm to 1200mm pipe and fittings, with durability and reliability.

Model:
WP1200A PRO
Brand:
WELPING

Availability:

Quantity:



Inquire Add to Basket

02918492-e41a-4141-a95e-8bbccdfe2686

Product Overview

HDPE pipe has been used extensively in the piping applications of municipal, industrial, marine, mining, landfill, duct and agricultural industries.

Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding machine can provide reliable joints, even as strong as the complete pipe.

The High-End Series WP400A PRO butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.

Model NO.	WP400A Pro	Welding range (mm)	1000-1200
Control	Semi-Automatic	Power supply	380V/50Hz, 3PH
Frequency Range	Low Frequency	Total power	30.5 KW
Type	Resistance Butt Welder	Heating plate	22.5 KW
Weldable Material	HDPE/PP/PVDF	Facer	4 KW
Certificate	CE, SGS	Hydraulic station	4 KW
Warranty	12 Months	Pressure adjusting range	0-12 MPa
Pressure Range	8515809090	Max Temperature	270ºC
Certificate	ISO/CE/VOC/Calibration	Temperature Deviation	±7ºC
Production Capacity	20000pieces/Year	Piston Area	45.94 CM²

PRODUCT DETAILS MAP

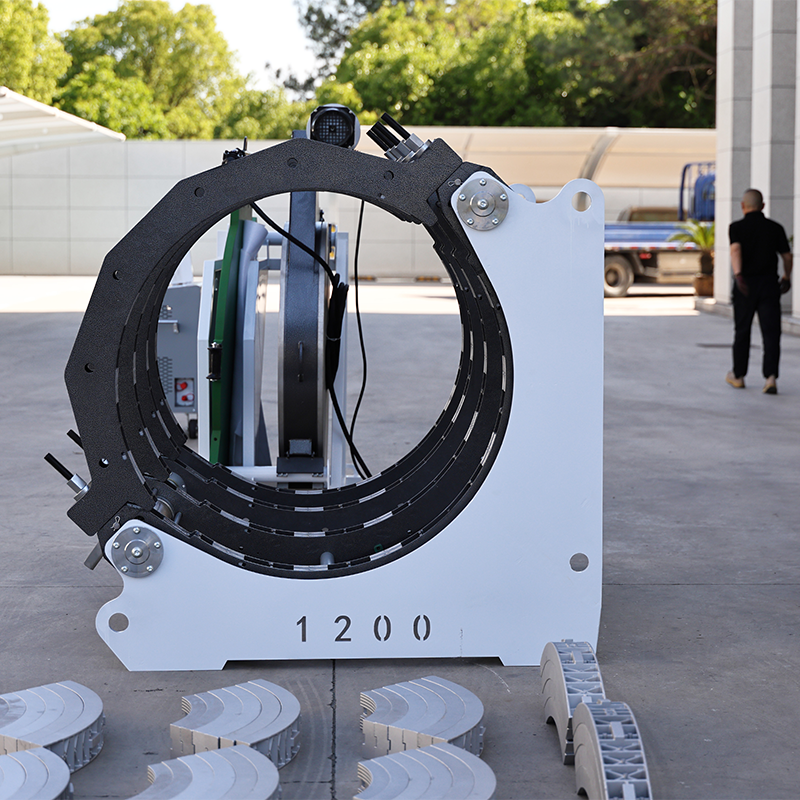

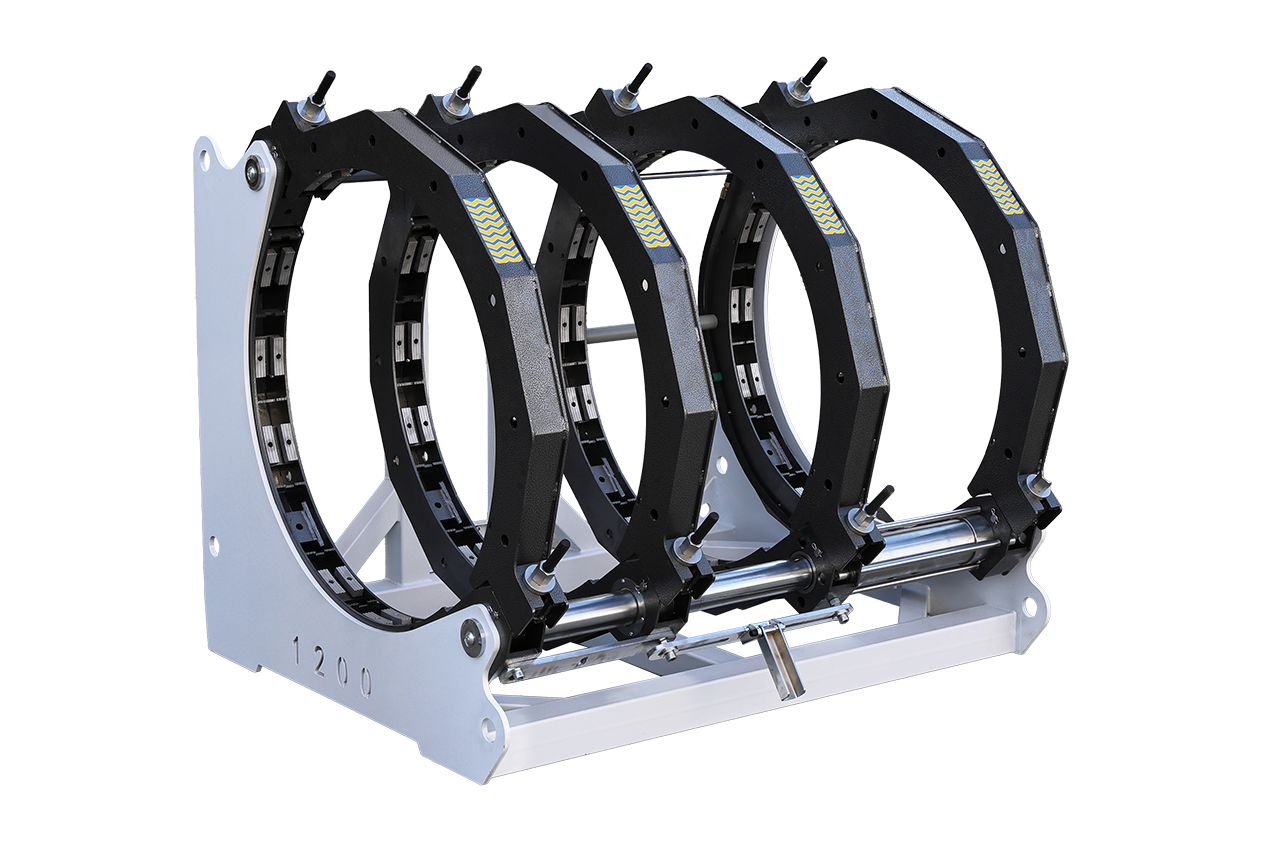

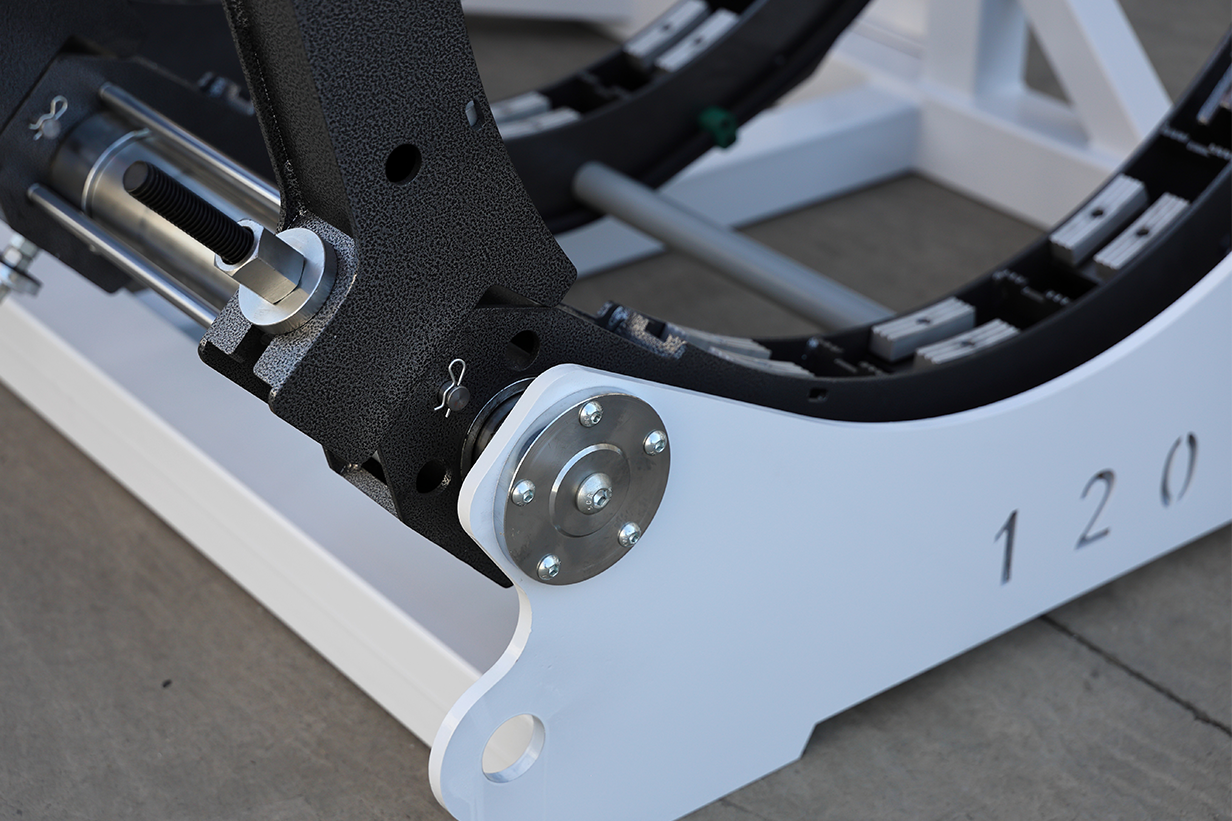

Frame(Carriage)

· Reinforced complex-structure frame, built toesist deformation under heavy loads.Thickened and widened side plates deliverro-level rigidity

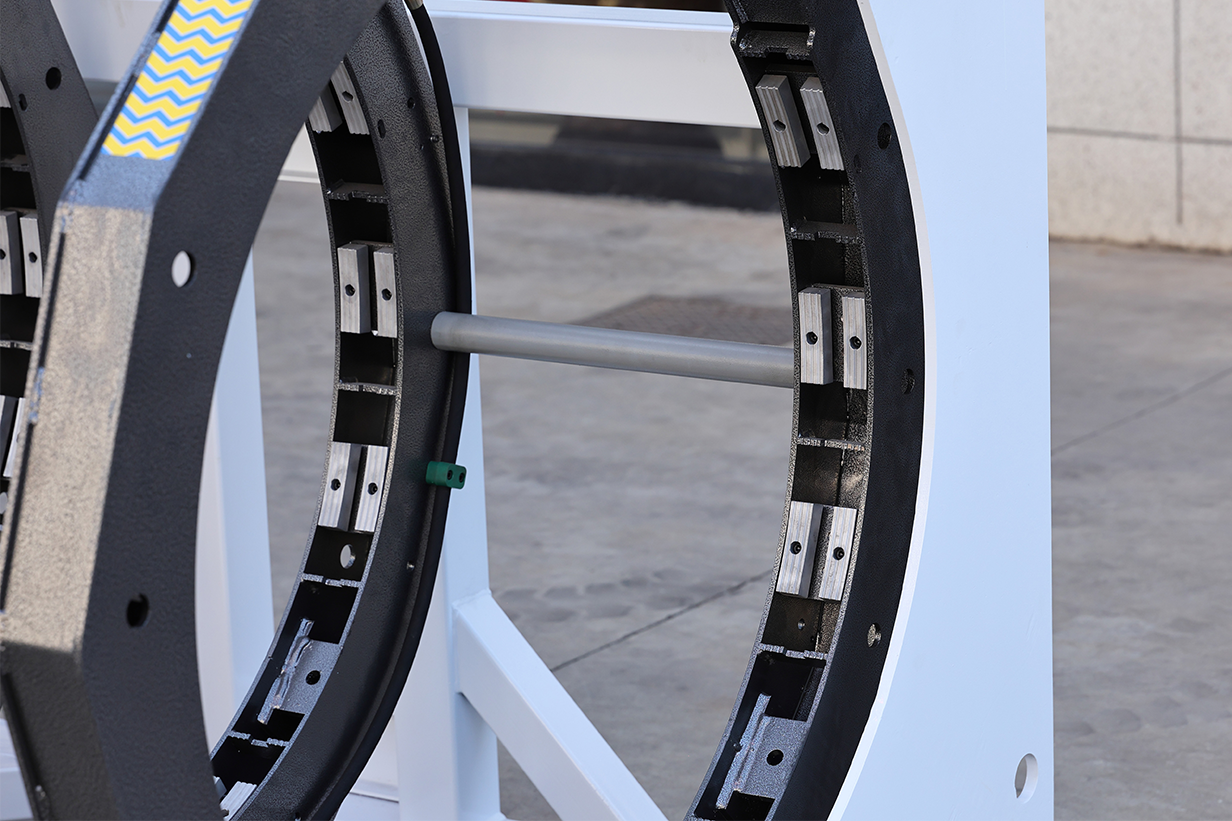

· Newly designed upper and lower clamp rings,with a refined appearance, high structuralstrength, optional internal anti-slip pad blocks

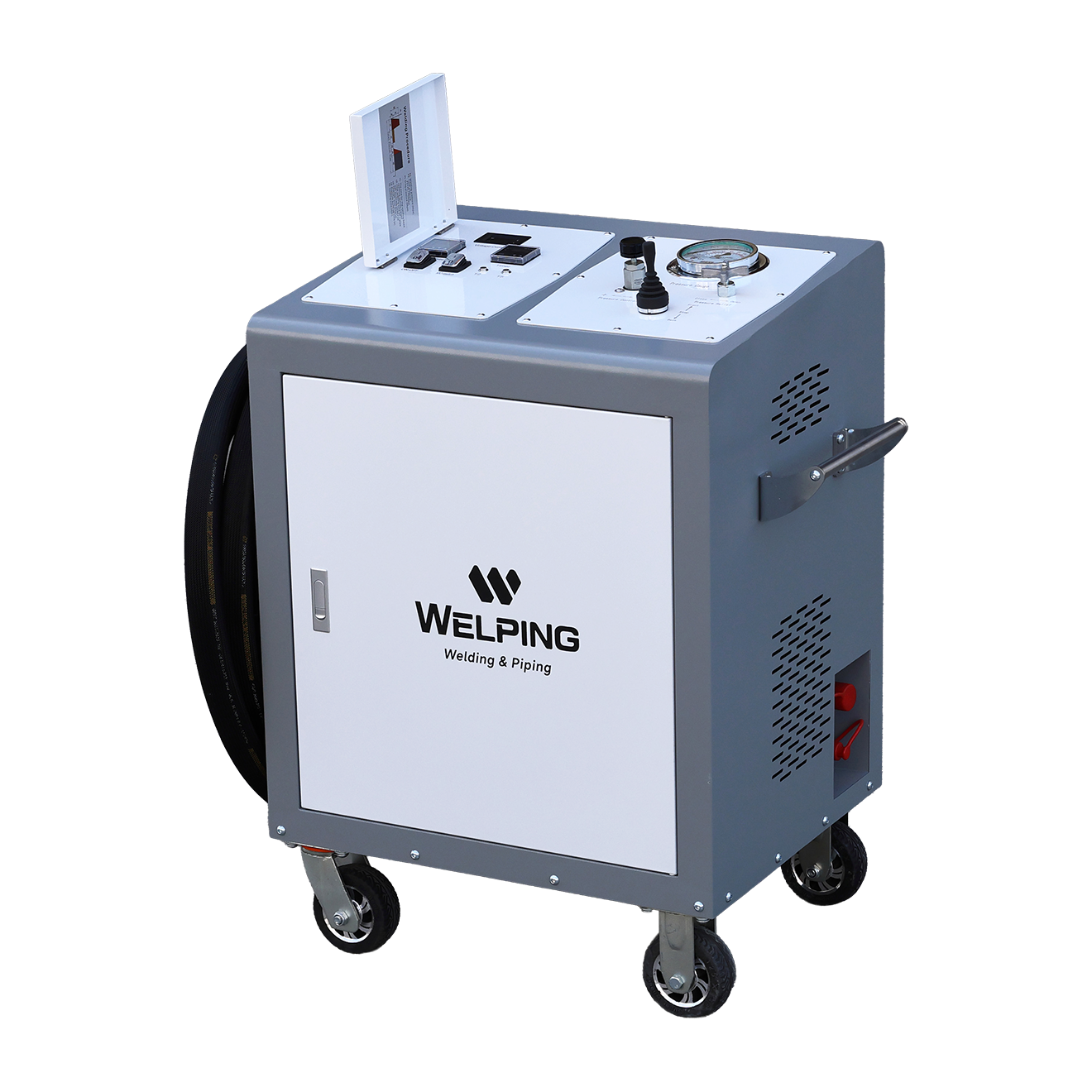

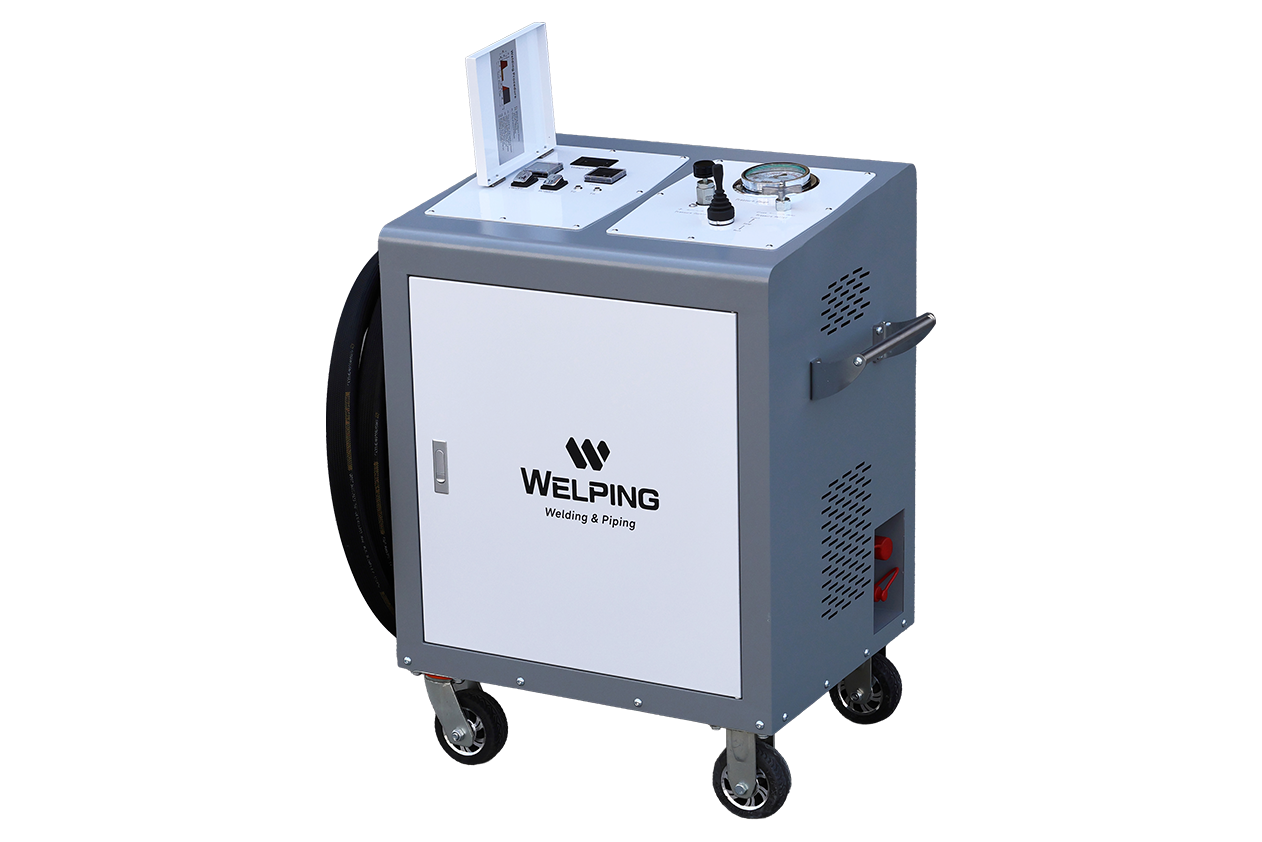

Hydraulic station

· Integrated hydraulic and electrical control.All-in-one control panel:hydraulic actuation, pressure setting, timing,electric info display, temperature setting

· Enclosure design, shielding splash and dirtand wheels, for easy transportation

· Built with Siemens or other well-knownbrand electronic components

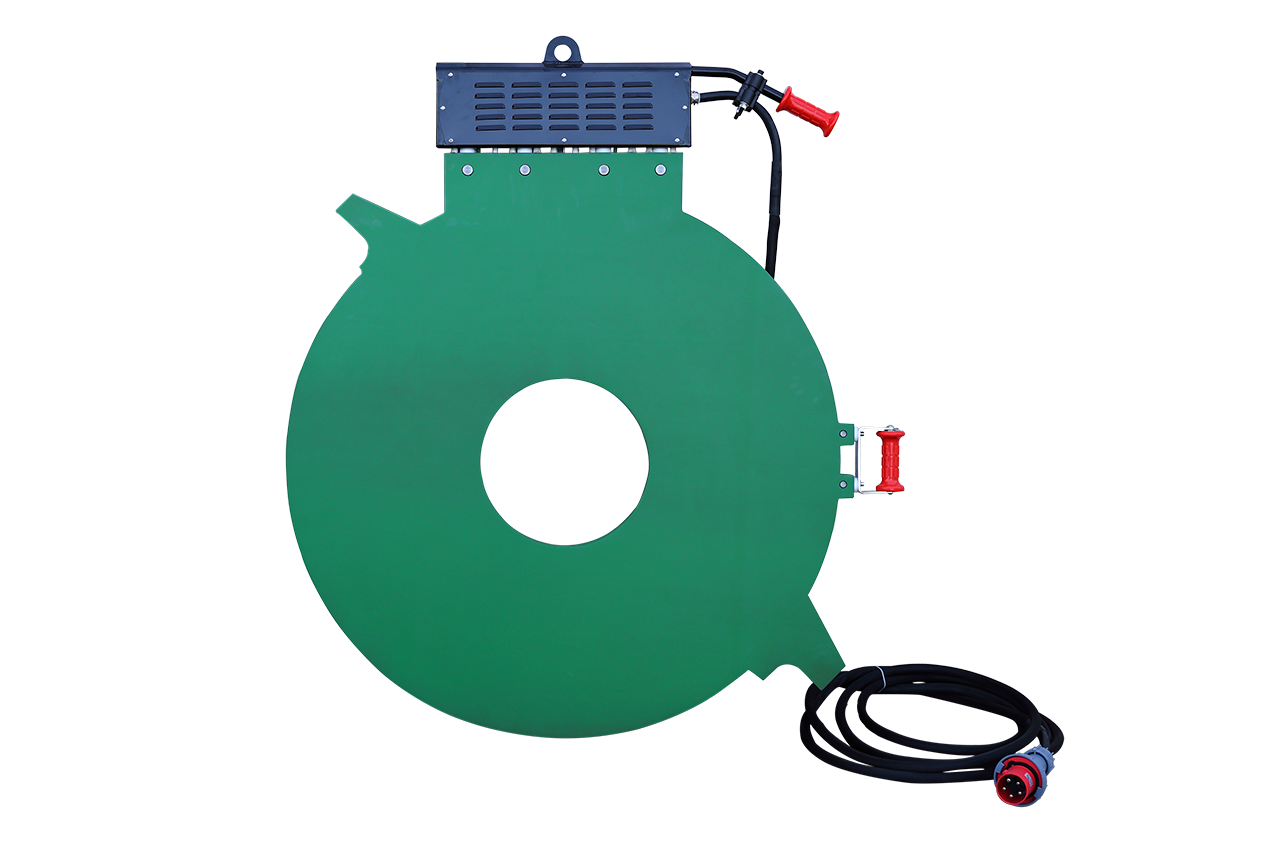

Heating plate

· Thickened cast aluminum body with built-inheating elements

· Anti-stick PEFT coating from Daikin

· Excellent teperature diavation control,ess than 7°C

· Qualified aviation plug and heavy-duty powercord ensure operation safety

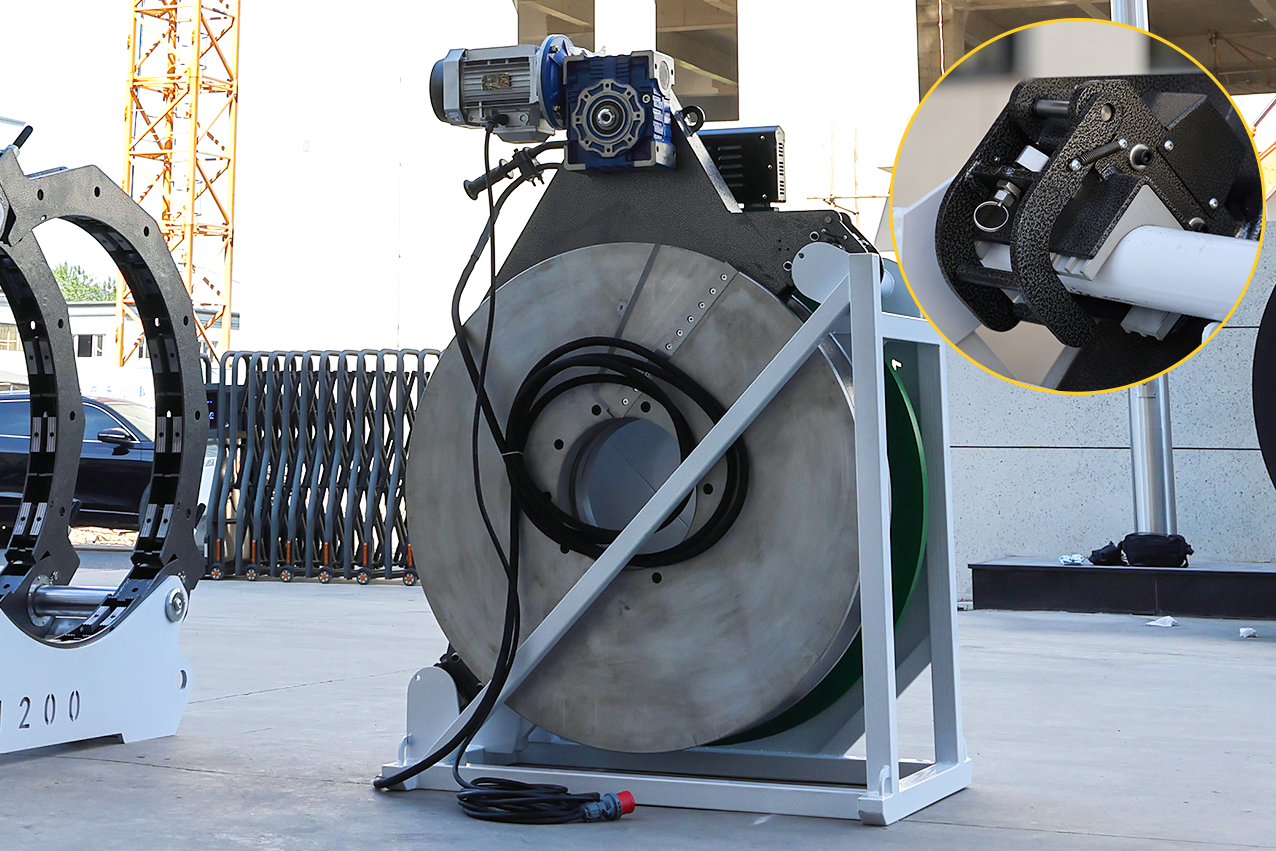

Facer (Milling Cutter)

· Reinforced chain drive with a self-tensioningdesign keeps the facer stable and helpsprevent loosening after long-term operatior

· Powerful copper-wiring motor

· Reinforced aluminum die-cast facer plate

· Durable, double edges HSS blades

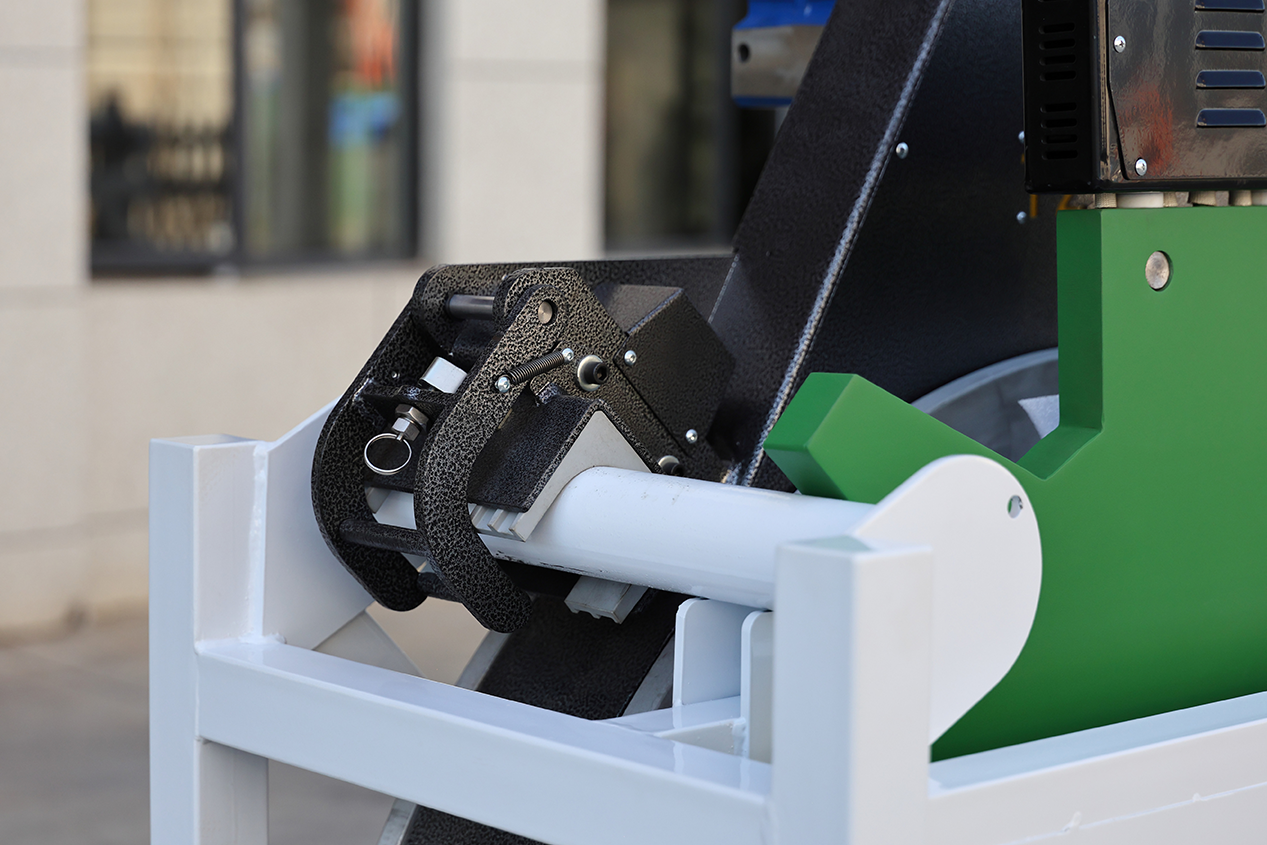

· Innovative locking part,easy to use

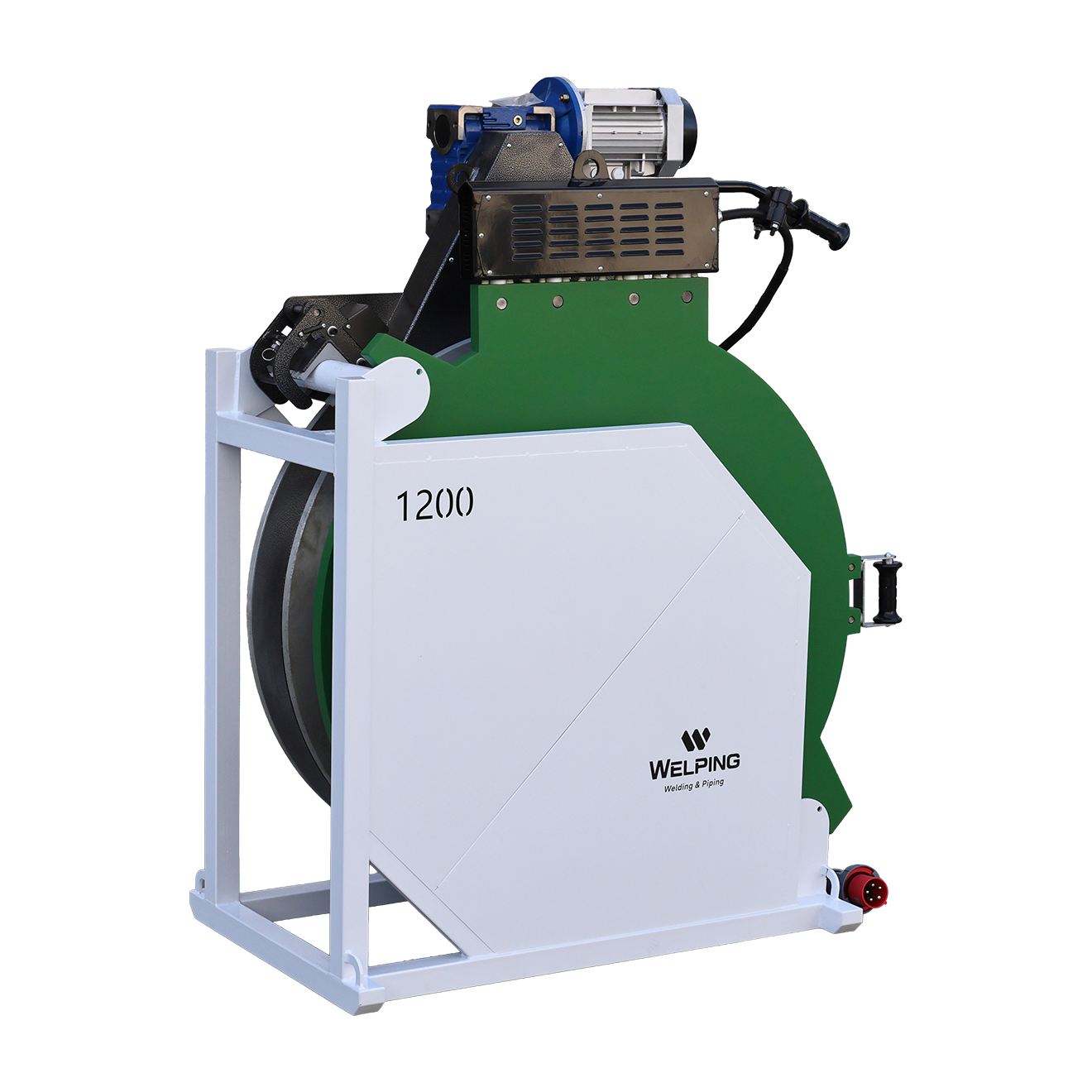

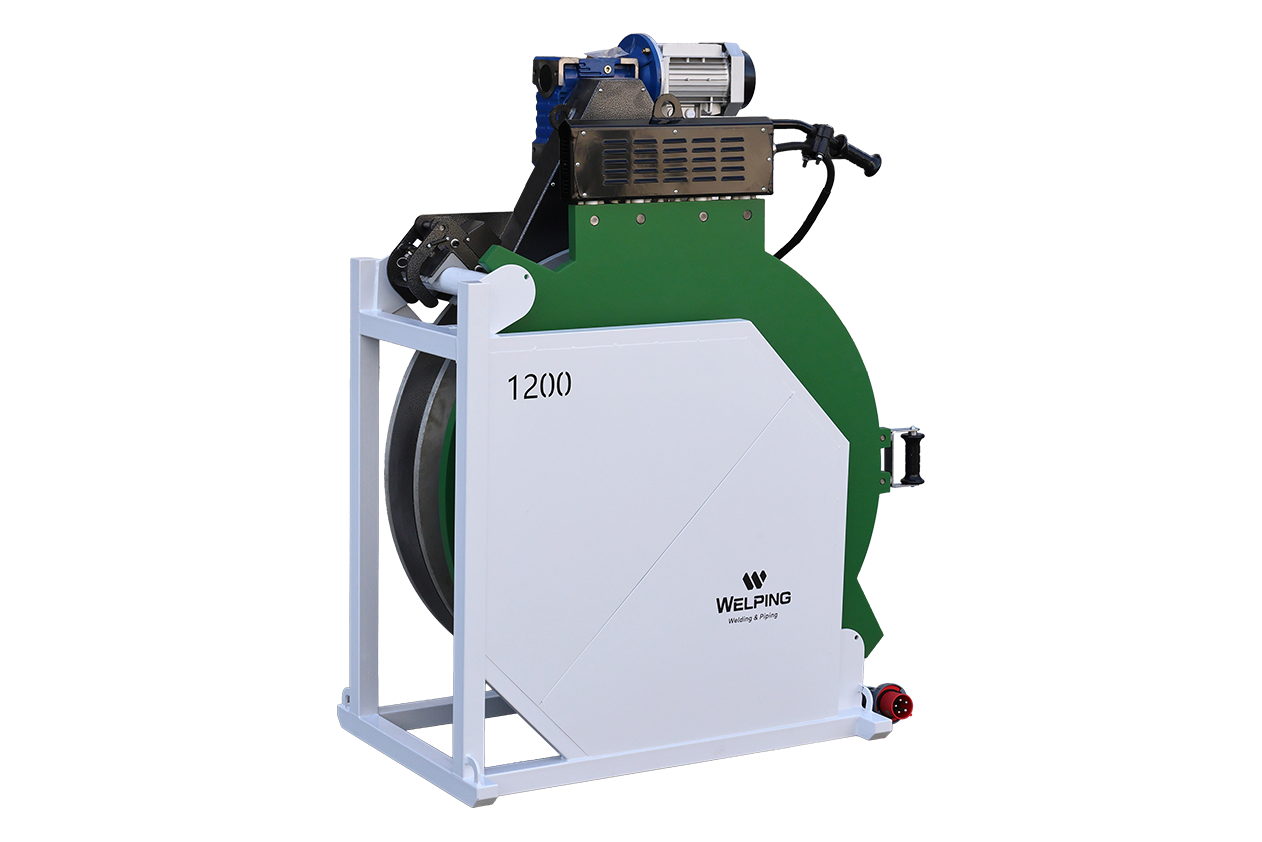

Tool holder

· Complete heating plate covers for betterprotection and heating conservation

· Wide base with lifting lugs

· For stable stock of facer and heating plate

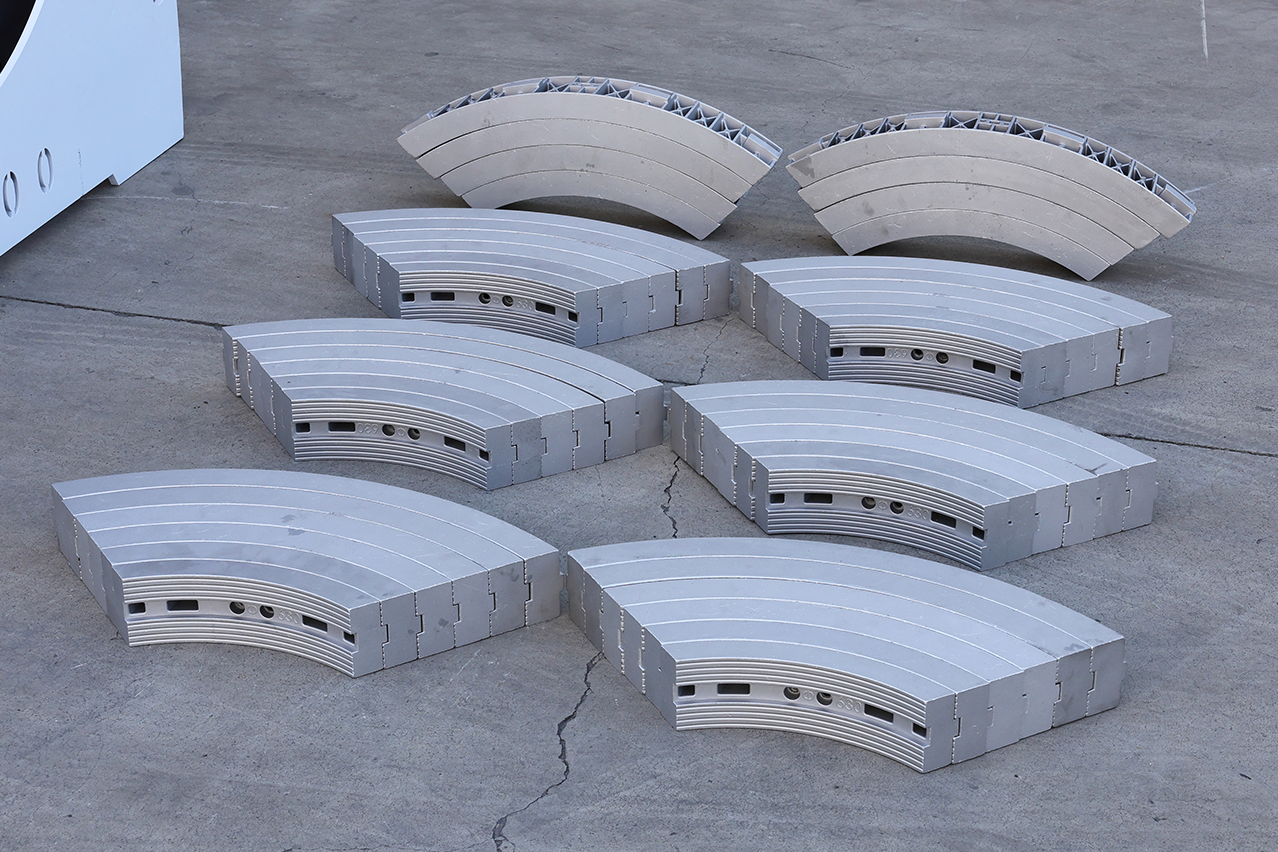

Clamp inserts

· The WP1200Adie-cast aluminum inserts for 630, 710, 800900,1000, and 1100 mm pipe sizes

· Quarter-circle die-cast aluminum insertswith a widened surface

· Designed for quick installation and removal
