Wp355A PRO
WELPING
| Quantity: | |
|---|---|

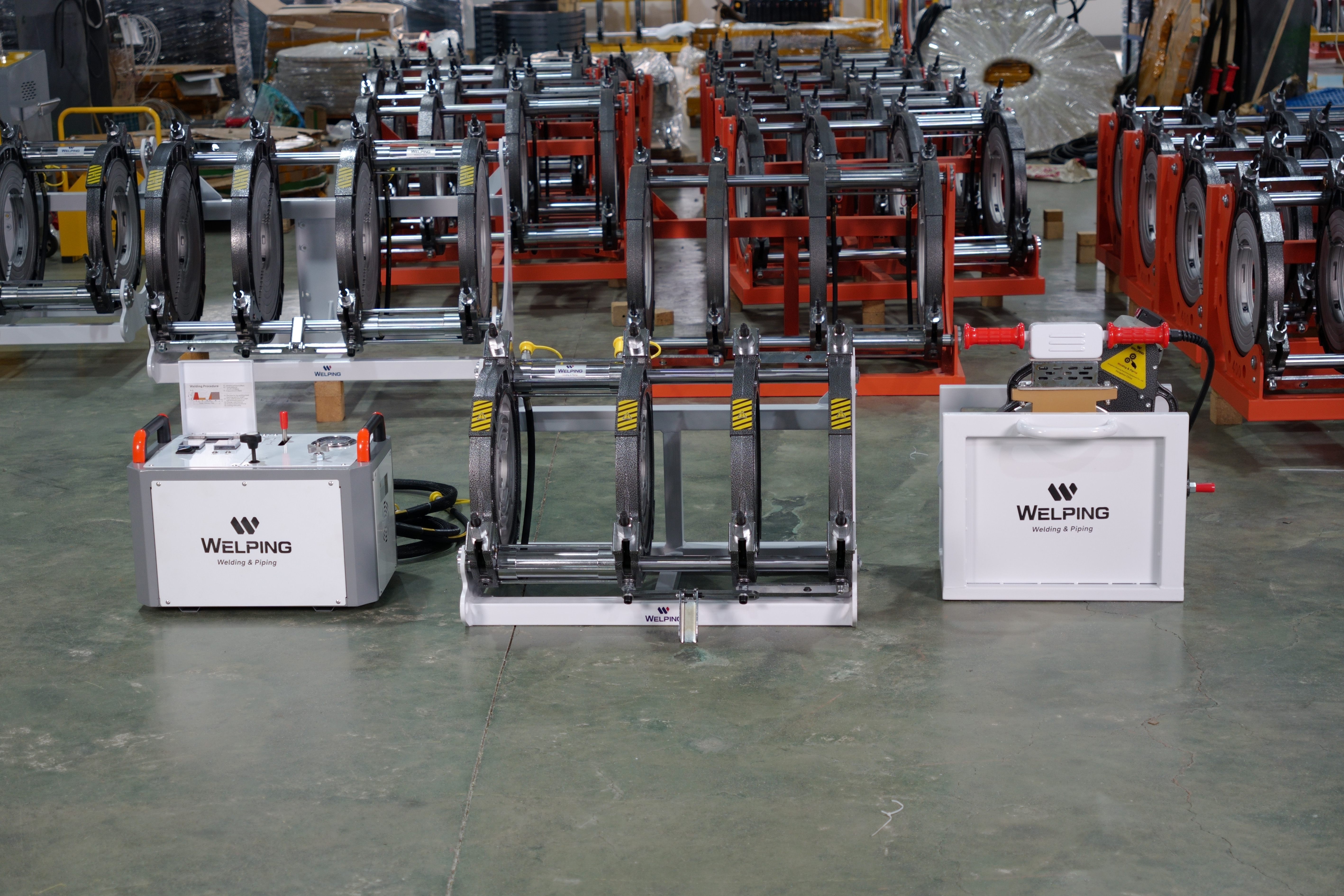

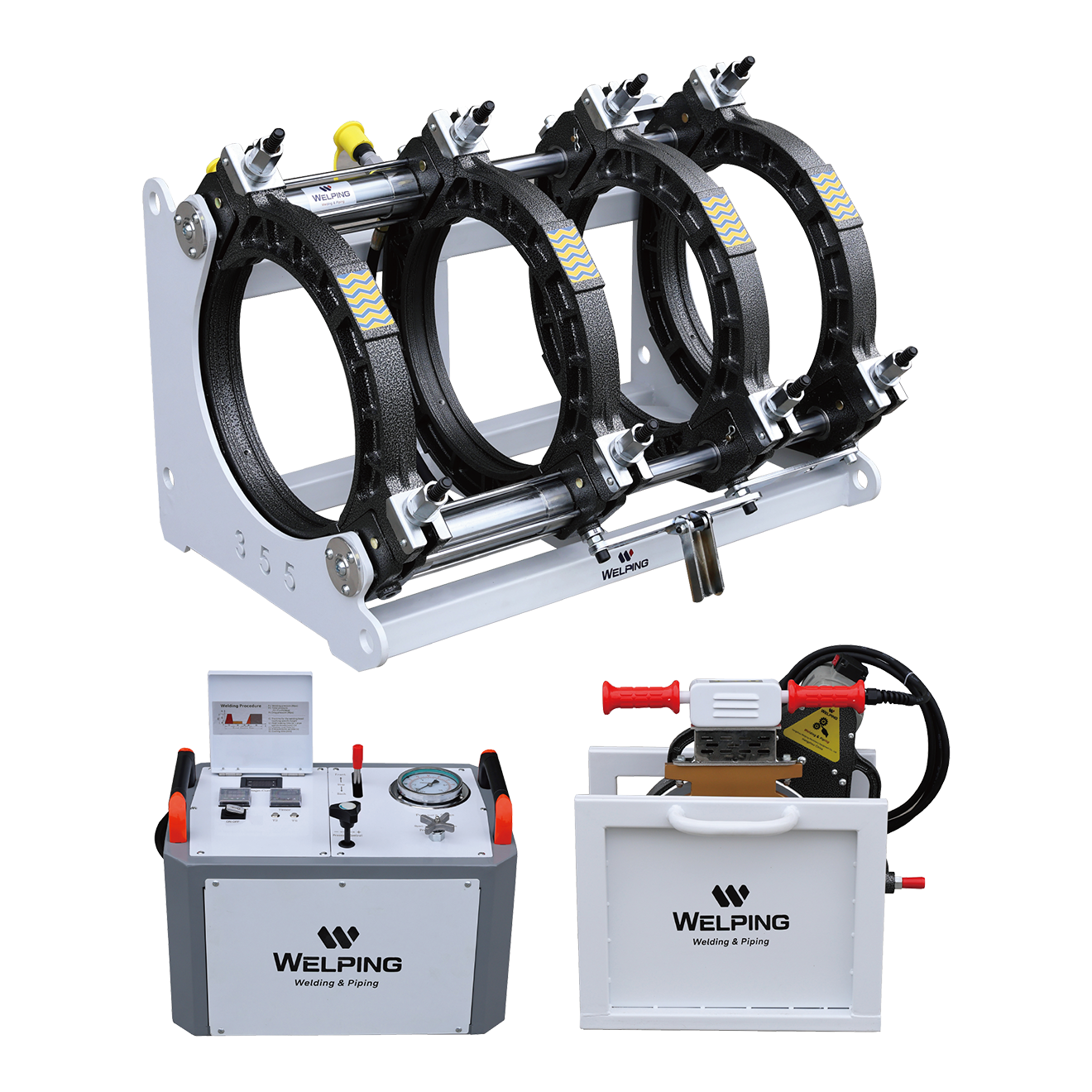

The High-End Series WP355A PRO butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.
The Butt Fusion Machine is designed to butt fuse pipe sizes 90mm to 355mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.
| Model NO. | WP355A Pro | Control | Semi-Automatic |
| Frequency Range | Low Frequency | Electric Current | AC |
| Type | Semi-Automatic | Weldable Material | HDPE/PP/PVDF |
| Rated Voltage | AC 220V, 50Hz, 1PH | Hydraulic | Enclosure Housing |
| Certificate | CE, SGS | Warranty | 12 Months |
| Rated Power | 6.3kW | Heating Plate | 3.55kW |
| Trimmer | 2.0kW | Hydraulic Unit | 0.75kW |
| Pressure Range | 0-6.3Mpa | Transport Package | Plywood Cases |
| Total Volume | 0.85cbm | Gross Weight | 245kg |
| HS Code | 8515809090 | Production Capacity | 20000pieces/Year |

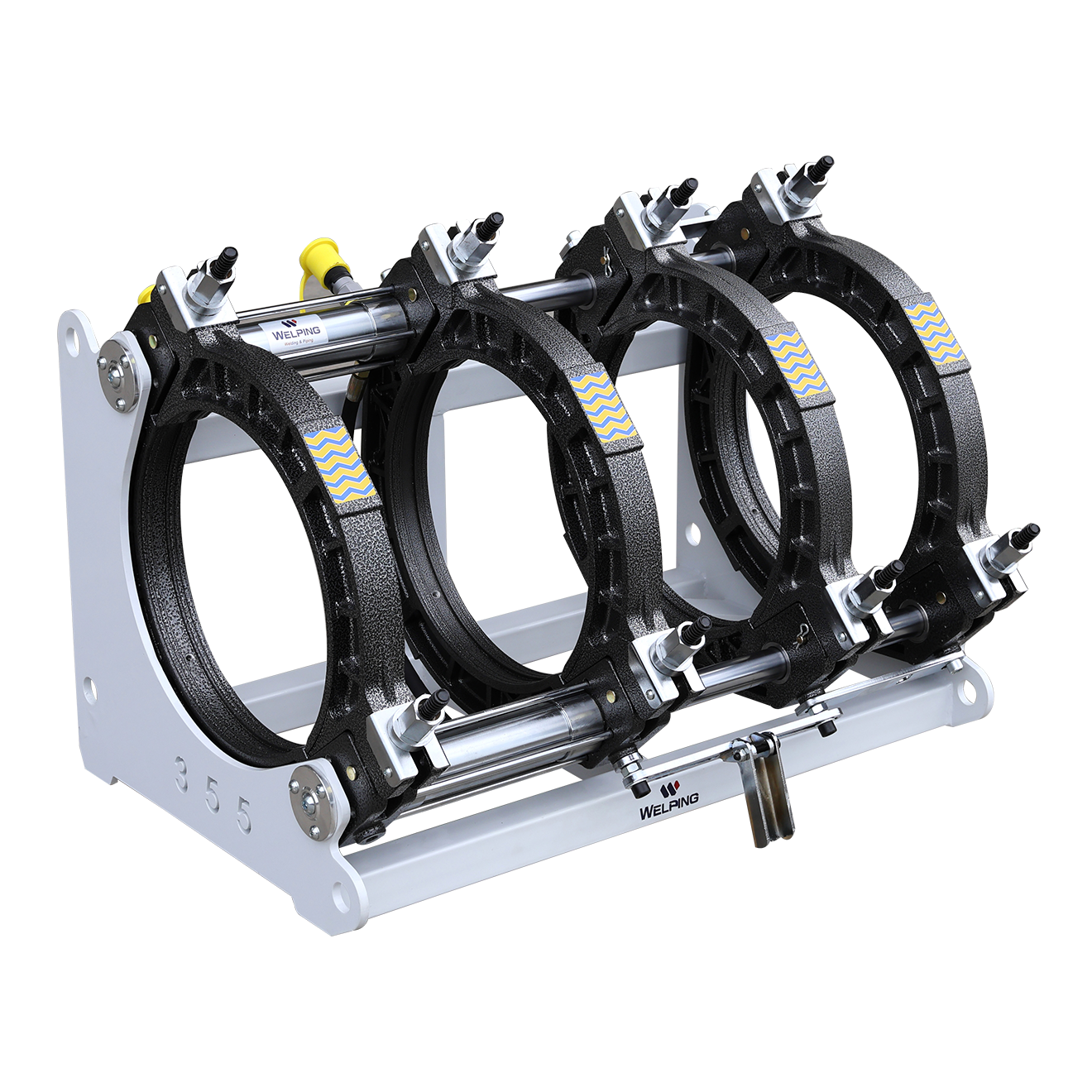

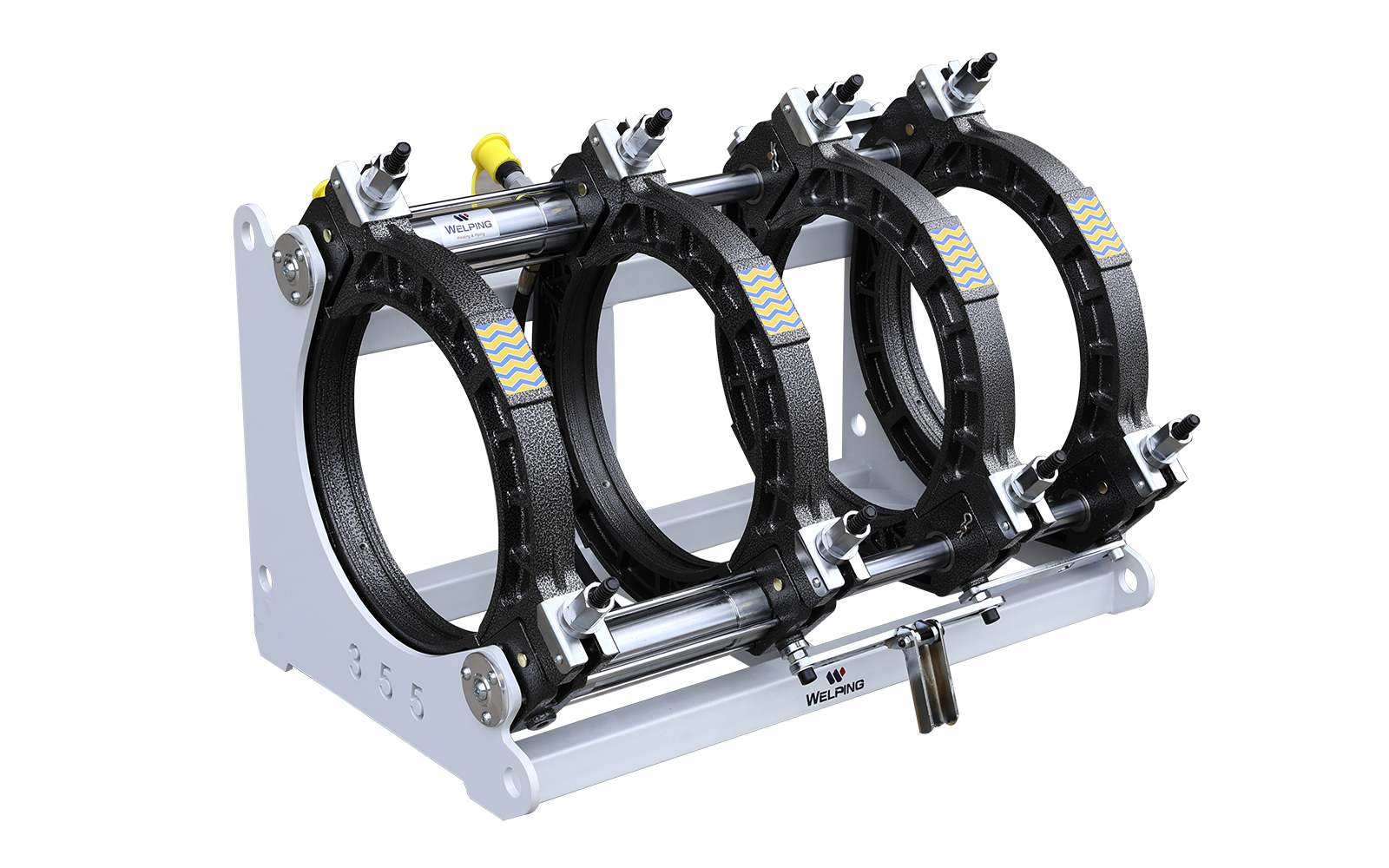

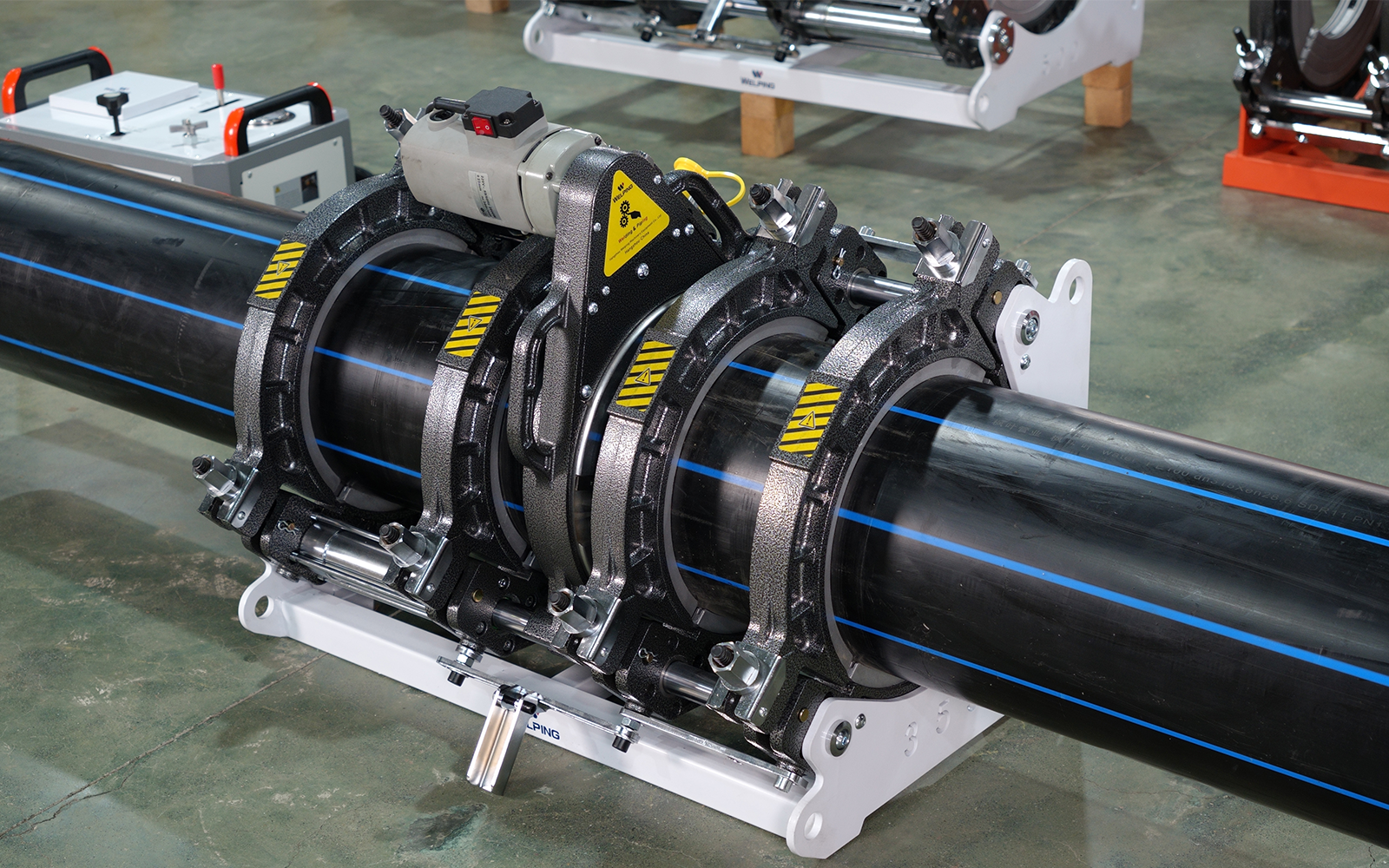

· Complete steel welded design, with complex reinforced structure, heavy-duty
· Thicker and bigger side plates for tough jobs
· Standard equipped with wear-resistant bushings to effectively prevent wear on the aluminum casting during use

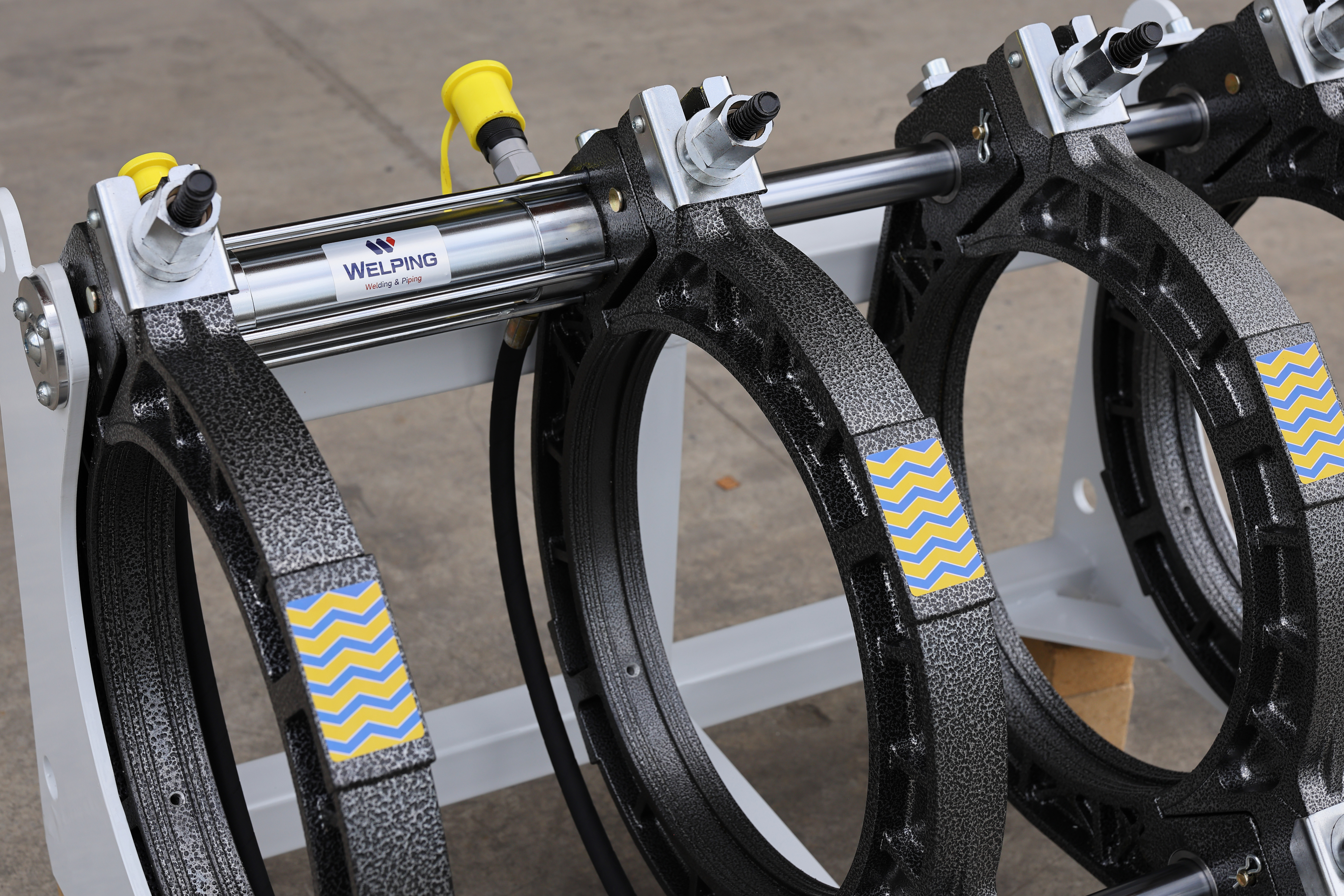

· Qualified hydraulic cylinder with quick couplings, for long-time steady performance

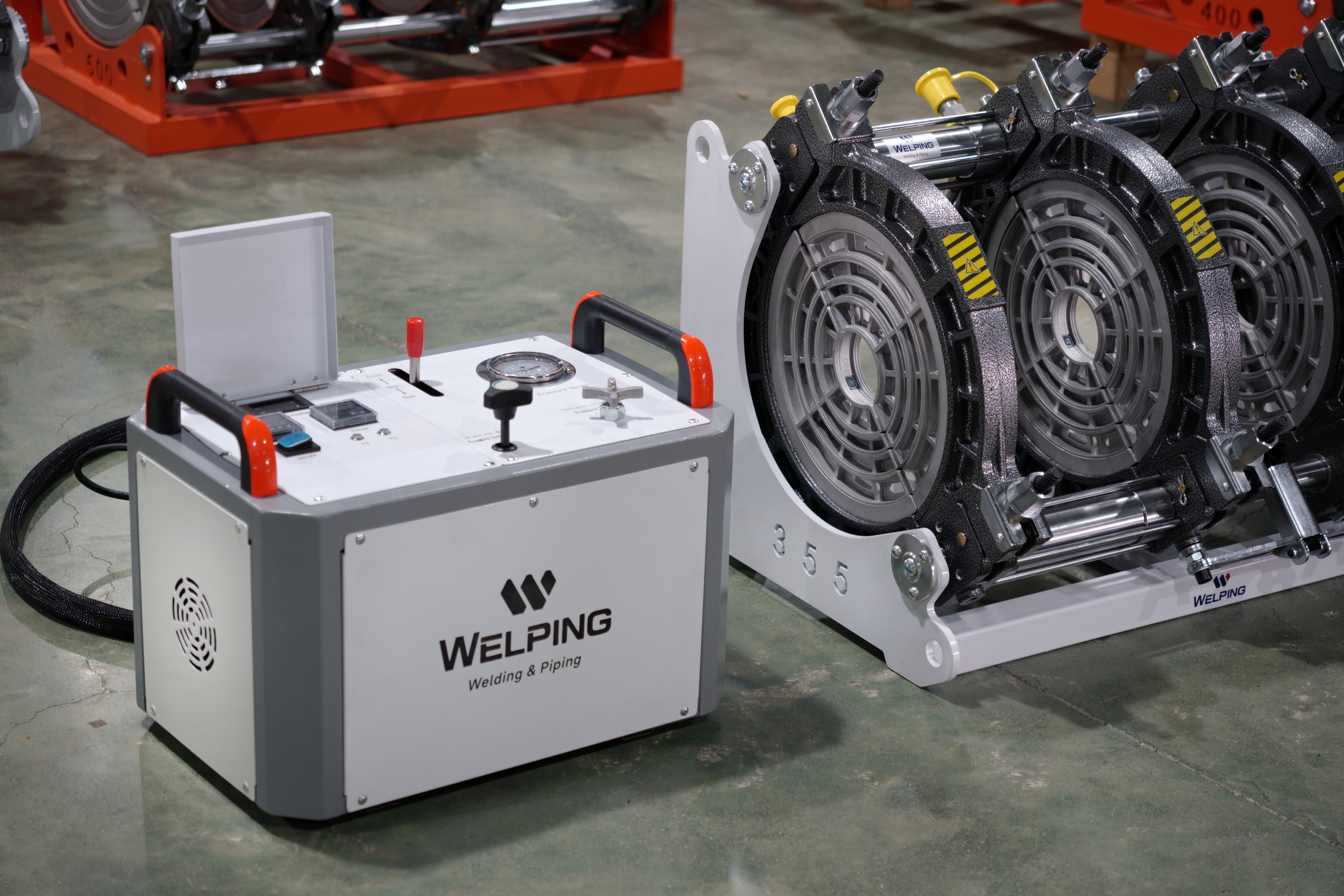

· Integrated hydraulic and electrical control, for easy operation access

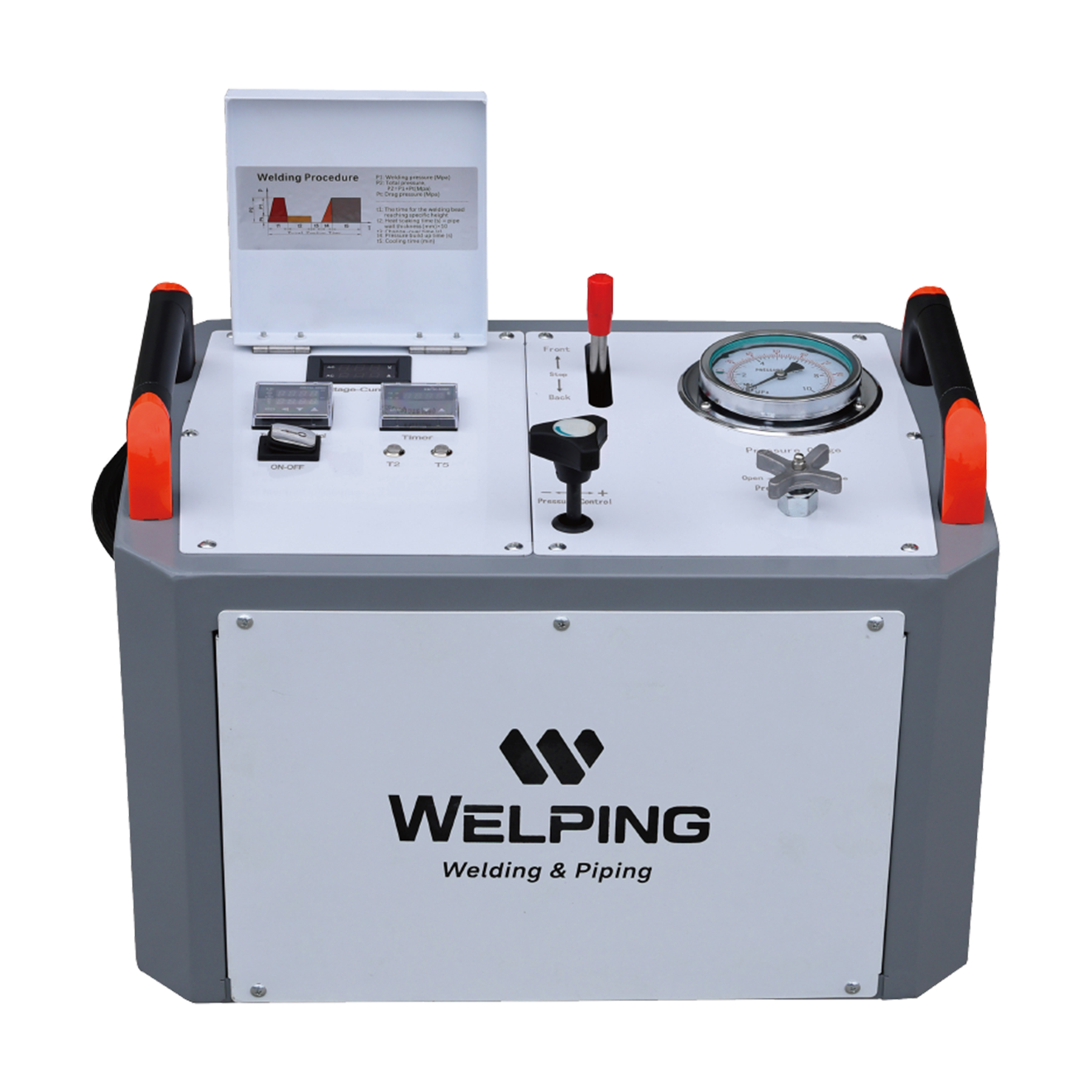

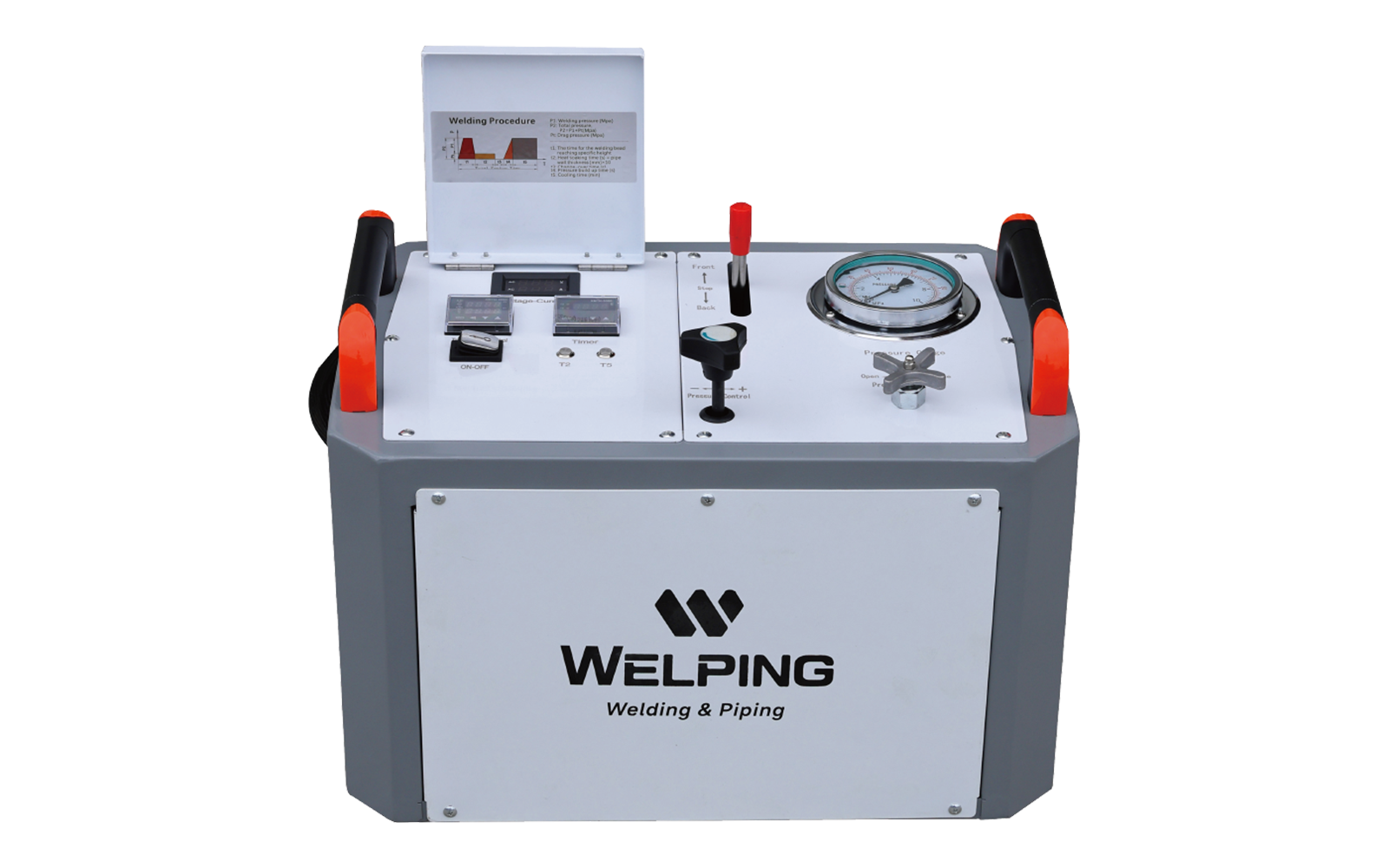

· All-in-one control panel: hydraulic actuation, pressure setting, timing, electric info display, temperature setting
· Enclosure design, shielding splash and dirt
· Qualified Siemens electrical parts

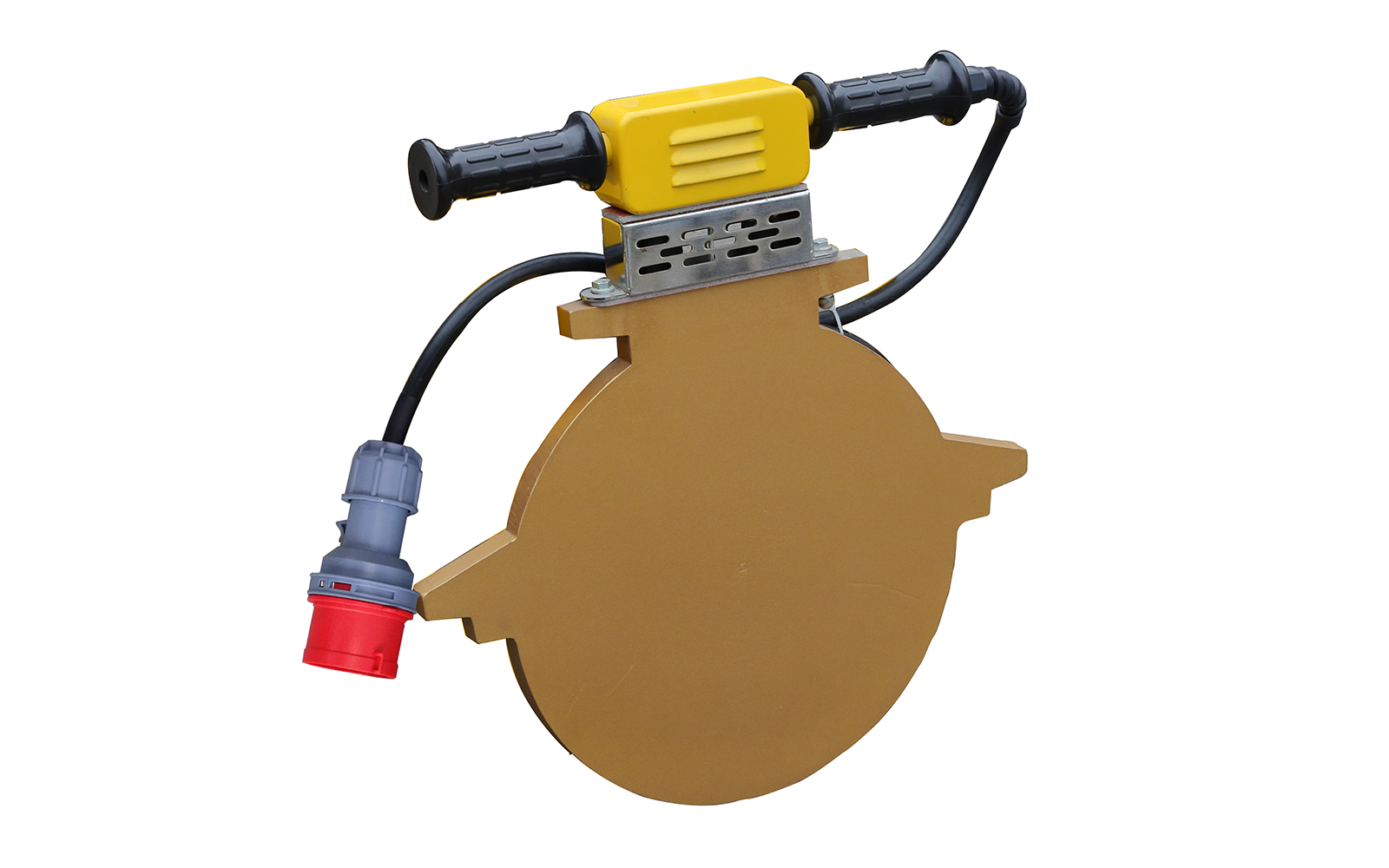

· Cast aluminum body with built-in heating elements
· Anti-stick PEFT coating from Daikin
· Qualified aviation plug and heavy duty cable ensure operation safety
· Full gear transmission structure, for steady and long-life performance

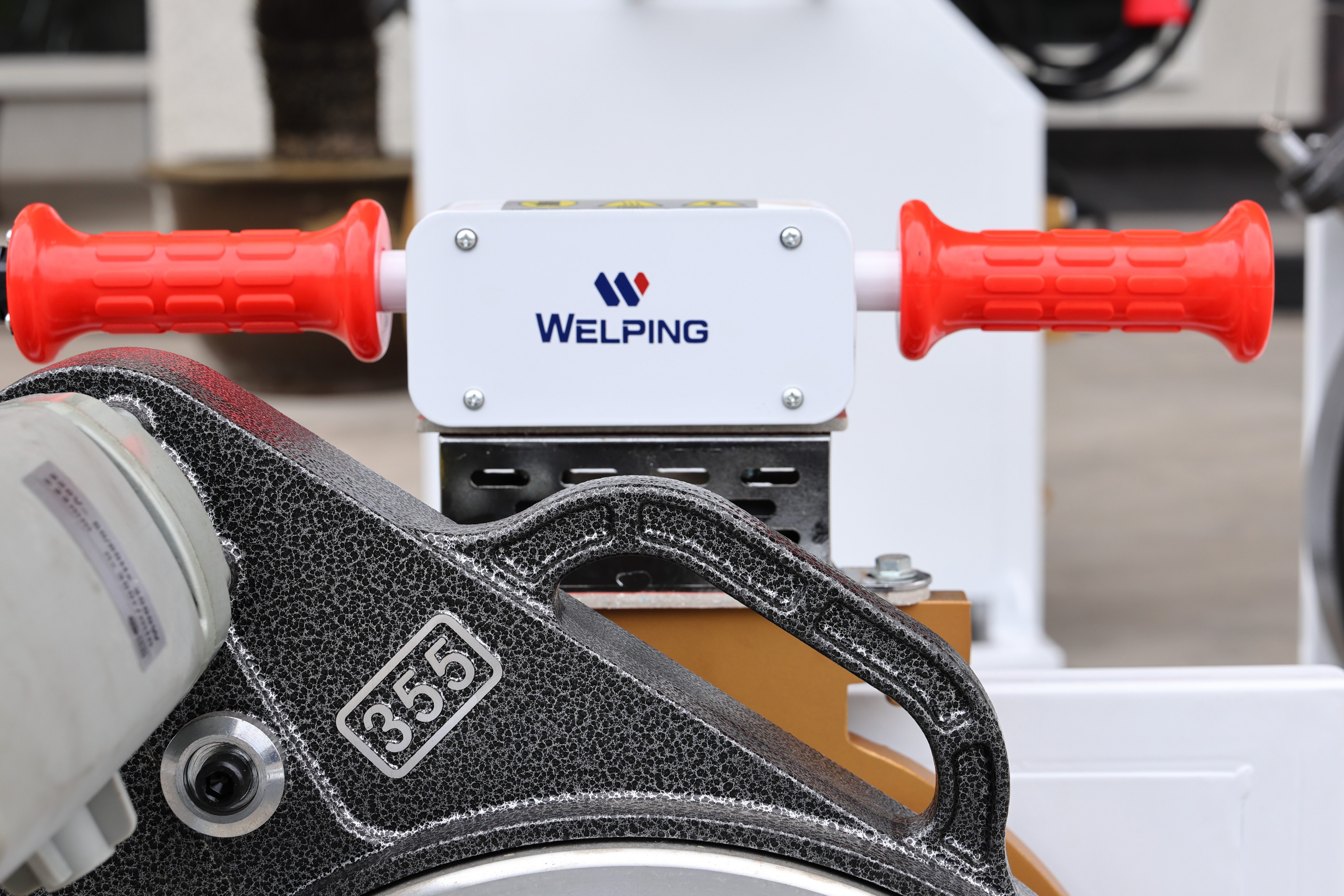

· Thicker cutter disc is built for high strength and durability, with a precision-ground surface for smooth and accurate contact
· Powerful copper-wiring motor
· Durable, double edges HSS blades

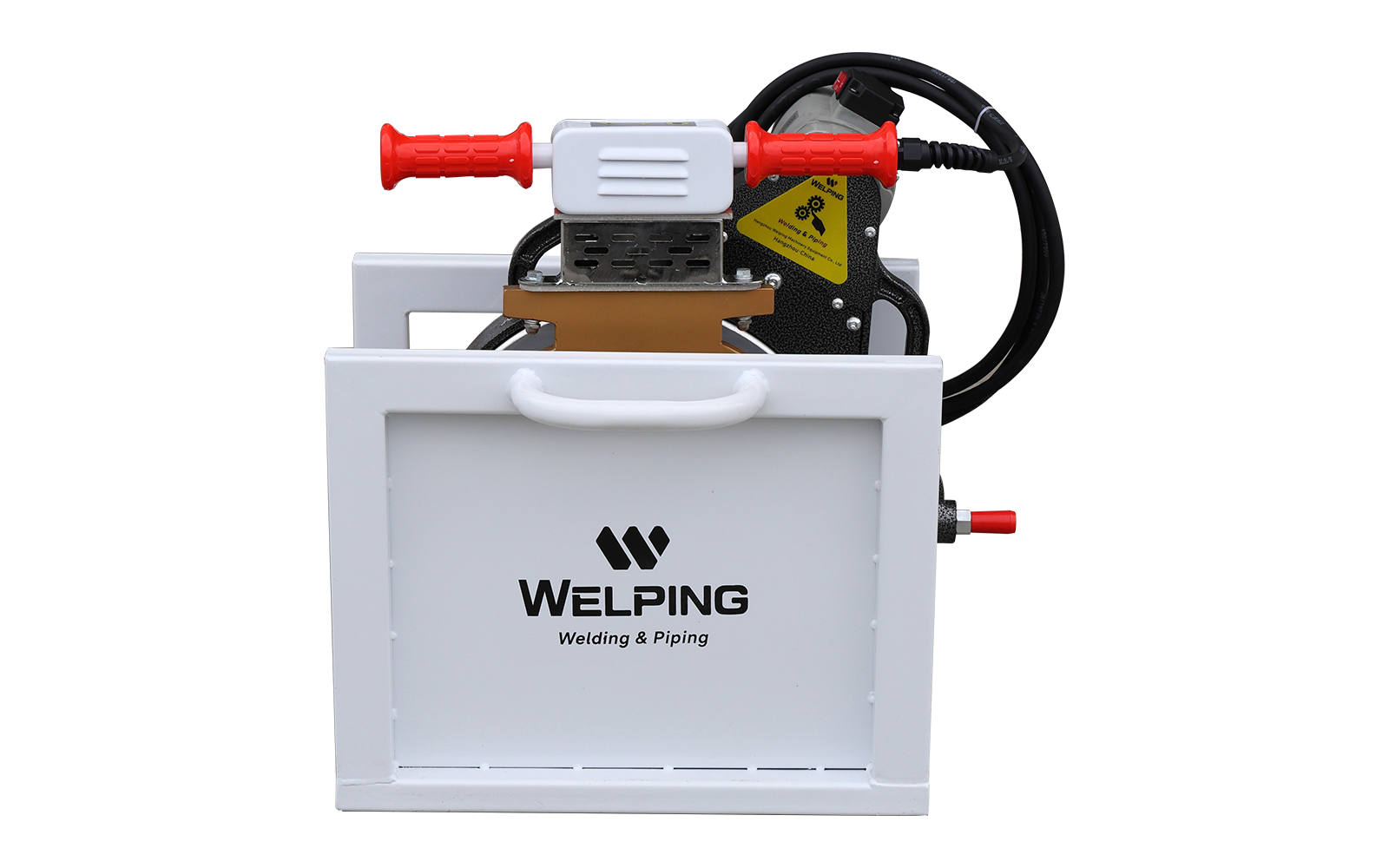

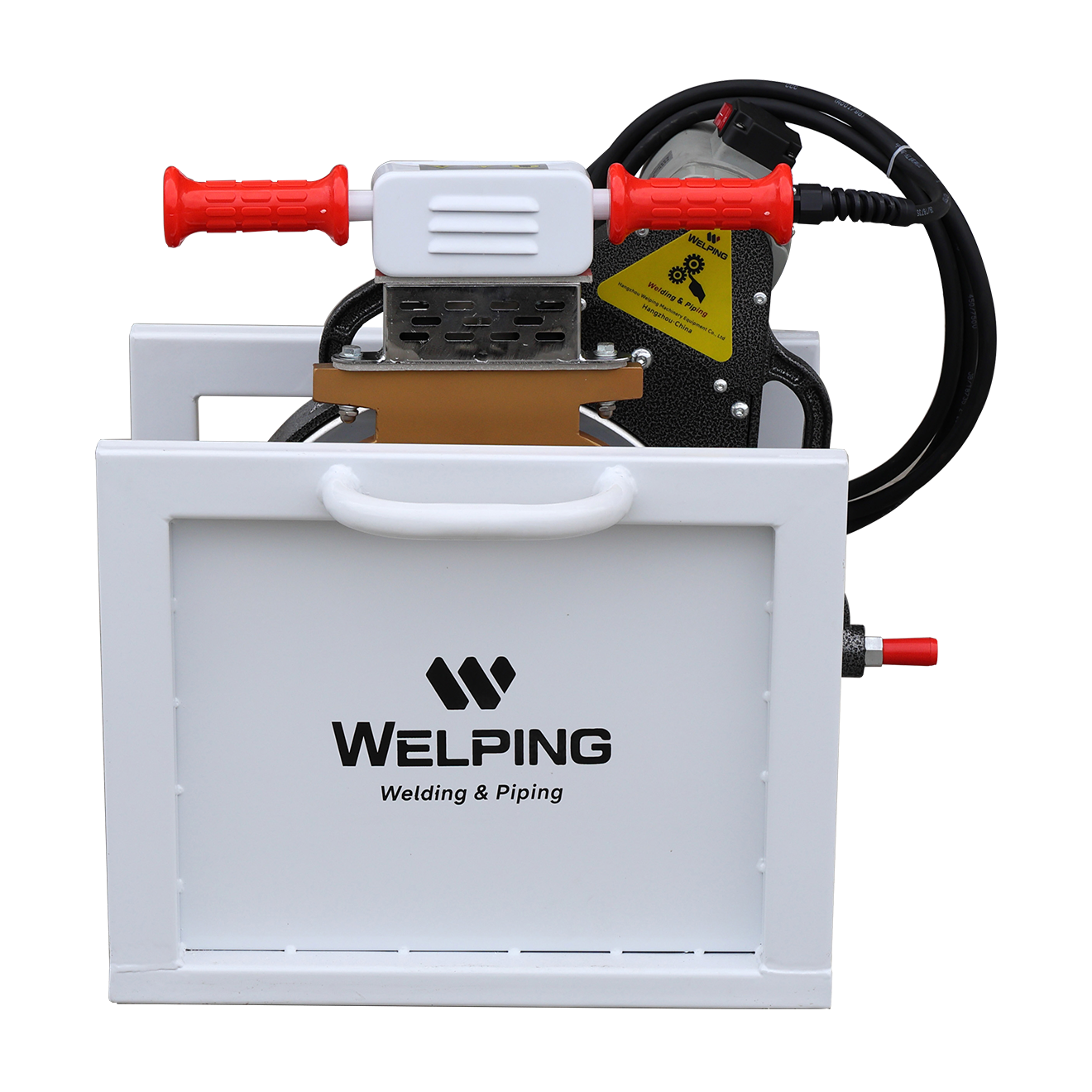

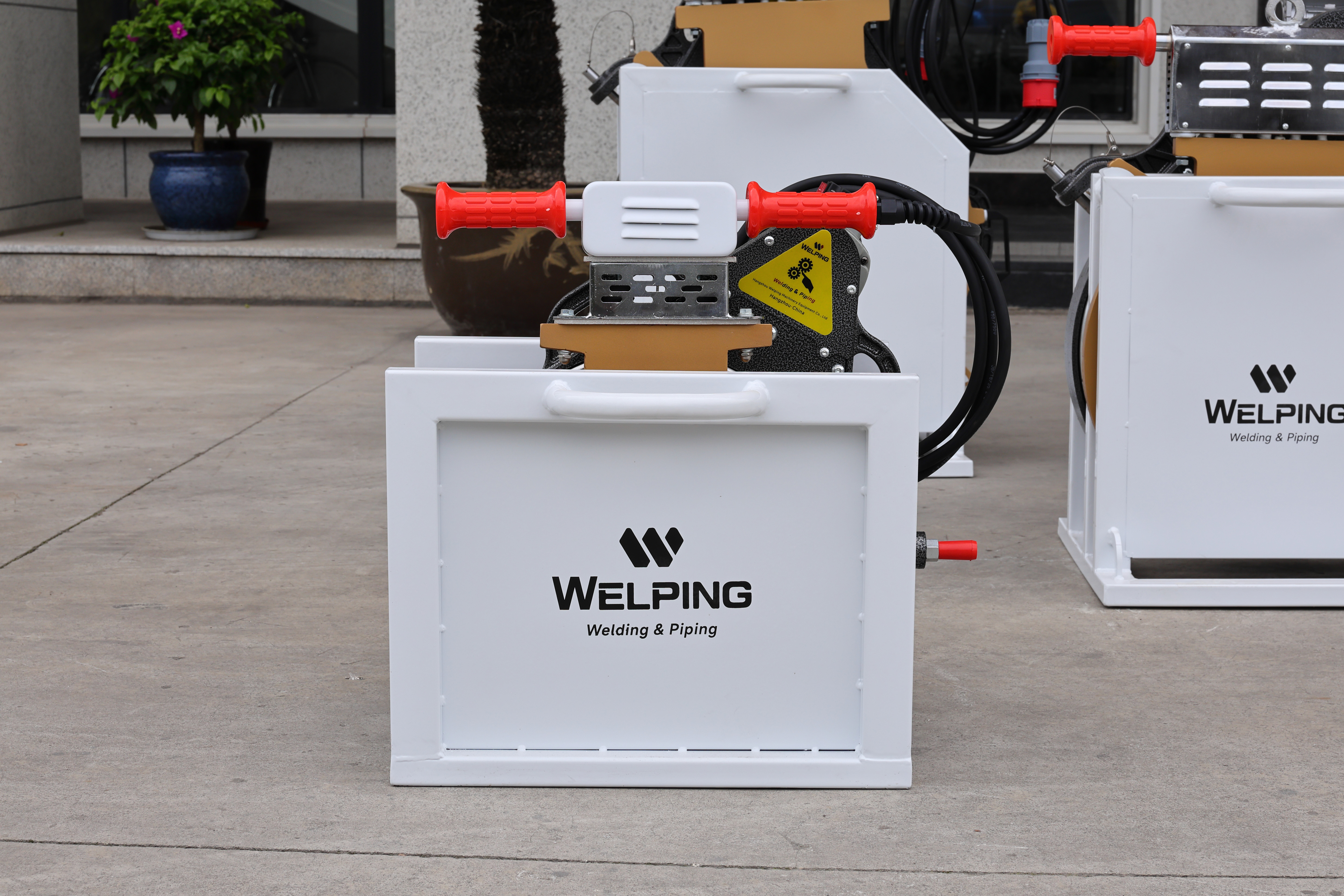

· The tool holder provides convenient storage for the facer and heating plate during on-site operations
· Complete heating plate covers for better protection and heating conservation
· 2 Wider handles for better mobility
