HDPE Butt Fusion Welding Machine 400mm | Hydraulic Pipe Fusion Machine WP400A PRO

Share to:

HDPE Butt Fusion Welding Machine 400mm | Hydraulic Pipe Fusion Machine WP400A PRO

Name: HDPE Butt Fusion Welding Machine 400mm | Hydraulic Pipe Fusion Machine WP400A PRO
Brand: WELPING
Rating: 5.0 (34 reviews)

It is a versatile machine designed for butt fusion of 180mm to 500mm pipe and fittings, with durability and reliability.

Model:
WP400A PRO
Brand:
WELPING

Availability:

Quantity:



Inquire Add to Basket

Product Description

DETAILS

HDPE pipe has been used extensively in the piping applications of municipal, industrial, marine, mining, landfill, duct and agricultural industries.

Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding machine can provide reliable joints, even as strong as the complete pipe.

The High-End Series WP400A PRO butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.

Basic Info

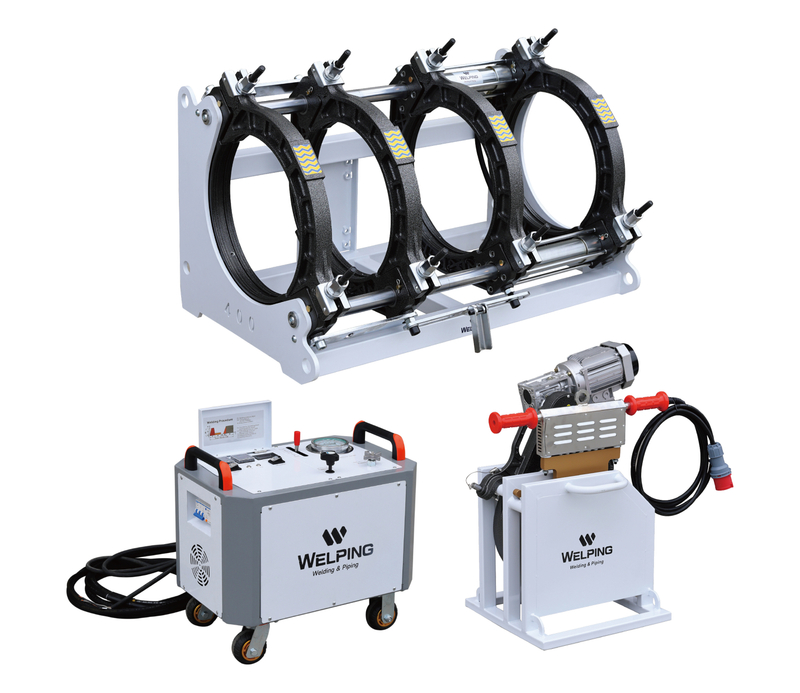

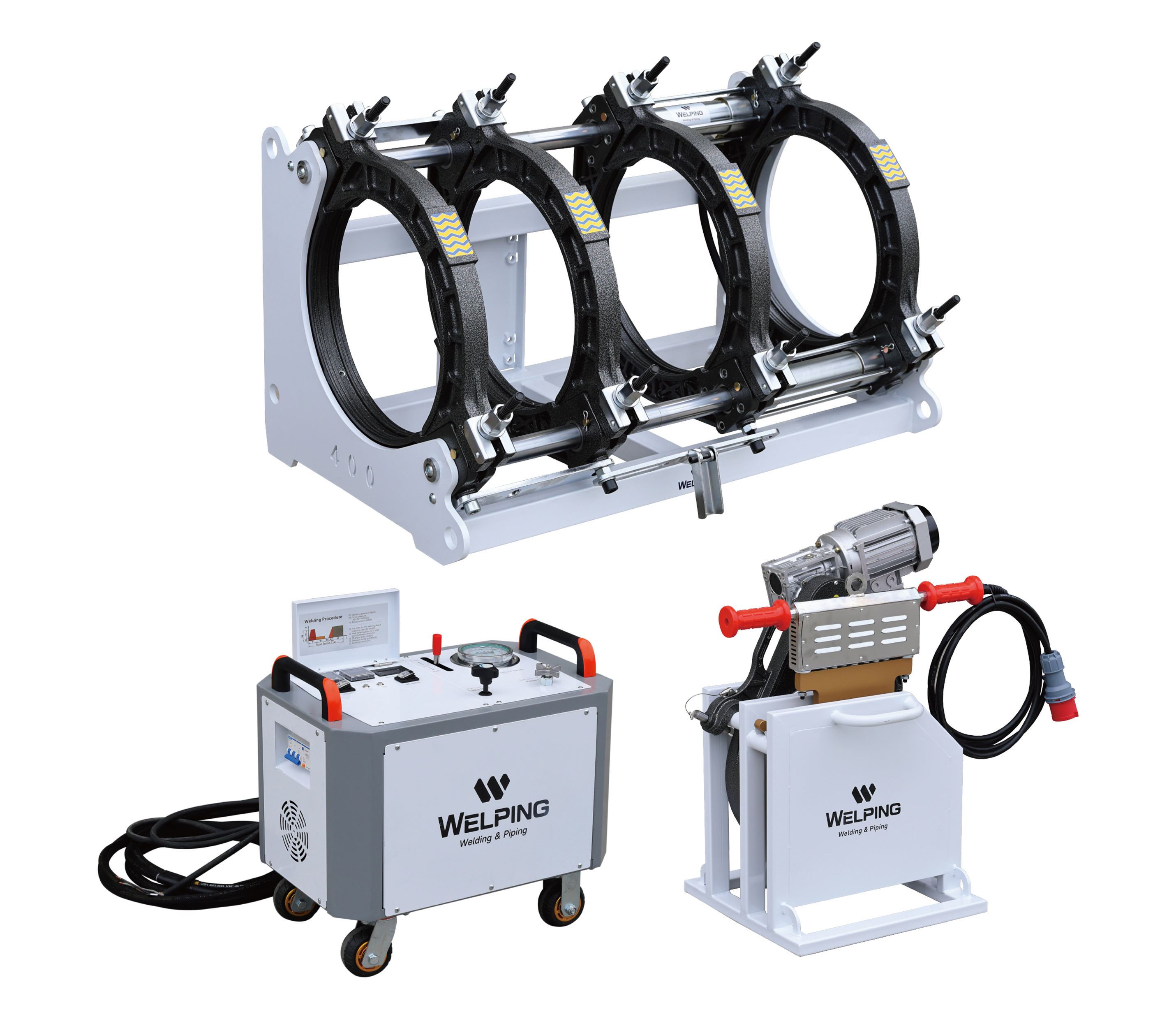

The Butt Fusion Machine is designed to butt fuse pipe sizes 180mm to 400mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.

Facer

Model NO.	WP400A Pro	Control	Semi-Automatic
Frequency Range	Low Frequency	Electric Current	AC
Type	Resistance Butt Welder	Weldable Material	HDPE/PP/PVDF
Rated Voltage	AC 380V, 50Hz, 3PH	Hydraulic	Enclosure Housing
Certificate	CE, SGS	Warranty	12 Months
Total power	8.7kW	Heating Plate	6.5kW
Facer	1.1 KW	Hydraulic station	1.1 KW
Pressure Range	0-10 MPa	Transport Package	Plywood Cases
Max Temperature	270ºC	Certificate	ISO/CE/VOC/Calibration
HS Code	8515809090	Production Capacity	20000pieces/Year

PRODUCT DETAILS MAP

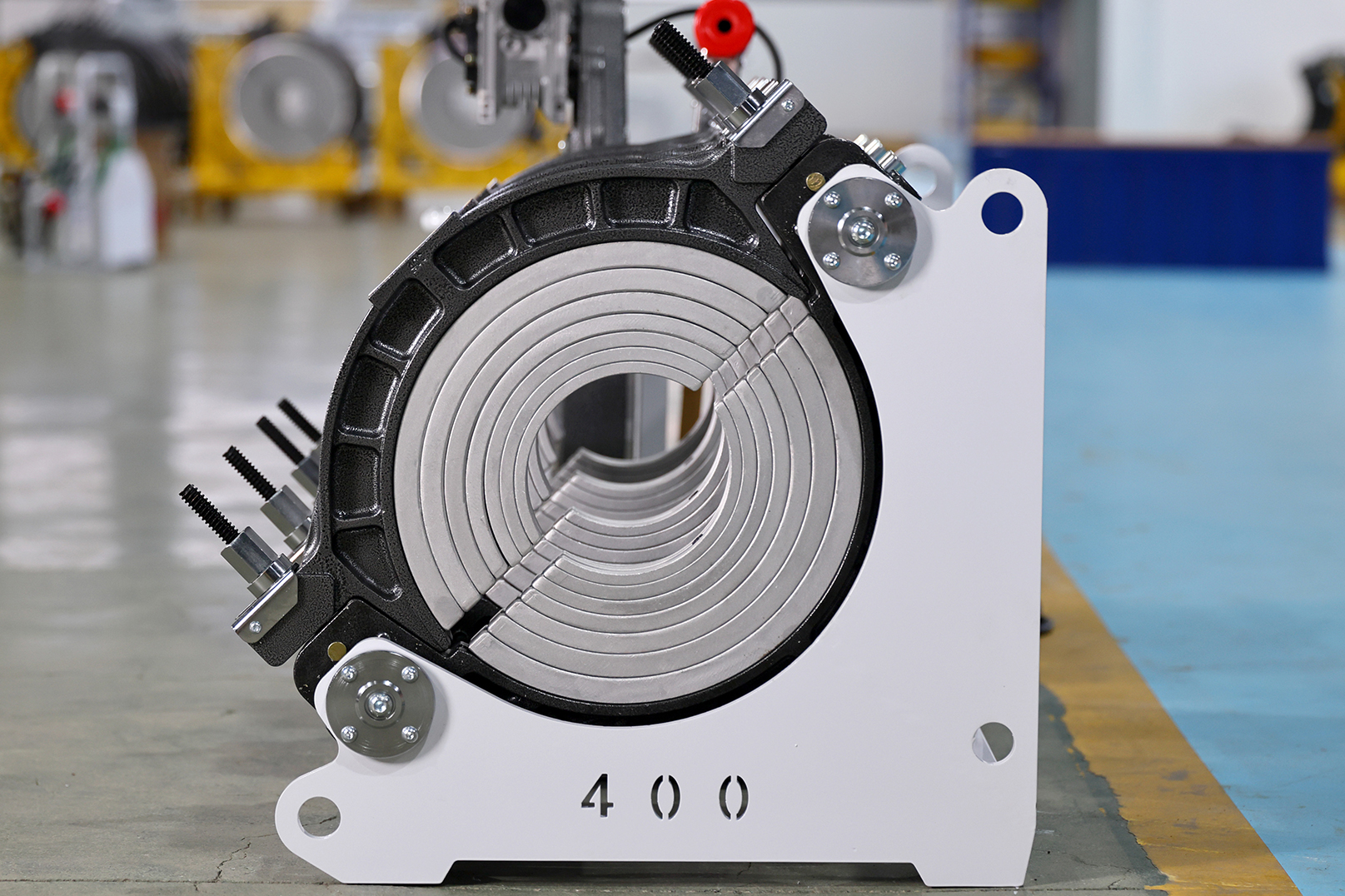

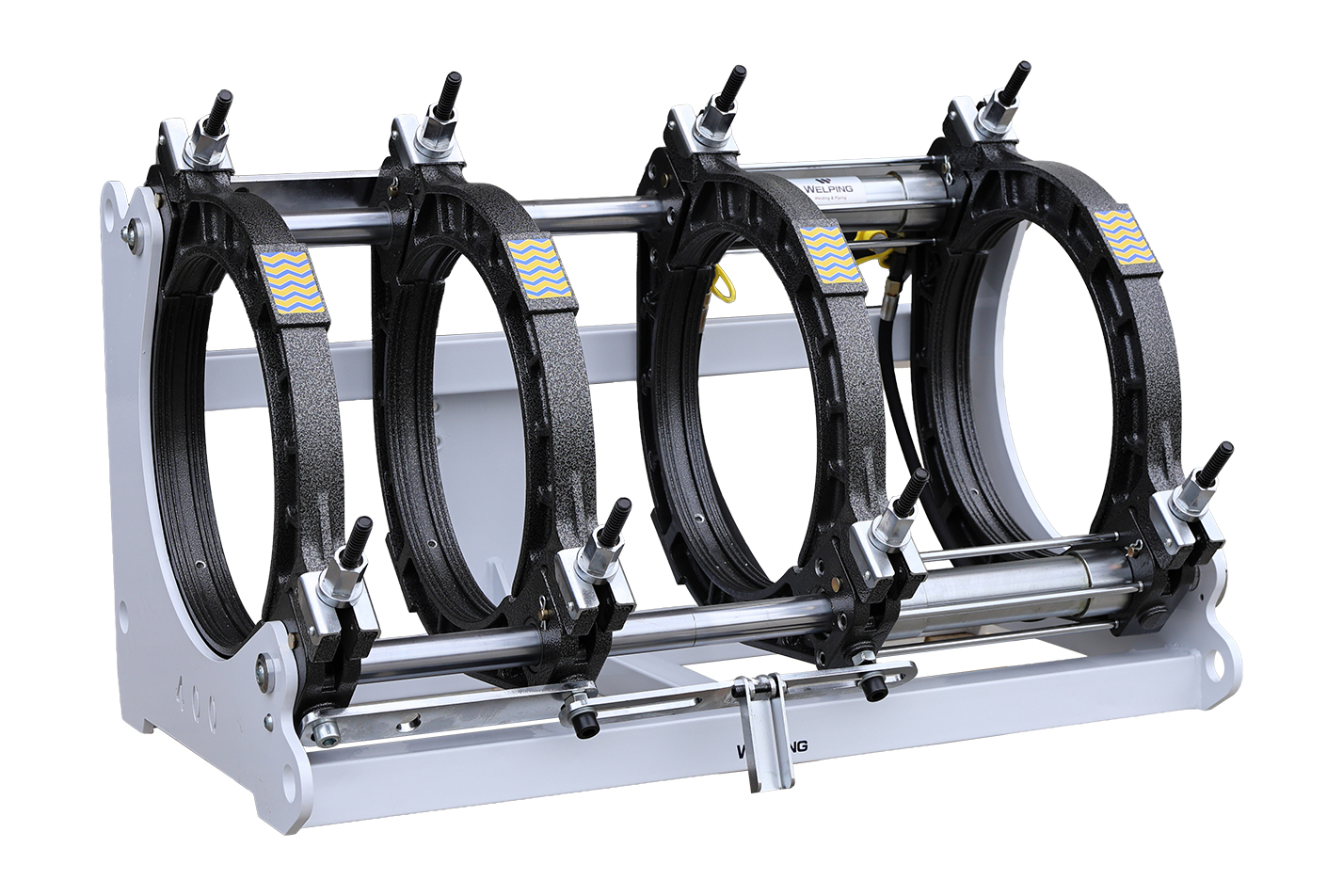

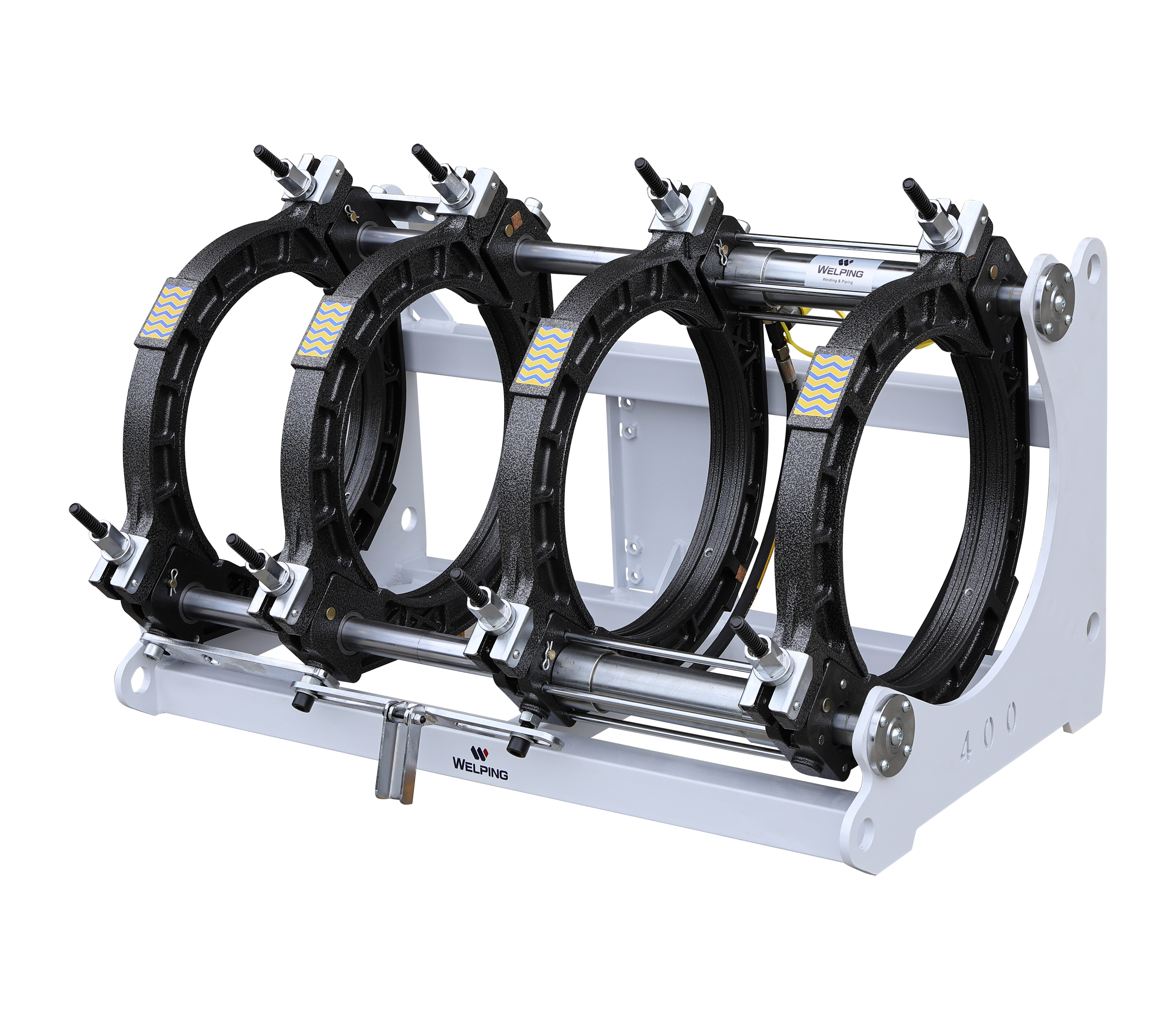

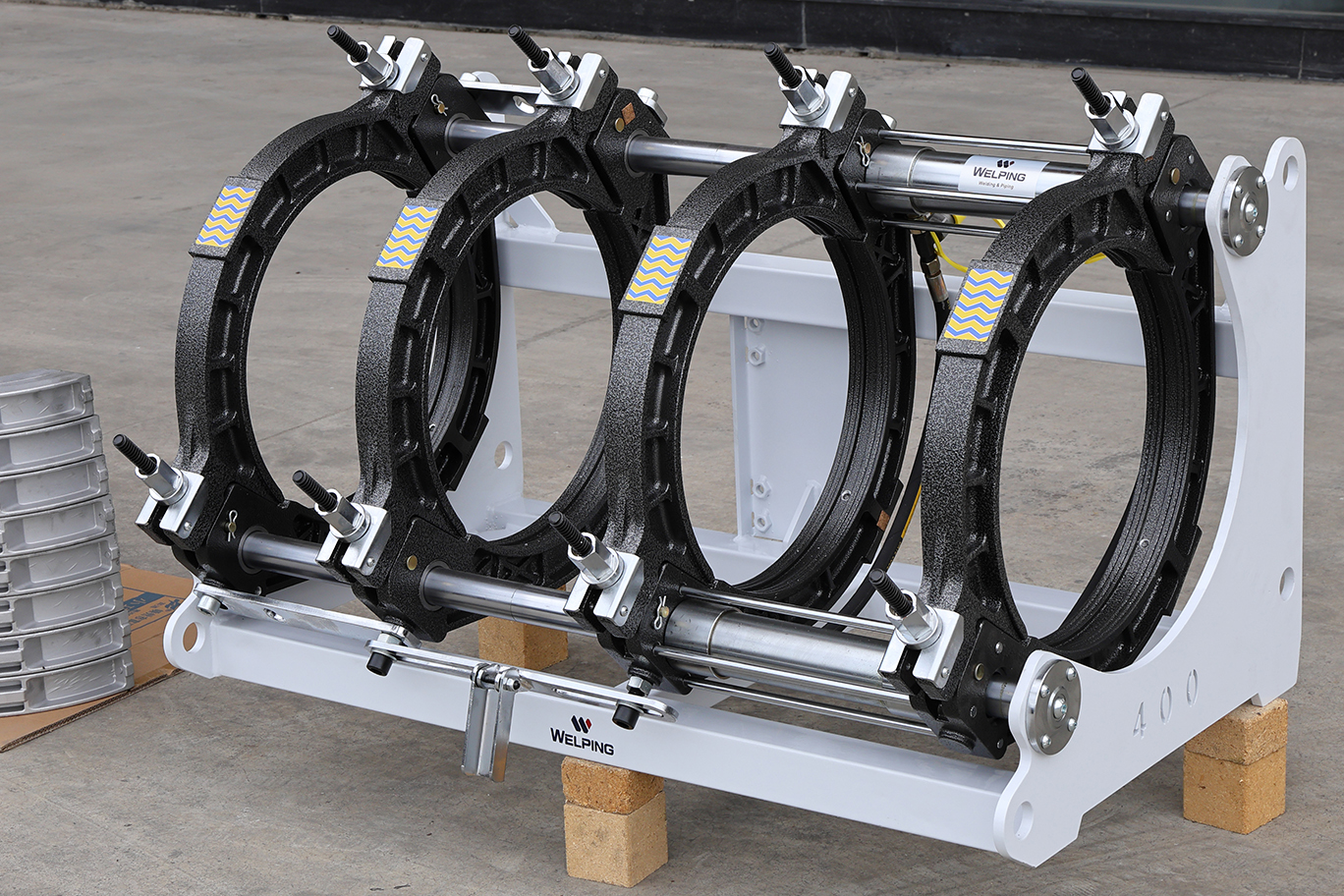

Frame(Carriage)

· Complete reinforced welded steel structure, strong, free of distortion

· Aluminum strengthened clamping part

· 4 upper rings are equipped with anti - friction pads to protect the aluminum casting

· Qualified hydraulic cylinder with quick couplings, for easy installation

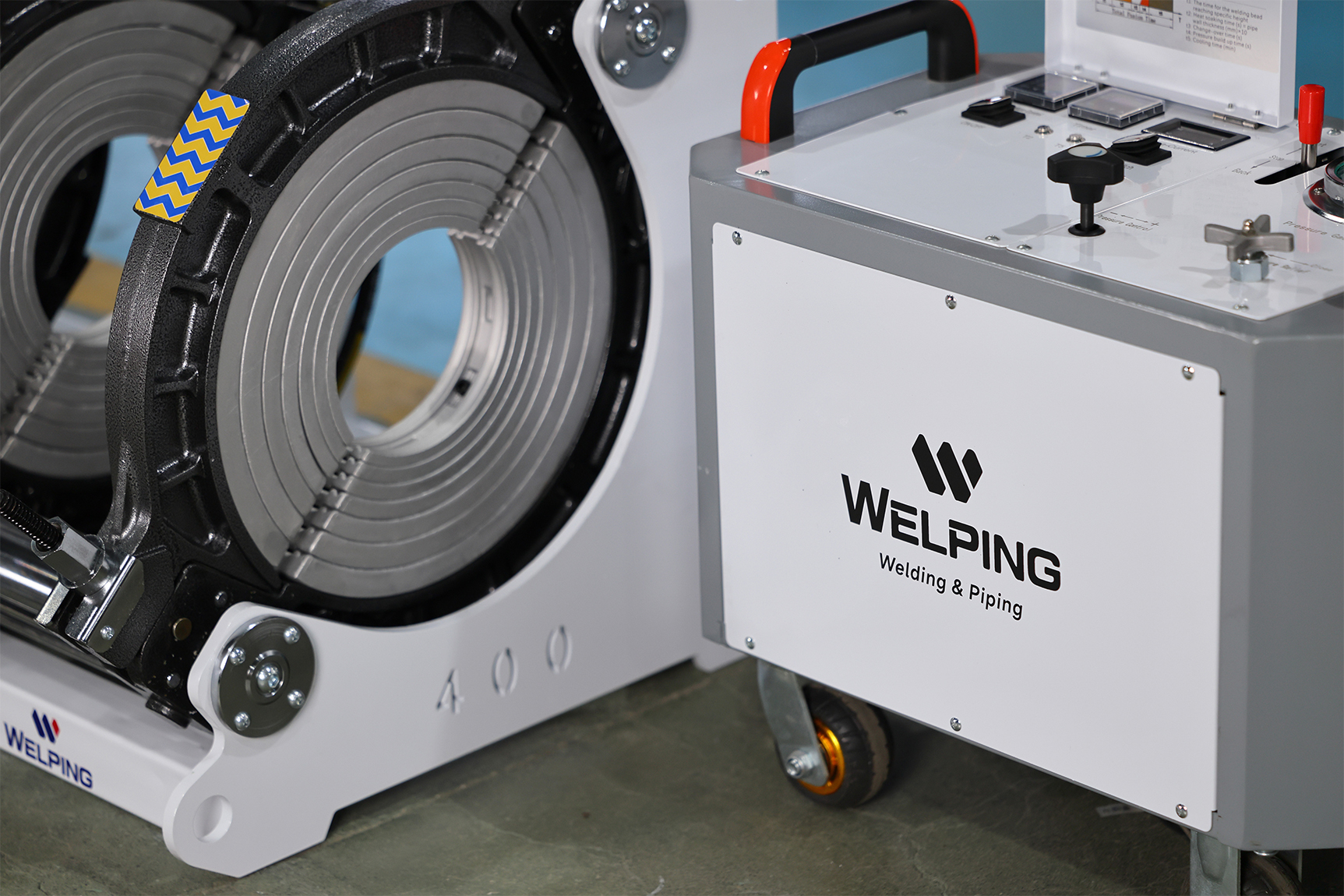

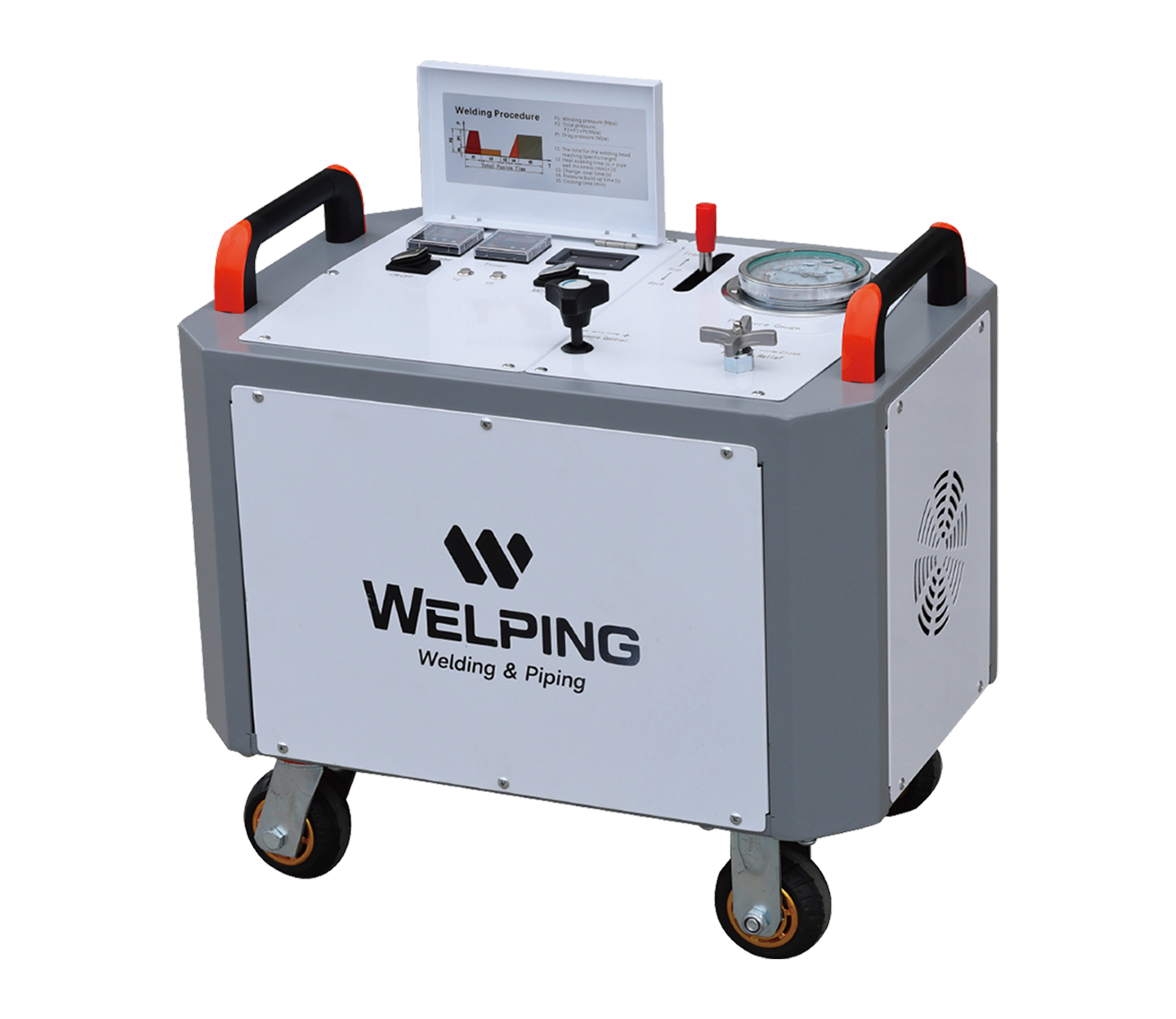

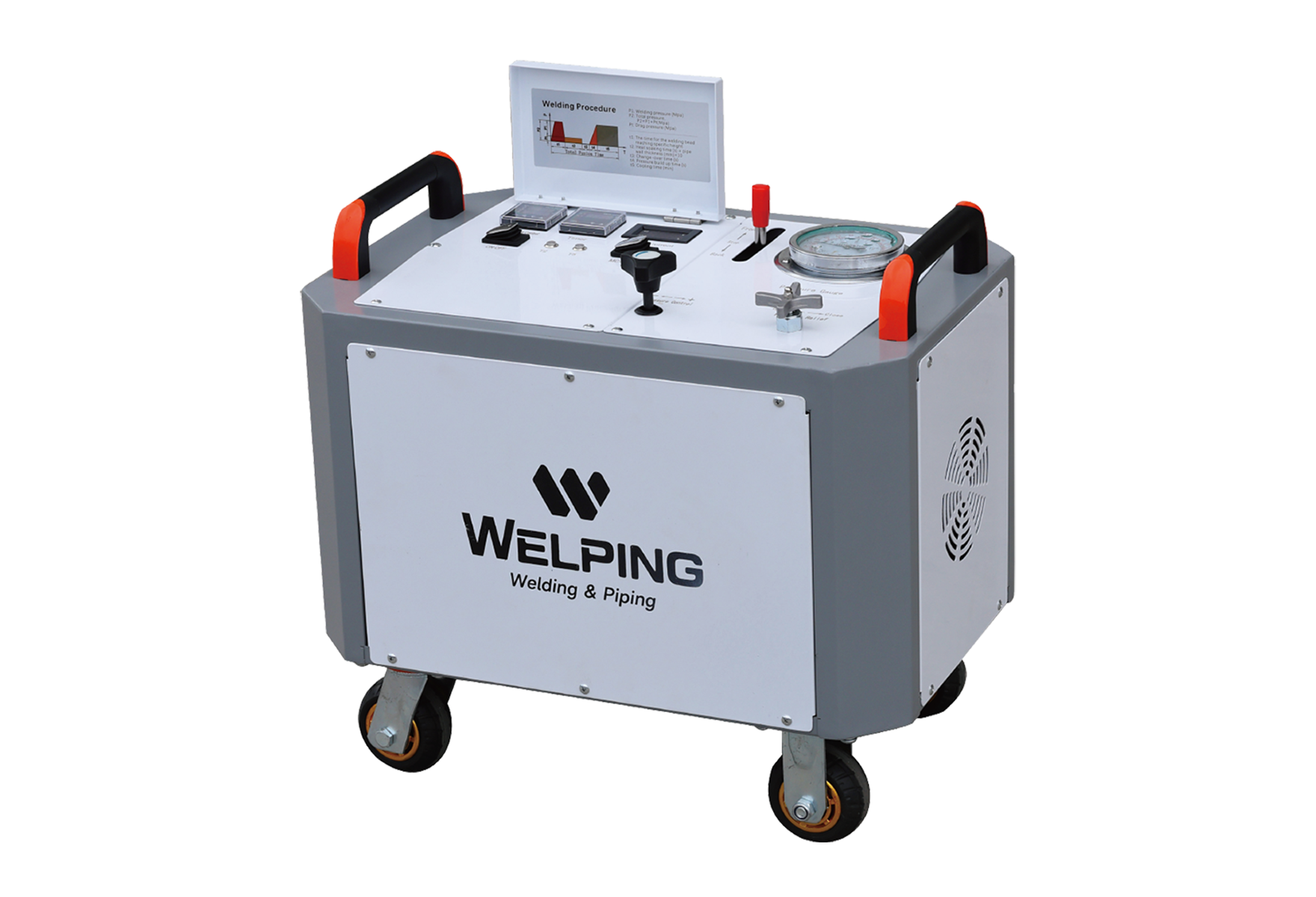

Hydraulic station

· Integrated hydraulic and electrical control. All - in - one control panel: hydraulic actuation, pressure setting, timing, electric info display, temperature setting

· Enclosure design, shielding splash and dirt and wheels, for easy transportation

· Built with Siemens or other well - known brand electronic components

8392015

8392191

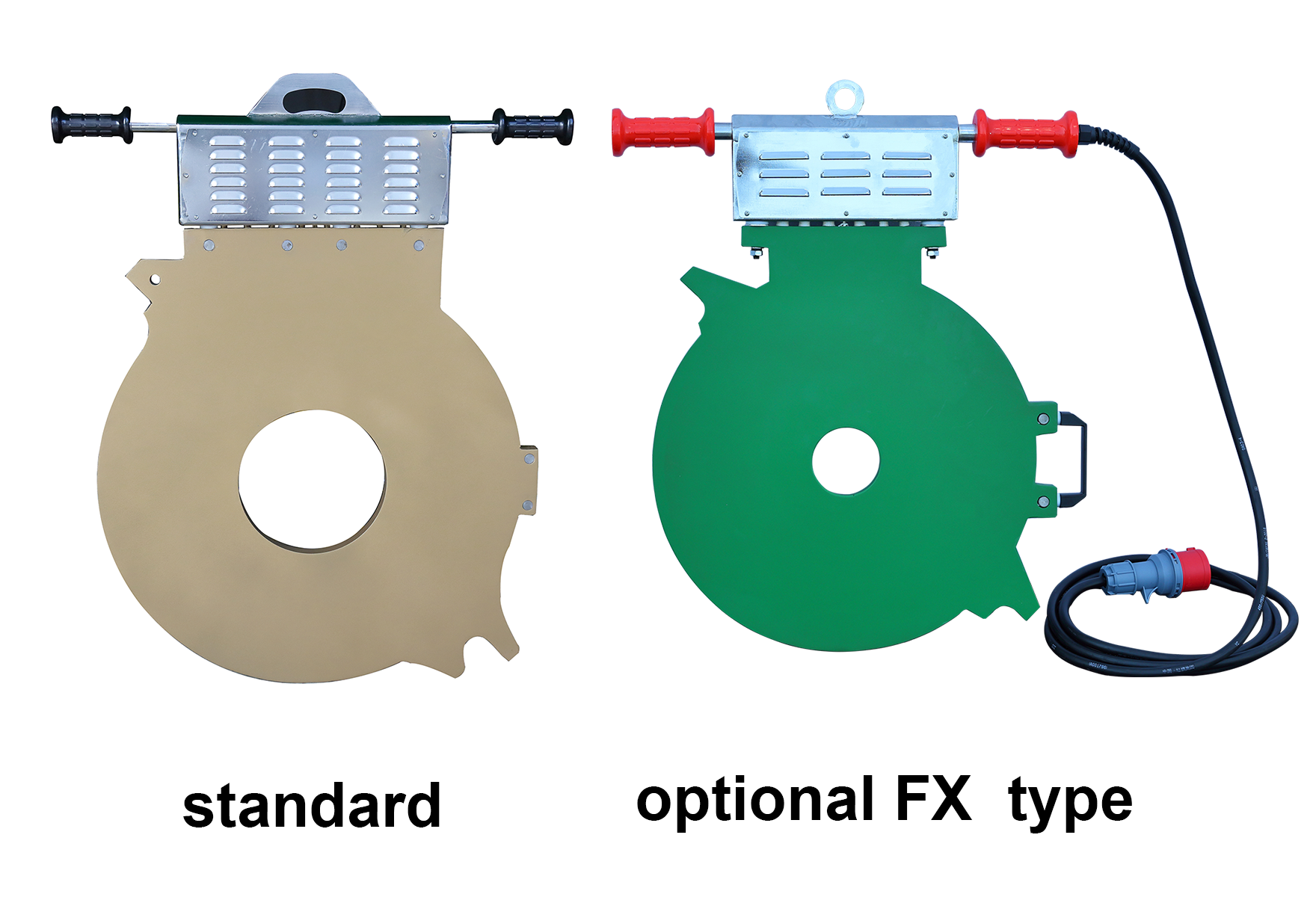

Heating plate

· Cast aluminum body with built - in heating elements

· Anti - stick PEFT coating from Daikin

· Qualified aviation plug and heavy duty cable ensure operation safety

· Optional FX series heating plate with thicker casting and updated heating elements

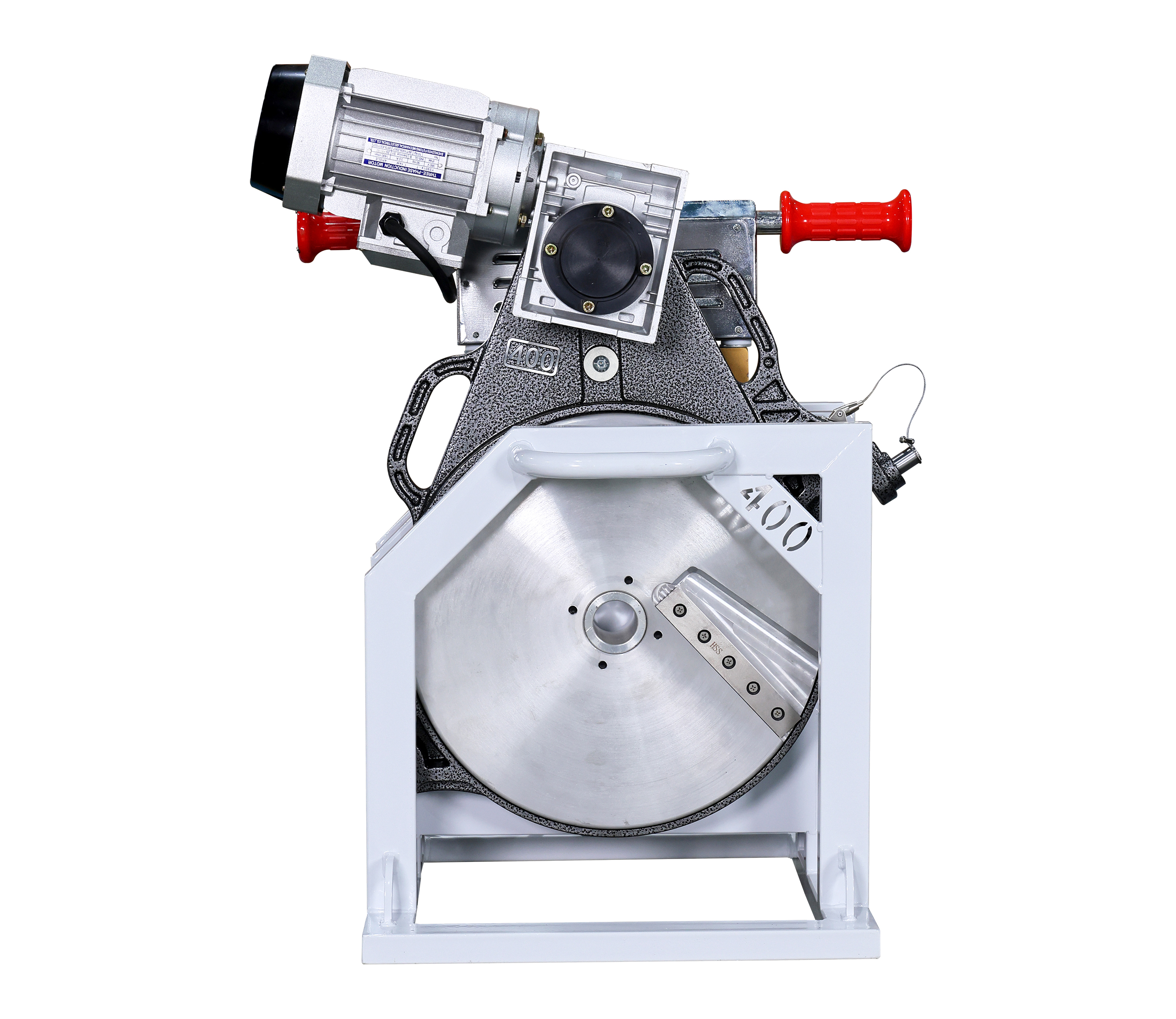

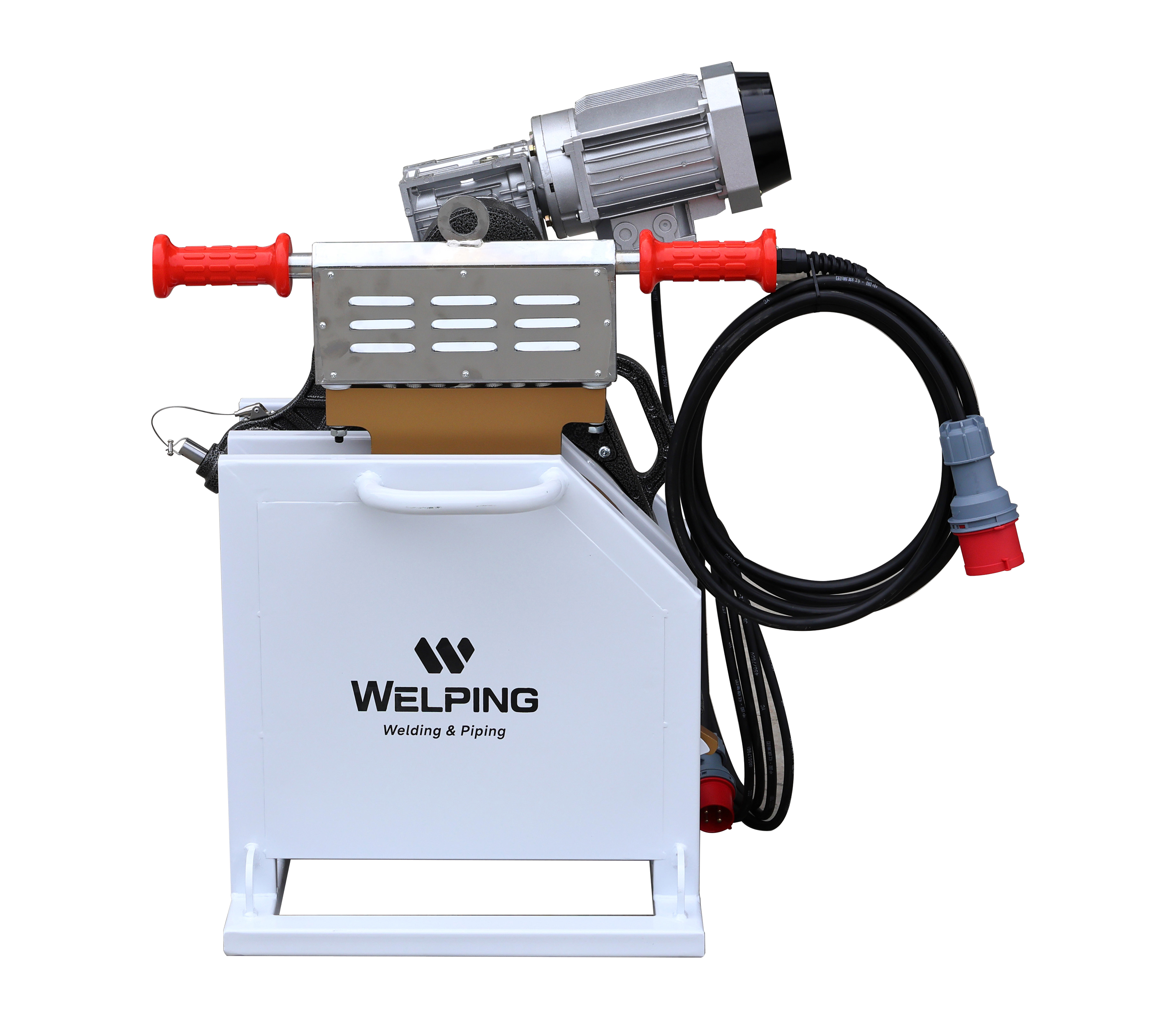

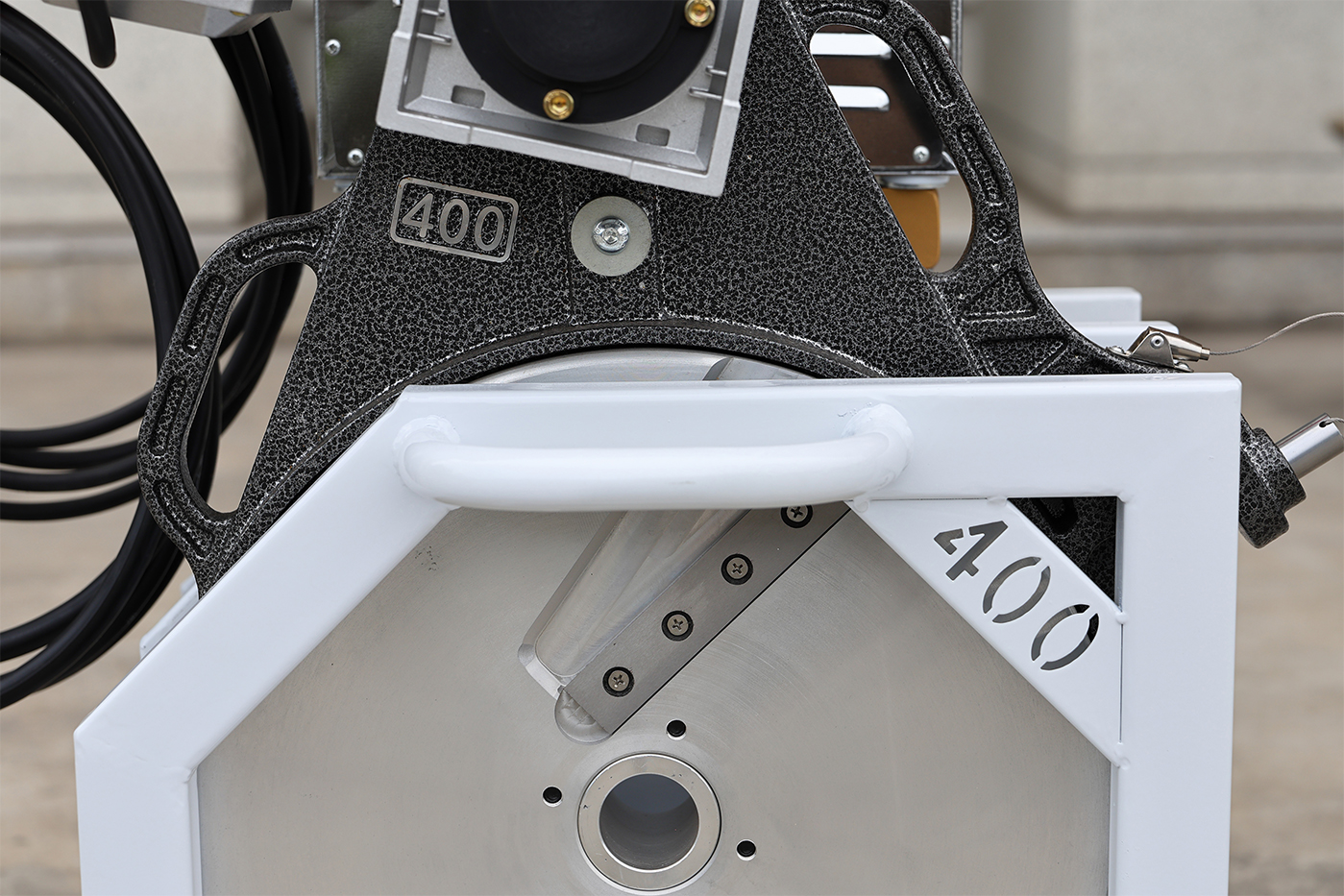

Facer (milling cutter )

· Full gear transmission structure, for steady and long - life performance

· Powerful copper - wiring motor

· Durable, double edges HSS blade

· Reinforced milling plate, withstands heavy - duty operation

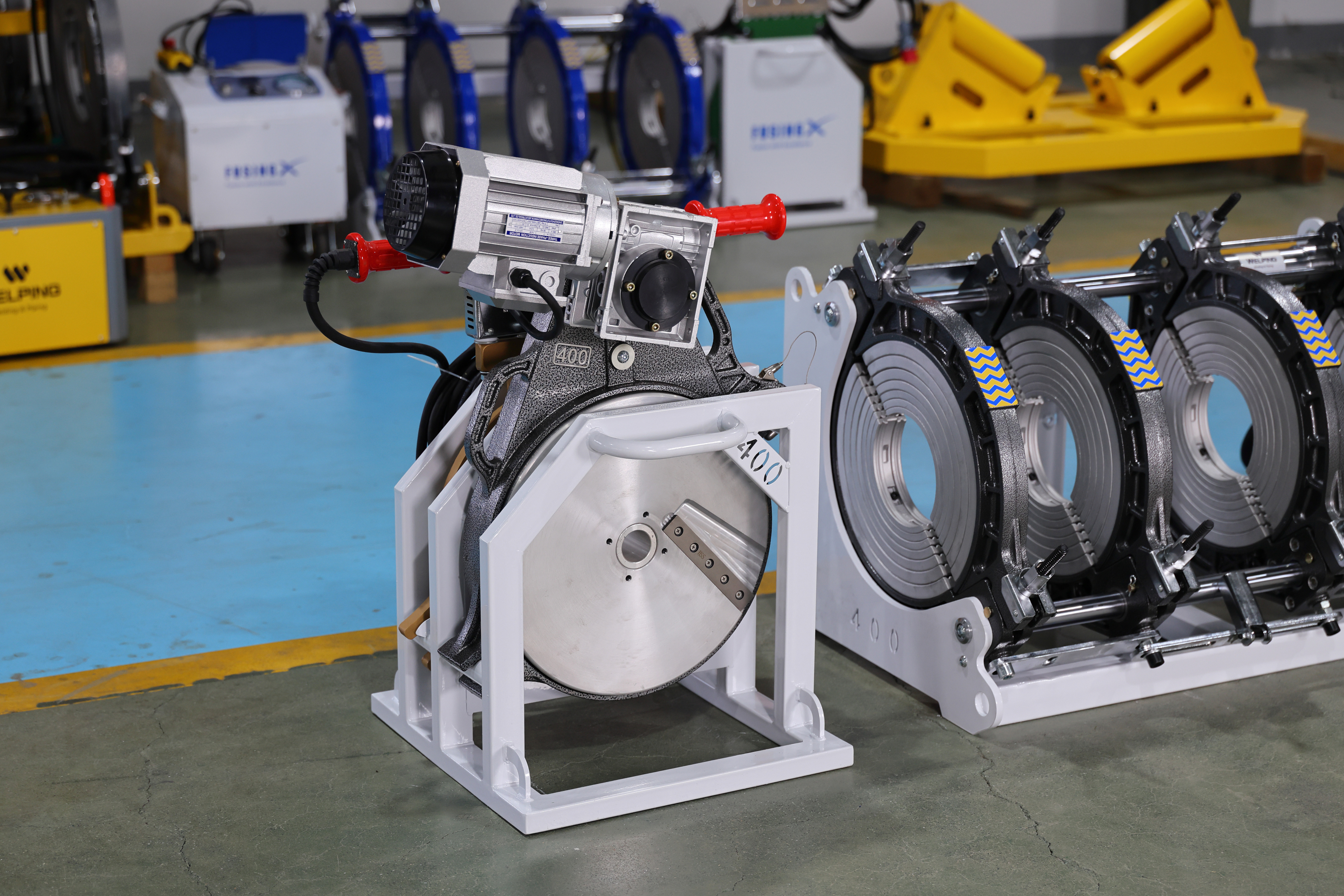

8478976

8391996

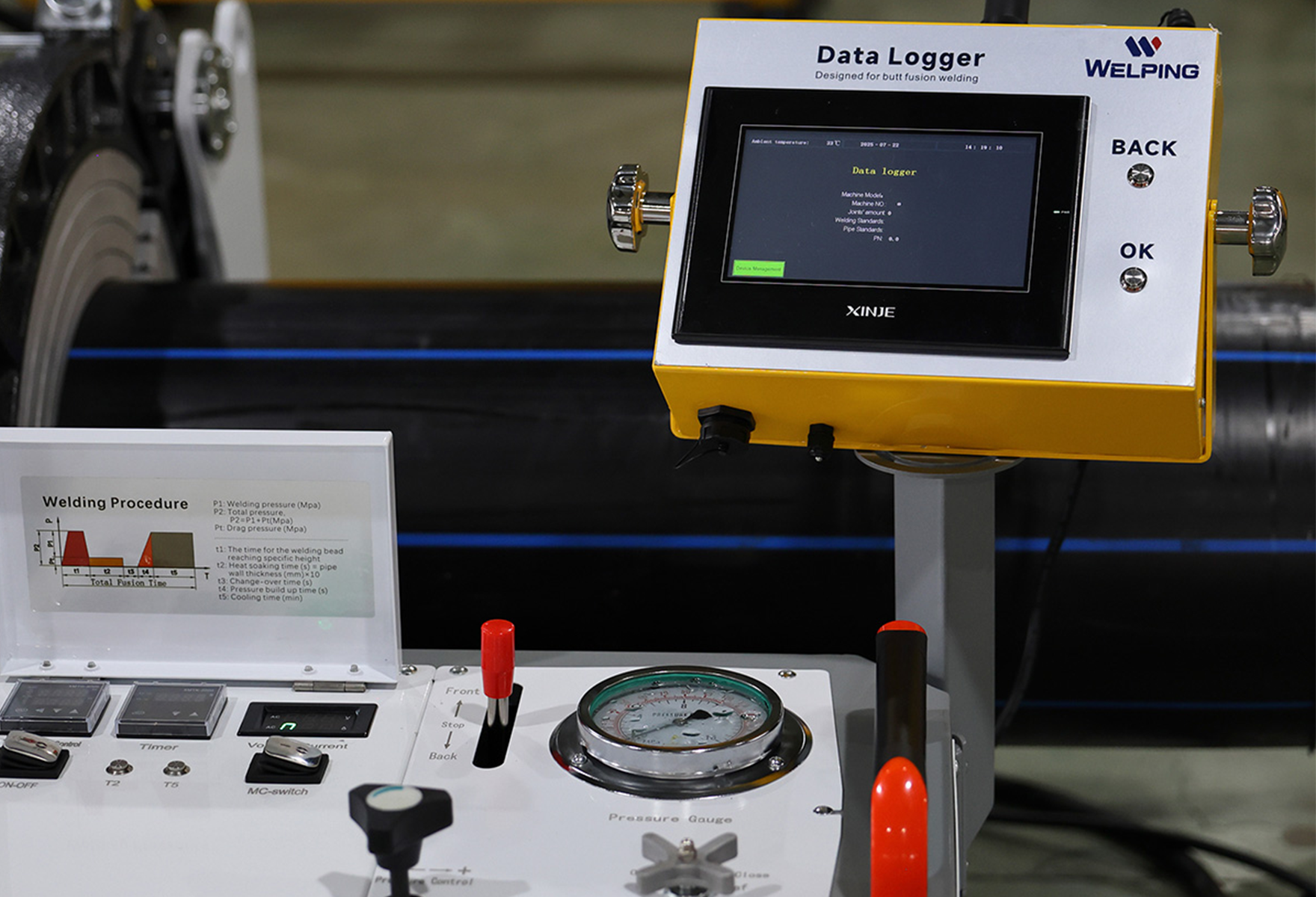

Data Logger（optional）

· The Data Logger is specifically designed for butt fusion welding machines, ensuring reliable recording and monitoring of welding processes. It accurately sets and captures essential welding parameters, for quality control and compliance purposes
