WP1400A
WELPING
580140
| Quantity: | |
|---|---|
Product Description
Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding can provide excellent performance, just like a whole pipe.
To achieve a good jointing, a steady, precise, robust butt welding machine is critical. WELPING had been developing, manufacturing and distributing PE, HDPE butt welding machines since 2005. It's our pleasure to help you build reputation in the piping project.

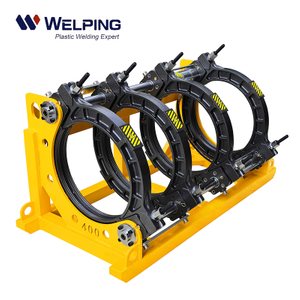

The Hydraulic butt fusion welding machine, mainly consists of 3 major parts: Carriage (also called frame or base), planing tool (also called trimmer or facer) and heater, hydraulic station with control device. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating, hydraulic station provides actuation and control.
Data Sheet
Model | WP1400A |
Welding range (mm) | 1000-1400 |
Standard reducers (mm) | 1000-1400 |
| Optional reducer (mm) | 800 |
Power supply | 380V/50Hz, 3PH |
Total power | 49.5 KW |
Heating plate | 40 KW |
Planing tool | 5.5 KW |
Hydraulic station | 4 KW |
Pressure adjusting range | 0-16 MPa |
Max Temperature of heating plate | 270ºC |
Temperature Deviation | ±7ºC |
