WP160A
WELPING
560160
| Quantity: | |
|---|---|
HDPE, PE, PP pipes have been used extensively around the world. Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding can provide excellent performance, just like a whole pipe.
To achieve a good jointing, a steady, precise, robust butt welding machine is critical. WELPING had been developing, manufacturing and distributing various butt fusion welding machine since 2005. It's our pleasure to help you build reputation in the piping project.

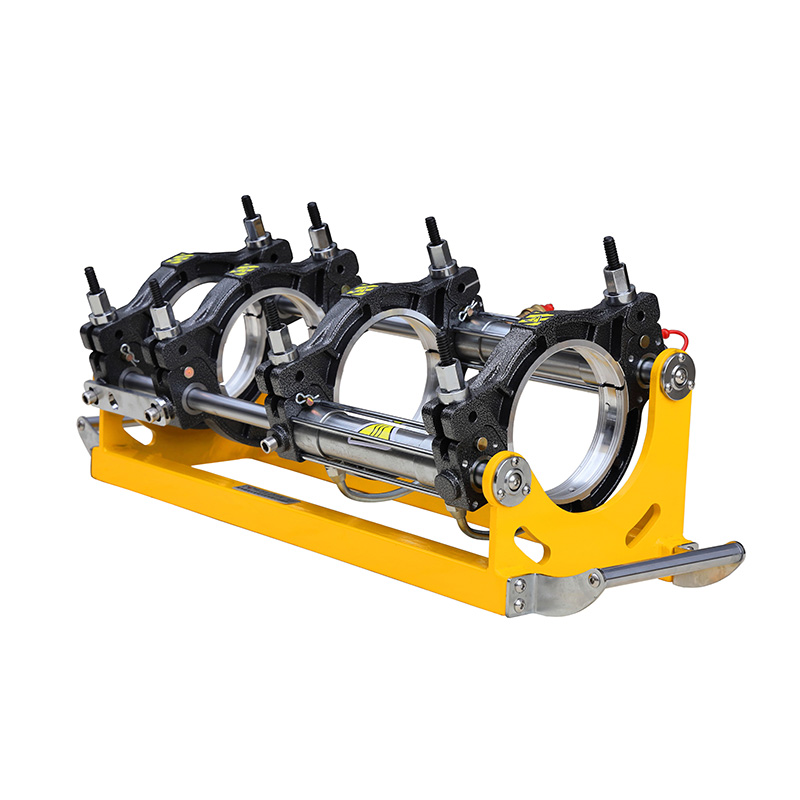

The Hydraulic butt fusion welding machine, mainly consists of 3 major parts: Carriage (also called frame or carriage), planing tool (also called trimmer or facer) and heater, hydraulic station with control device. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating, hydraulic station provides actuation and control.
1. Robust structure of carriage part with streamline outlook
2. Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin
3. Hydraulic station of integrated enclosure shielding splash and dirt
4. Data logging device, stub and end device for short flange, single angled inserts, are optional
5. Standard equipping carrying handles for easy transportation
Model | WP160A |
Welding range (mm) | 63-160 |
Standard reducers (mm) | 63-75-90-110-125-140-160 |
| Optional reducers (mm) | 40-50 |
Power supply | 220V/50Hz, 1PH |
Total power | 3.35 KW |
Heating plate | 1.5 KW |
Planing tool | 1.1KW |
Hydraulic station | 0.75KW |
Pressure adjusting range | 0-6.3 MPa |
Max Temperature of heating plate | 270ºC |
Temperature Deviation | ±5ºC |
| Piston Area | 15.32CM² |
