WP250A
WELPING
560250
| Quantity: | |
|---|---|
Product Description
HDPE pipe has been used extensively around the world. It is a cost-effective solution for a broad range of piping applications in the municipal, industrial, marine, mining, landfill, duct and agricultural industries.
Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion machine can provide excellent HDPE pipe joint, just like a whole pipe.
To achieve a good jointing, a steady, precise, robust butt welding machine is critical. WELPING had been developing, manufacturing and distributing thermoplastic welding equipment since 2005. It's our pleasure to help you build reputation in the piping project.
The Hydraulic butt fusion welding machine, mainly consists of 3 major parts: Carriage (also called frame or base), planing tool (also called trimmer or facer) and heater, hydraulic station with control device. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating, hydraulic station provides actuation and control.
Data Sheet
Model | WP250A |
Welding range (mm) | 90-250 |
Standard reducers (mm) | 90-110-125-140-160-180-200-225-250 |
| Optional reducers (mm) | 63-75 |
Power supply | 220V/50Hz, 1PH |
Total power | 5.05 KW |
Heating plate | 2.3 KW |
Planing tool | 2.0 KW |
Hydraulic station | 0.75 KW |
Pressure adjusting range | 0-6.3 MPa |
Max Temperature of heating plate | 270ºC |
Temperature Deviation | ±5ºC |
| Piston Area | 11CM² |
· Thermocouple temperature sensor
· Heating element
· Teflon Coating imported from Daikin in Japan
· Aviation plug.

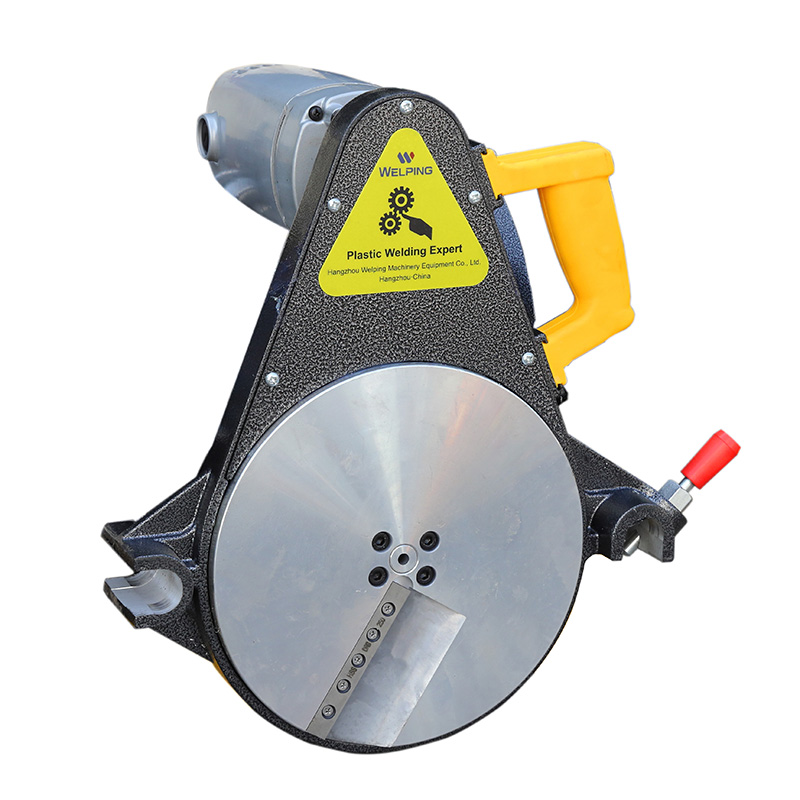

HSS blade with double edge
· Casting aluminum trimmer plate, durable and anti-corrosion
· Casting aluminum frame of motor with good heat dissipation performance
· Motor with pure copper wiring
