WP160C
WELPING
540160
| Quantity: | |
|---|---|
HDPE pipe has been used extensively around the world. It is a cost effective solution for a broad range of piping applications in the municipal, industrial, marine, mining, landfill, duct and agricultural industries.
Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding can provide excellent performance, just like a whole pipe.
To achieve a good jointing, a steady, precise, robust butt welding machine is critical. WELPING had been developing, manufacturing and distributing PE butt welding equipment since 2005. It's our pleasure to help you build reputation in the piping project.

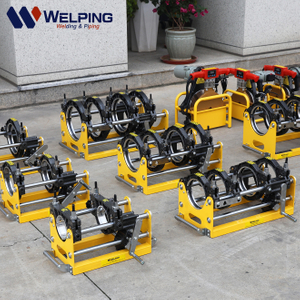

The manual butt fusion welding machine, mainly consists of 2 major parts: Carriage (also called frame or base), planing tool (also called trimmer or facer) and heater. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating.
Robust structure of carriage part with streamline outlook
Swivel handle with gear transmission of extremely smooth operating structure
Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin
Model | WP160C |
Welding range (mm) | 63-160 |
Standard reducers (mm) | 63-75-90-110-125-140-160 |
Power supply | 220V/50Hz, 1PH |
Total power | 2.6 KW |
Heating plate | 1.5 KW |
Planing tool | 1.1 KW |
Pressure adjusting range | 0-6.3 MPa |
Max Temperature of heating plate | 270ºC |
Temperature Deviation | ±5ºC |
