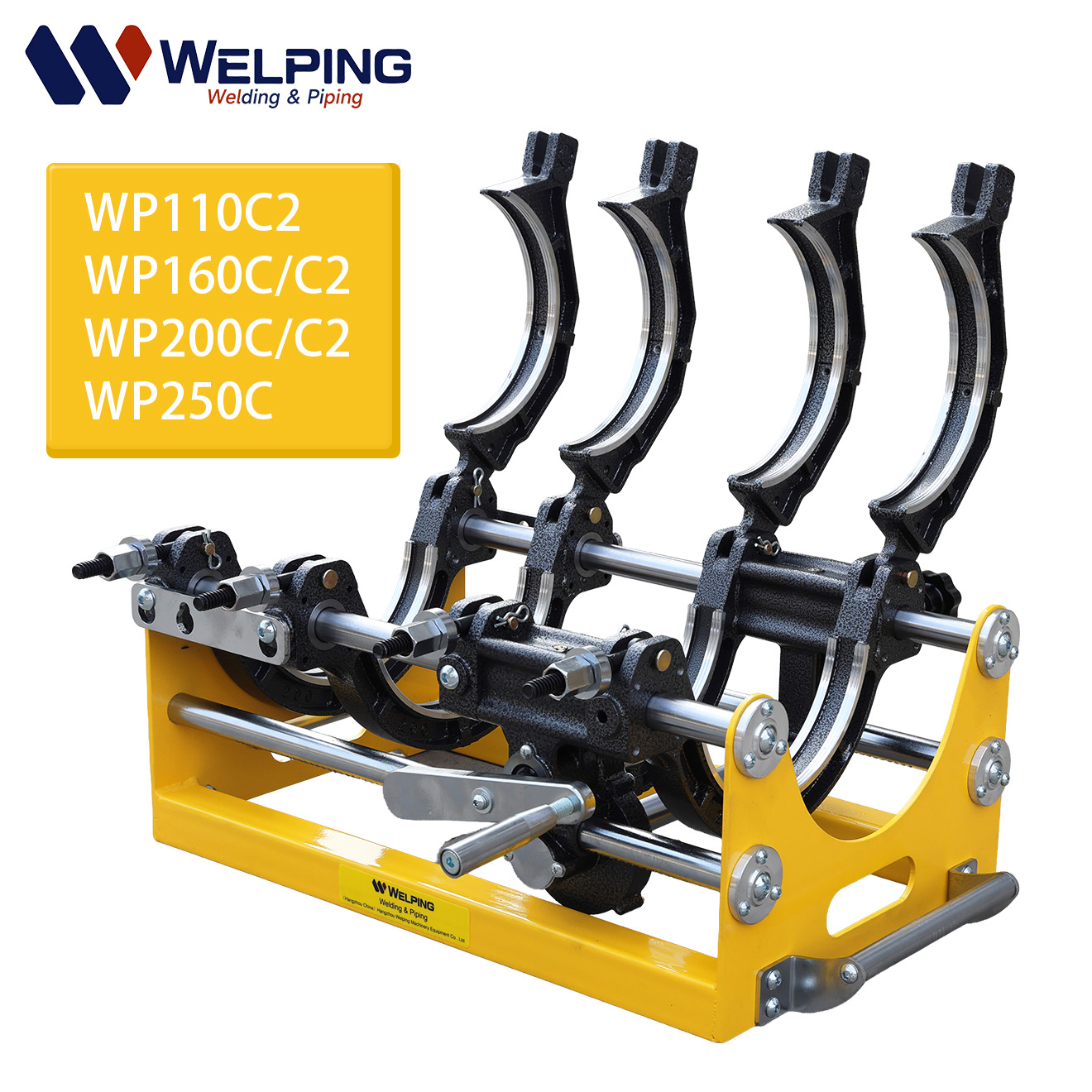

— Choose the Right C Series Model —
C and C2 Configurations：The C Series is available with two different frame layouts.

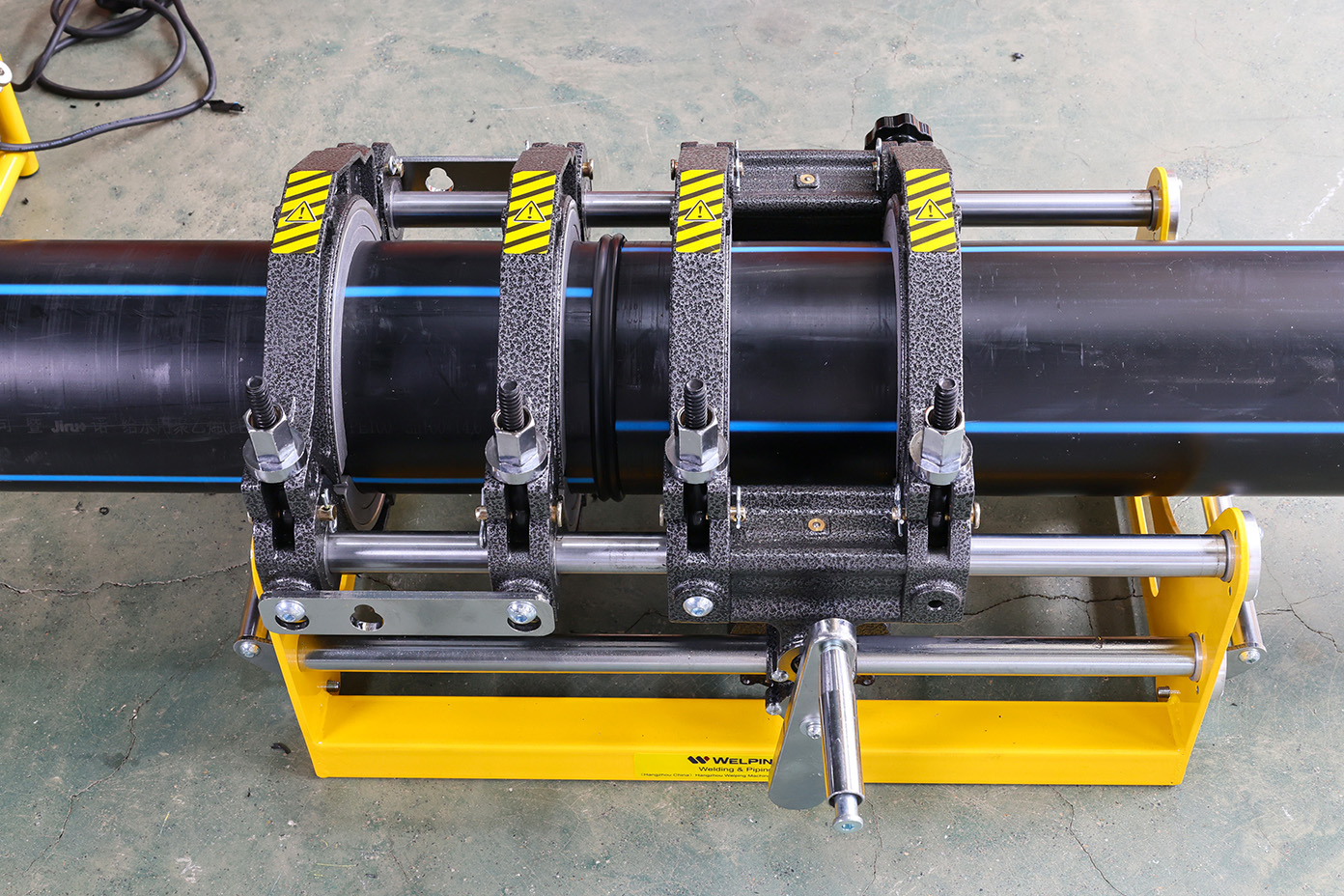

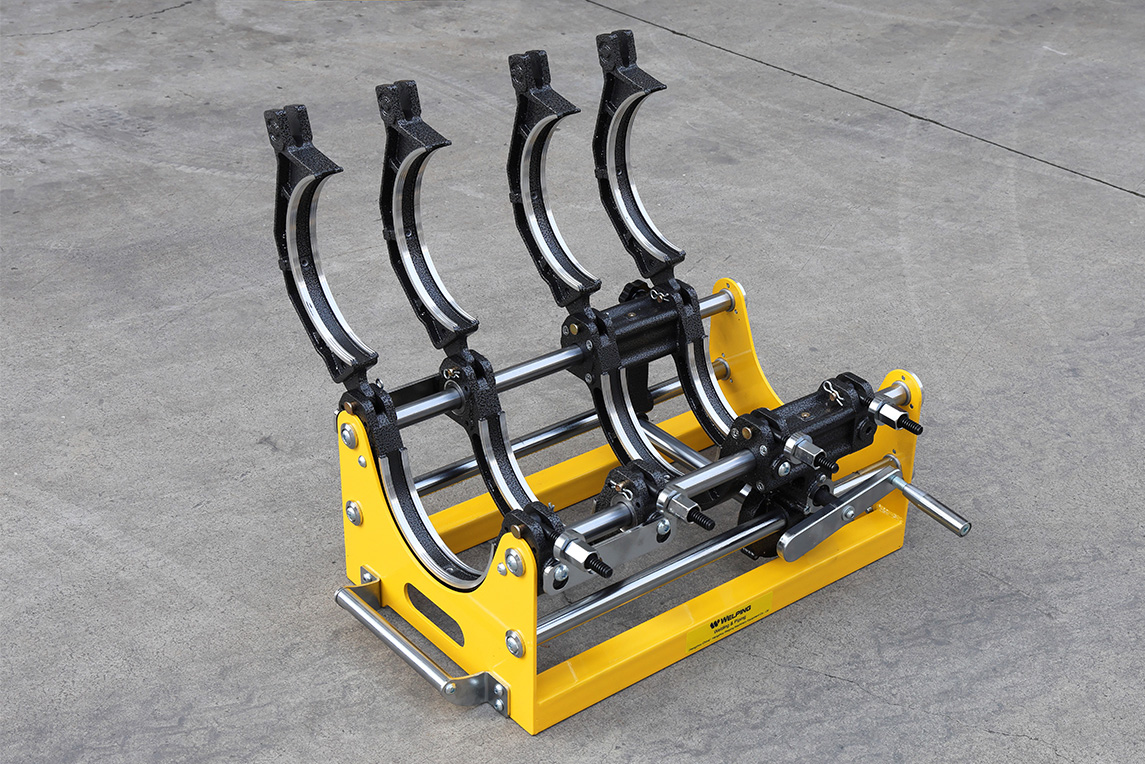

The standard C configuration uses a longer multi-clamp frame, providing extended pipe support throughout facing, heating and fusion.
Its stable frame layout makes it well suited to general pipe installation, workshop fabrication and repeated welding work.

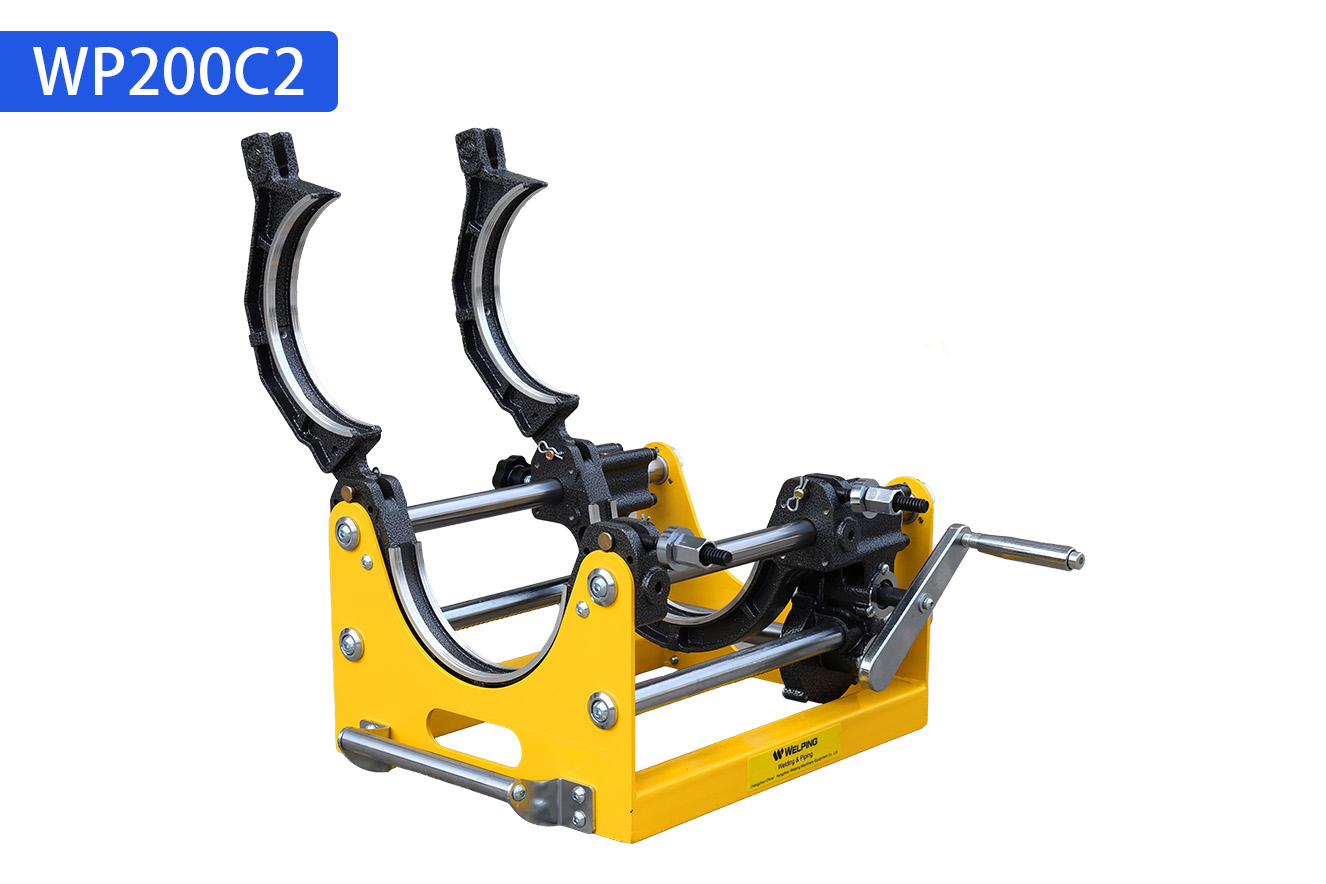

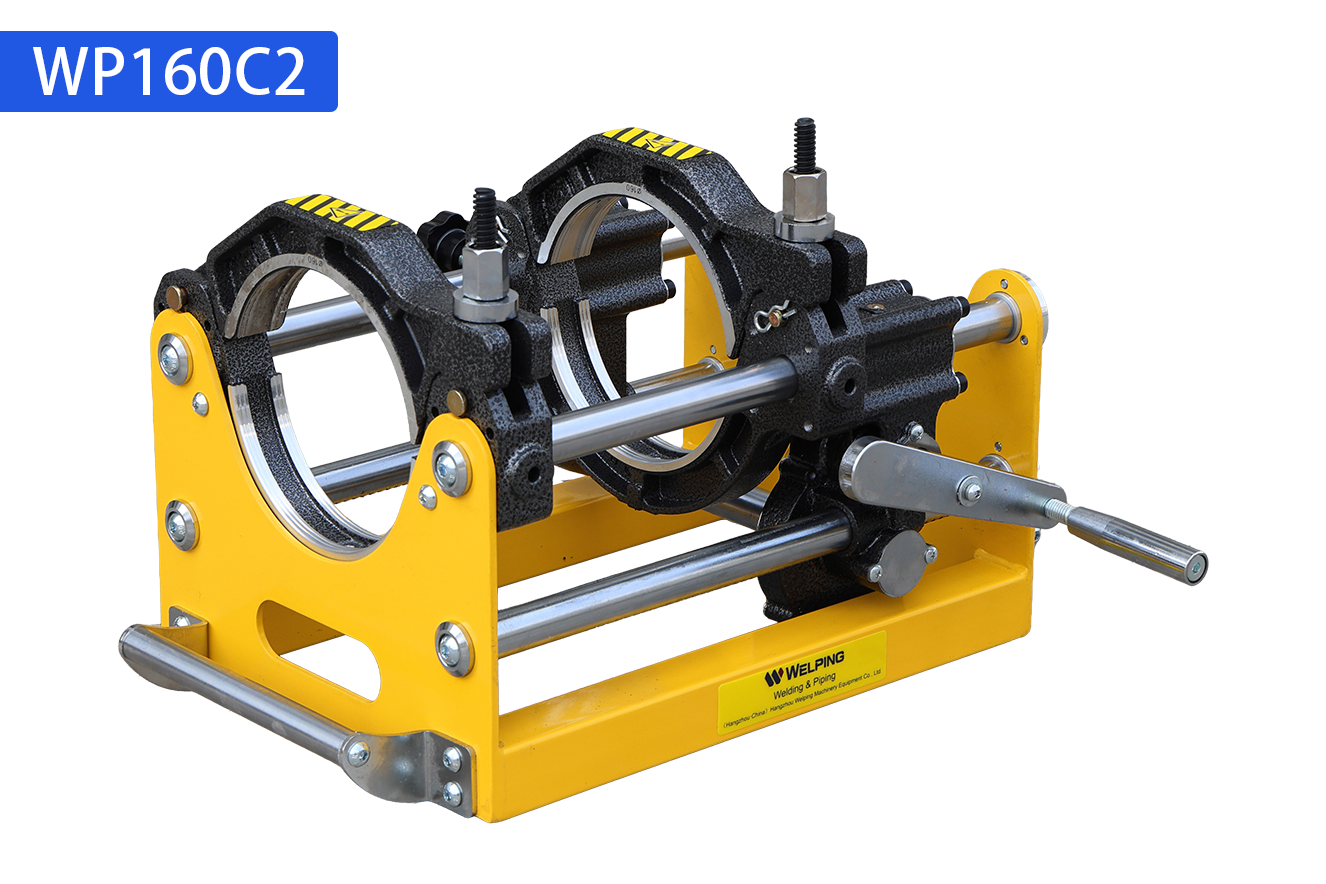

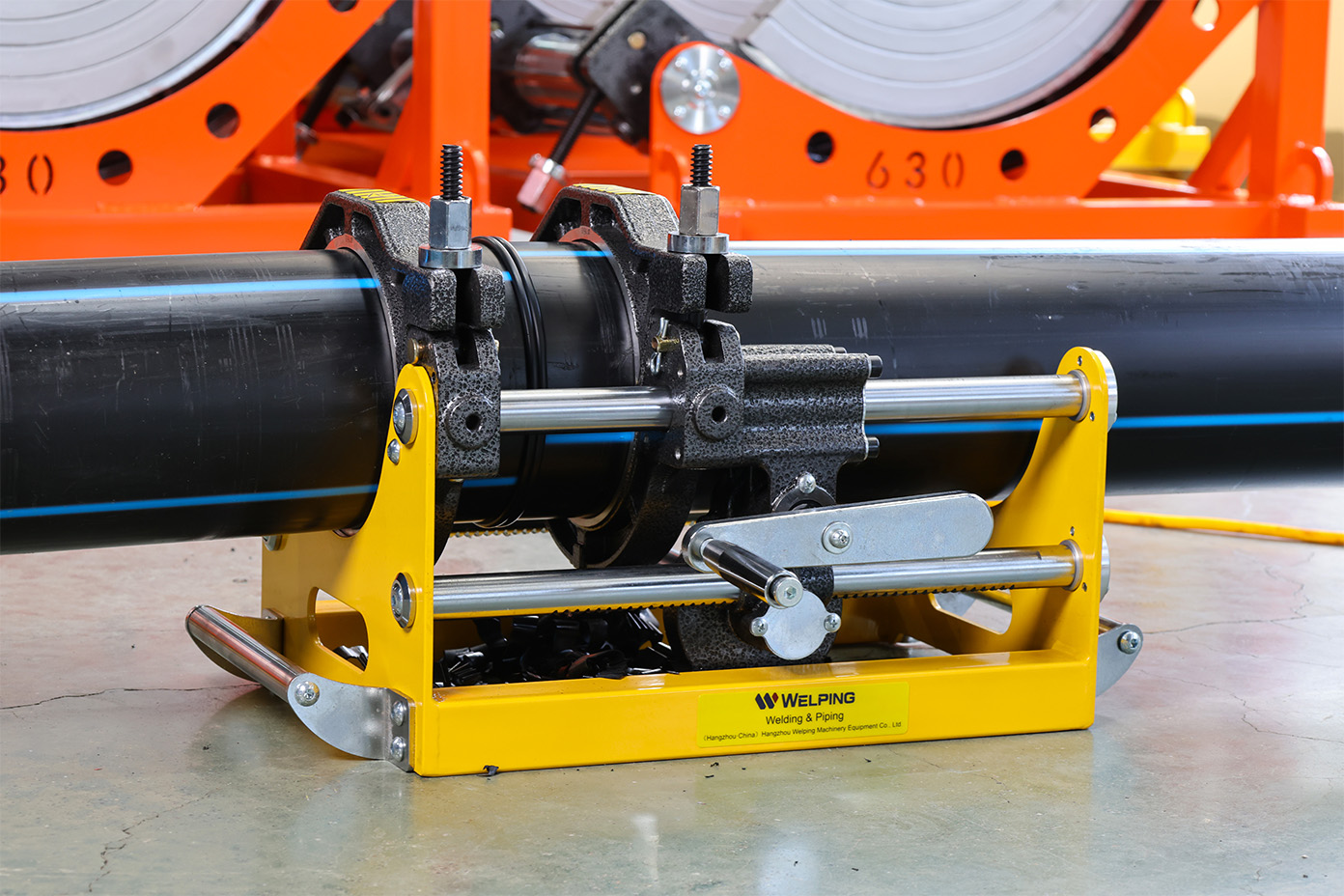

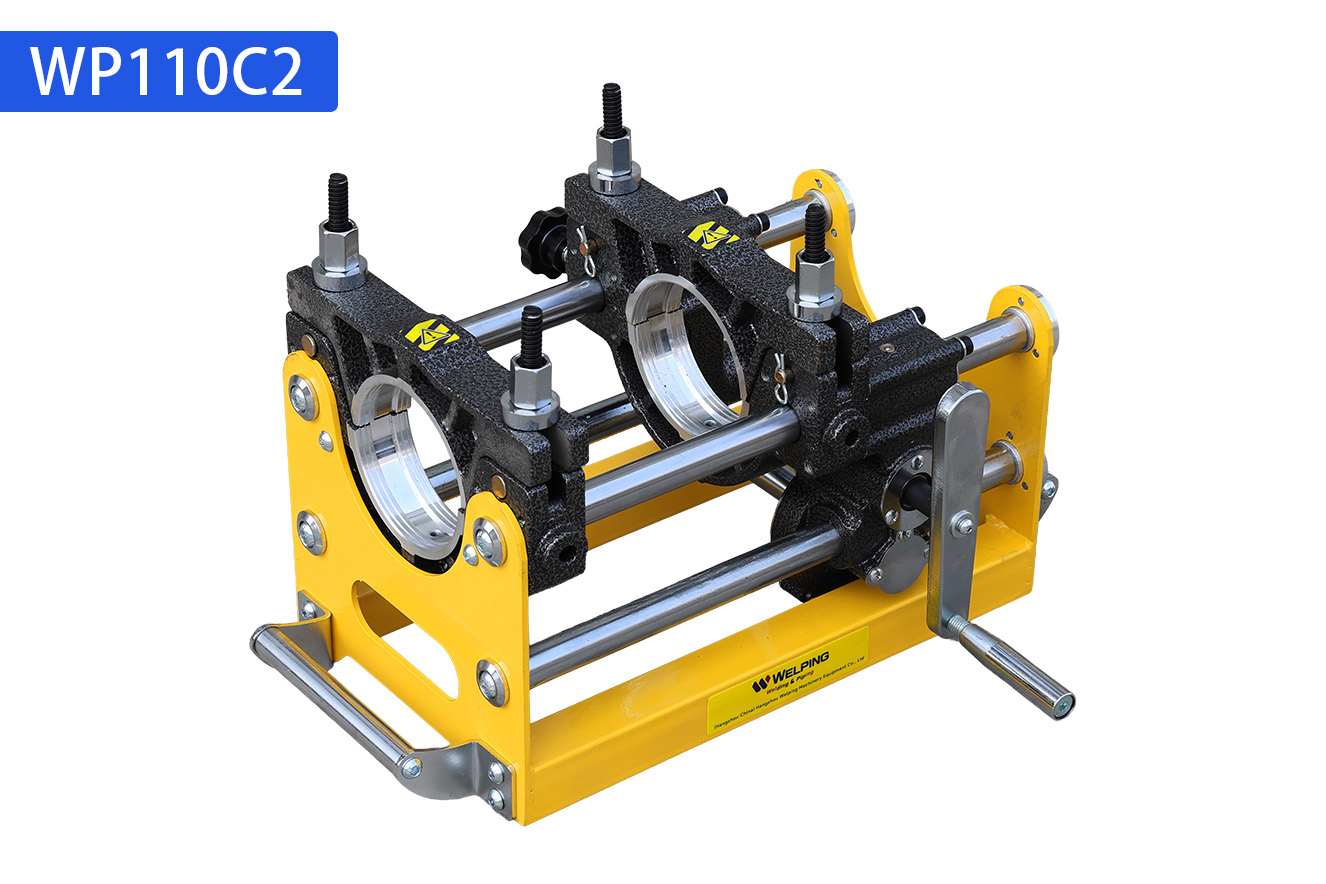

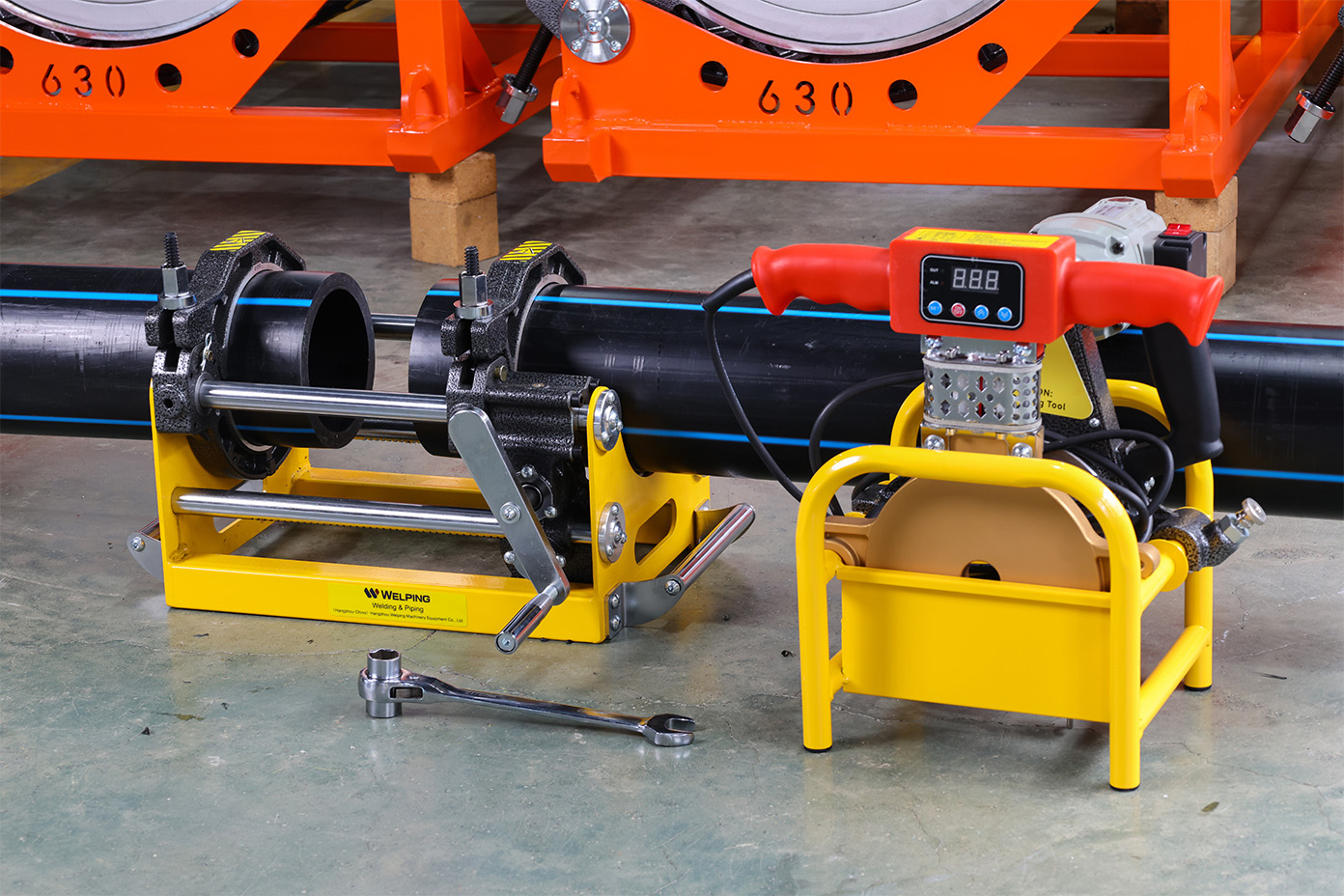

The C2 configuration uses a shorter frame and more compact clamp arrangement, reducing the machine’s overall size.
Its compact layout makes it well suited to repair work, restricted working areas and applications requiring easier transport and positioning.
Both configurations follow the same manual butt fusion process. Model selection should be based on pipe size, working space and preferred frame layout.
— Technical Specifications —
（Specifications are subject to change. Please confirm the power supply, plug type, reducing inserts and final configuration before ordering.）
— Butt Fusion Welding Process —
— Built for Smooth and Reliable Manual Welding —

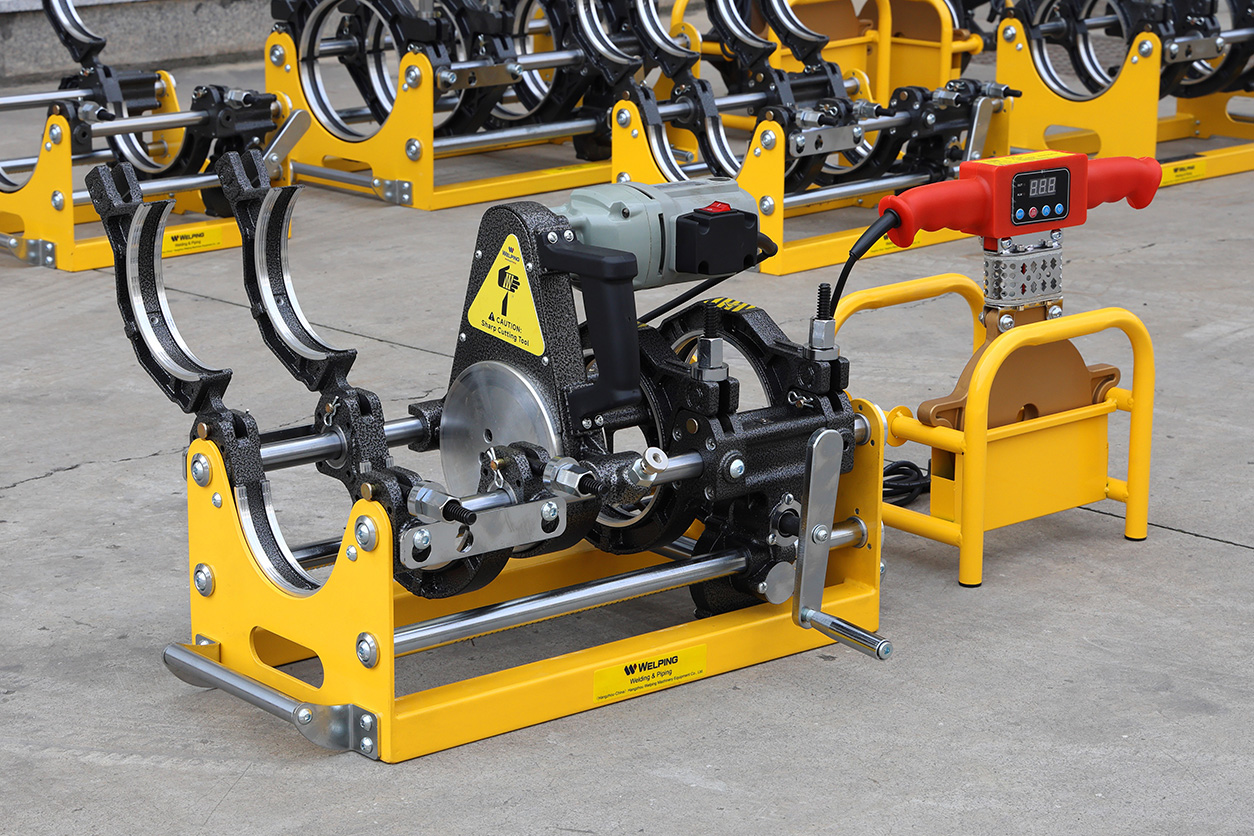

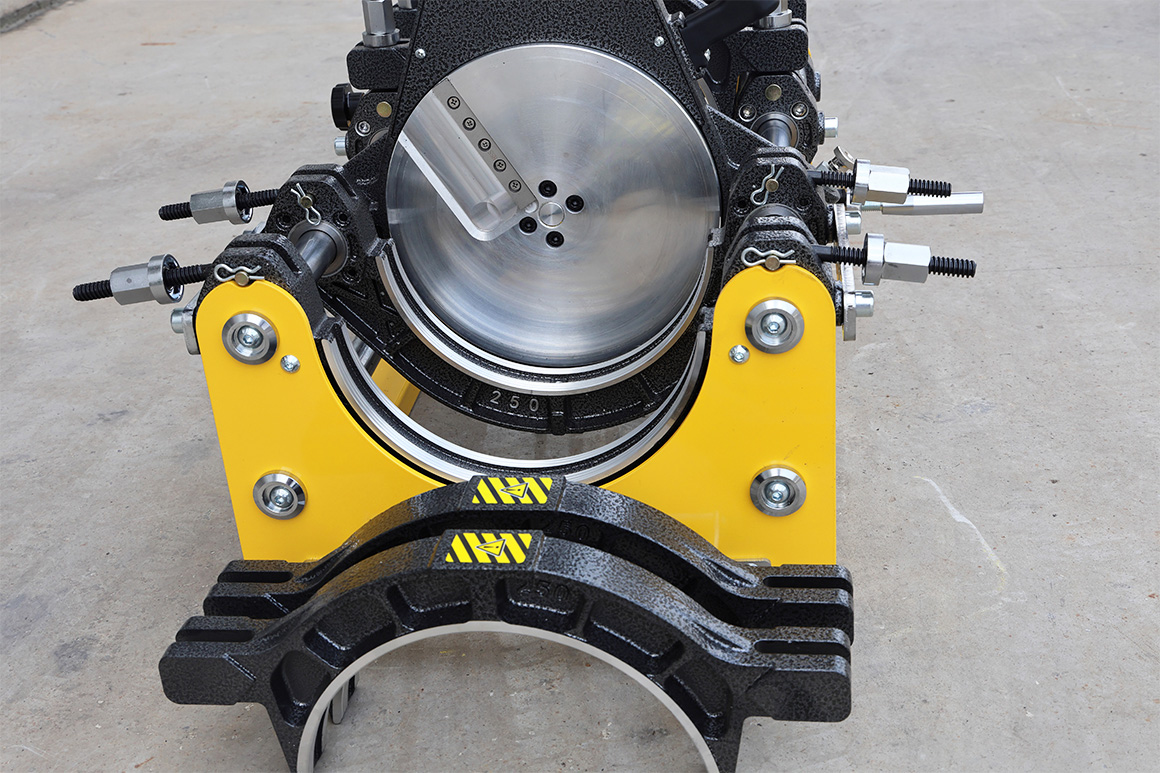

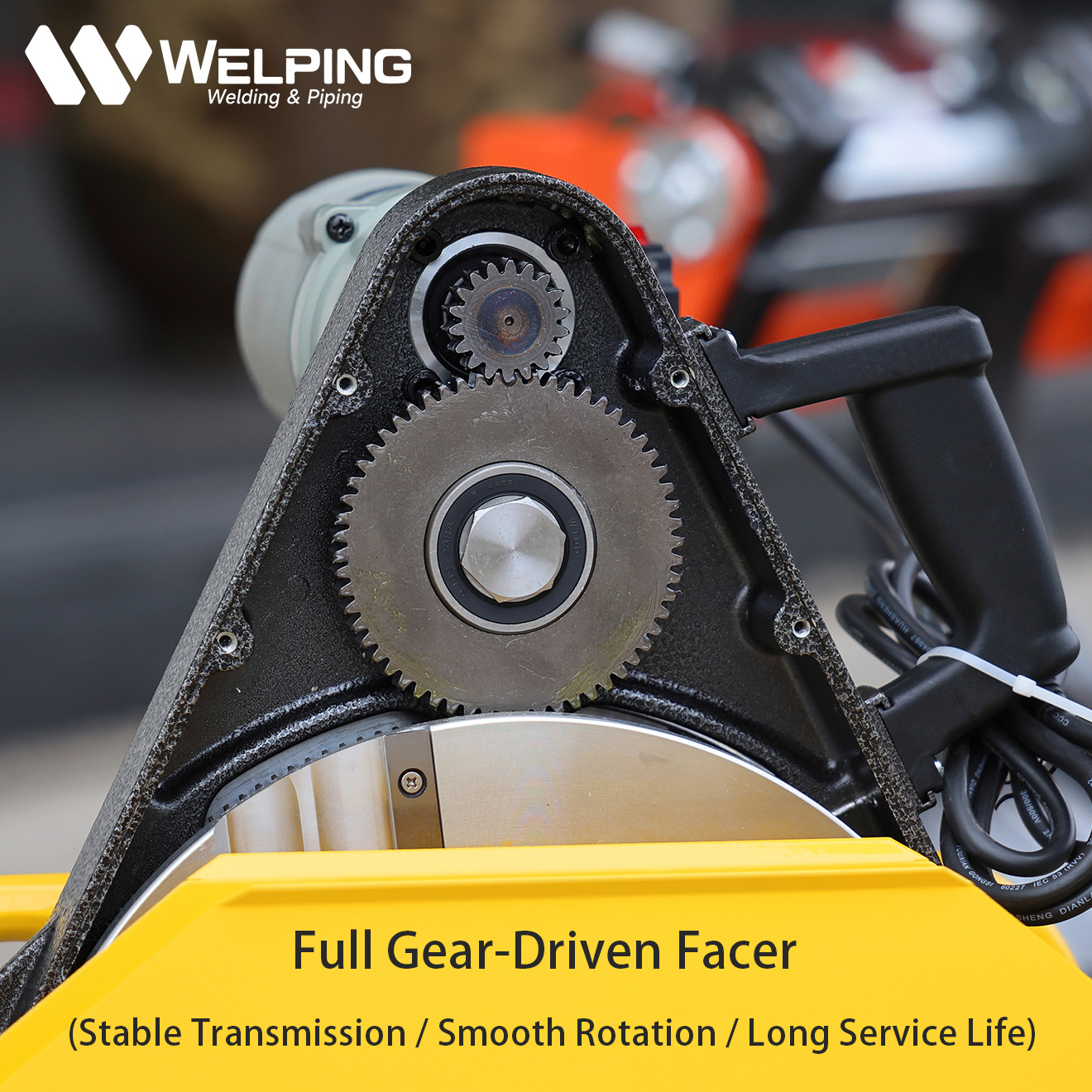

Full-Gear Driven Facing System
The full-gear driven facing system provides smoother transmission and more controlled pipe end preparation, helping operators achieve cleaner and more consistent fusion surfaces.
Stable 4-Guide-Post Frame
The 4-guide-post structure keeps pipe movement stable during clamping, facing, heating and fusion, helping improve alignment throughout the welding process.
Solid All-Steel Welded Body
The all-steel welded body gives the machine a strong and durable structure, making it suitable for repeated workshop and on-site pipe welding work.
Practical Manual Solution for 40–250mm Pipes
For small and medium pipe sizes, the C Series offers a practical balance between stable welding performance, simple manual operation and lower investment than hydraulic models.
— Welding Test & Results —
