You can use an hdpe pipe welding machine safely by following clear steps. Use the right equipment for hdpe pipe welding. Always read the manufacturer’s instructions before you start. Put on your personal protective equipment to stay safe from heat and debris. Use a good butt fusion machine like the WELPING WP1000A for strong joints. This welding machine works for both butt fusion and electrofusion welding. These are common ways to weld hdpe pipes. Remember, safety rules help you avoid accidents. They also help you get good results every time you weld.
Always get your work area ready by cleaning it. Make sure there is fresh air. Take away anything that could catch fire before welding HDPE pipes.
Wear the right safety gear like gloves, safety glasses, welding masks, and boots. This will help keep you safe from burns and injuries.
Use the correct welding machine and read the manufacturer’s instructions carefully. Set the right temperature, pressure, and alignment for strong pipe joints.
Keep the pipes clean and lined up with the machine’s clamps and planing tool. This helps stop weak joints and leaks when welding.
Check your welding machine often and take good care of it. Let welded joints cool all the way before touching them. This keeps you safe and makes the results last longer.
Get your work area ready before you start welding. Make sure the space is clean and flat. Good airflow helps keep you safe. Take away anything that can catch fire. Use enough lights so you can see well.
Look at your butt fusion welding machine before using it. If you have a WELPING WP1000A, check it closely. Look at the carriage, planing tool, heater, and hydraulic station. The carriage holds pipes steady and straight. The planing tool makes pipe ends smooth. The heater warms the pipe ends for joining. The hydraulic station controls the pressure.
Check your welding equipment for dirt or damage. Clean the pipe ends to get rid of grease and dust. This helps make strong joints. Use the right welding machine for your job. The WP1000A works for HDPE pipes from 800mm to 1000mm.
Tip: Write down the fusion temperature and pressure every time. This helps you check your work and follow the rules.
Here is a table of key preparation guidelines:
| Parameter | Guideline Description |
|---|---|
| Temperature | Set the heating plate between 220°C and 260°C for proper butt fusion welding. |
| Alignment | Use the butt fusion splicer to align pipes precisely and avoid weak joints. |
| Pressure | Adjust the pressure based on pipe size and wall thickness, following the manufacturer’s instructions. |
| Cooling Time | Allow enough cooling time to prevent stress in the joint. |
| Environmental Conditions | Shield the welding area from wind and rain to keep fusion quality high. |
Personal protective equipment keeps you safe when welding. Wear gloves, safety glasses, welding masks, and strong boots. These protect you from burns and eye injuries. They also help stop electric shock. Many workers get hurt each year while welding. Most injuries happen when people do not use PPE or use it wrong.
90.7% of welders know about at least one welding hazard.
90% know about at least one type of PPE.
Only 47.7% use PPE during work.
Welders who use PPE are 2.5 times more likely to notice hazards and 5 times more likely to know about PPE.
You can stay safer by wearing PPE every time you weld. Make sure your gloves and boots can handle heat. Use a welding mask to protect your eyes from sparks. Always check your PPE for damage before you start.
Note: Learning and practice help you see why PPE is important. The more you learn, the safer you will be.
You need to know how your butt fusion welding machine works. Read the user manual for your model, like the WELPING WP1000A. Learn what each part does. The carriage keeps pipes steady. The planing tool shapes the pipe ends. The heater warms the ends. The hydraulic station gives the right pressure.
Training is very important. You should know how to set the temperature and pressure. Learn how to use the controls. Always follow the manufacturer’s instructions. This helps you avoid mistakes and keeps you safe.
Here are some rules you should always follow:
Do not touch the heater or planing tool when the machine is on.
Keep your hands and clothes away from moving parts.
Use the right clamps to hold pipes tight.
Check the pressure gauge before you start welding.
Write down all fusion data to check your work.
Butt fusion welding and HDPE pipe welding need you to pay attention. Always follow safety rules. When you know your machine and use it right, you get strong pipe joints every time.

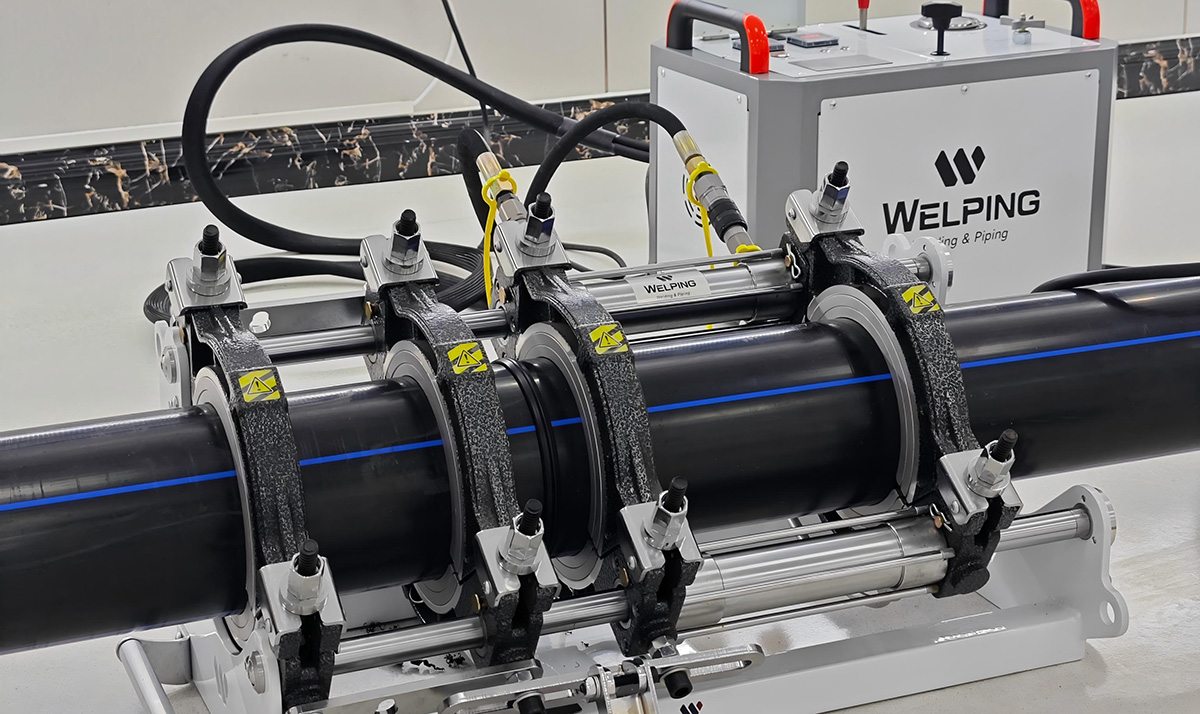

You start the pipe fusion process by placing the hdpe pipes into the butt fusion welding machine. The WP1000A uses strong clamping sets to hold the pipes steady. These clamps keep the pipes from moving during welding. You must center the connection between the four fixtures on the carriage. This step helps you get perfect alignment for the butt fusion splicer. When you use the right clamping techniques, you avoid weak joints and leaks.
The clamp jaws move on their own, so you can align pipes even if they have different diameters.
Each clamp goes through careful inspection to make sure it fits well and works for your welding operation.
Good alignment is key for strong pipe fusion joints.
Tip: Always check the clamps before you start. Secure pipes tightly to prevent shifting during the process.
Before you begin welding, you need to clean the pipe ends. Use a scraper to remove dirt, grease, or dust. Do not use abrasive tools because they can damage the hdpe surface. Clean pipes help you get better joints.
Next, use the planing tool on the butt fusion welding machine. This tool trims the pipe ends so they match perfectly. Place the planing tool between the pipes and use the hydraulic station to move the pipes toward it. The tool will shave off a thin layer, making the ends smooth and even. After facing, realign the pipes if needed. This step ensures the pipe fusion process creates strong, leak-free joints.
Set the heating plate on the WP1000A to the right temperature for hdpe pipe fusion. The best range is 220°C to 260°C. This temperature lets the pipe ends melt just enough for a good weld.
Check the pressure settings on the hydraulic station. Adjust the pressure based on the pipe size and wall thickness. The butt fusion welding machine lets you control this easily.
Write down the temperature and pressure before you start the operation.
Make sure the heating plate reaches the set temperature before you begin the welding process.
A table can help you remember the main settings:
| Setting | Recommended Value |
|---|---|
| Temperature | 220°C – 260°C |
| Pressure | As per pipe size |
| Cooling Time | Until joint is solid |
Note: Always follow the manufacturer’s instructions for the butt fusion splicer. This keeps your welding operation safe and effective.
You begin the pipe fusion process by making sure the pipes are clean and aligned. Place the pipes in the WP1000A machine and clamp them tightly. The planing tool trims the ends so they match perfectly. This step helps you avoid gaps and misalignment.
Next, you set the heater to the right temperature. For HDPE welding, keep the heating plate between 220°C and 260°C. The WP1000A lets you control this temperature with accuracy. When the heater reaches the set temperature, move the pipe ends against the plate. Hold them there for the correct heating time. This step melts the surface of the pipes.
After heating, remove the plate quickly and press the pipe ends together. The hydraulic station on the WP1000A helps you apply steady pressure. Hold the pipes in place so the melted ends fuse. This creates a strong bond. You must keep the pipes aligned during this step. If the pipes move, the joint can become weak or leak.
Tip: Always check the pressure gauge and temperature display before you start. Write down these values for each operation process. This helps you keep track of your welding process and ensures you follow best practices.
Research shows that controlling the heating temperature, pressure, and time is key for strong, leak-proof joints. Automated machines like the WP1000A help you avoid human error and keep the fusion quality high. You save time and get more reliable results with these techniques.
Once you finish joining the pipes, you must let the joint cool. Keep the clamps closed during cooling. This step is important for the strength of the weld. Cooling usually takes 5 to 10 minutes, depending on the pipe size and thickness.
Do not move or handle the pipes until the joint is solid. Moving the pipes too soon can cause cracks or weak spots. The WP1000A holds the pipes steady during this time. This feature helps you avoid mistakes and keeps the weld strong.
Cooling rates affect the microstructure and toughness of the joint. If you cool the joint too fast or too slow, you can change its properties. You can use insulated covers to control the cooling rate, especially if you work outside or in cold weather. Always monitor the process to make sure the joint cools evenly.
Keep the clamps closed until the joint is cool.
Avoid touching or moving the pipes during cooling.
Use covers if needed to control the cooling rate.
These steps help you get durable, leak-proof joints every time you weld HDPE pipes.
After the joint cools, you need to inspect your work. Look at the weld bead around the joint. It should be even and smooth. There should be no gaps, cracks, or burn marks. Good inspection helps you find problems before they cause leaks.
You can use both visual and non-destructive testing methods. Visual checks are quick and easy. For more important jobs, you can use ultrasonic testing or hydrostatic testing. These tests help you find hidden flaws inside the joint.
Quality management systems recommend checking the welding process at every stage. This reduces the chance of defects and improves the reliability of your joints. The WP1000A can log data during the welding process. This feature helps you keep records and prove the quality of your work.
Note: Always record your inspection results. Good records help you track your work and show that you followed the right techniques.
A table of common inspection methods:
| Inspection Method | What It Checks For | When to Use |
|---|---|---|
| Visual Inspection | Surface flaws, bead shape | Every weld |
| Ultrasonic Testing | Internal flaws, voids | Critical or large pipes |
| Hydrostatic Testing | Leak-proof joints | Water and pressure pipes |
By following these steps, you make sure your HDPE pipe fusion joints are strong, safe, and reliable.
You can have problems when welding hdpe pipes. These problems can make your joints weak or not last long. If you know what to look for, you can fix things fast. Here is a table that lists common welding problems, how often they happen, and what you can do to fix them:
| Welding Defect Type | Incidence Rate | Troubleshooting / Maintenance Procedures |
|---|---|---|
| Porosity | 26.7% | Improve operator skills, inspect materials, perform routine equipment maintenance |
| Slag Inclusion | Critical | Use root cause analysis, focus on process control, apply preventive maintenance |
| Lack of Fusion | Critical | Control welding methods, use Six Sigma DMAIC, check process parameters |
Porosity can happen if the pipes are dirty or the heat is wrong. Slag inclusion and lack of fusion can come from using the wrong steps or broken equipment. You can stop these problems by being careful, cleaning your tools, and checking your settings before you weld.
New fusion machines with digital controls help you make fewer mistakes. They keep the heat steady and watch the welding as you work. This helps you make strong welds and do a better job.
Taking care of your hdpe welding machine helps it last longer and keeps you safe. You should check your machine before and after you use it. Clean the planing tool and heater to get rid of melted plastic. Look at the hydraulic station for leaks or low pressure. Make sure all bolts are tight and the clamps hold the pipes well.
Follow these tips to care for the WP1000A and other machines:
Check your machine often and fix problems before they get worse.
Change old parts, like blades or heaters, when you see damage.
Write down all repairs and checks in a log.
Teach everyone how to use the machine safely and weld the right way.
You should also keep track of accidents, close calls, and inspection results. This helps you find dangers early and make your work safer. Ask everyone to tell you about problems and share ideas to make things better. Good care and safe habits help you avoid most welding problems and keep your hdpe joints strong.
Tip: If you take care of your machine and follow safe steps, you can stop most welding problems and keep your work safe.
You can get safe and good results with an hdpe pipe welding machine if you follow simple steps and wear the right safety gear. Always read the instructions from the maker before you begin. Keeping your machine in good shape and learning how to use it helps you stop problems and keeps your hdpe pipes strong.
More than 90% of new city gas pipes use HDPE, so good welding and care are very important.
Butt fusion welds are the weakest spots in hdpe pipes, so you need to check and fix them often.
Some problems do not show up at first but can cause trouble later, so you must check and test the pipes often.
Pick machines like the WELPING WP1000A for the best work and strong hdpe pipe joints.
You should inspect your welding machine before every use. Look for dirt, damage, or loose parts. Regular checks help you find problems early and keep your work safe.
Set the heating plate between 220°C and 260°C. This range melts the pipe ends just enough for a strong joint. Always check the temperature before you start welding.
Proper alignment keeps the joint strong and leak-free. Misaligned pipes can cause weak spots or leaks. Use the machine’s clamps to hold pipes steady and straight.
Keep the clamps closed and let the joint cool for at least 5 to 10 minutes. Do not move the pipes until the joint feels solid and cool to the touch.
Wear gloves, safety glasses, a welding mask, and sturdy boots. This gear protects you from burns, sparks, and other injuries. Always check your equipment before you start.
