WP1200A Pro Outdoor Photos: A Clearer Look at a 1200mm Butt Fusion Machine

We recently took a new set of outdoor product photos for the WP1200A Pro.

Instead of using only standard white-background images, this photo set was taken outside our workshop to give a more realistic view of the machine. For a large butt fusion machine, customers often want to see more than basic specifications. The overall size, frame layout, component arrangement, and operating space all matter when choosing equipment for large-diameter pipe projects.

The WP1200A Pro is designed for HDPE pipe butt fusion from 630mm to 1200mm. This size range is commonly used in large pipeline installation and engineering projects, where pipe handling, clamping stability, hydraulic control, and machine structure are all important during daily operation.

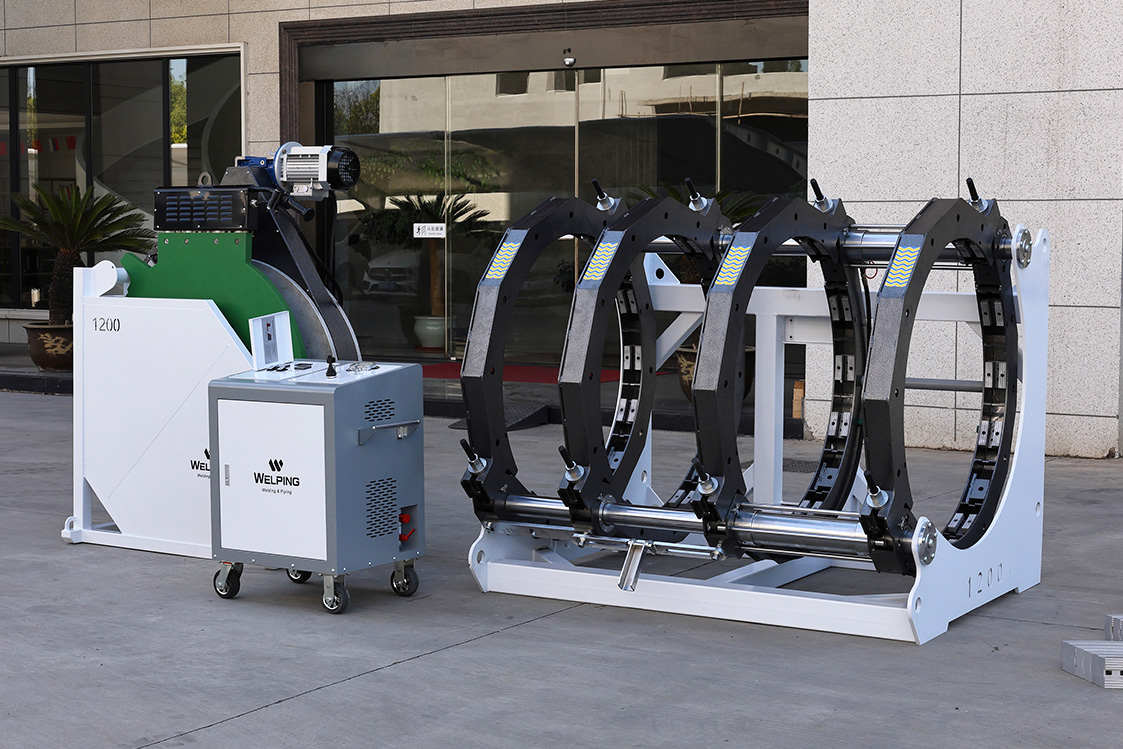

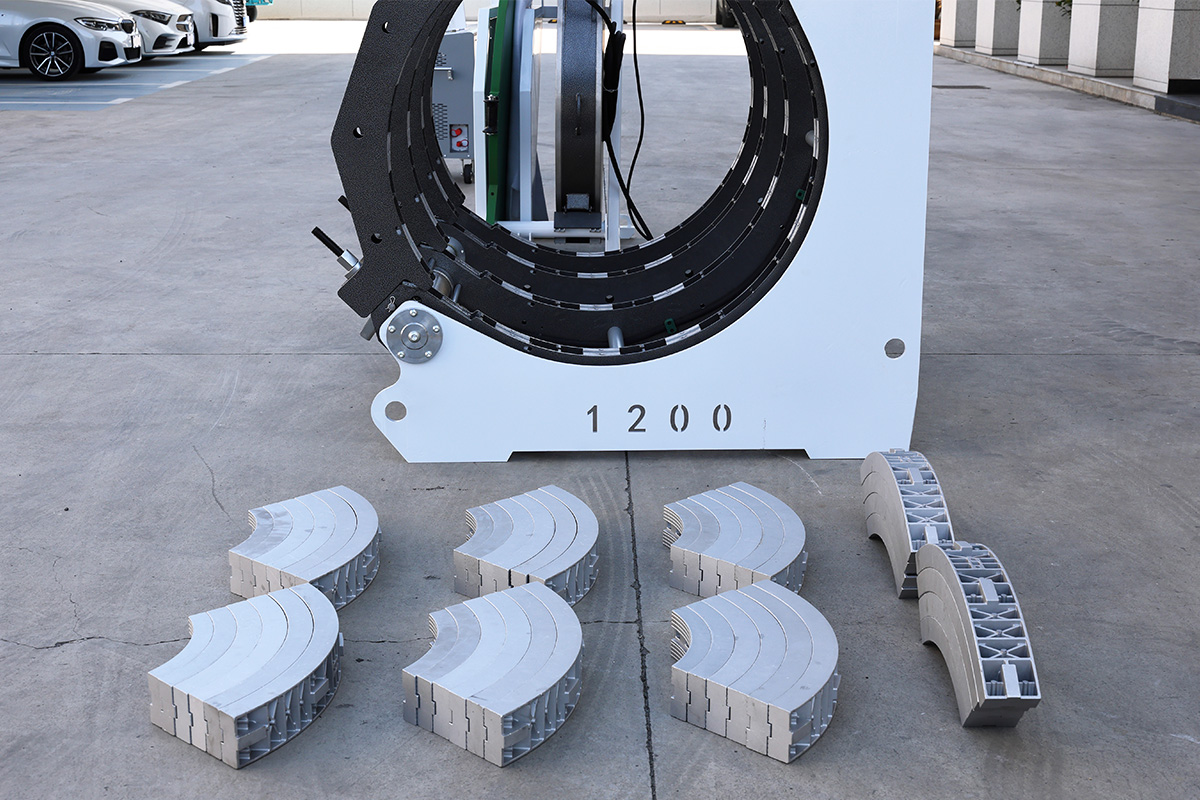

From the full-machine view, the WP1200A Pro uses a heavy-duty frame with multiple clamps to hold large-diameter pipes securely. The wide aluminum clamping inserts provide a larger contact area with the pipe, helping improve clamping stability during alignment, facing, heating, and fusion.

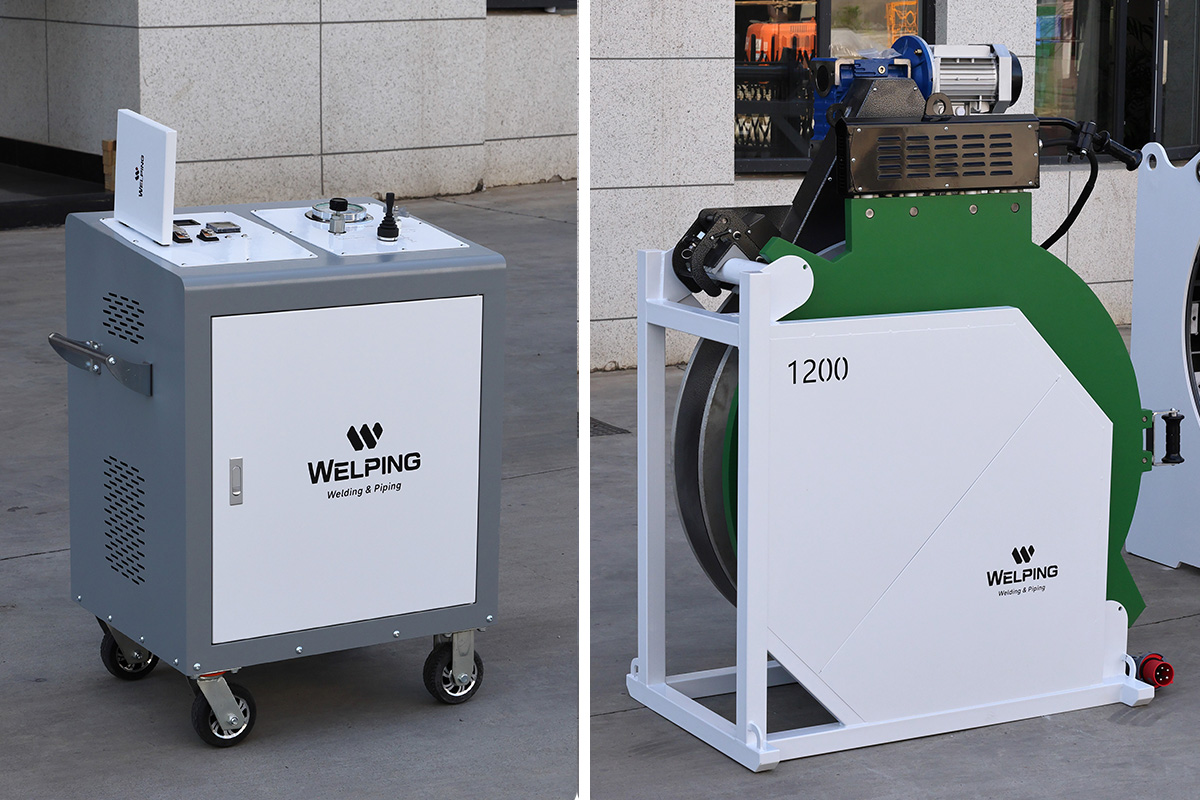

The hydraulic unit is built with an enclosed design, integrating hydraulic and electrical control in one operating unit. This makes the control area clearer and more convenient for daily use and maintenance. For a machine in this size range, stable hydraulic movement and straightforward operation are essential parts of the working experience.

The facer and heating plate are also key components in the butt fusion process. The WP1200A Pro is equipped with large-size facing and heating components for pipe end preparation, heating, and jointing. For easier handling of these heavy parts, an optional lifting crane can be added to assist with moving the facer and heating plate during operation.

A data logger can also be supplied as an optional configuration, depending on project requirements. For projects that require welding records and process documentation, this option helps support better data management on site.

This new outdoor photo set shows the WP1200A Pro in a more complete and practical way, including its full-machine structure, key components, and optional configurations. For customers looking for a 630mm–1200mm HDPE pipe butt fusion machine, these photos provide a clearer reference beyond a standard specification sheet.

The WP1200A Pro is part of Welping’s Pro series for large-diameter HDPE pipe welding applications. We will continue to share clearer product photos, structure details, and practical application information to help customers better understand each model and choose equipment that fits their project needs.
