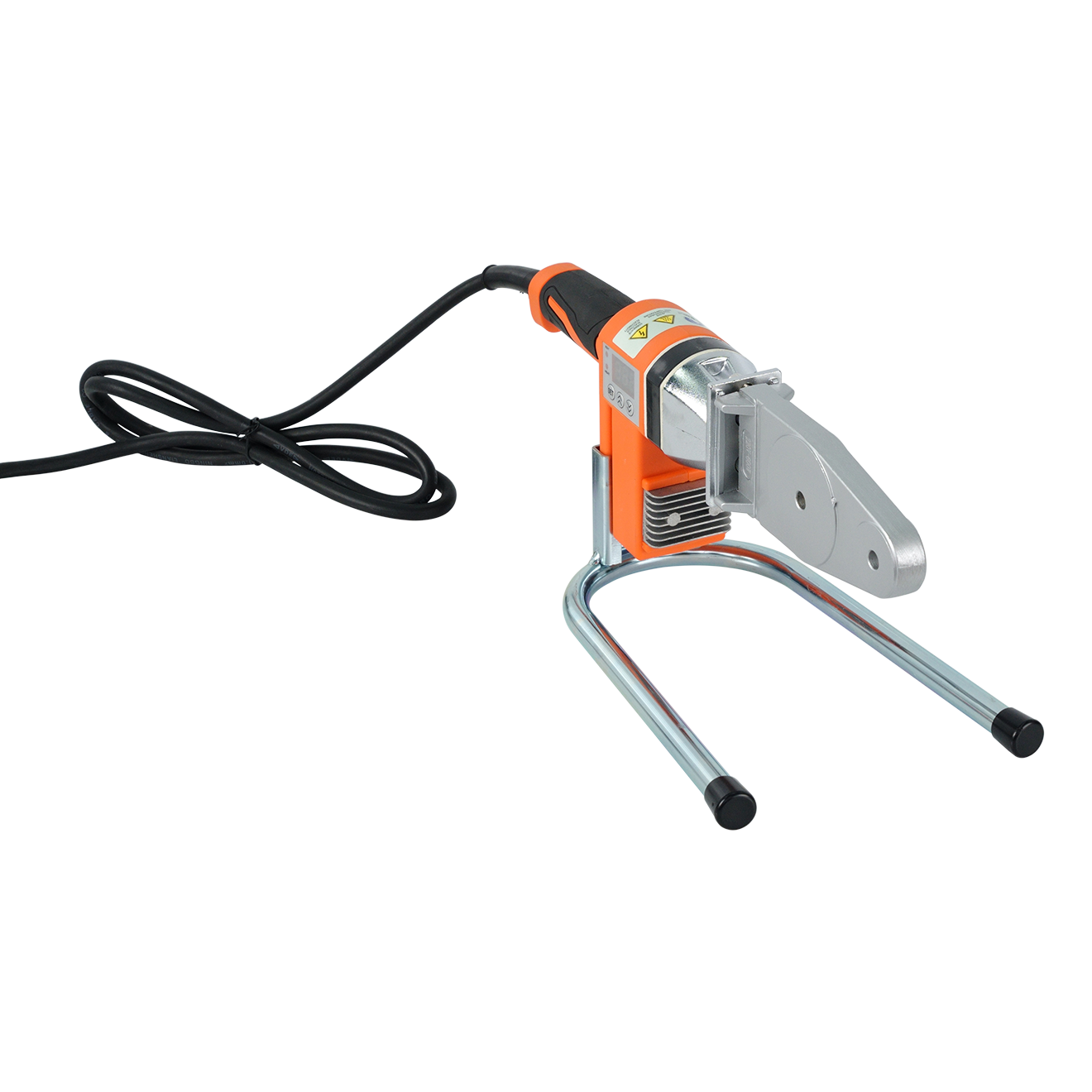

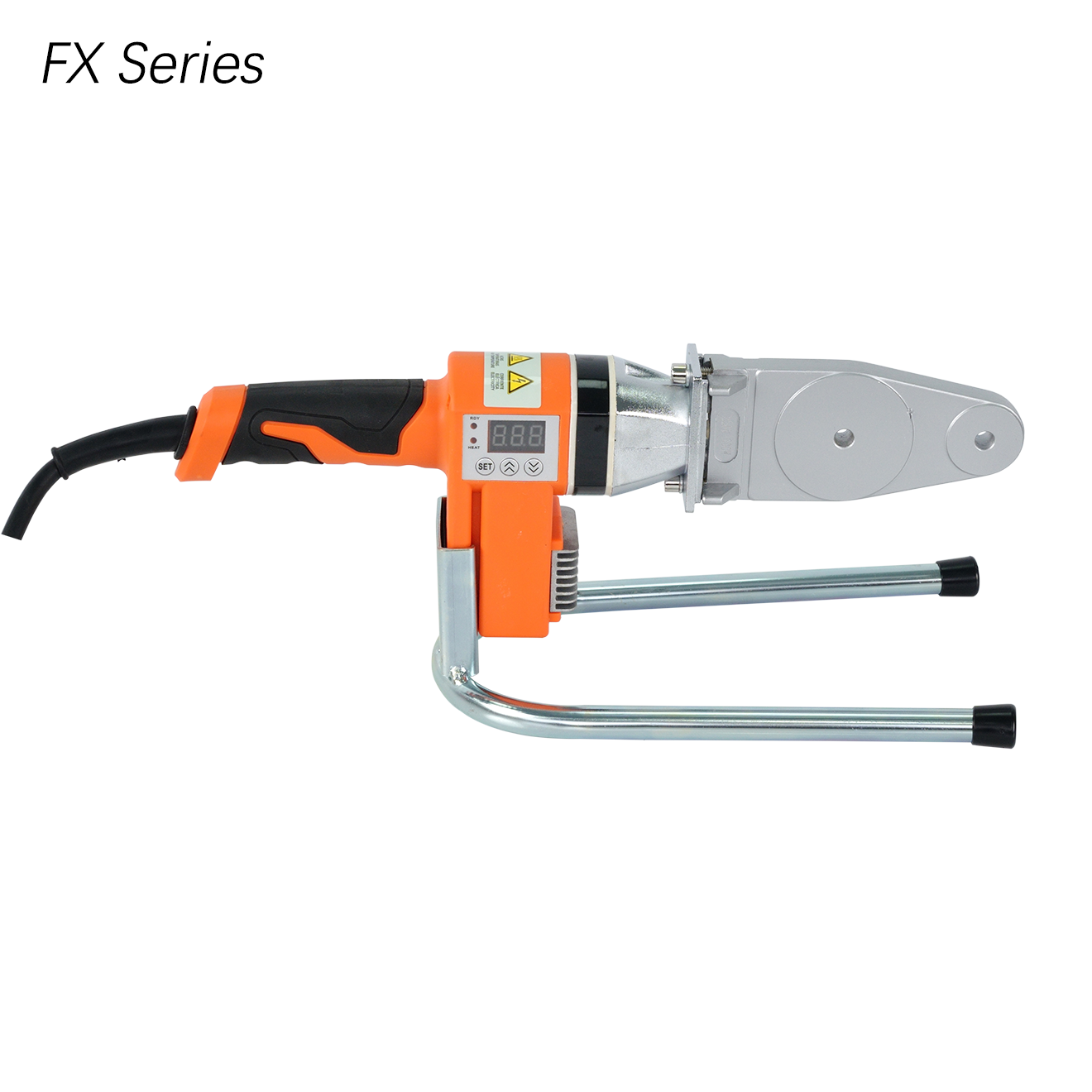

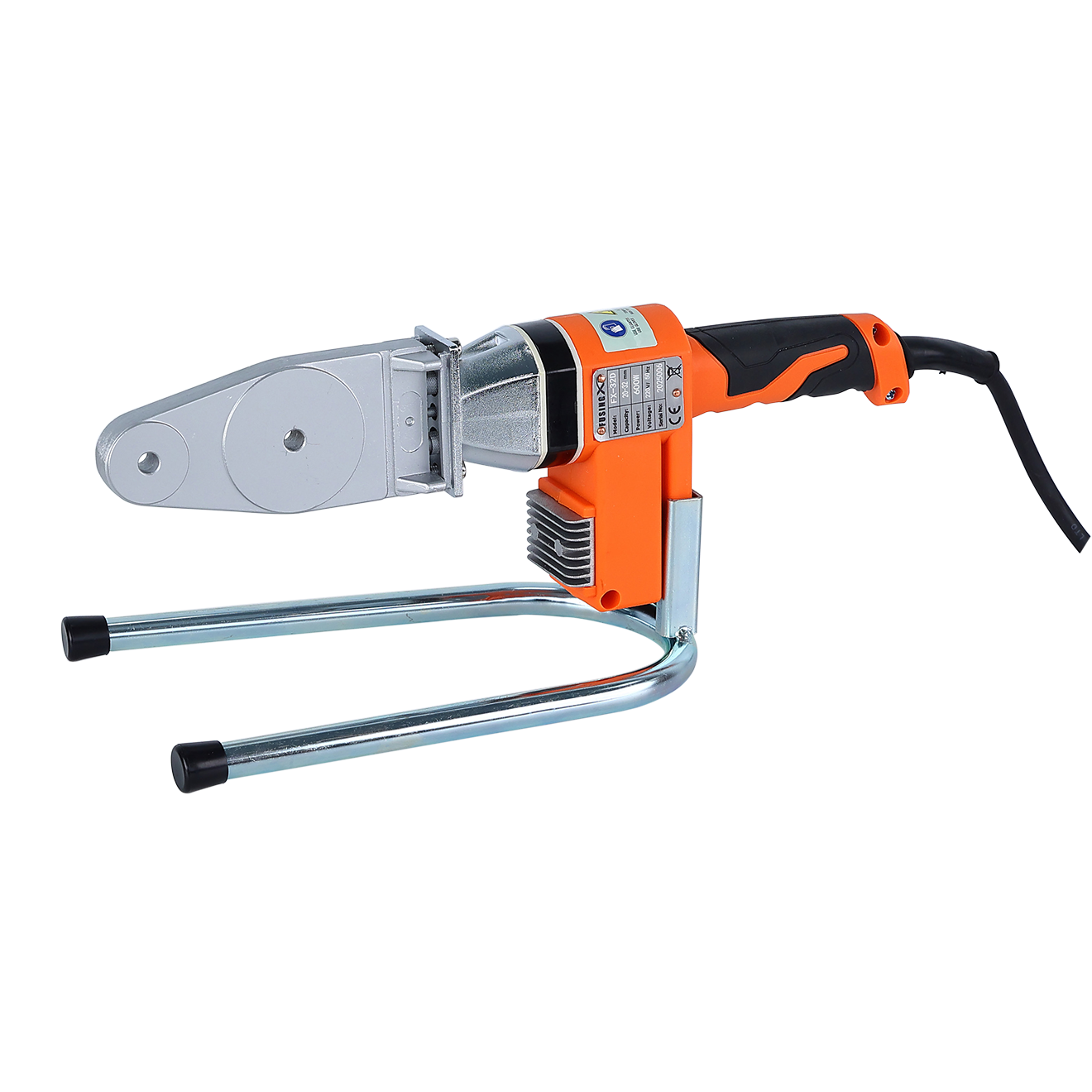

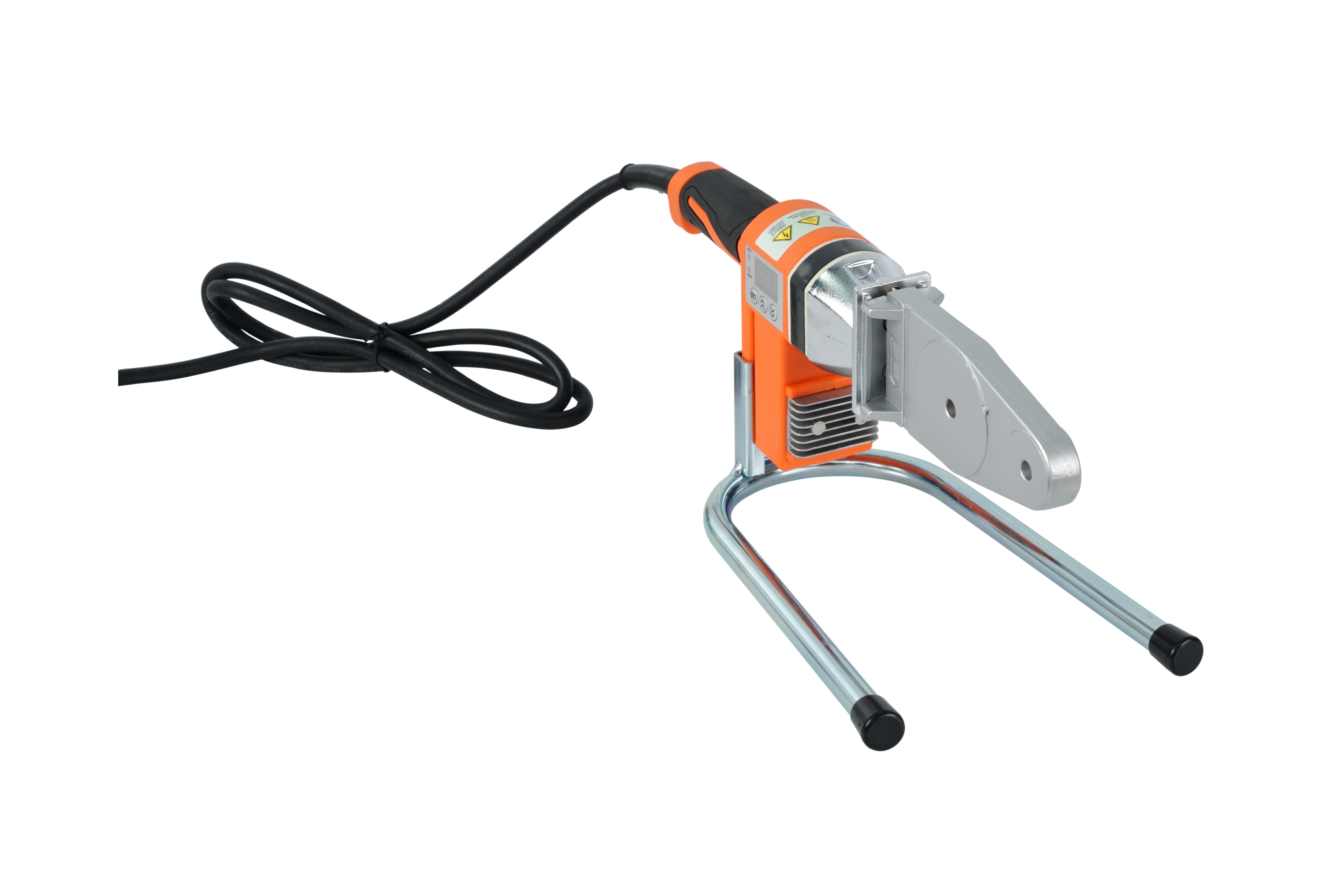

FX32D
WELPING
| Lead Time: | Please select |
|---|---|
| Certificate: | Please select |
| Color: | Please select |
| Quantity: | |
| INTRODUCTION |

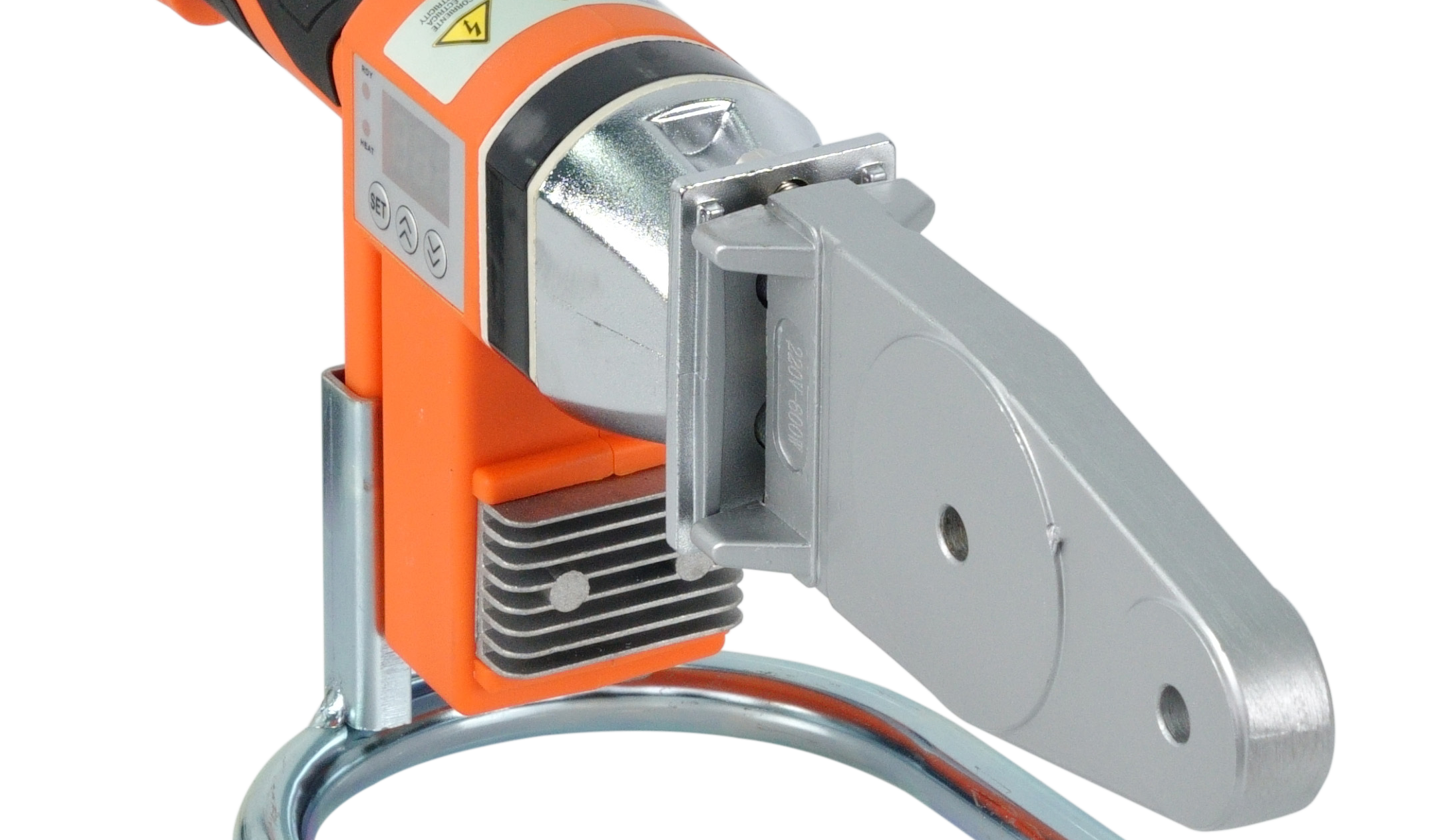

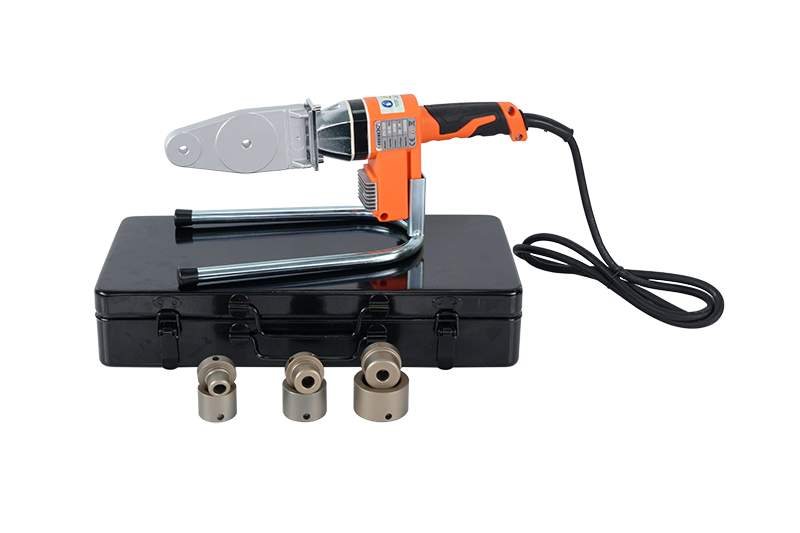

DETAILS ※ Working range: for 20-32mm PE,PP,PB,PVDF pipe ※ Industrial class welding shoes and heating plate with thicker materials guaranteed stable welding temperature. ※ Double insulation panels efficiently prevent heat dissipation. ※ Engineering rubber handle, galvanized stand and clamping bracket make it easier in rough situations. ※ Quality aluminum heat sink allows the machine to work for a long time. | STANDARD ACCESSORIES | |||
| Main Frame | 1 Set | |||

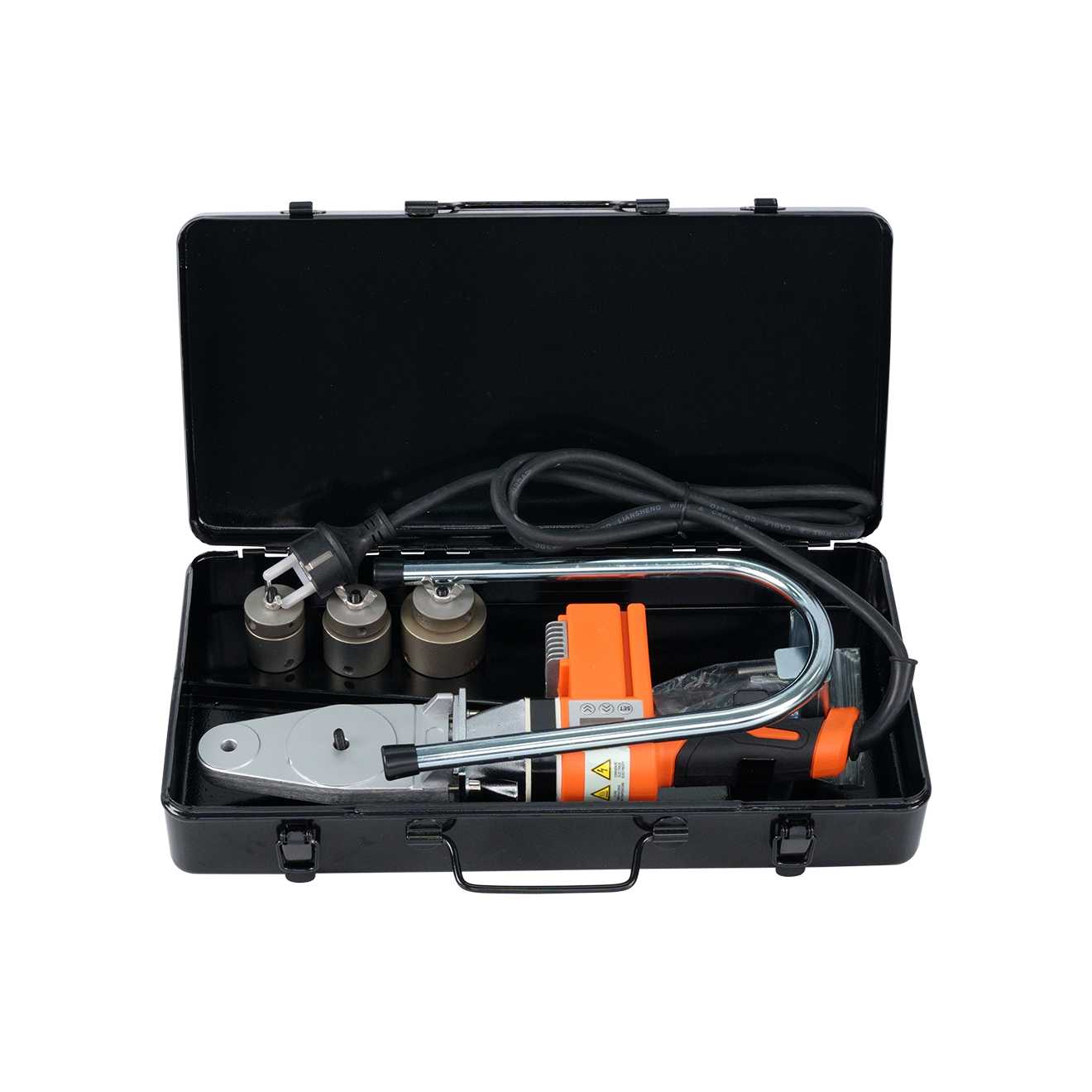

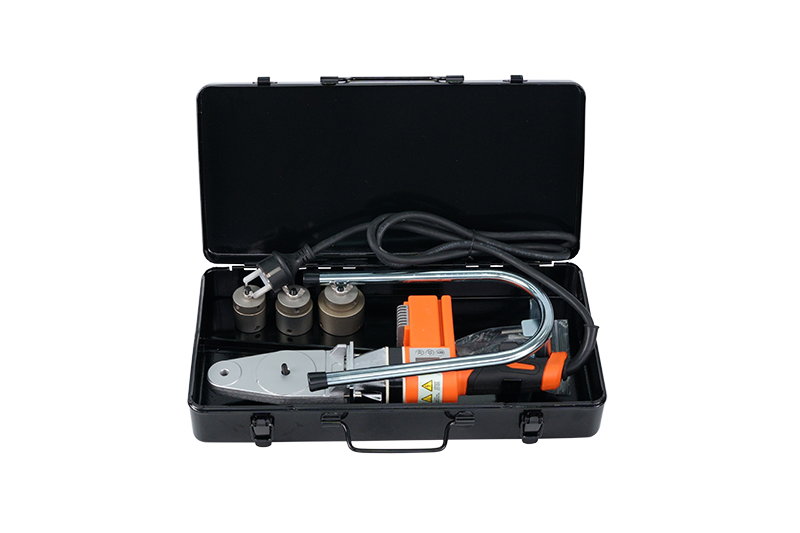

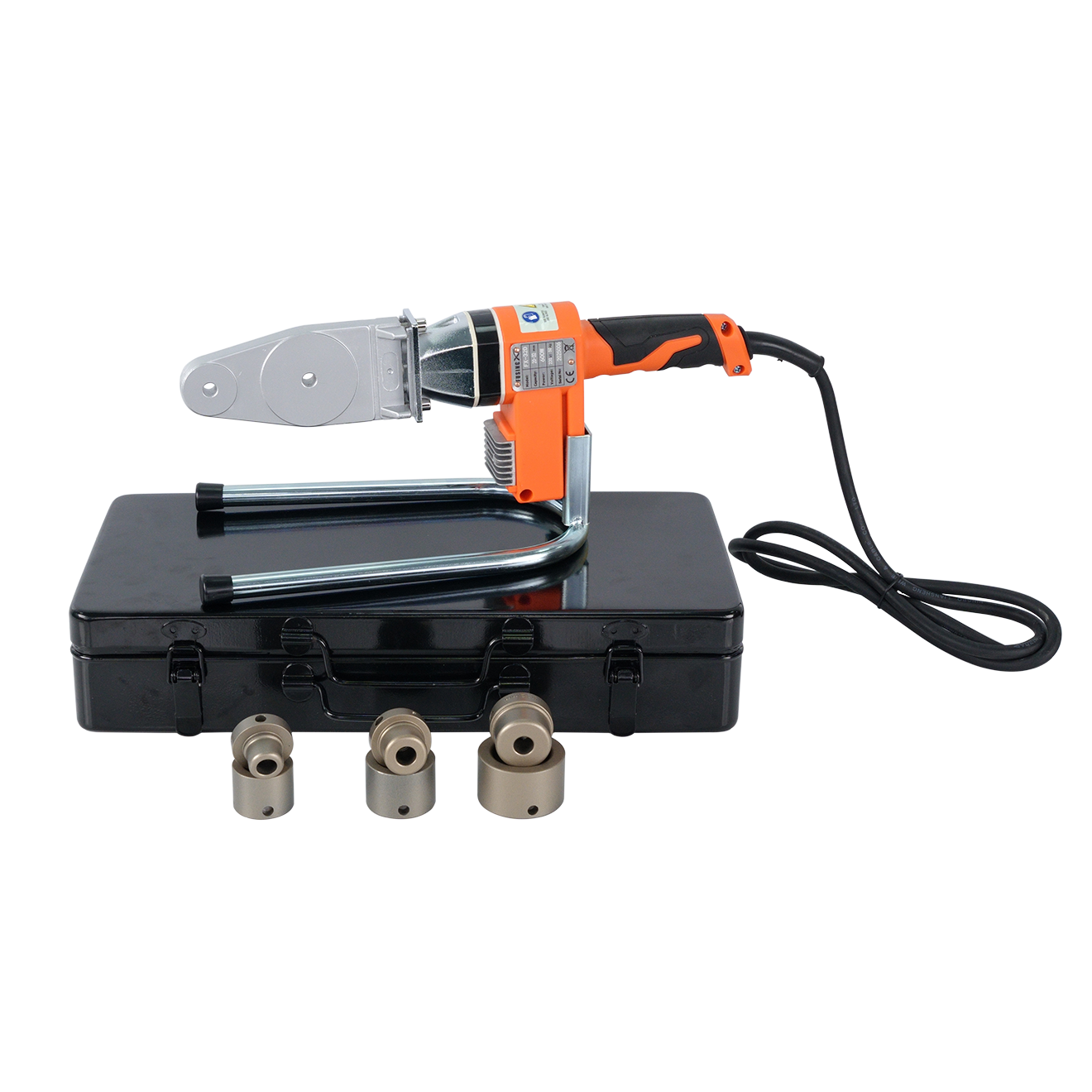

| Welding Dies(20-25-32mm) | 1 Set | |||
| Support Bracket | 1 Set | |||
| Wrench | 1 Set | |||
| Fixing bolts | 1 Set | |||
1. Setting Temperature
2. Cutting the Pipe
Cut the required pipe length with a plastic pipe cutter
3. Cleaning the Pipe
Clean the fusion surface of the pipe with alcohol
4. Measuring fusion depth
Mark the fusion depth on the pipe according to the socket depth of the fitting (or use the positioning holes on the heating sleeve)
5. Heating the Pipe
Insert pipe and fitting horizontally into the sockets, refer to the table below for heating time
6. Connecting and Cooling
Connect the heated pipe and fitting accurately and finish adjustment within 5s
| Recommended Welding Time and Insertion Depth at Ambient Temperature of 20 ° C |
| External Diameter (mm) | Melting Depth (mm) | Heating Time (s) | Processing Time (s) | Cooling Time (min) | |
| A (fitting side) | B ( pipe side) | ||||
| 20 | 14.5 | 15.5 | 5 | 4 | 2 |
| 25 | 15.0 | 16.5 | 7 | 4 | 2 |
| 32 | 16.5 | 18.5 | 8 | 6 | 4 |
| PRPAMETER |
 | Mode | FX32D |
| Suitable materials | PE,PP,PB,PVDF | |
| Range | 20-25-32mm | |
| Power supply | 110V/220V | |
| Frequency | 50HZ/60HZ | |
| Power Supply | 600W | |
| Working Temperature | 220ºC-260ºC | |
| Temperature tolerance | ≤2ºC | |
| Warning temperature | set value + 20ºC | |
| Net weight | 5 KGS | |
| PCS/Carton | 4 PCS | |
| N.W/Carton | 17KGS/4PCS | |
| G.W/Carton | 18KGS/4PCS | |
| Carton size | 49*43.5*20CM |

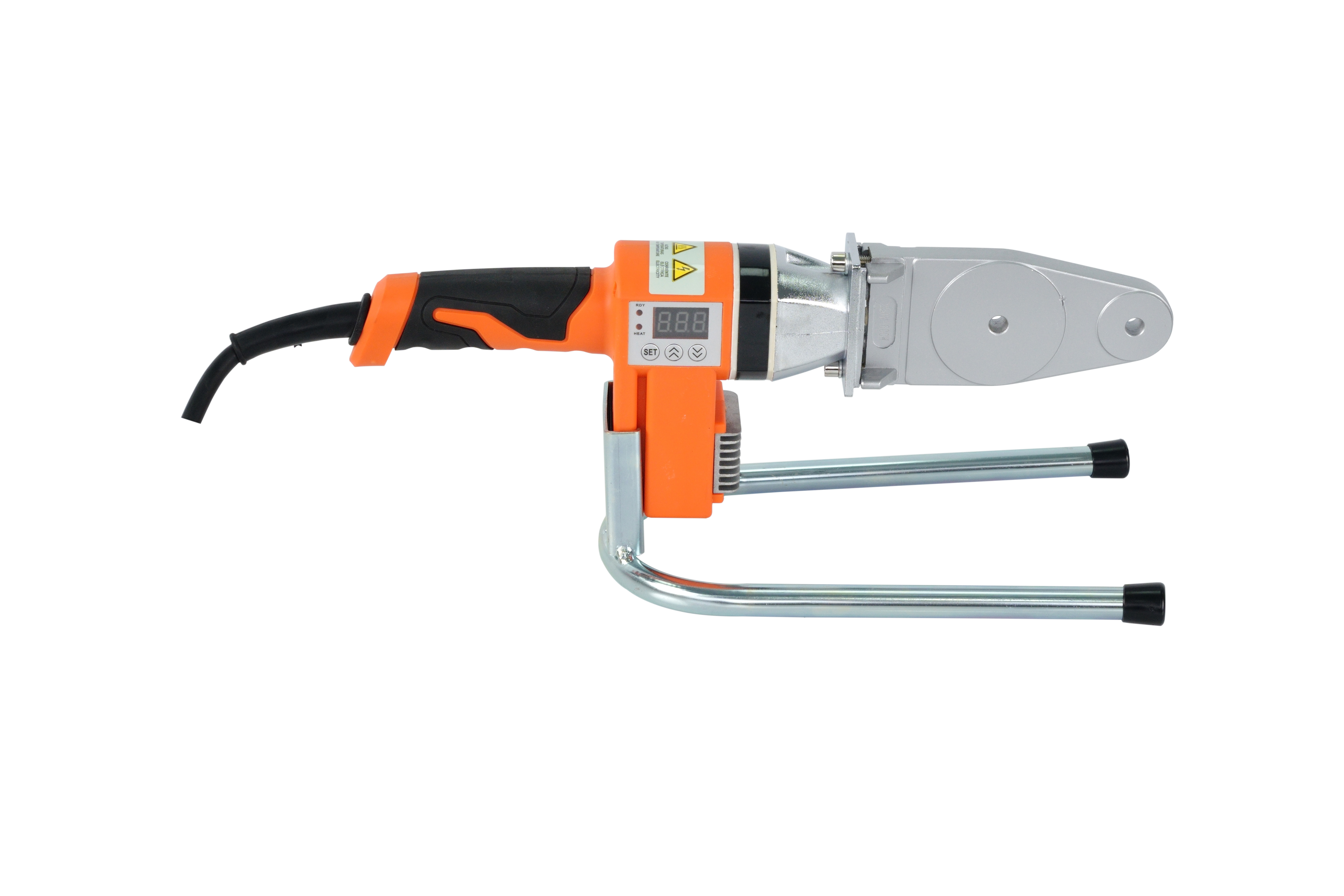

| PRODUCT DETAILS MAP |
| WHAT WE CAN DO FOR YOU? |
OUR SERVICES
