You use a plastic butt welding machine to make strong pipe connections. These machines are important for joining plastic pipes in big projects. Today’s buildings need pipe joints that work well. Plastic pipes joined this way can take about 30% more pressure than the pipe’s yield pressure. They can also handle almost 200% of the design pressure. The welded joint is often stronger than what tests show. You need plastic butt welding machines for projects that need safe, leak-free plastic pipe systems.
Plastic butt welding machines make strong joints that do not leak. These joints last a long time and can handle high pressure. These machines work with many pipe types and sizes. This makes them good for water, gas, sewage, industrial, mining, and farming jobs. Using plastic welding helps save money. It lowers waste, repair costs, and makes building faster. Workers need good training and must prepare the site well. They also need to check materials to keep welds safe and strong. New machines like the WP355A have smart features and are tough. They help workers finish jobs quickly and protect the environment.

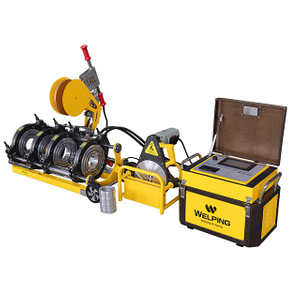

A plastic butt welding machine joins thermoplastic pipes together. It uses heat and pressure to connect two pipe ends. This makes a smooth and strong joint. In construction, workers often use it for pipes made of HDPE or PE. The machine helps connect big pipes safely. It is a good choice for making strong pipe joints.
Here is a table that lists the main parts and features of a plastic butt welding machine:
| Component/Specification | Details/Values |
|---|---|
| Main Components | Carriage, planing tool, heater, hydraulic station, clamps |
| Welding Range (mm) | 160-355 (optional 90-140) |
| Power Supply | 220V/50Hz (380V optional) |
| Total Power Consumption | 5.45 KW |
| Max Heating Plate Temperature | 270ºC |
| Clamps | 4 Jaw clamps for precise alignment |
| Materials | High-grade steel, Q235 steel base, Teflon-coated heating element |
| Additional Features | Thermocouple sensor, electric leakage protection, anti-dust structure |
These machines are used in many industries. They can handle hard work and tough places. The design helps make strong pipe joints for water, gas, and mining. Some machines have smart controls and automation. These features help make welding easier and better.
Plastic welding joins thermoplastic pipes with heat and pressure. First, you put the pipe ends in the clamps. The planing tool cuts the ends flat and smooth. Then, the heater warms the pipe ends to the right temperature. When the plastic is soft, you push the ends together. The pressure melts the plastic and makes a strong joint.
Some things are important for good welding:
The right temperature melts the plastic evenly.
Pressure holds the pipe ends together.
Cooling time lets the joint get strong.
You must follow the right steps for each kind of plastic. Butt welding works best with the correct heat, pressure, and time. This way, the joint is as strong as the pipe. You can use this method for many kinds of plastic pipes. It works for water, gas, and factory pipes. The joint will not leak and will last a long time.
Plastic butt welding machines help build strong water and gas pipelines. These pipes need joints that do not leak. They must handle high pressure and steady flow. Butt welding joins thermoplastic pipes with no gaps. This makes the connection smooth and strong. There are fewer weak spots, so leaks are less likely. The WELPING WP355A can join PE and HDPE pipes well. You can use it at the work site or in a shop. It is good for city and factory pipeline jobs.
| Performance Metric | Description | Testing Method | Relevance to Pipeline Projects |
|---|---|---|---|
| Fracture Stress | Stress at which crack initiates at weld interface | Quasi-static axial tensile test | Directly correlates to pipeline design conditions |
| Fracture Energy | Energy required to propagate crack along weld interface | Quasi-static axial tensile test | Indicates weld joint toughness and durability |
| Fracture Morphology Analysis | Visual and microscopic examination of crack patterns and weld interface quality | Microscopy and fracture surface analysis | Helps differentiate quality of joints from welding procedures |
Plastic welding gives the pipes high strength and stops rust. Welded joints in these pipes can last more than 50 years. People trust these pipes to bring safe water and gas to homes and businesses.
Butt fusion pressure is between 30 and 90 psi. This depends on the pipe’s grade and wall thickness.
The heating plate stays between 400°F and 450°F. This melts the pipe ends just right.
Cooling time changes with pipe size. This helps make the joint strong.
Fusion joints make one solid pipeline. This lowers the chance of leaks.
Welded joints stand up to chemicals, water, and pressure changes.
Sewage and wastewater pipes need strong, leak-free joints. Plastic butt welding machines help make these joints in thermoplastic pipes. These pipes face harsh chemicals and changing water flow. Butt welding keeps the joints strong and stops rust. The WP355A works with PE, HDPE, PP, and PVDF pipes. This makes it useful for many sewage and wastewater jobs.
You can use butt welding for pipes in underground networks and treatment plants. It also works for pumping stations. The smooth joints stop dirt and germs from getting in. They also keep pipes from getting blocked. Welded pipes need less fixing because they resist roots and chemicals.
Factories and chemical plants need tough pipe joints. These joints must handle strong chemicals, heat, and pressure. Plastic welding with machines like the WP355A is very reliable. Certified welding for chemical tanks meets ASTM F2620 rules. These joints are almost as strong as the pipe itself.
You use plastic butt welding for tanks, ducts, and process pipes.
New welding methods, like ultrasonic and laser welding, help check the welds as you work.
Safety rules and equipment standards keep workers safe.
Plastic welding gives steady quality and long life. Many industries use it, like car making, airplanes, and clean energy. They trust these joints for important jobs.
Mining and landfill jobs need strong pipes and liners. Plastic butt welding machines join geomembrane liners and pipes. These pipes move water, slurry, and leachate. The WP355A can weld big pipes, so it is good for mines and landfills.
You get joints that do not leak and resist chemicals. Butt welding makes a solid barrier. This keeps soil and water safe from pollution. You can put in pipes and liners fast. This saves time and helps the project finish sooner.
Plastic welding helps farmers use water better. HDPE pipes with welded joints leak less. This saves water and helps crops grow. Studies show a 30% boost in water use when you use welded joints.
You spend less money on pumping water because less is lost. Thermoplastic pipes are flexible and do not rust. This means you fix them less often. Butt welding connects pipes for drip and sprinkler systems. It also works for main water lines. The WP355A can be used in the field or in a shop. This gives you more choices for your job.
Tip: Using plastic butt welding machines in farming saves water and money.
You can also weld geomembranes for ponds and water tanks. This keeps water in and makes the liner last longer.
Every pipe joint in a building needs to be strong. It also must not leak. Plastic welding helps make sure of this. Machines like the WP355A heat pipes evenly. They keep the temperature just right. This makes the weld very good. The joint can last for many years.
You can check welds with special tests. These include visual testing, leak testing, radiography, microwave reflectometry, and ultrasonic testing. These tests look for cracks or weak spots. They help you know if the weld is strong.
Leak testing uses fluids or gases. You pressurize the joint and watch for leaks. If nothing leaks, the joint is safe.
Butt welding makes joints with no seams. The pipe acts like one solid piece. This makes it stronger.
Cooling the pipe slowly after welding is important. It stops cracks and keeps the weld strong.
Butt welding works for water, gas, and chemical pipes. The joints do not leak and can handle high pressure.
You want to save money on your project. Plastic welding helps you do this. The WP355A lines up pipes well and uses hydraulic control. This gives you good welds and less waste. You do not need extra parts or glue. This saves on materials.
Ultrasonic welding is another way to join plastic. It costs less for work and energy than other ways. You will fix pipes less often because the welds are strong. Good machines help you finish jobs faster. Your team can get more work done.
You need pipes that last and keep people safe. The WP355A is built strong and has safety features. It protects both the machine and workers.
Plastic welding makes joints that fight off chemicals and rust. They also handle changes in pressure. The welds last a long time, even in tough places. The machine lines up pipes well and uses hydraulic control. This makes every weld safe and strong. You can use these joints in cities, factories, mines, and farms.
Note: Good welds mean fewer fixes and safer pipes for everyone.
Always make sure your plastic pipes and fittings match the welding method. Not all thermoplastic materials work well together. Some chemicals, like thread sealants or lubricants, can hurt plastic pipes. Check compatibility charts and technical manuals before you start welding. These guides show which materials are safe to use together. For example, ASTM guides and material charts rate if materials work well, sometimes work, or do not work. Testing in real situations gives the best results for long-lasting pipes. Clean every pipe end with acetone before welding. This stops dirt and helps make a better joint.
| Rating | Meaning |
|---|---|
| S | Satisfactory for use with the intended gas or material. |
| C | Conditional; may be incompatible under some conditions. |
| U | Unsatisfactory for use with the intended gas or material. |
| I | Insufficient data to determine compatibility. |
| O | Caution: Nonmetallic materials may be ignitable in oxygen-enriched environments. |
You need skilled workers for good plastic welding. Training teaches you how to use and care for the welding machine. Many classes let you practice and learn basic and advanced skills. After training, you get a certificate to show your skills. Workshops help you learn new welding ways and safety rules. Well-trained workers help jobs go faster and with fewer mistakes. Quality checks, like pulling and pressure tests, make sure welds are strong and safe.
Tip: Always wear gloves and goggles. Use good airflow when welding to stay safe.
Good site prep helps welding go well. Clean and level the work area first. Make sure your welding tools are clean and set to the right heat. Trim and roughen pipe ends to the right size. Follow rules for joint size to stop problems. Use quality checks, like looking at weld shapes and sizes, to catch mistakes. Doing these steps every time makes welding faster and joints stronger.
Plastic butt welding is used in many city pipeline jobs. Machines like the WELPING WP355A make strong joints for water and gas pipes. Many cities now use HDPE liners instead of old concrete tanks. These liners are joined by welding. This change helps cities lose less water each year. Water loss has dropped by more than 15%. Welded joints are very strong. They keep over 80% of the pipe’s strength. You can finish jobs much faster than with glue or bolts. Some jobs are done 50% quicker. The table below shows important results from city welding projects:
| Outcome Metric | Quantitative Result | Context/Application |
|---|---|---|
| Welding Speed | 3-6 meters per minute | Geomembranes and HDPE liners |
| Weld Integrity Rate | 99.8% | Water infrastructure stress tests |
| Water Loss Reduction | >15% annual leakage cut | HDPE liners in municipal tanks |
| Weld Strength Benchmark | >80% of base material | Water reservoirs and pipelines |
| Installation Speed Improvement | 50% faster | Rail noise barriers, infrastructure |
| Maintenance Cost Reduction | 30% | Offshore wind farm cable sheathing |
Tip: Good welding helps bring safe water to homes and saves money.
Factories and plants need welds that can handle tough jobs. These jobs have chemicals, heat, and pressure. Thermoplastic welding helps you build things faster. You can cut assembly time by 40%. You also waste 35% less material. New machines with smart controls make work faster and more exact. Welds can be as strong as 95% of the pipe’s strength. Some companies save $157,000 every year by working better. You help the planet by making less glue waste. You also lower your carbon footprint by 45%. The table below shows these good results:
| Performance Metric / Cost Aspect | Evidence / Statistic |
|---|---|
| Assembly Time Reduction | 40% average reduction in assembly time |
| Material Waste Reduction | 35% decrease in material waste |
| Production Speed Increase | 43% increase in production speed |
| Joint Strength | Up to 95% of parent material strength |
| Fatigue Testing Results | Zero failures after 500,000 cycles |
| Return on Investment (ROI) | 18 months average ROI |
| Operational Cost Savings | 60% lower than traditional joining methods |
| Annual Cost Savings Example | $157,000 saved annually |
| Adhesive Waste Elimination | Up to 500 kg eliminated per welder |
| Environmental Impact | 45% reduction in carbon footprint |
| Advanced Features Supporting Efficiency | Industry 4.0 integration, precise control, safety certifications |
Mining and landfill sites need strong pipes for water and waste. The WELPING WP355A can weld big HDPE pipes and liners. Welded joints stop leaks of water and chemicals into the ground. In mining, you often need to put in long pipes fast. Welding helps you finish these jobs quickly. You also need fewer repairs. Welded pipes last longer and need less fixing. Strong, leak-proof welding keeps the site safe and protects the environment.
You need plastic butt welding machines to make strong pipe joints. These joints do not leak, so they are good for building. Machines like the WELPING WP355A help you finish jobs faster. They also help you stay safe while working. In the future, these machines will get smarter and more automatic. More people around the world are using plastic welding. The table below shows important facts:
| Aspect | Details |
|---|---|
| Market Size (2024) | USD 1.2 billion |
| 2033 Projection | USD 2.1 billion |
| Fastest Growth Region | Asia-Pacific (CAGR 9.1%) |
| Key Trends | Automation, AI, sustainability |
When you pick new welding machines, you help build better roads and buildings.
You can weld PE, HDPE, PP, and PVDF pipes. These machines work well for many pipe sizes and thicknesses. Always check your pipe material before starting.
You must clean the pipe ends, set the right temperature, and use correct pressure. Let the joint cool fully. Follow the machine’s instructions for best results.
Yes, you can use the WP355A both outdoors and in workshops. Its robust build and dust protection make it reliable for fieldwork and harsh environments.
A properly welded joint can last over 50 years. You get a strong, leak-proof connection that resists corrosion and pressure changes.
