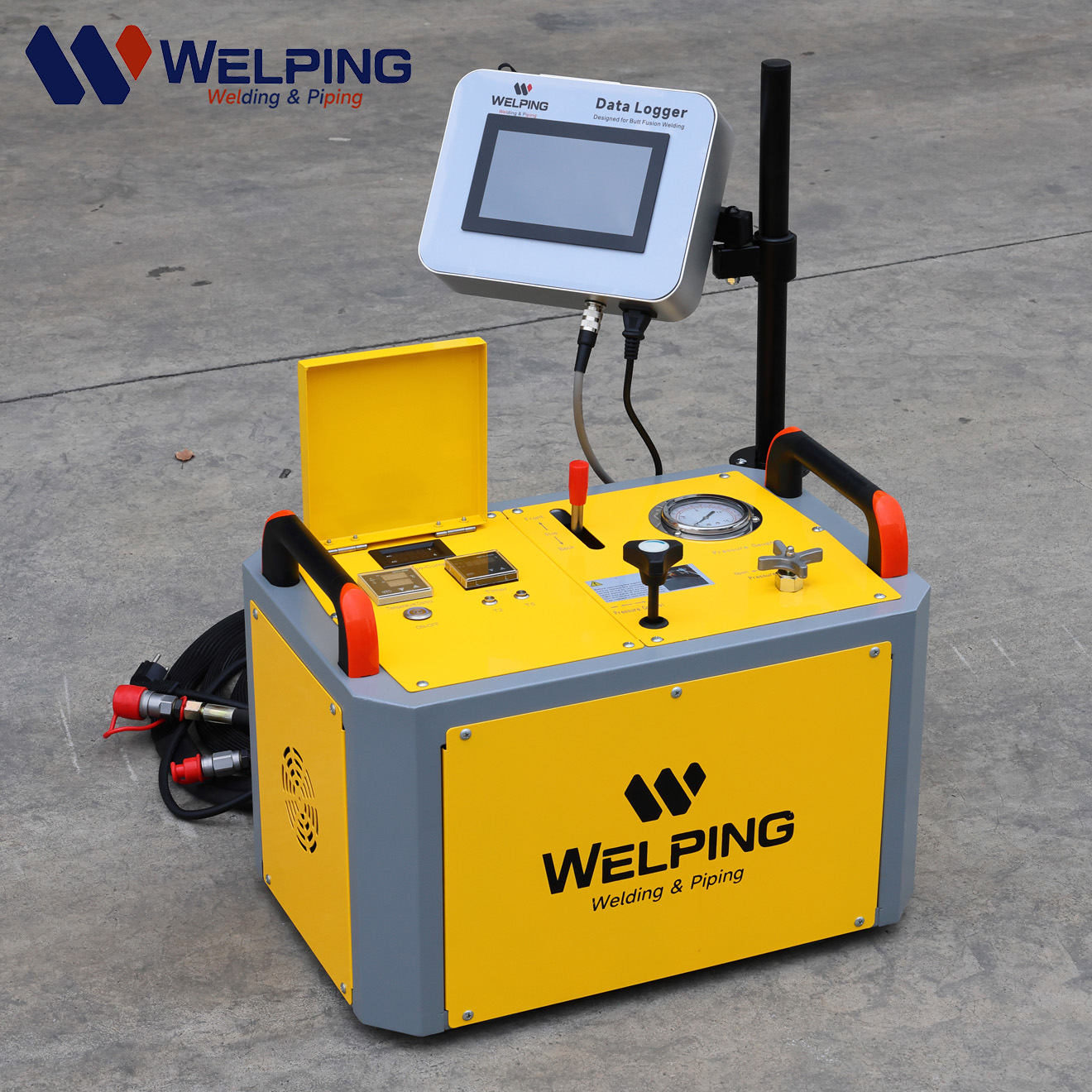

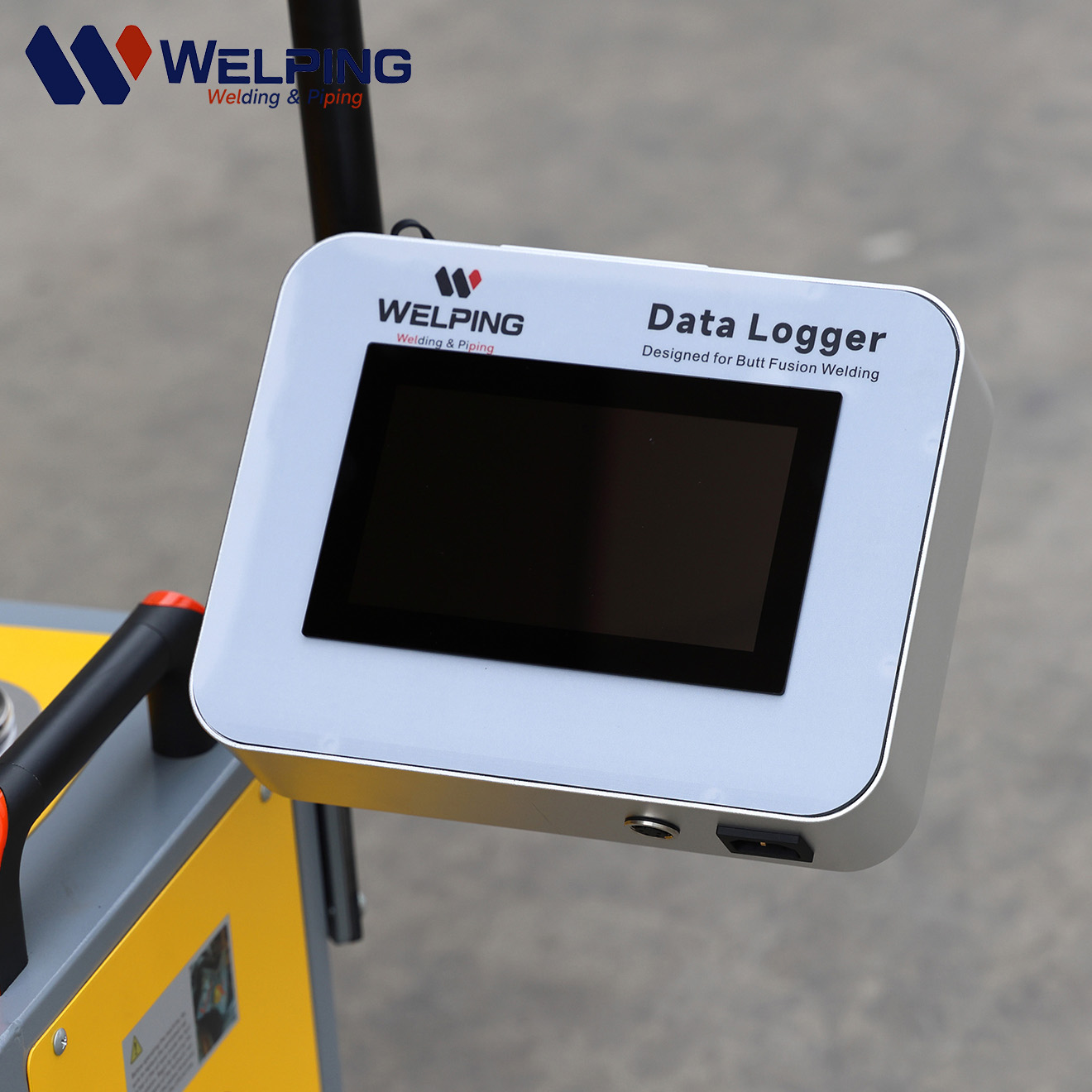

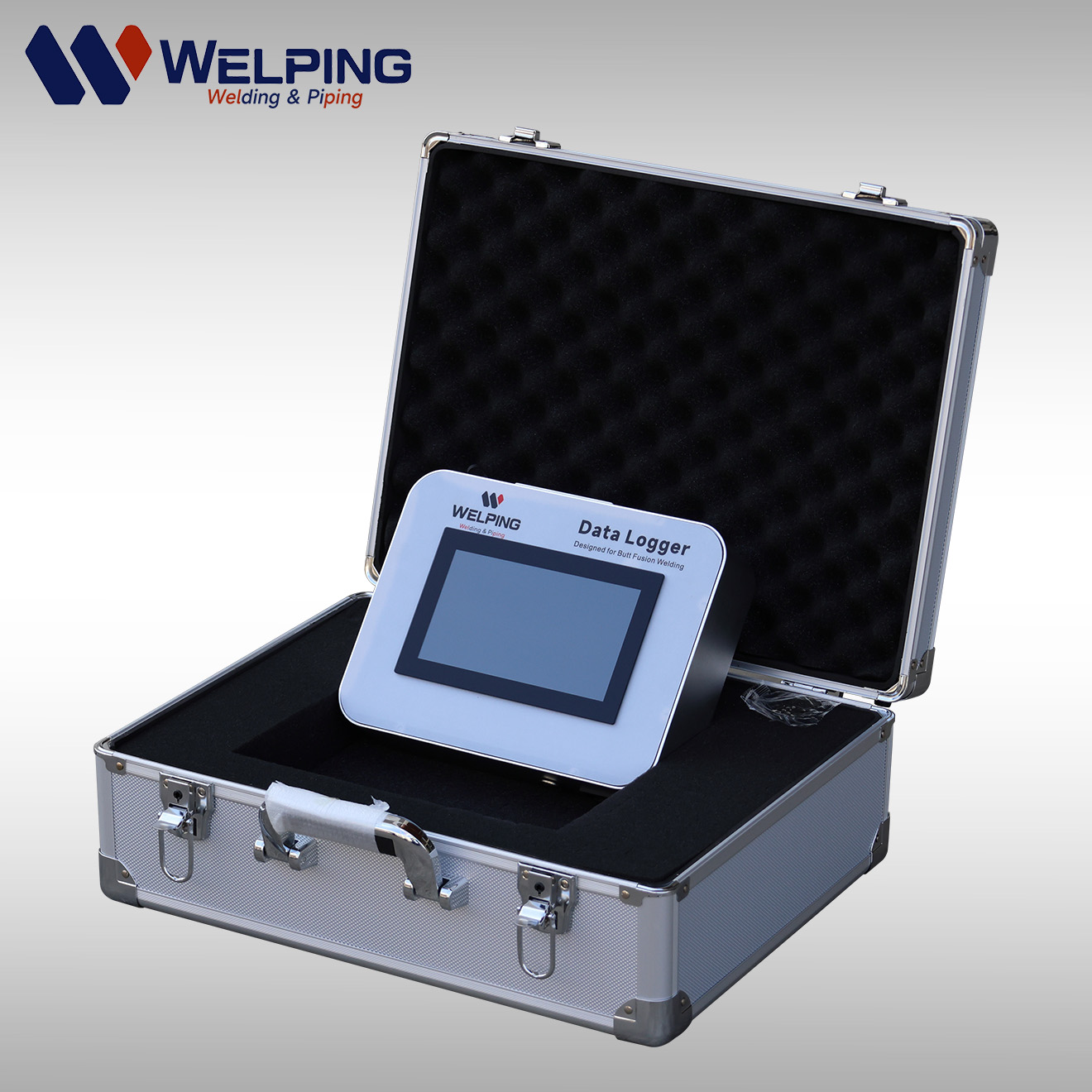

HDPE Butt Fusion Data Logger with Welding Record & Traceability | Tracker 7 / Tracker 10

Professional data logger for HDPE butt fusion welding, featuring real-time pressure and temperature monitoring, welding guidance, data recording, export, printing and joint traceability. Supports ISO 21307, DVS 2207, GOST R 55276 and custom welding parameters.

  • Tracker 7 / Tracker 10

  • WELPING

Availability:
Quantity:
Inquire Add to Basket

Tracker 7 / Tracker 10 HDPE Butt Fusion Data Logger
8683044

— Product Overview —

Professional Data Logger for HDPE Butt Fusion Welding
Tracker 7 / Tracker 10 monitors welding pressure, heating plate temperature, and ambient temperature in real time, while recording key data throughout the butt fusion process.
It also provides step-by-step welding guidance, automatic result evaluation, data export, and joint traceability. Supports ISO 21307, DVS 2207, GOST R 55276, and custom welding parameters.

— Technical Specifications —
Product Function Description
Real-Time Monitoring Pressure, heating plate temperature and ambient temperature
Welding Guidance 13-step butt fusion welding guidance
Automatic Calculation Calculates key welding parameters based on pipe size, wall thickness, material and standard
Welding Data Recording Records pressure, temperature, time, pipe, machine and project information
Result Evaluation Compares actual data with standard values and evaluates the welding result
Data Storage Stores more than 10,000 welding records
Data Export & Printing Supports data export and individual or batch welding record printing

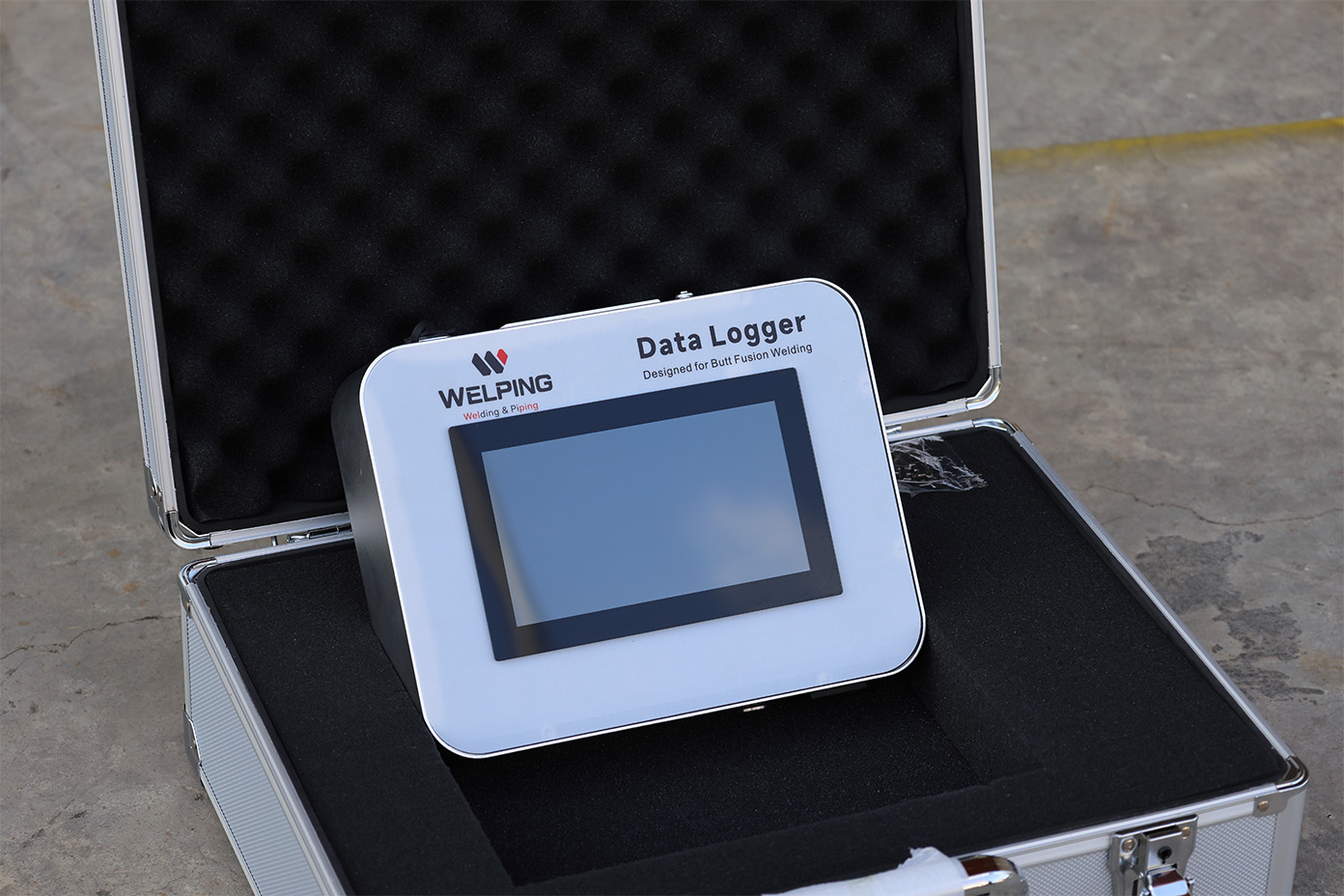

21
30
22
29
— Technical Specifications —
28

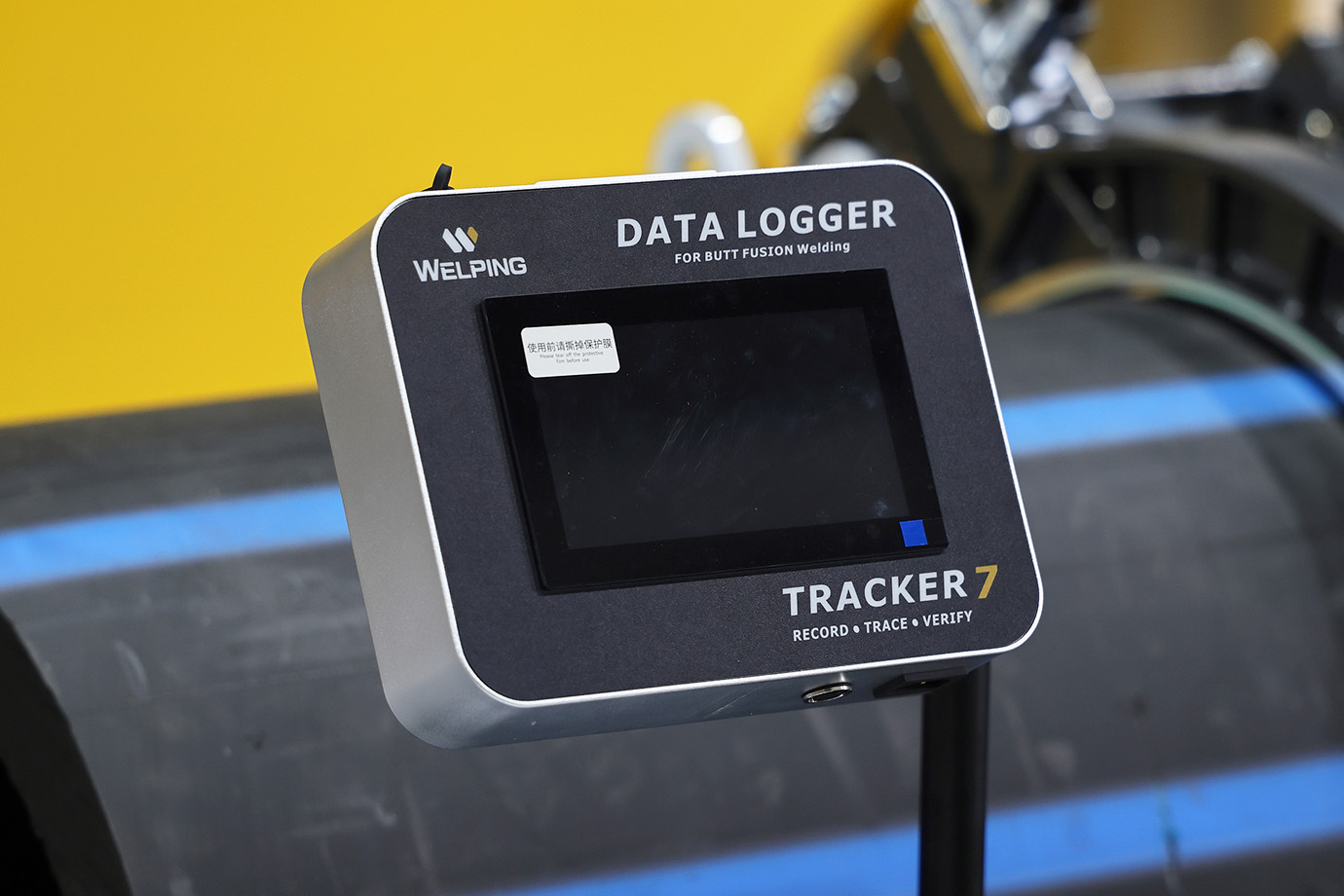

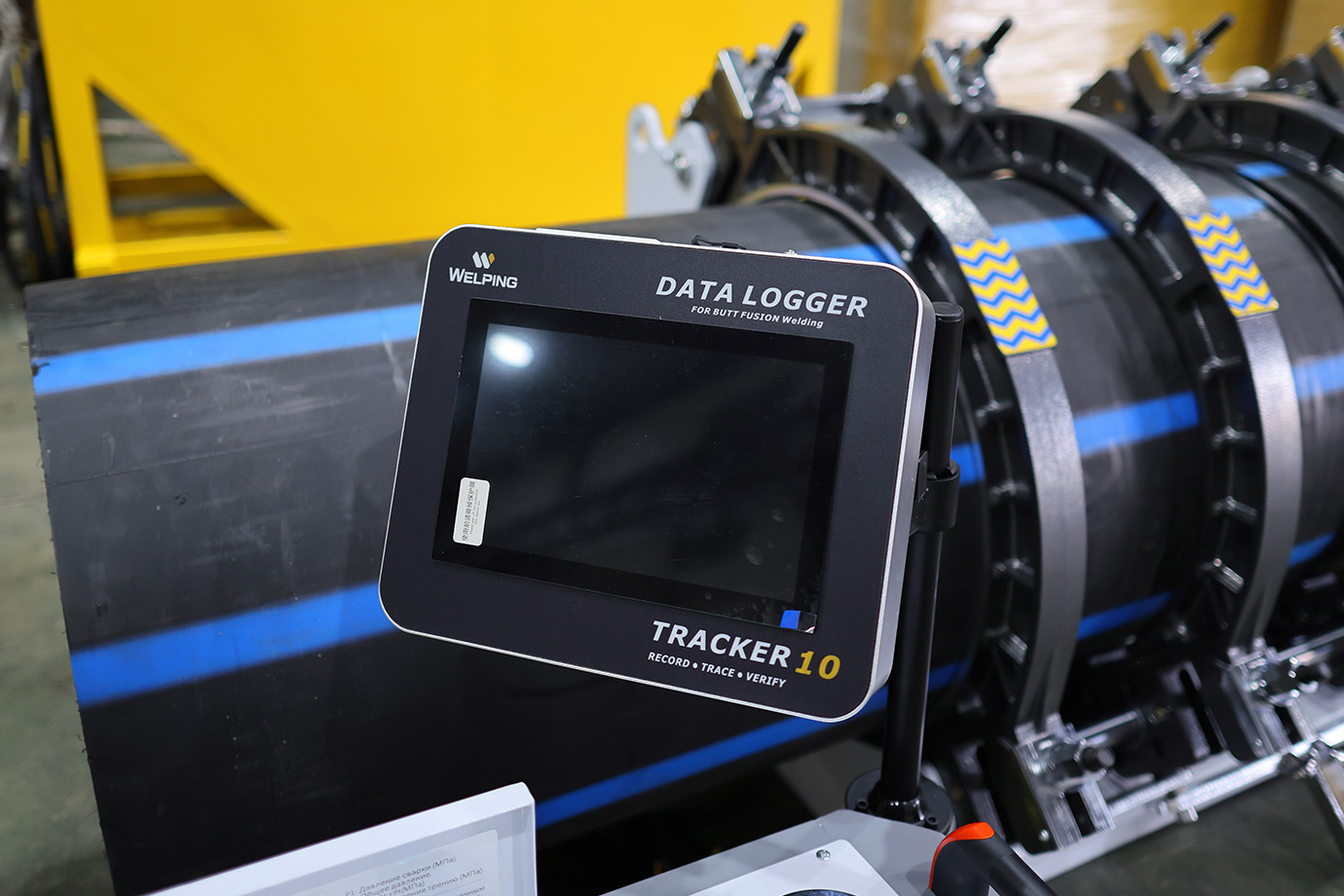

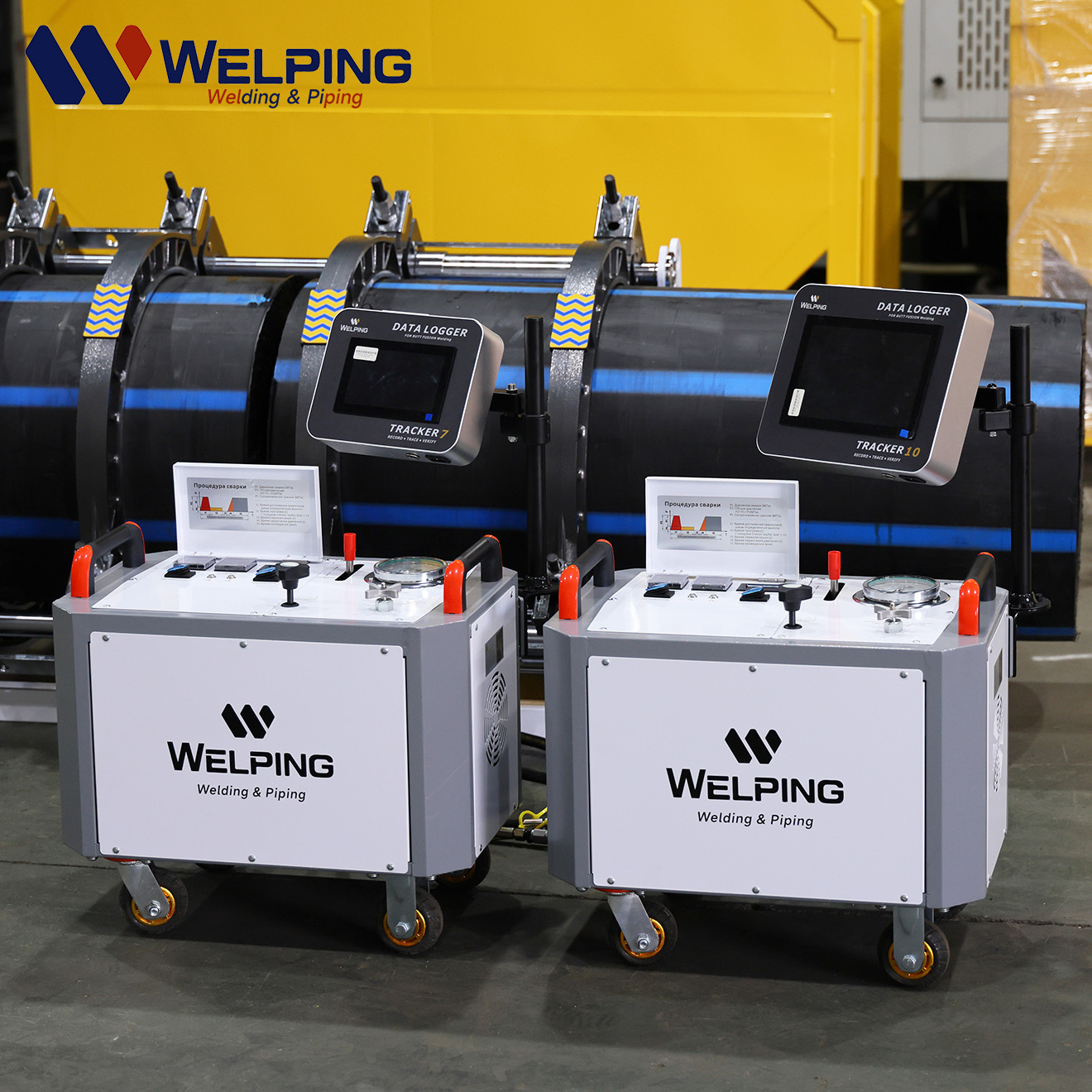

Model Tracker 7 Tracker 10
Touchscreen Capacitive Capacitive
Display Size 7" 10"
Display Resolution 1024 × 600 1280 × 800
Overall Dimensions 265 × 215 mm 317 × 270 mm
Net Weight 1969 g 2823 g
Input Voltage 110/220 V, 50/60 Hz 110/220 V, 50/60 Hz
Rated Power 30 W 35 W
Pressure Range 0–16 MPa 0–16 MPa
Temperature Range 0–300°C 0–300°C
Temperature Sensor PT100 PT100
Operating Temperature -10°C ~ 60°C -10°C ~ 60°C
— System & Compatibility —
ltem Specification
Application HDPE Pipe Butt Fusion Welding
Operating System Android
Data Capacity 10,000+ Welding Records
Welding Standards ISO 21307/DVS 2207/GOST R 55276/Custom
Pipe Standards IS0 4427/IS0 4437/TIS 982/Other
PE Materials PE100/PE80/PE63
Communication RS485/TCP/BLE Bluetooth
USB Interface USB-A
TF Card Capacity Up to 512GB
Wi-Fi 2.4 GHZ
Installation Bracket Mounting
Languages 9 Languages
Machine Compatibility Universal for 160-1200 butt fusion machines; models above
25

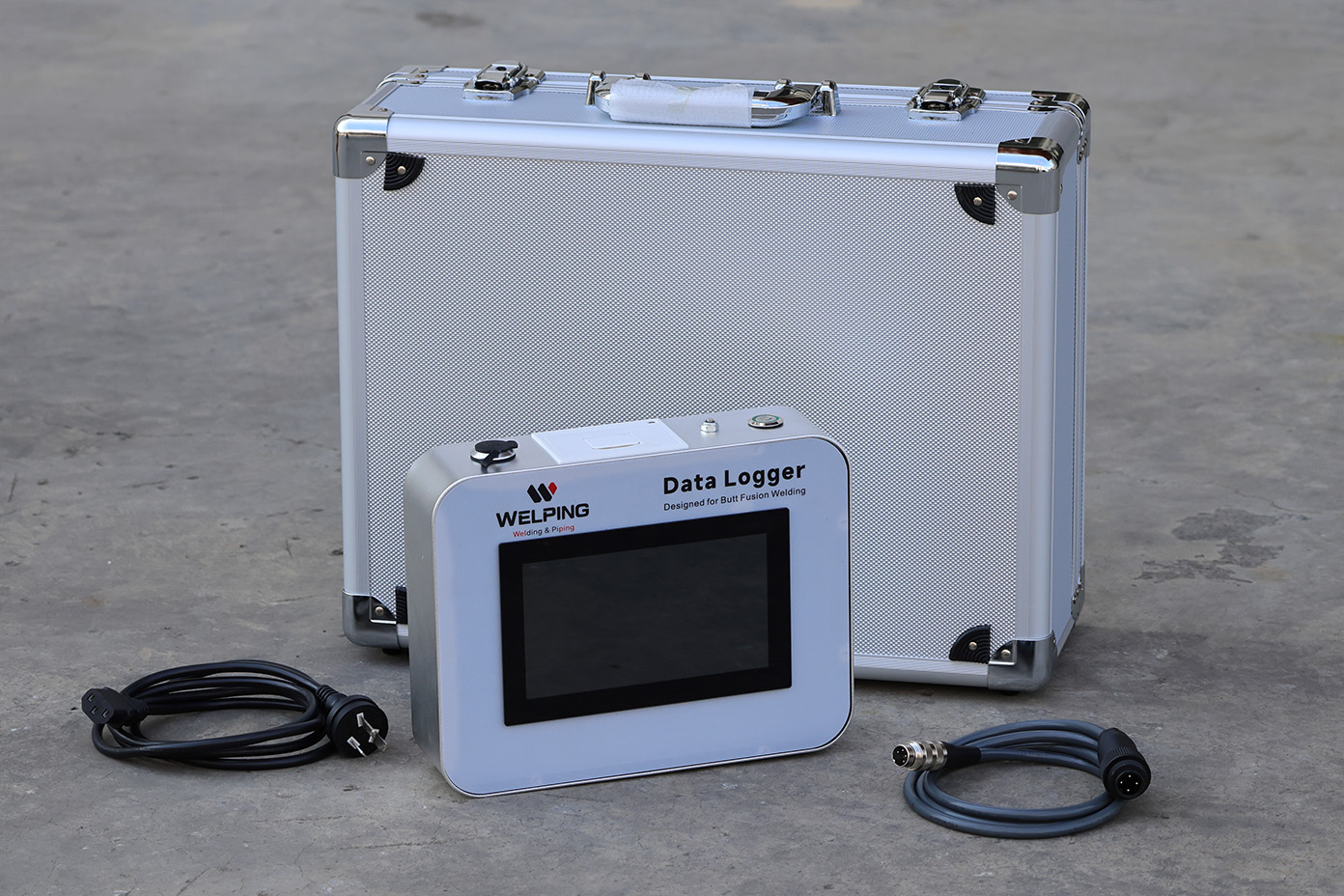

24
23
— Real-Time Data Monitoring —
16

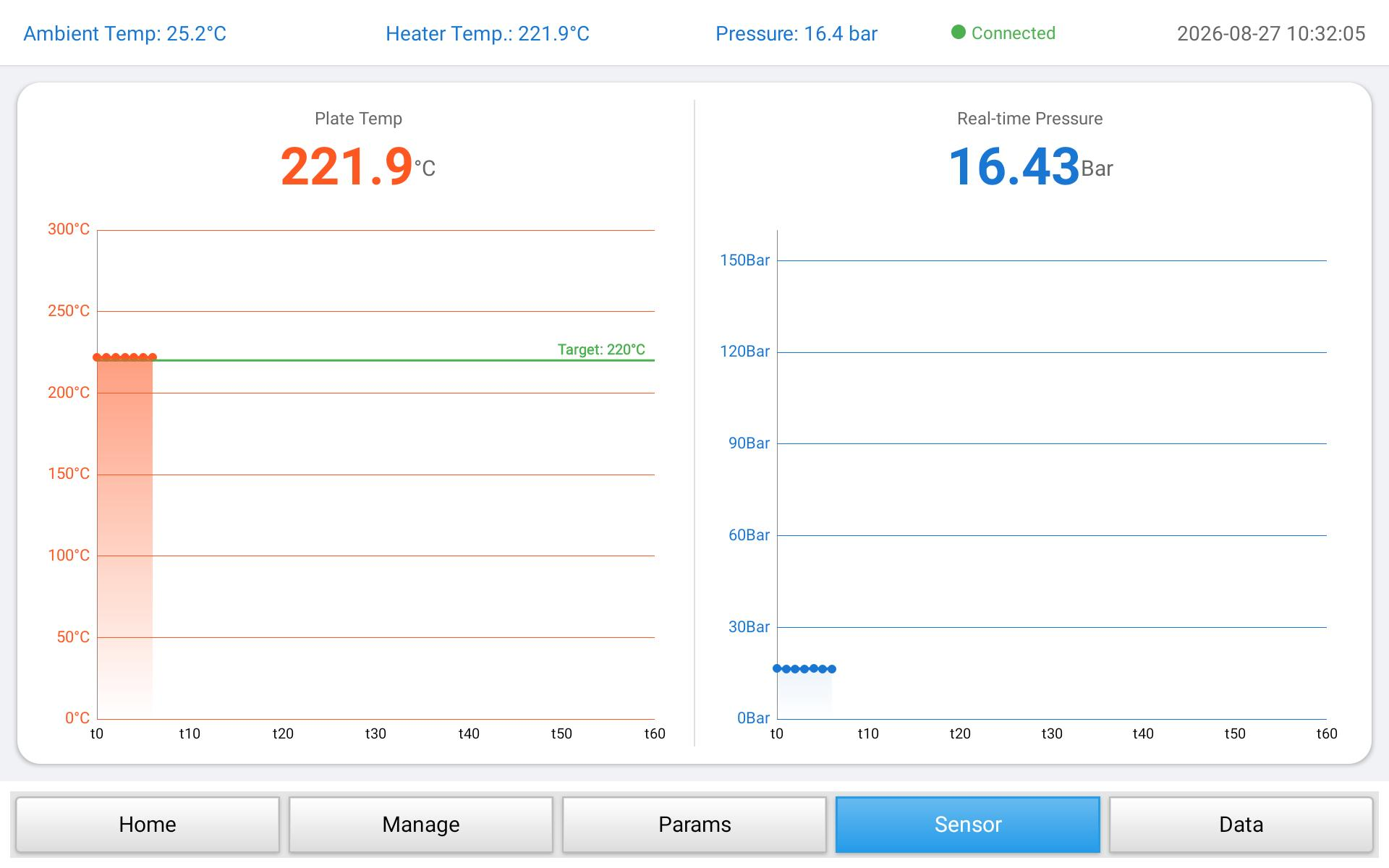

Real-Time Data Monitoring

Monitor hydraulic pressure, heating plate temperature, and ambient temperature in real time with clear visual curves.

17

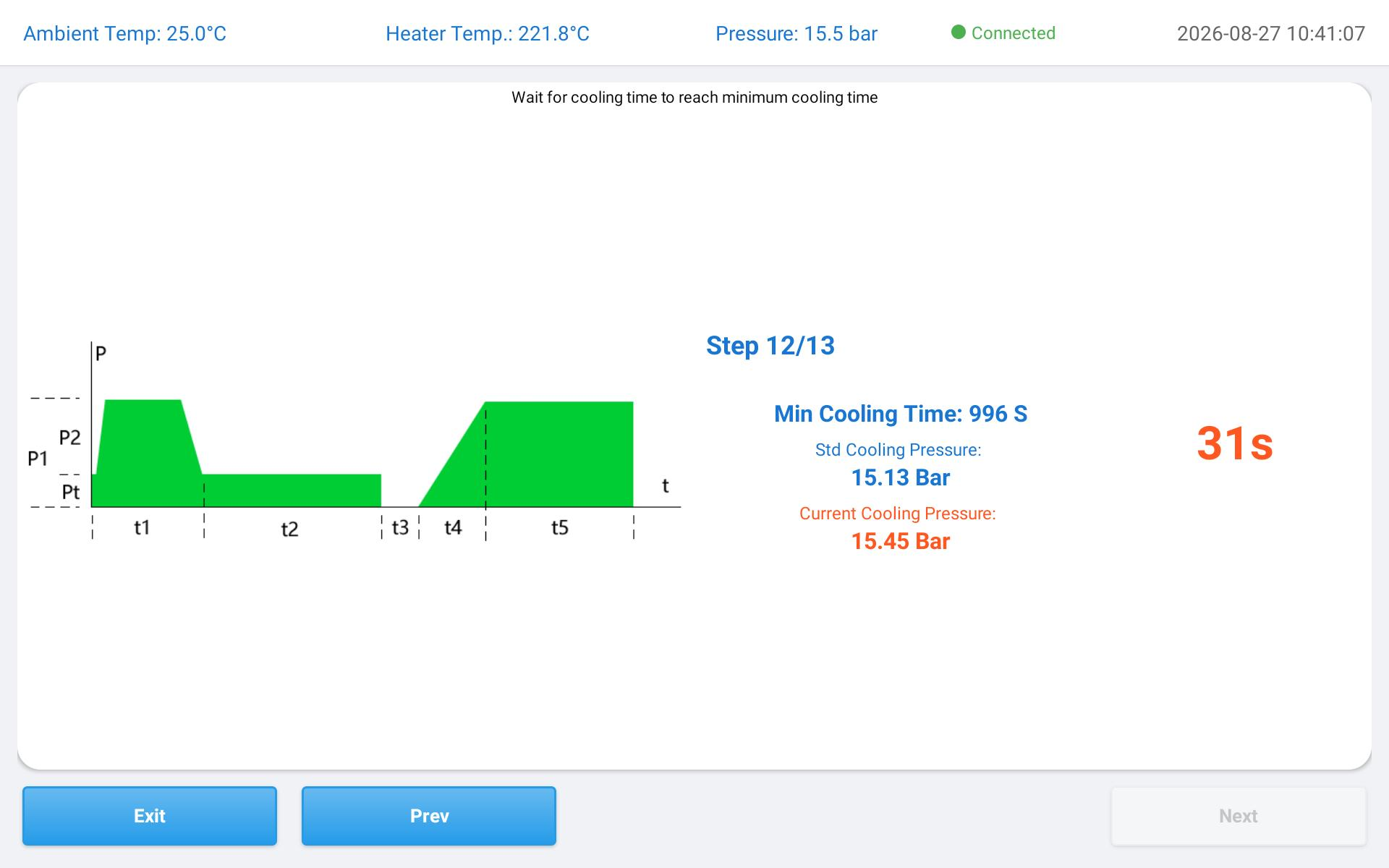

13-Step Welding Guidance
Step-by-step guidance covers the complete butt fusion process from preparation and facing to heating, changeover, pressure-up, and cooling.
18

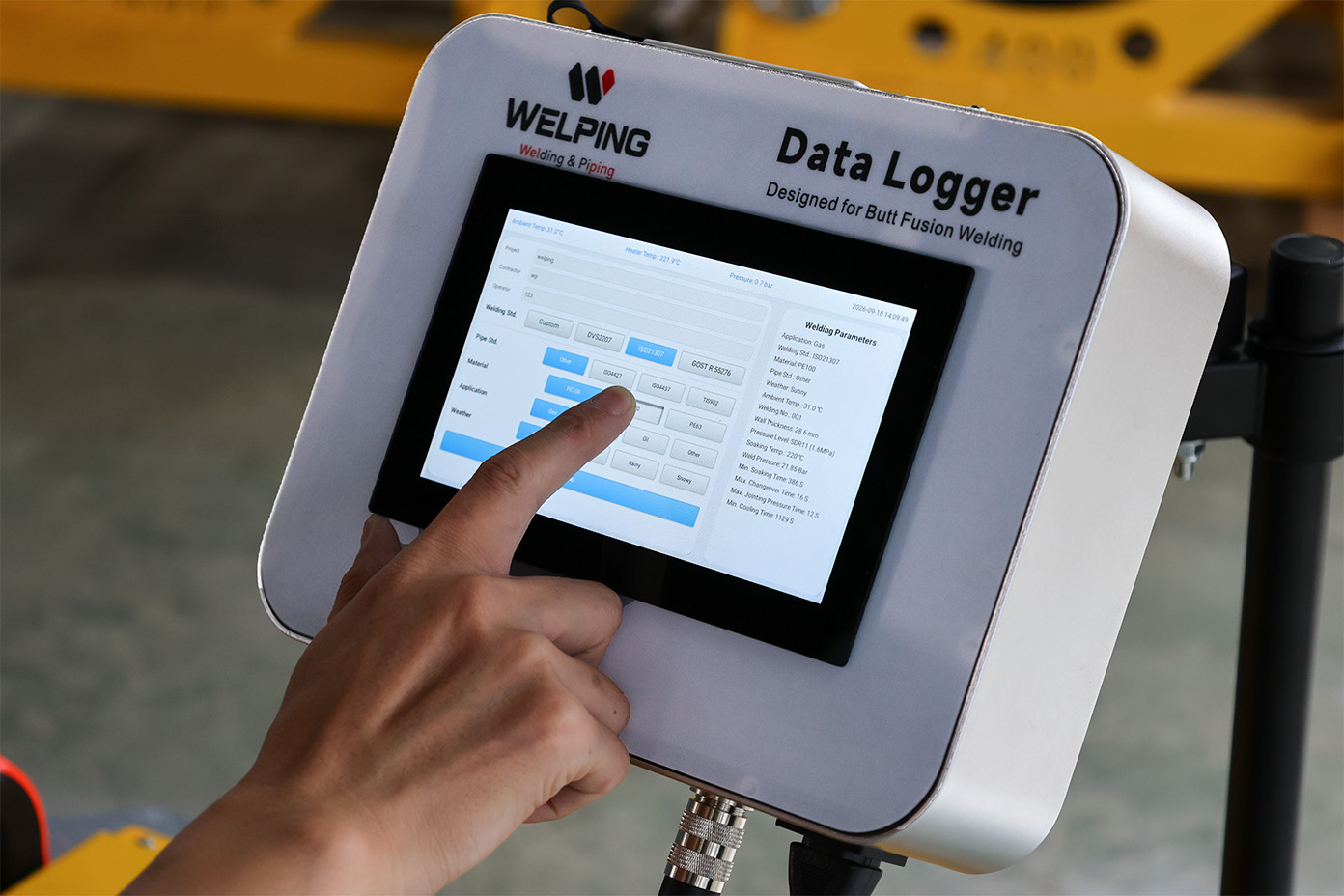

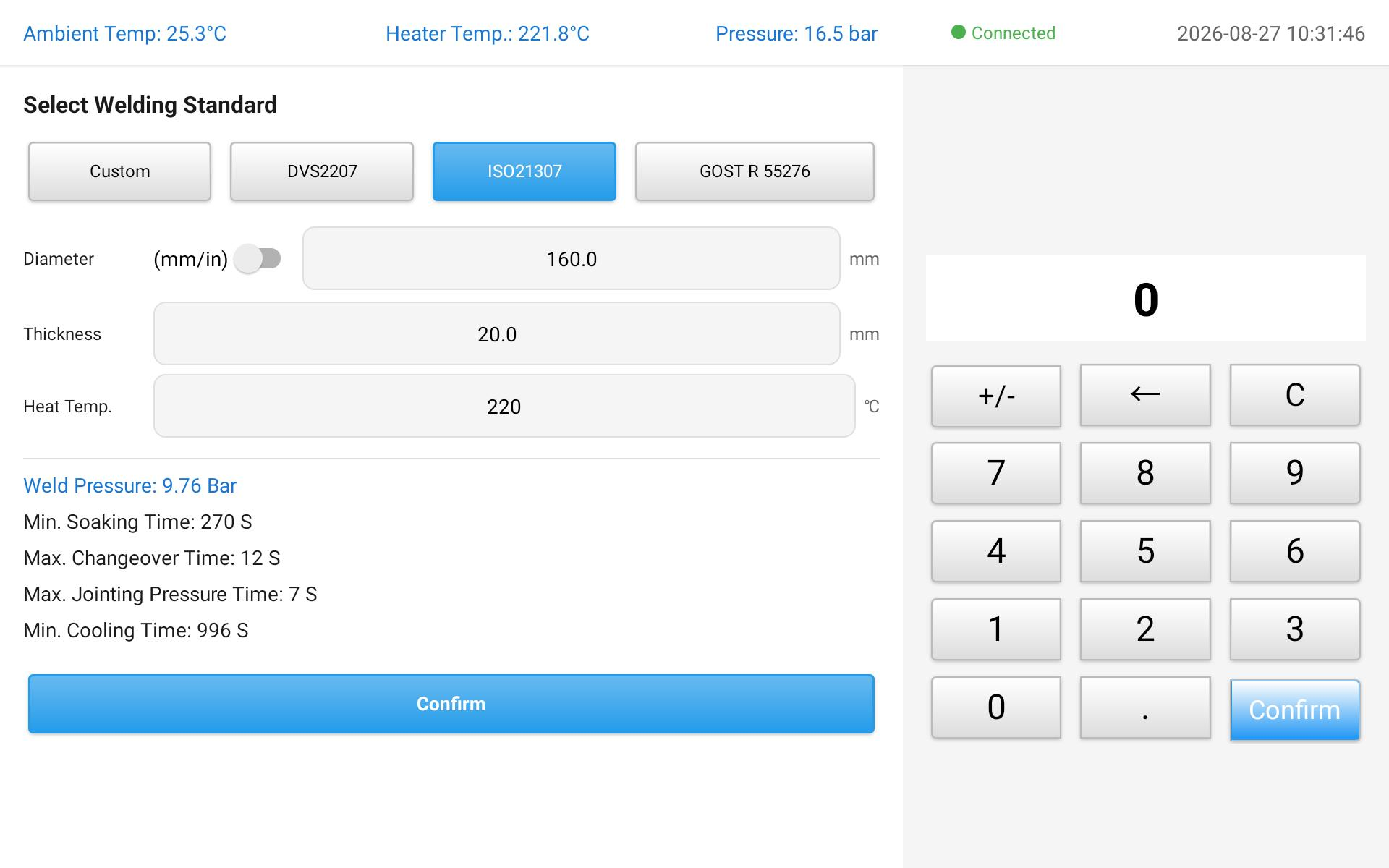

Automatic Welding Parameter Calculation
Automatically calculates key welding parameters based on pipe size, wall thickness, material, and selected welding standard.
19

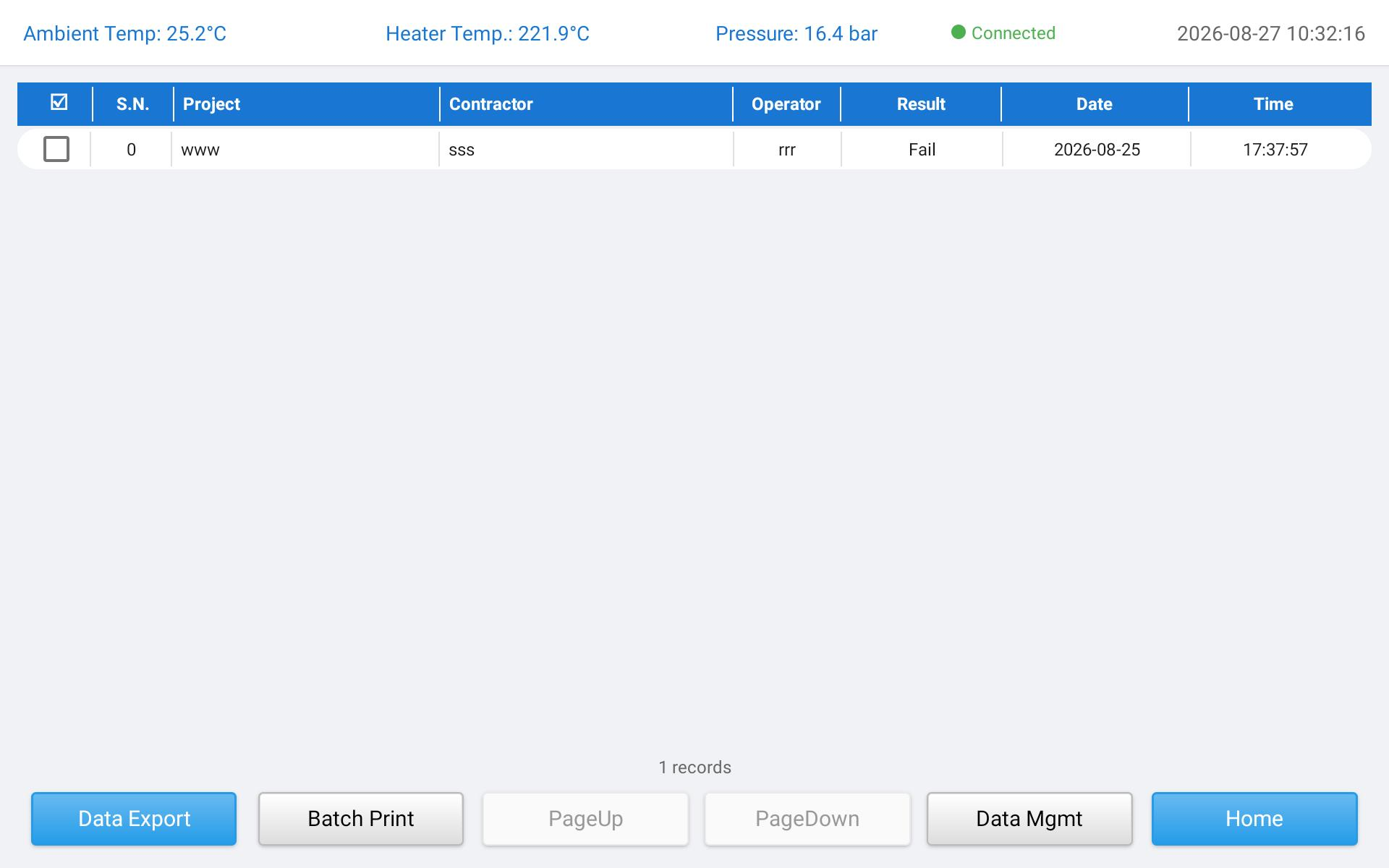

Welding Record Management
Organizes welding records by project, operator, result, date, and time for easier traceability and review.
20
Automatic Welding Result Evaluation
Compares actual welding data with standard values and identifies qualified or unqualified results with clear fault indications.
21

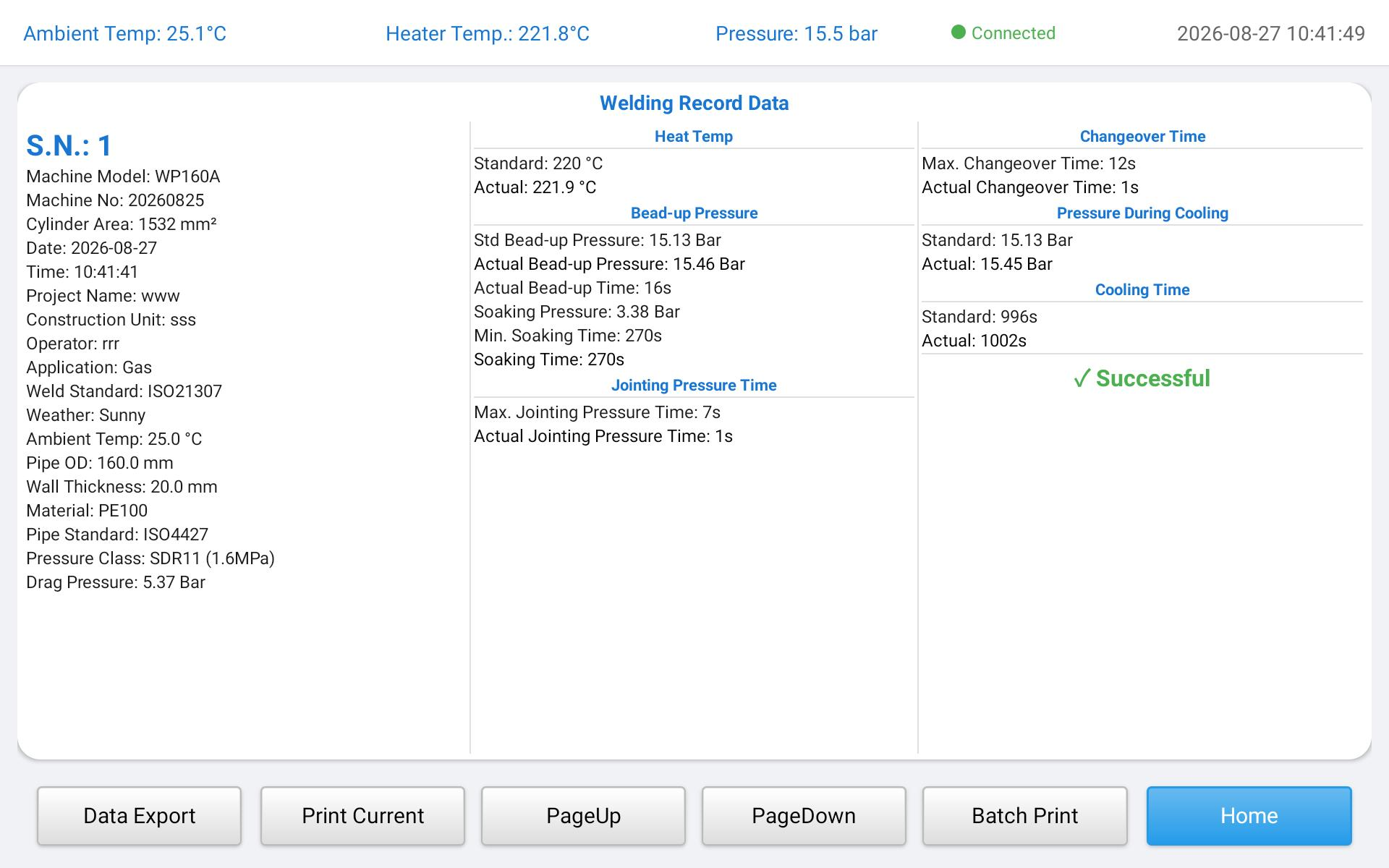

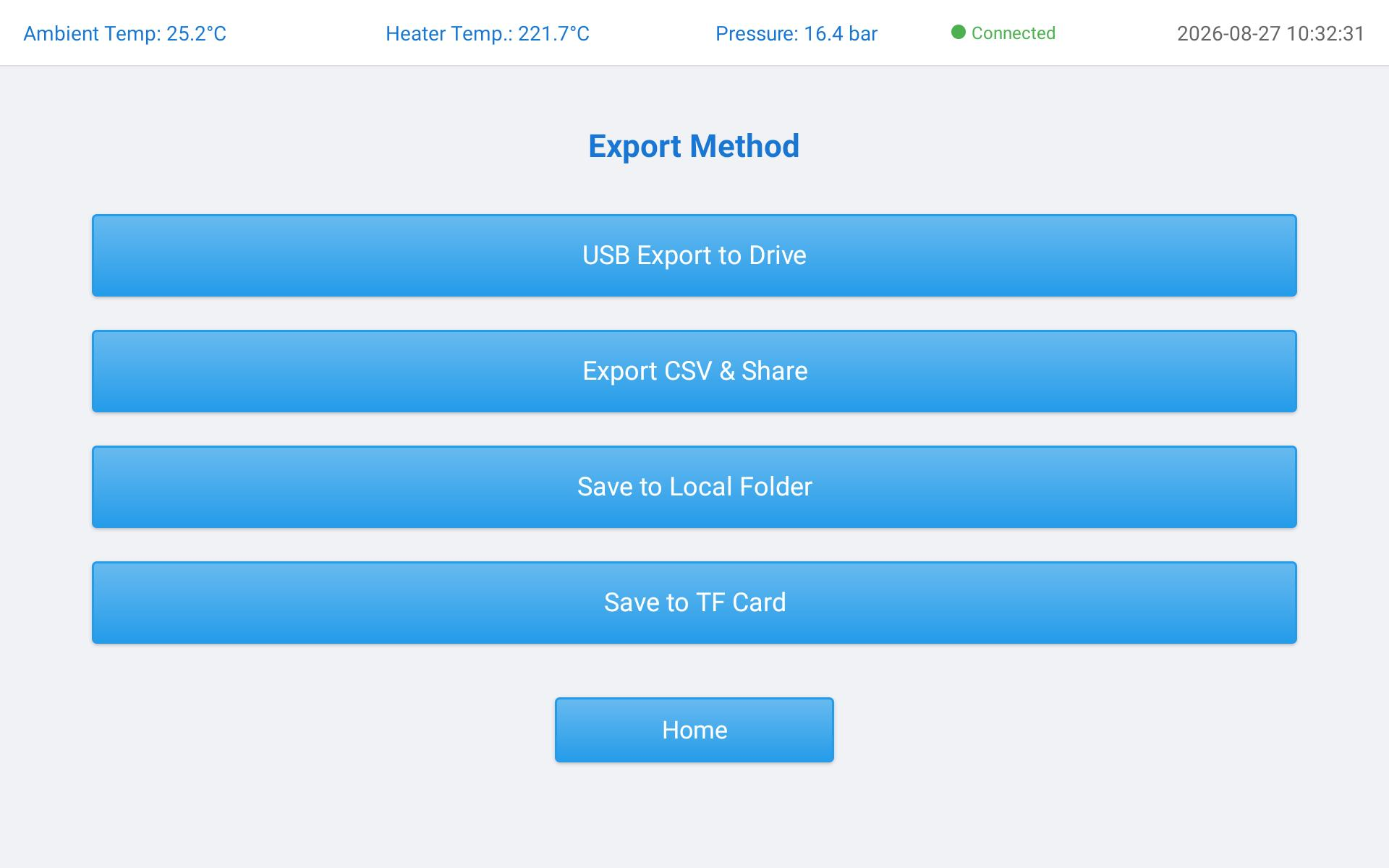

Data Storage, Export & Printing
Stores more than 10,000 welding records and supports data export, individual printing, and batch printing.
— Practical Detail s —
20

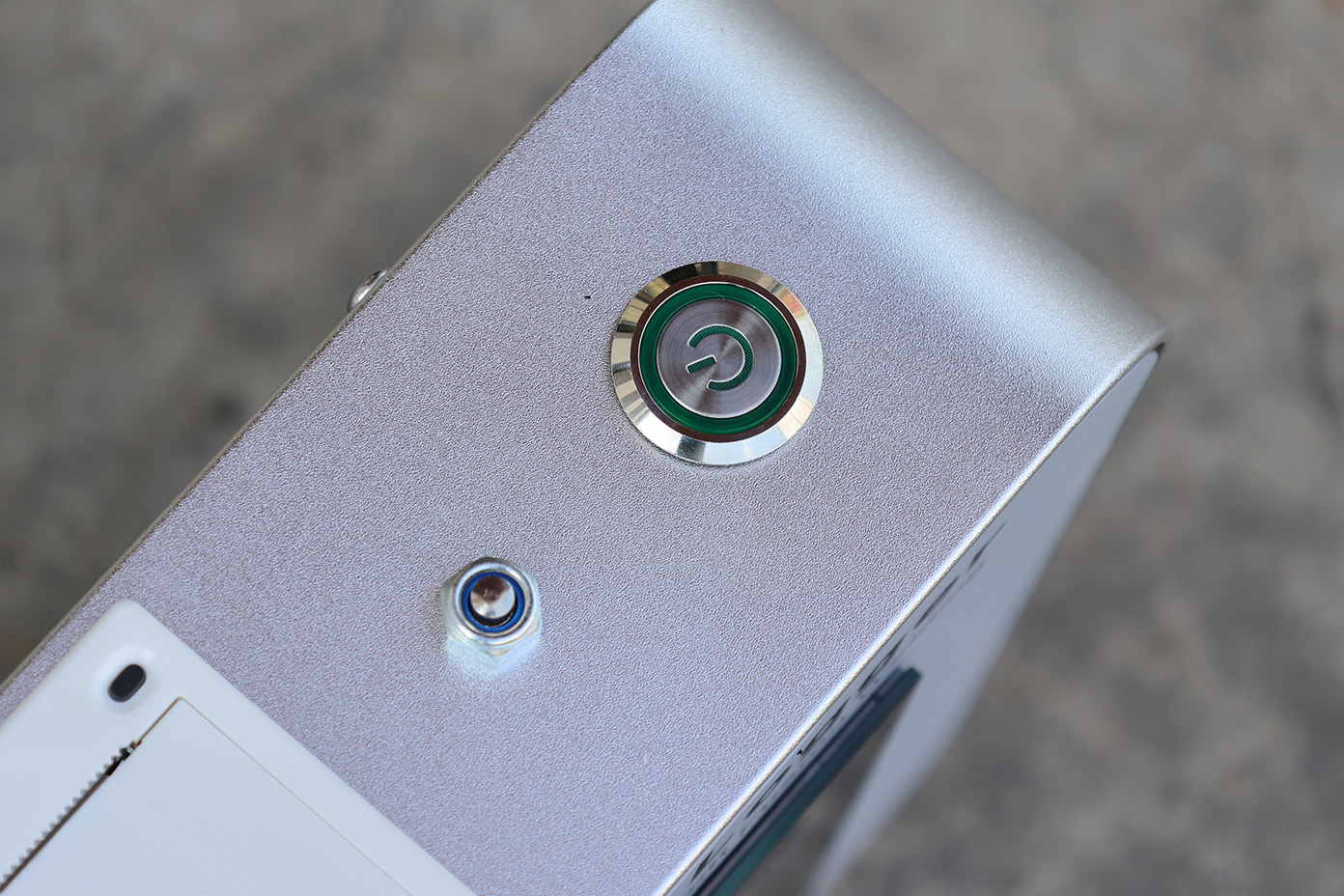

One-Touch Power Control
Simple operation with clear status indication.
19

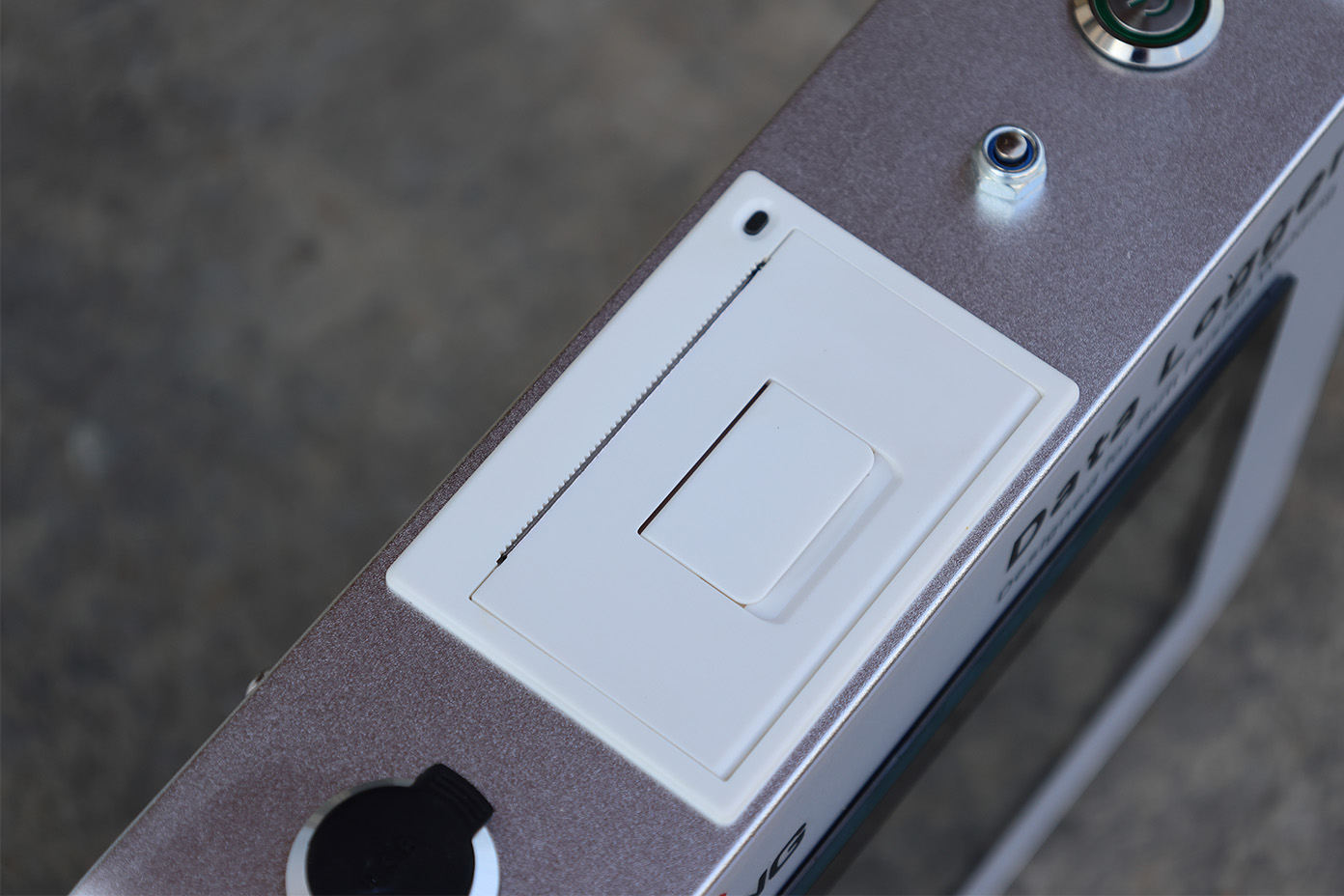

Built-in Printer
Print welding records on site, with one roll of printing paper supplied as standa
18

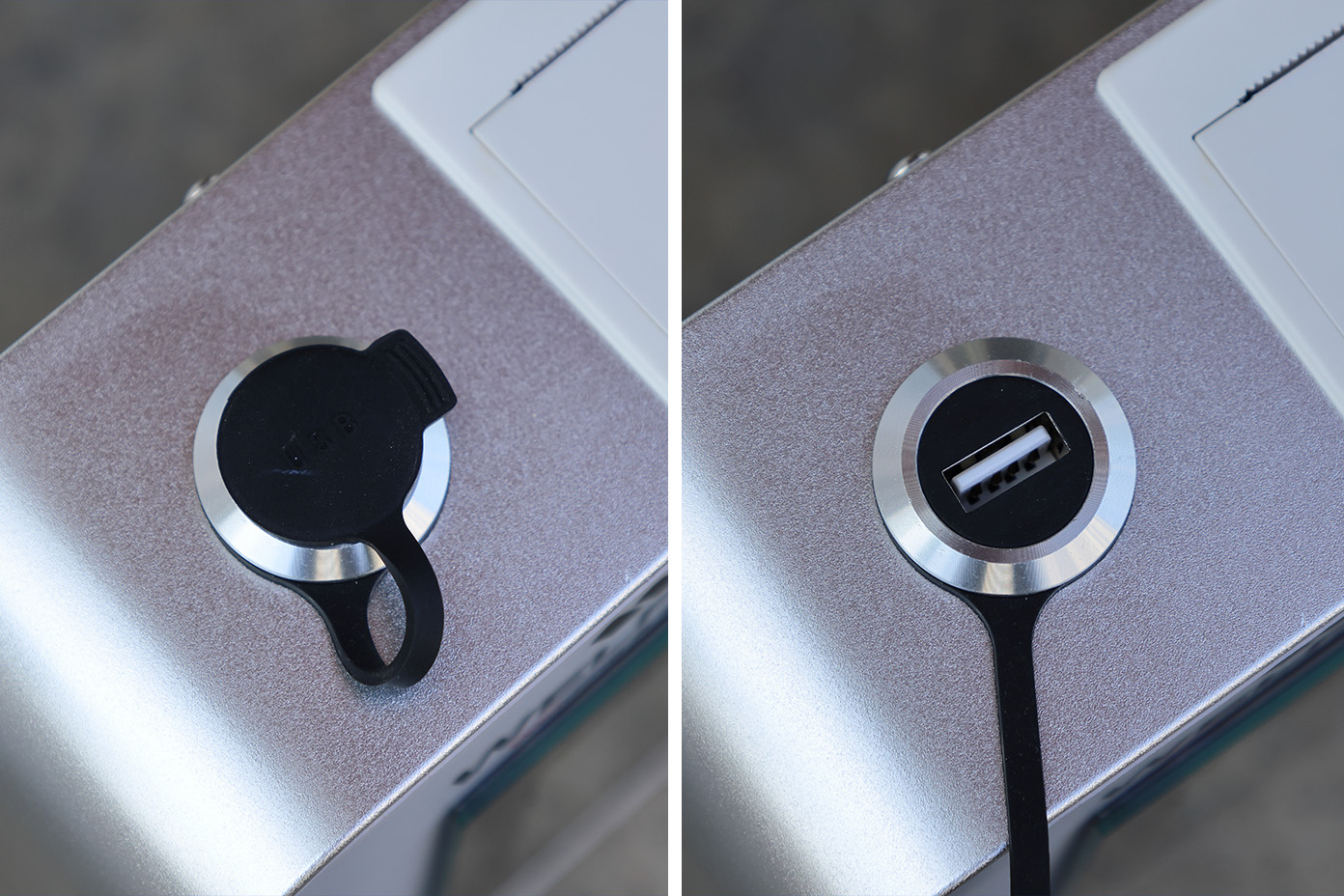

Protected USB Port
Easy data export and record backup with a protective cover for field use.
17

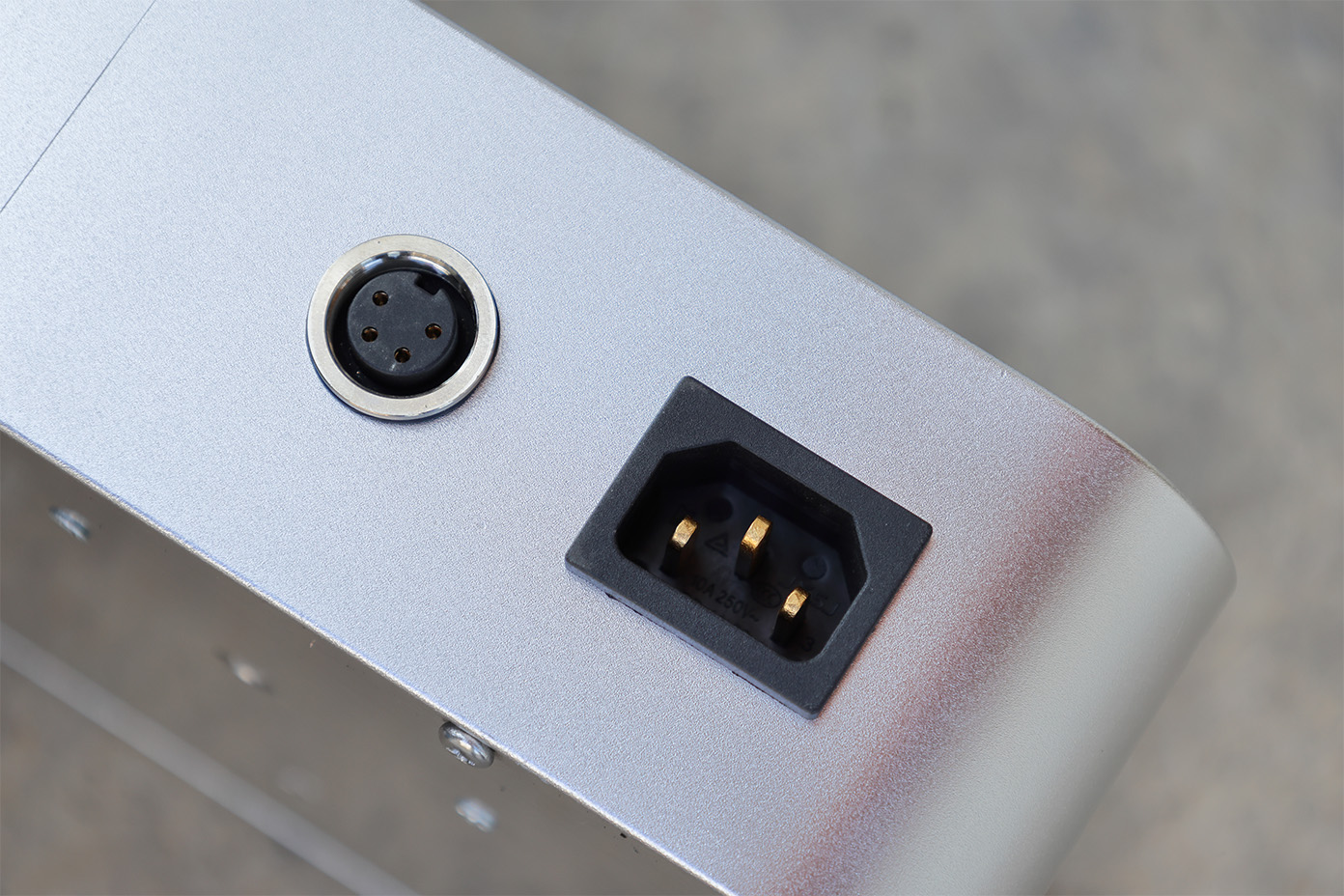

Reliable Connections
Secure interfaces for power and sensor connection.
— Operation Demo with Tracker Data Logger —
Product Gallery

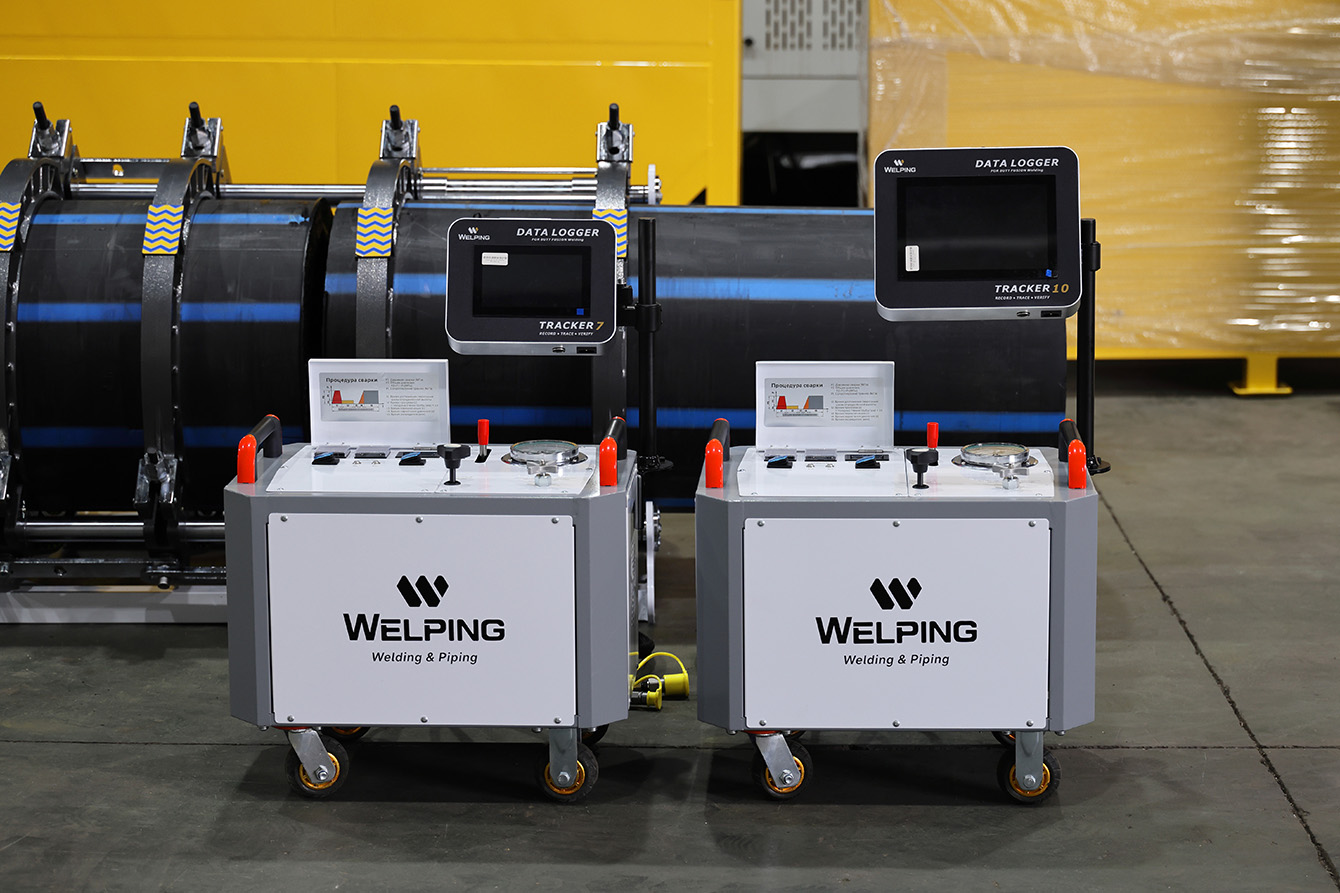

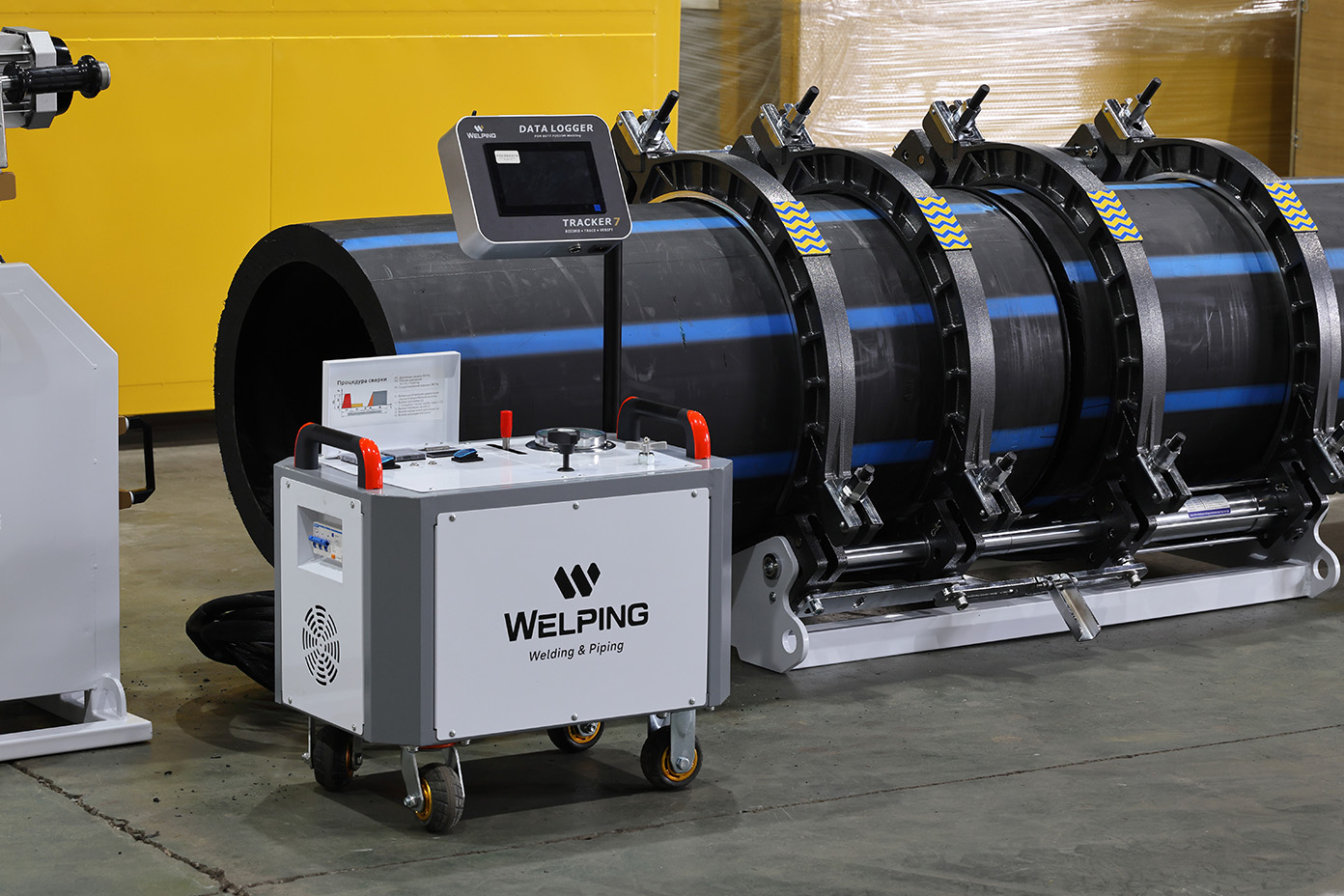

33
