Why a Lifting Crane Is Important for Large-Diameter Butt Fusion Welding

As pipe diameter increases, butt fusion welding becomes more demanding. On small and medium-sized machines, operators can usually move and position the heating plate and facer manually. With large-diameter equipment, however, these components become considerably larger, heavier, and more difficult to handle safely.

For this reason, a lifting crane is a practical option for many large-diameter butt fusion machines.

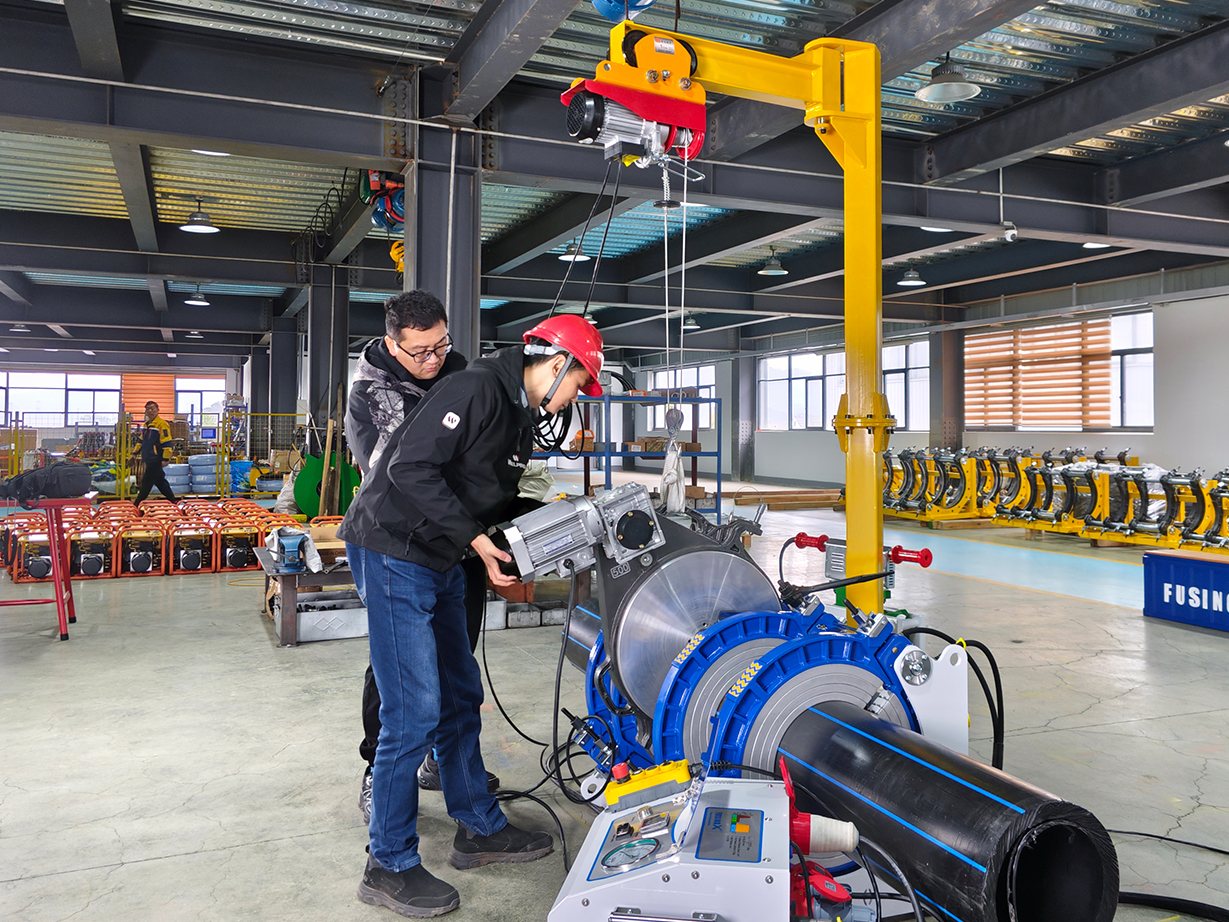

The crane is normally installed behind the machine and connected to the main frame. It assists operators in lifting, positioning, removing, and returning the heating plate and facer. Rather than relying entirely on manual handling, operators can control the movement of these heavy components more safely, smoothly, and accurately.

Larger Pipe Sizes Mean Heavier Components

An increase in pipe diameter requires not only a larger machine frame, but also a larger heating plate and facer. On butt fusion machines with a capacity of 630 mm and above, these components are often too heavy to be handled comfortably under normal job-site conditions.

The facer is a heavy mechanical assembly that must remain stable while it is being moved and installed. Uncontrolled swinging, dropping, or contact with the machine frame can interrupt the operation and may also cause equipment damage.

The heating plate creates an additional challenge because of its operating temperature.

During butt fusion welding, the heating plate normally operates at approximately 220°C. Handling such a component manually is difficult not only because of its weight, but also because of the risk created by its high temperature. A small mistake may result in burns, accidental collisions, or damage to the machine.

The challenge, therefore, is not simply that the heating plate is heavy. It is both heavy and extremely hot.

How a Lifting Crane Supports the Welding Process

A lifting crane is more than an additional accessory. It is designed to solve a genuine handling problem in large-diameter butt fusion welding.

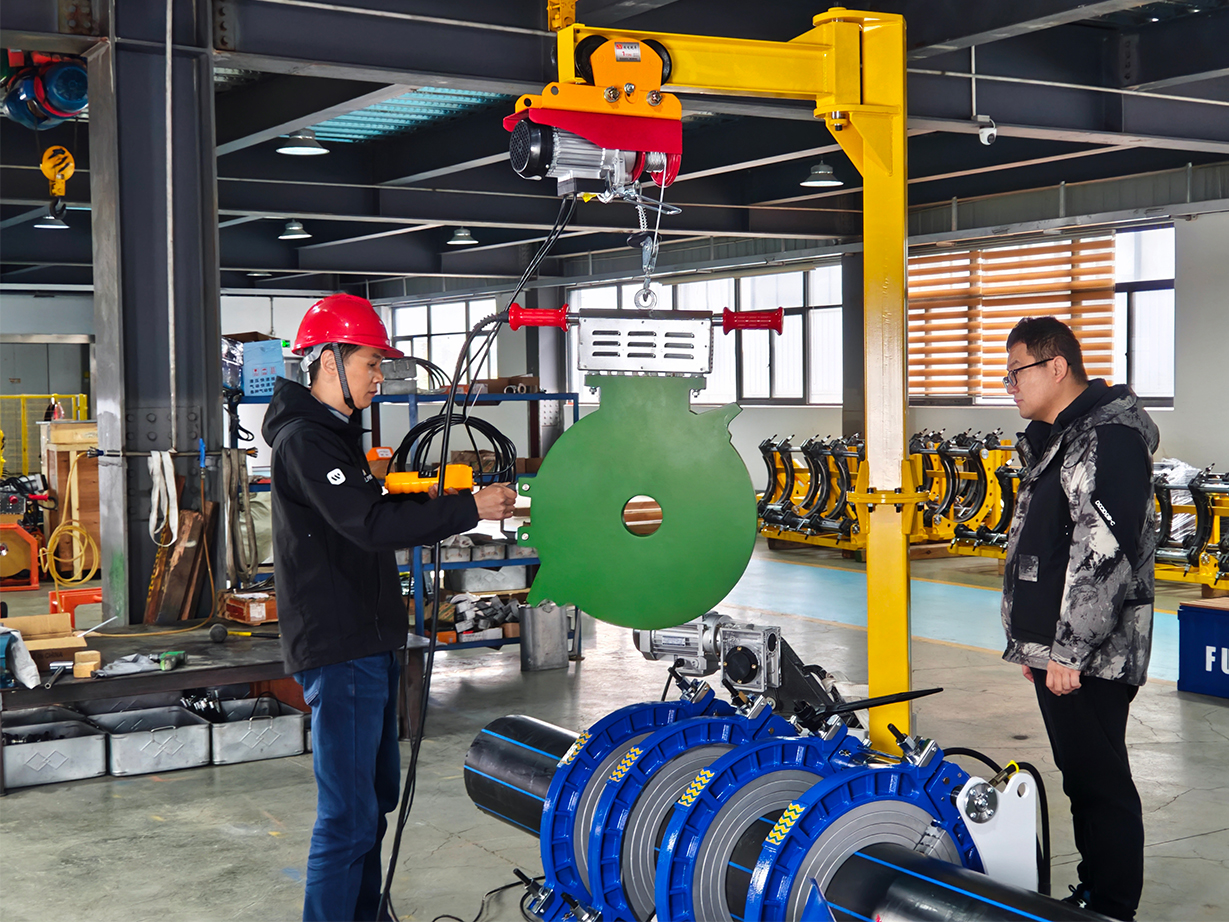

During each welding cycle, the crane assists with lifting, moving, positioning, removing, and returning the heating plate and facer. Compared with manual handling, it allows these components to be moved in a more stable and controlled manner.

This is particularly important because a complete large-diameter welding cycle includes pipe clamping, facing, heating, changeover, joining, and cooling under pressure. When the heating plate and facer are difficult to move, the entire process may become slower and less predictable.

With crane assistance, operators can manage these heavy components more easily while reducing the dependence on multiple-person lifting. This makes the workflow more controlled and helps minimize uncertainty during component changeover.

Which Machine Sizes Benefit from a Lifting Crane?

In general, a lifting crane is recommended for butt fusion machines with a welding range of 630 mm and above. At these sizes, the heating plate and facer are considerably heavier, and stable handling becomes increasingly important for both safety and operating efficiency.

However, crane assistance is not limited to machines above 630 mm.

Some customers also select a lifting crane for 400 mm, 450 mm, and 500 mm machines. On these machines, the heating plate and facer may still be moved manually by several operators, but the practicality of doing so depends on the job-site conditions, frequency of use, and project safety requirements.

Where welding is carried out frequently, or where higher safety standards apply, a lifting crane can still be a valuable addition. This is especially relevant when handling a heating plate at operating temperature, as direct manual contact should be minimized whenever possible.

Safer, More Stable, and Easier Operation

The most immediate advantage of a lifting crane is reduced physical effort, but its value extends beyond lowering labor intensity.

First, it improves safety. By minimizing the direct manual handling of heavy and high-temperature components, the crane helps reduce the risk of burns, lifting injuries, and operating mistakes.

Second, it makes the welding process easier to manage. Repeatedly moving a large heating plate and facer by hand can be tiring and inefficient. Crane assistance allows operators to focus more closely on welding parameters, pipe alignment, and process control.

Third, it improves handling stability. The heating plate and facer can be moved, positioned, and returned more smoothly, reducing the likelihood of accidental impact between the components and the machine frame.

This level of control is especially valuable during continuous welding operations and large-diameter pipeline projects. Under these working conditions, a lifting crane helps make the entire process safer, smoother, and more suitable for extended operating periods.

More Than Just an Optional Accessory

A lifting crane is generally offered as an optional configuration for butt fusion machines, but on large-size equipment, it can significantly improve daily operation.

For machines of 630 mm and above, the crane does more than reduce the effort required to handle heavy components. It also contributes to greater safety, operating stability, and overall efficiency. On 400 mm, 450 mm, and 500 mm machines, it can also be a practical option when the equipment is used frequently or when project safety is a major priority.

In large-diameter HDPE pipe welding, a well-designed machine should do more than produce a reliable fusion joint. It should also allow operators to complete the work safely, smoothly, and under better control.

This is where a lifting crane provides genuine practical value.
