When choosing a butt fusion machine for HDPE pipe welding, many people first look at the welding range, hydraulic pressure, heating plate power, or other technical parameters. These details are important, but when the pipe size reaches 630 mm, 800 mm, 1000 mm, or even 1200 mm, the real question becomes more practical:
Can the machine stay stable under heavy-duty working conditions?
Large-diameter HDPE pipe fusion is not simply a larger version of small-pipe welding. The pipes are heavier, harder to move, and more difficult to align. During clamping, facing, heating, changeover, and welding pressure build-up, every part of the machine needs to work steadily. If the frame is not strong enough, if the pipe is not held firmly, or if the hydraulic movement is not smooth, the whole welding process becomes harder to control.

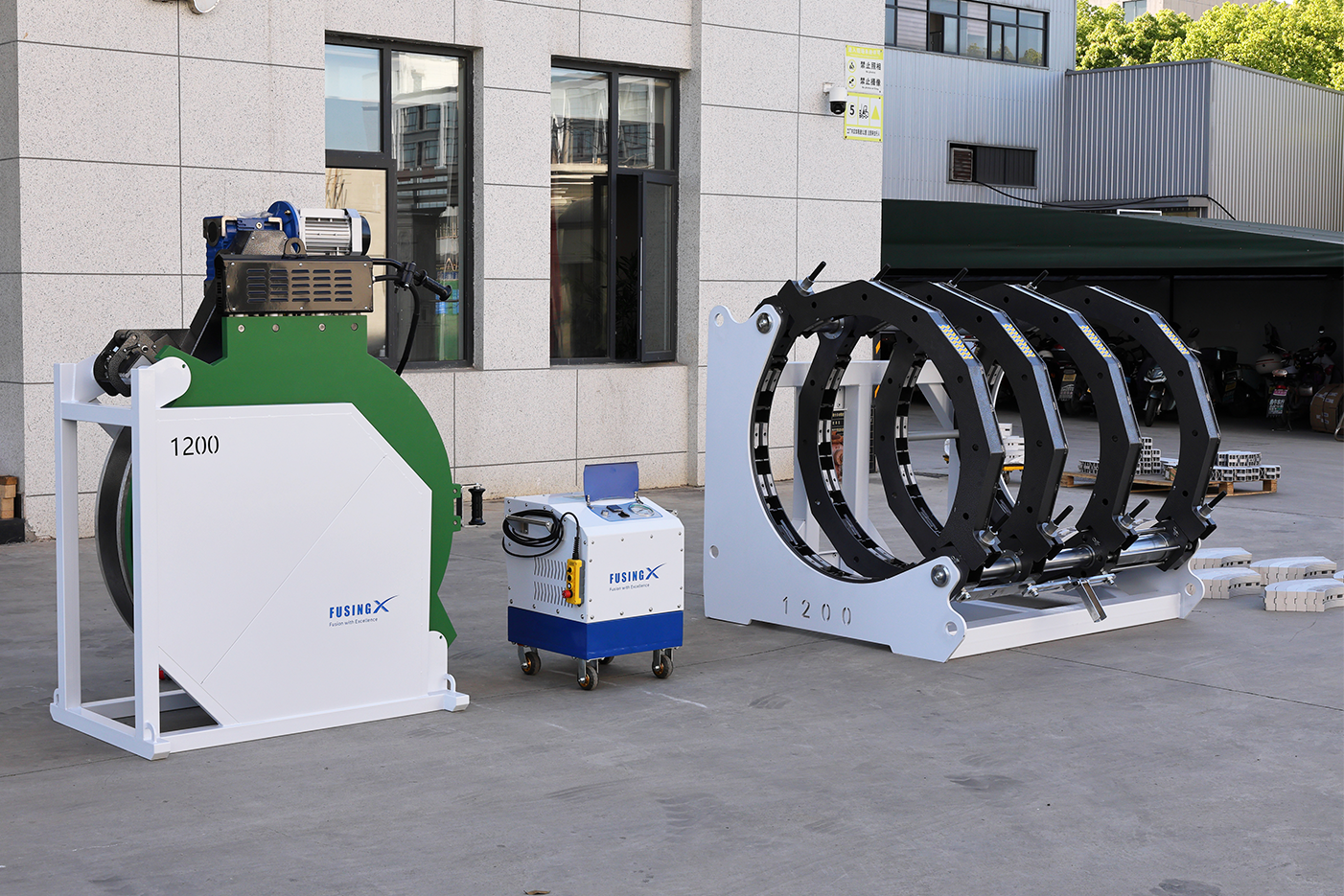

The FX1200 butt fusion machine is designed for HDPE pipe welding from 630 mm to 1200 mm. Its design focuses on the real demands of large-diameter pipe fusion, including frame strength, pipe holding, facing stability, heating performance, and hydraulic control.
For large-diameter butt fusion, the frame is the foundation of the whole machine. It has to carry heavy pipe sections and remain stable during movement and pressure application.

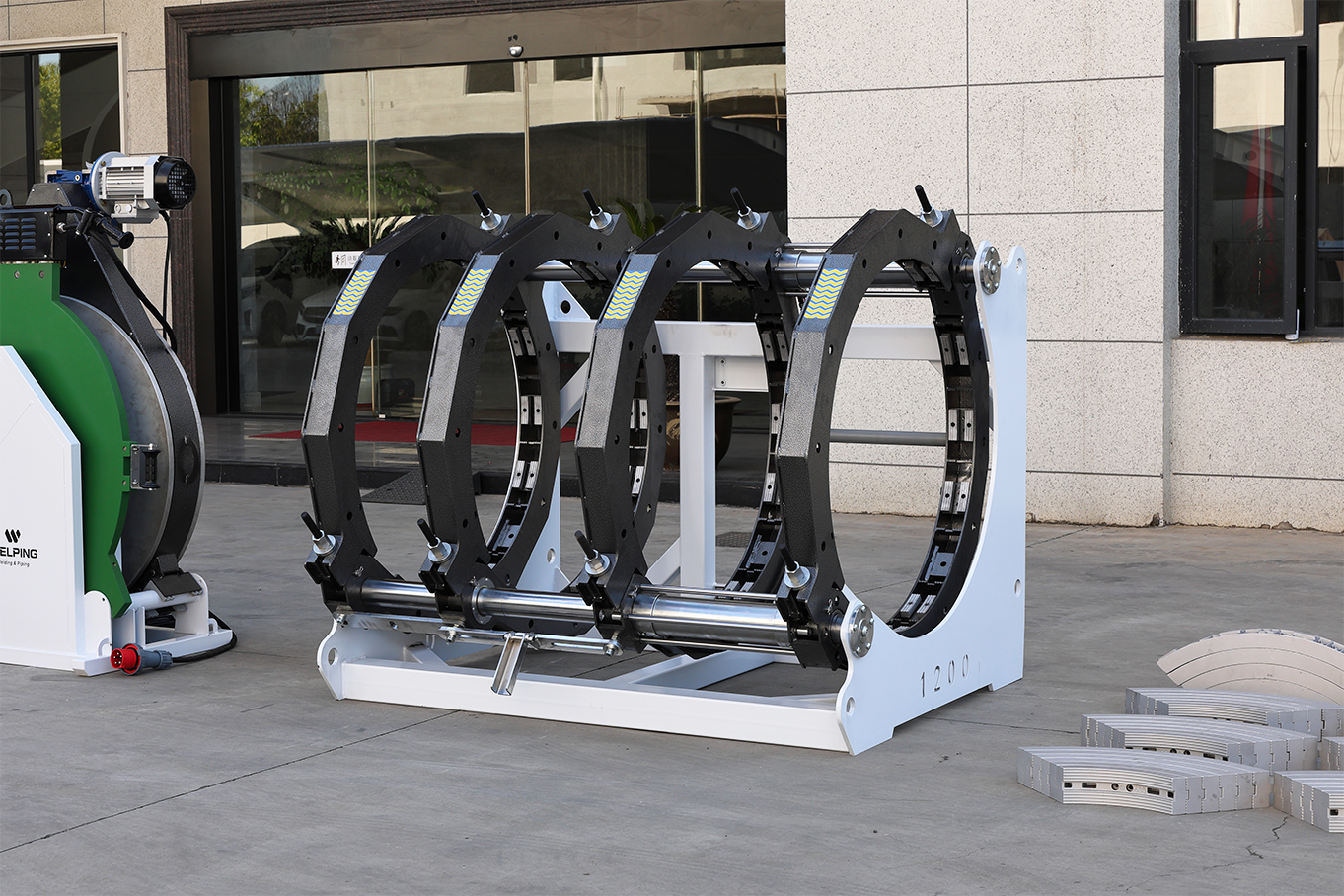

The FX1200 uses a redesigned reinforced frame for heavy-duty pipe fusion work. Its side plates are connected with a large flange-style structure, which helps improve the overall rigidity of the frame. Compared with a simple nut-based connection, this structure is more suitable for long-term use under heavier loads.
On a real jobsite, pipe weight, ground conditions, pipe alignment, and repeated operation can all affect the welding process. A stronger frame helps reduce unnecessary movement and gives the operator a more stable working base.
Pipe holding is another key point in large-diameter fusion. When the pipe is not clamped firmly, alignment becomes more difficult, and it may also affect pressure holding during welding.

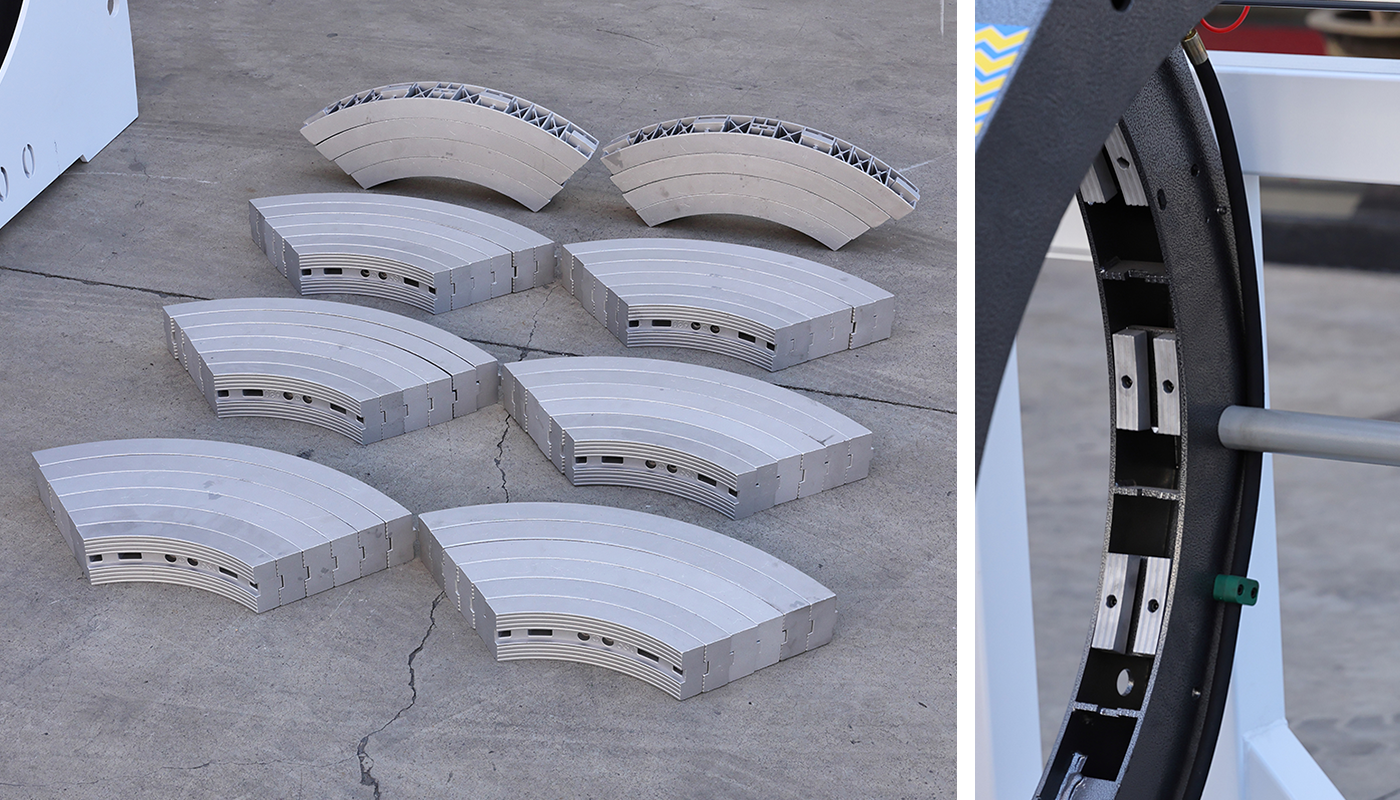

The FX1200 is equipped with 1/4 round die-cast aluminum inserts. The wider contact surface helps increase the holding area between the machine and the pipe. For large HDPE pipes, this larger contact area can make clamping more stable and reduce unwanted pipe movement during operation.
This is especially useful when working with pipes that are slightly out of round or not perfectly consistent in size, which can happen in real site conditions.
The FX1200 also uses modular anti-slip pad blocks on the outer rings. These pads increase the contact area and friction between the machine and the pipe surface, helping improve pipe grip during clamping and pressure holding.
Another practical advantage is adjustability. The anti-slip pad blocks can be adjusted independently, which allows the machine to better adapt to pipes that are slightly smaller than the standard size or have minor dimensional differences.
For large-diameter HDPE pipe welding, this kind of detail is not just about convenience. It helps the operator achieve more secure clamping before starting the fusion process.
Facing is a necessary step before heating and welding. The pipe ends must be properly prepared so they can meet evenly during fusion.
With large-diameter pipes, the facing load is much higher. The pipe end area is bigger, and the facer needs to work steadily under heavier resistance. If the facer is not stable enough, the quality of the pipe-end preparation may be affected.

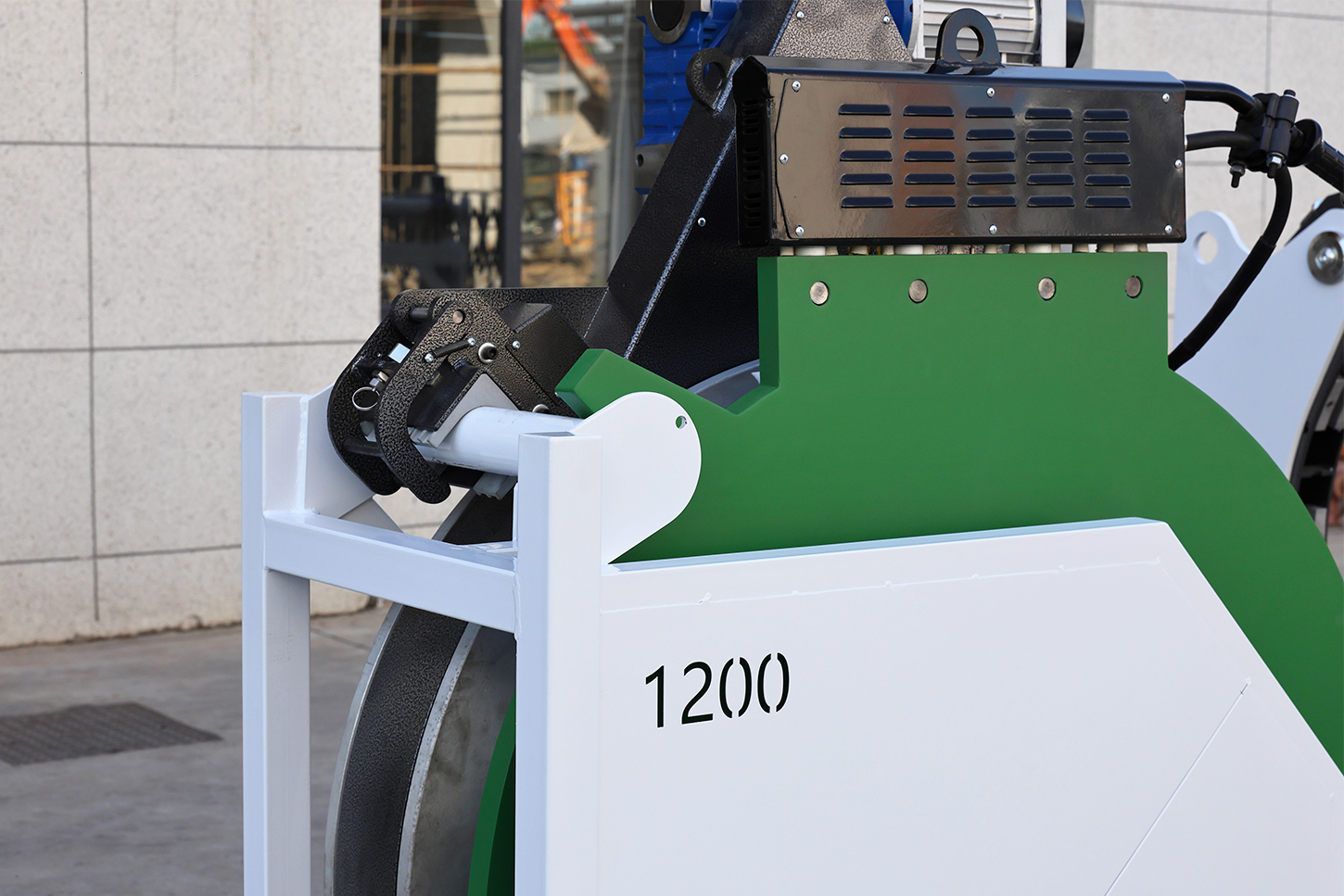

The FX1200 is equipped with a reinforced facer for large pipe work. A stable facing process helps create cleaner, flatter pipe ends and prepares the joint more reliably before heating.
The heating plate is one of the most important parts of a butt fusion machine. For large-diameter HDPE pipes, the pipe-end surface is much larger, so the heating process needs to be stable and consistent.
The FX1200 comes with an FX-grade heating plate, designed for the heating requirements of large HDPE pipe fusion. A stable heating surface helps the pipe ends reach the proper fusion condition before welding pressure is applied.
In large-diameter fusion work, heating plate quality should not be treated as a small detail. It directly affects the preparation of the joint before the final welding stage.
The hydraulic system controls the movement and pressure of the machine throughout the fusion process. In large-diameter pipe welding, operators need smooth movement, reliable pressure build-up, and clear control during each working stage.

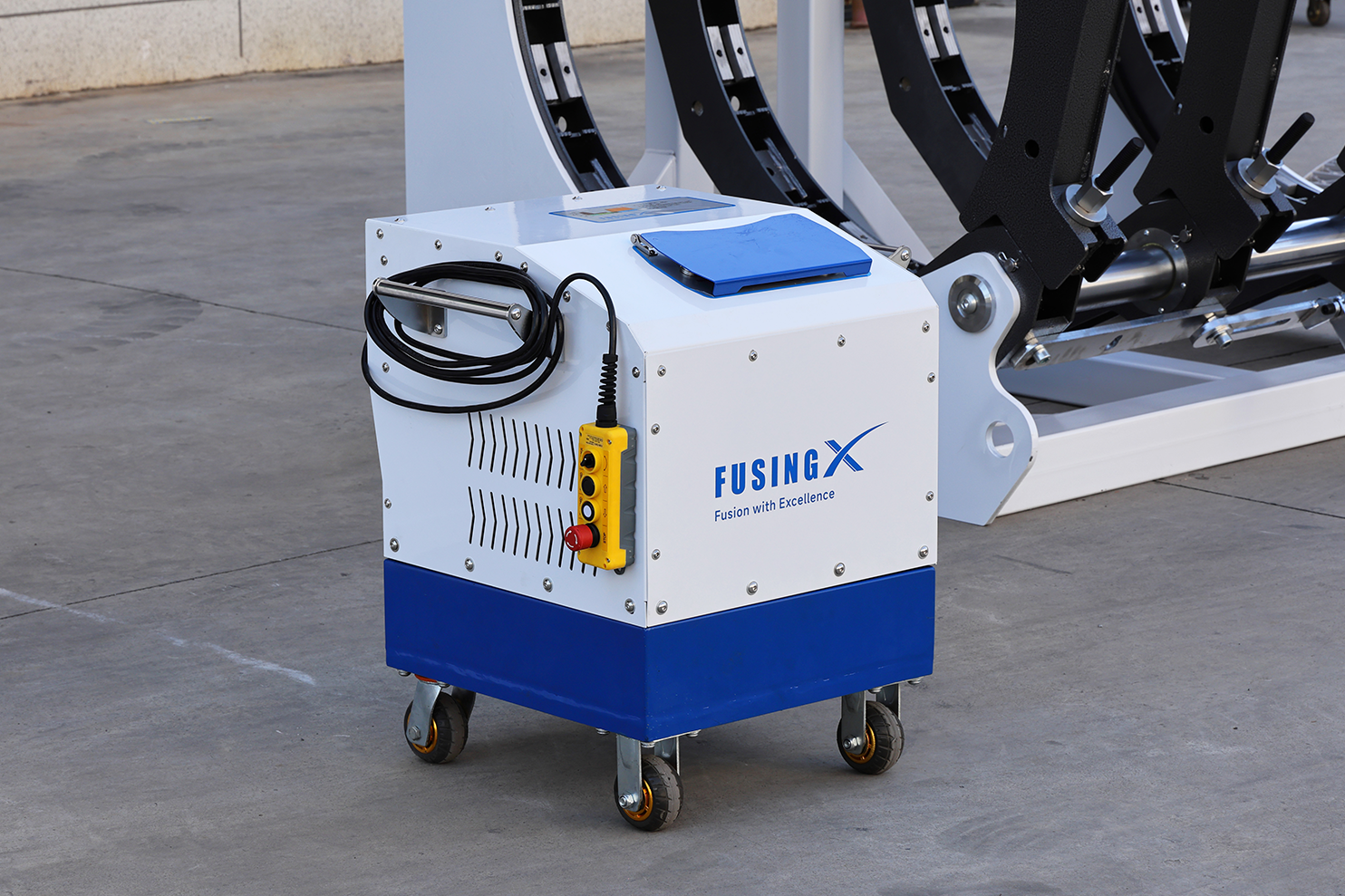

The FX1200 is powered by DynaFX® Hydraulic Technology. The system is designed to support different stages of the fusion process, from pipe movement and facing to welding pressure control.
Its value is not only in providing hydraulic power, but also in making the operation more controlled. For large pipe fusion, this controlled feeling helps operators manage the process more confidently on site.
The FX1200 is not designed only to cover a welding range of 630–1200 mm. Its reinforced frame, wider die-cast aluminum inserts, modular anti-slip pad blocks, reinforced facer, FX-grade heating plate, and DynaFX® hydraulic system all respond to the practical challenges of large-diameter HDPE pipe welding.
For contractors and pipeline workers, the value of a large butt fusion machine is not only found in the specification sheet. It is also found in how the machine performs under real working conditions: whether it holds the pipe firmly, whether it moves smoothly, whether the facing is stable, and whether the operator can control the welding process with confidence.
In large-diameter HDPE butt fusion, stability is not an optional feature. It is the basis of practical, controlled, and reliable pipe welding work
