Large-diameter PE pipe butt fusion is not simply the same process carried out on a bigger pipe.
As pipe size increases, so do pipe weight, facing load, joint area, handling difficulty, and the demands placed on the fusion equipment. Once the machine moves from the factory to a real job site, it also has to deal with uneven ground, heavy pipe handling, lifting equipment, and limited working space.

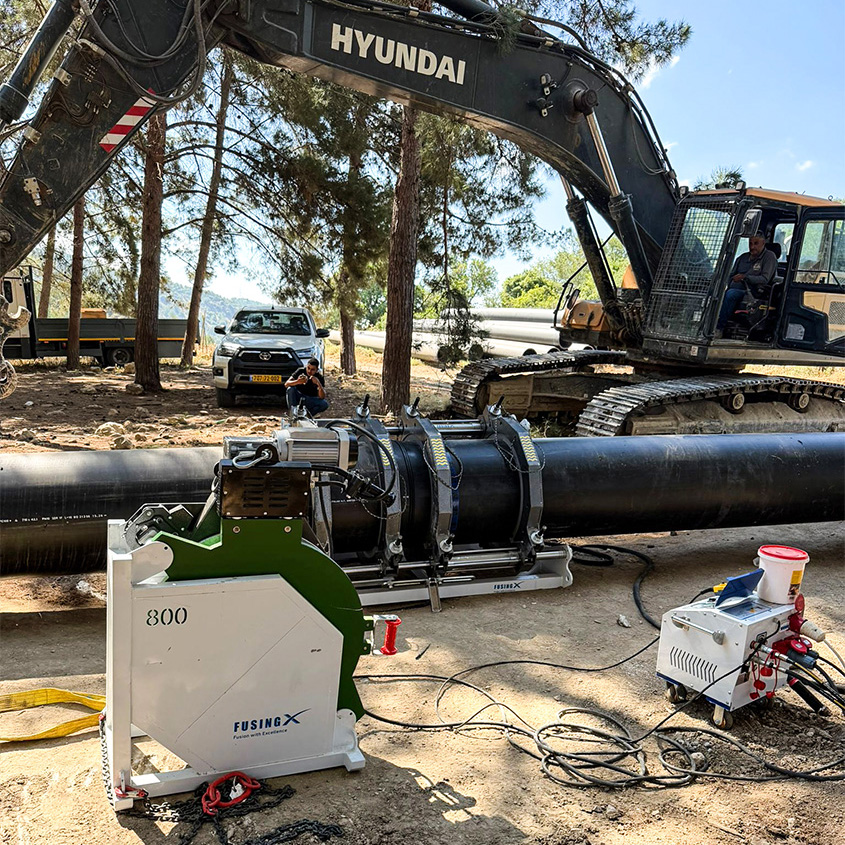

Recently, we received a set of field photos showing a FusingX FX800 working on a customer job site.
We do not have the complete pipe specification, SDR, or welding parameters for this project, so this is not intended to be a detailed project case study. Instead, the photos provide a useful look at a more practical question:
What really matters when a butt fusion machine is used for large-diameter PE pipe in the field?
Large-Diameter Fusion Is About More Than Maximum Pipe Size
When selecting a butt fusion machine, maximum pipe diameter is usually one of the first specifications people check.
It is important, but for large-diameter work, it is only part of the story.

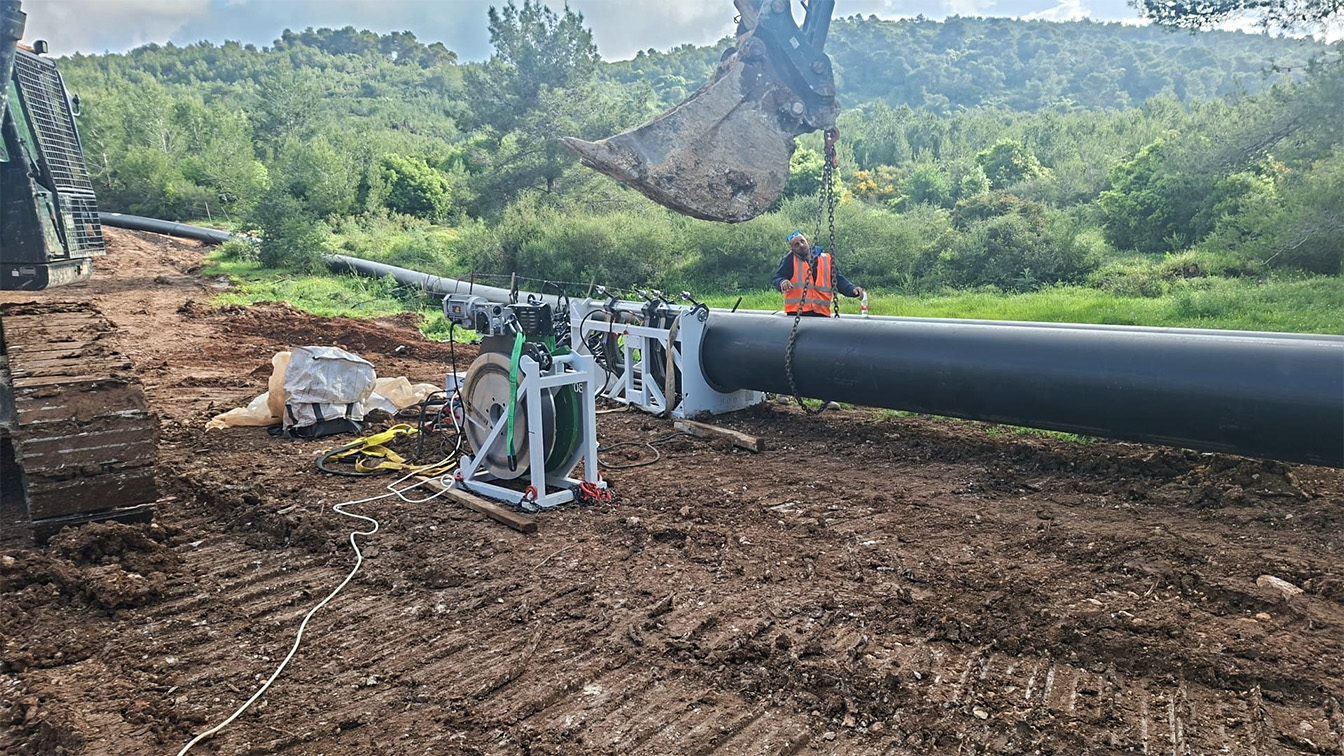

In the field photos, the pipe is large enough that an excavator is being used to assist with handling and positioning. The working area is rough, and the fusion machine, hydraulic unit, facer, heater, lifting equipment, and operators all need to work together in the same area.
Under these conditions, several other questions become just as important:
Can the machine hold the pipe securely?
Can it maintain good alignment under load?
Can the facer run smoothly across a much larger pipe end?
And can the operator control the machine while still keeping a close eye on the fusion area?
These practical details often matter more on site than they do on a specification sheet.
1. Frame Stability Becomes More Important as Pipe Size Increases
Large PE pipe carries considerably more weight than smaller pipe.
During alignment and fusion, the machine frame has to support this load while keeping both pipe ends as close as possible to the same centerline.
If the frame lacks sufficient rigidity, movement or deformation under load can affect pipe alignment and the way the two pipe ends meet during heating and fusion.
The FX800 uses a reinforced machine frame designed for large-diameter pipe work.
This is not simply about making the machine heavier or stronger. Frame stability directly influences several stages of the fusion process, including:
· pipe alignment
· pipe-end parallelism
· contact with the heating plate
· transfer of fusion pressure
As pipe diameter increases, even relatively small alignment differences can become more noticeable across the full joint face.
For that reason, frame rigidity is one of the fundamentals of a large-diameter butt fusion machine.
2. Good Fusion Starts with Stable Facing
Facing is sometimes treated as a simple preparation step before heating.
In practice, it is one of the foundations of a good butt fusion joint.
The purpose of facing is not only to remove material from the pipe ends. It is to create two clean, flat, and closely parallel surfaces before the heating stage begins.
On large-diameter pipe, the facing area is much greater, so the facer has to work under a higher load.
The FX800 uses a gear-driven facer, providing direct and stable power transmission during pipe-end preparation.
A smooth and consistent facing process helps produce better pipe-end surfaces and makes it easier to achieve even contact with the heater.
This becomes increasingly important as pipe size grows, because any unevenness at the pipe ends is spread across a much larger fusion area.
Put simply: A good butt fusion joint starts before the heater touches the pipe.
It starts with proper facing.
3. Large Machines Need a More Practical Way to Operate
Another issue becomes more obvious as fusion machines get larger:
Where does the operator stand?
On many conventional butt fusion machines, the operator controls carriage movement from the hydraulic power unit.
That works well enough on smaller machines, where the hydraulic unit and fusion area are usually close together.
On a larger machine, however, the operator often needs to remain near the pipe ends to observe what is happening during:
· alignment
· facing
· heater contact
· heat soaking
· heater removal
· final fusion
If the operator has to keep moving back to the hydraulic unit just to open or close the carriage, the process becomes less direct.
The FX series uses a wired remote control, allowing the operator to control carriage movement while standing closer to the fusion area.
The purpose is not simply to add a remote-control feature.
The real benefit is more practical:
the control position can move closer to the observation point.
This makes it easier for the operator to monitor pipe movement, facing, heating, and changeover as they happen.
For a large-diameter fusion machine, this kind of operating convenience can make a meaningful difference on site.
Stable Hydraulic Control Still Matters
The hydraulic system is another important part of large-diameter butt fusion.
Its job is not only to move the carriage.
Throughout the fusion cycle, different stages require different pressure conditions. The key is not to apply as much pressure as possible, but to apply the correct pressure in a stable and controlled way.
The FX800 uses an enclosed hydraulic power unit to control carriage movement and fusion pressure.
For large-diameter pipe, stable hydraulic control helps the operator manage the different stages of the welding cycle more consistently.
What Should Buyers Look for in a Large-Diameter Butt Fusion Machine?
Maximum pipe size is an obvious starting point, but it should not be the only consideration.
For large-diameter PE pipe work, it is also worth looking closely at:
· frame rigidity
· facing stability
· hydraulic pressure control
· operator access to the fusion area
· handling of heavy components such as the facer and heater
These factors have a direct influence on how practical the machine is to use in real job-site conditions.
Large-Diameter Butt Fusion Is Not Simply Small-Pipe Fusion Scaled Up
As pipe diameter increases, the mechanical load, facing demand, pipe handling requirements, and operating conditions all change.
That means a large-diameter butt fusion machine has to be designed around more than just a wider clamping range.
The FX800 brings together a reinforced frame, gear-driven facing system, stable hydraulic control, and a more practical operating layout for large-diameter PE pipe work.
The customer photos do not tell us every detail about the project.
What they do show is something equally useful: the environment in which a large butt fusion machine actually has to perform.
And for contractors and equipment buyers, those field conditions often reveal more about a machine than the maximum pipe diameter printed on the specification sheet.
