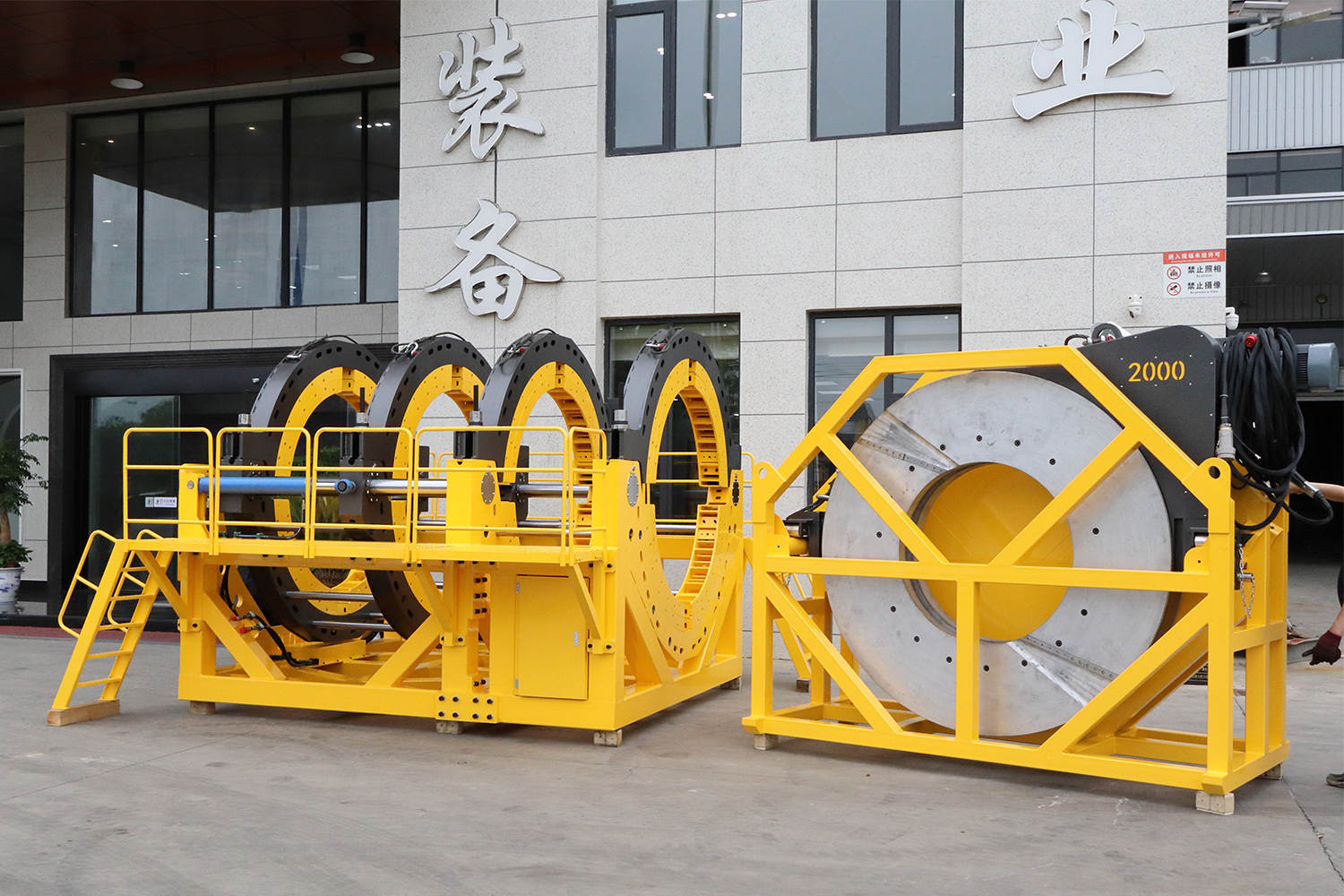

Welping Custom 2000mm Butt Fusion Machine for Large-Diameter Applications

For standard pipe sizes, selecting a butt fusion machine is relatively straightforward.
Once the diameter reaches a much larger scale, the requirements change. It is no longer just about increasing size—structure, stability, and system coordination become key factors.

For this type of application, Welping developed a custom 2000mm butt fusion machine, configured according to specific project conditions rather than based on a fixed model.

Structure Designed for Stability

At this scale, structural rigidity is essential.

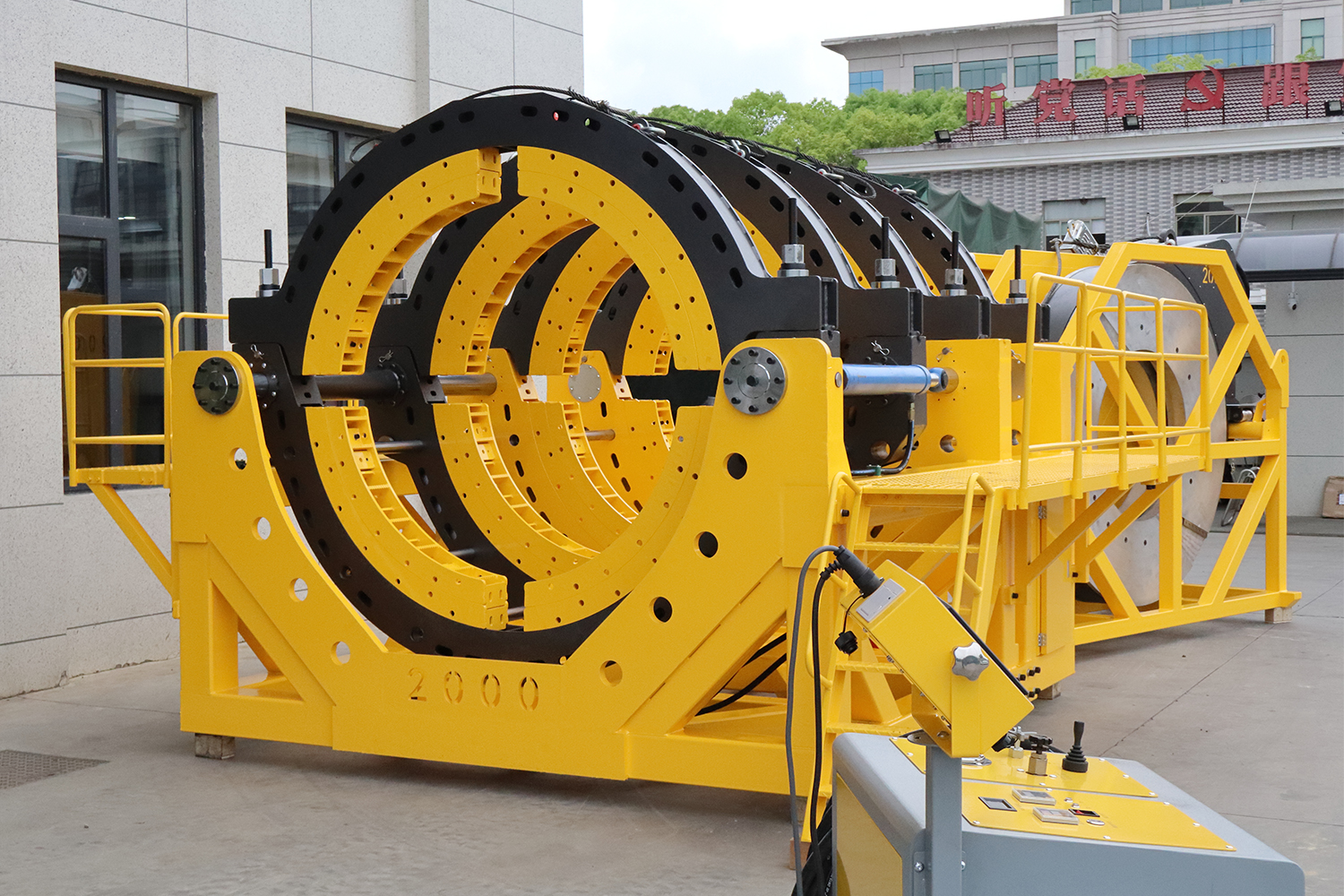

The machine frame is reinforced and equipped with a multi-layer clamp system.

The purpose is not only to provide sufficient clamping force, but to maintain alignment throughout the welding process.
With large-diameter pipes, even minor deviation can affect joint quality.

Independent Hydraulic System

The hydraulic system is designed as a standalone unit to ensure stable and controllable pressure.

In large-diameter welding, consistent pressure is more important than maximum output.
Any fluctuation during the process can directly impact the weld.

Heating Performance at Larger Scale

As pipe diameter increases, the heating area expands significantly.

Maintaining uniform temperature becomes more challenging.
The design therefore focuses on overall thermal capacity and even heat distribution, rather than simply reaching a set temperature.

Practical Operation Considerations

Machines at this size are not operated by a single person.

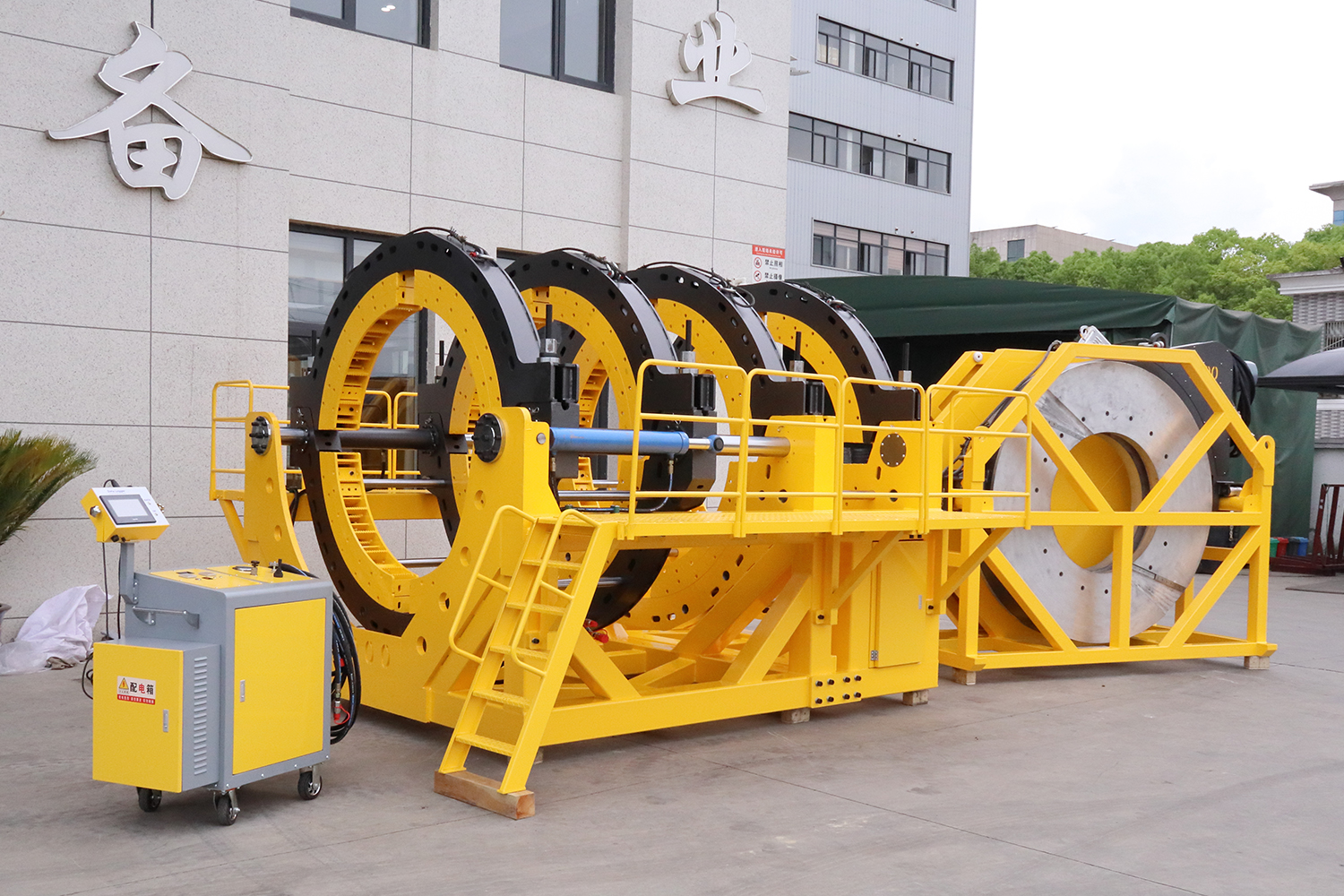

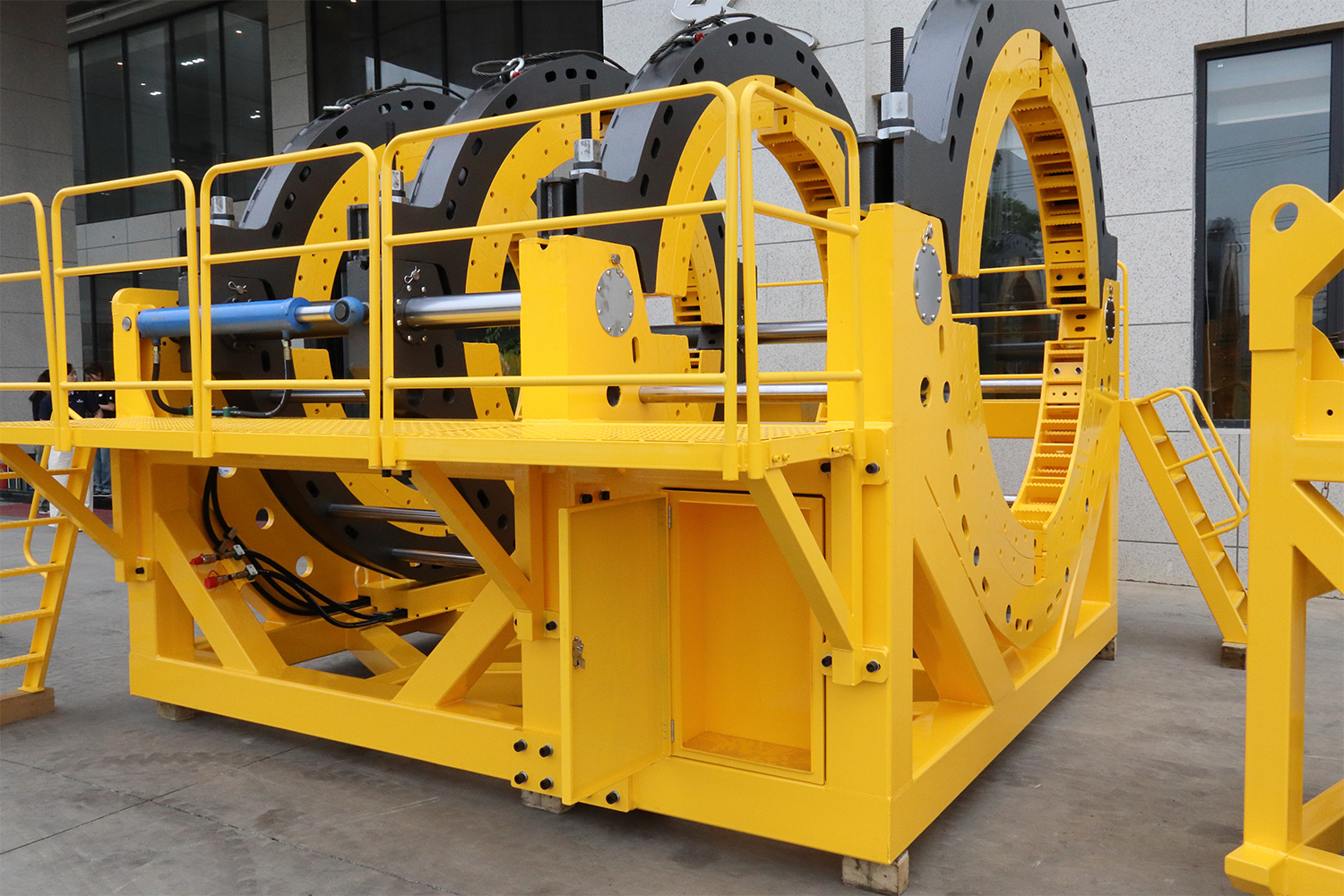

To support on-site work, a working platform and basic safety features are integrated into the structure, making operation more manageable under real conditions.

Project-Based Equipment

Machines in the 2000mm range are typically developed for specific projects rather than standard production.

Different working conditions often require different configurations, making flexibility an important part of the design.

Conclusion

For Welping, projects like this are less about producing a larger machine, and more about understanding the practical challenges of large-diameter welding.

This experience is then applied to improve future designs and system solutions.
