You often face butt fusion welding problems like weak joints, misalignment, contamination, and equipment faults. Studies that looked at over 600 fatigue tests show many welds do not meet the right fatigue design standards. This shows these problems happen a lot. Good welding techniques and real-time parameter control help a lot. Using an advanced butt fusion machine like Welping’s can lower problems and make joints better. Use this guide to find and stop issues. This will help every butt welding project succeed.
Weak joints, pipes not lined up, dirt, and broken machines are common problems in HDPE butt fusion welding. These problems can make pipe connections weak. Using clean pipes, the right tools, and correct welding settings helps stop most welding problems. This also makes sure the joints are strong. Advanced machines like Welping’s Fully Automatic Hot Melt Butt Welding Machine help make better welds. They control heat, pressure, and alignment by themselves. Checking and fixing equipment often stops machine problems. This keeps welding safe and working well. Training your team and following rules like ASME and AWS helps people weld better. It also lowers mistakes and makes pipeline projects better.
You might see different problems when doing butt fusion welding. These problems can be weak joints, pipes not lined up, dirty surfaces, or broken equipment. Each problem can make your welds worse and hurt the pipe connection. Here are some main reasons:
Joints can be weak if you use the wrong welding current, bad materials, or weld too fast or slow.
Pipes will not line up if you do not set them straight before heating and joining.
If there is dust or oil on the pipe, the weld may not finish right and can be weak.
Equipment problems, like strange buzzing or getting too hot, can mean something is wrong with fuses, motor coils, or cooling parts.
Cracks or small holes can show up if you do not set welding time, electrode pressure, or forging pressure the right way.
If carbon black is not spread out well in pe pipes, it can make ‘windows’ that make the joint weaker.
Tip: Always look at your butt fusion machine before you start. Clean the pipes and line them up well to stop most problems.
You can fix most butt fusion welding problems by watching the process and using good equipment. Start with a strong butt fusion machine that has smart features. Welping’s Fully Automatic Hot Melt Butt Welding Machine heats the pipes just right and lines them up by itself. This helps stop pipes from being crooked or dirty. The machine also lets you check settings while you work, so you keep the welds good.
A new study says that making the welding process better and checking welds in new ways can make joints stronger. For example, fracture resistance tests help you find weak welds early. Another study found that spreading carbon black evenly in pe pipes makes joints stronger and stops problems.
| Aspect | Description |
|---|---|
| Study Focus | Making butt-fusion welding better for thick pe pipes |
| Key Findings | Fracture resistance at the weld shows how strong the joint is |
| Practical Implication | Easy and good ways to check welds help keep quality high |
You should always watch the heating time, temperature, and pressure. Clean every pipe before welding and use the right settings for each job. New hot-melt butt fusion machines, like Welping’s, help you stop welding problems and make strong pipe joints.
There are many welding defects you might see in butt fusion welding. These problems can show up inside or outside the weld. You need to spot them to keep your welds strong and safe.
Outside defects are things like cracks, porosity, and pipes not lined up. Cracks can go along or across the weld. Porosity means there are tiny holes from trapped gas. Pipes that do not line up make gaps at the joint.
Inside defects are things like slag inclusion, incomplete fusion, and incomplete penetration. Slag inclusion is when something gets stuck inside the weld. Incomplete fusion and penetration mean the weld does not join the pipes all the way.
Other problems, like whiskers or necklace cracking, can happen with special welding ways. Each problem has its own cause, like not enough heat, wrong angle, or not cleaning well.
You can find reports that tell how often these problems happen. For example, shipbuilding studies say cracks, porosity, and lack of fusion are seen the most. The size of a defect can be from 22 mm to 106 mm. Rules like ISO 6520 help you sort and control these problems.
You can stop most welding defects by using good steps and the right controls. The table below lists common problems and how to avoid them:
| Welding Defect Type | Preventative Measures Supported by Data |
|---|---|
| Pores (Porosity) | Clean pipes, use the right shield, set good settings |
| Unfused Joints | Make joints for full fusion, use more current, press pipes together |
| Slag Inclusions | Use good rods, clean off slag, change current and speed |
| Undercut | Control current, change angle, slow down speed |
You should always test your welding steps and train your team. Watching current, voltage, and speed while welding helps you find problems fast. Checking welds after, like looking or using ultrasound, keeps welds strong. In airplanes, watching the process cut welding mistakes by 75%. This shows that checking and control make welds better and stronger.
Tip: Always write down your steps and follow check plans. This keeps your welds strong and your project going well.
There are many problems with pipeline alignment during building. Pipes can be out of line in different ways. These include hi-lo misalignment, lateral misalignment, angular misalignment, and vertical offset. These mistakes often happen because of bad cutting, weak support, or rough handling. Sometimes, pipes get damaged during work. Heavy machines or errors in measuring can also cause trouble.
Types of misalignment are:
Hi-lo misalignment
Lateral misalignment
Angular misalignment
Vertical offset
Causes of misalignment are:
Cutting pe pipes the wrong way
Not enough support when building
Handling mistakes or pipe damage
Bad fit-up and errors in measuring
Heavy machines pressing on the pipes
If you do not line up pe pipes right, welds can be weak. You might see weld gaps, bad fusion, or weak spots. These problems can make leaks or even break the pipeline. Data shows misalignment is a top reason for welds to fail, especially in big pipes. Girth welds often fail because of misalignment, bad bevels, or pipes not round. Studies say pipe shape can change how ends line up. This can make cracks and stress in the weld. If you do not fix these problems, leaks can happen and the pipeline will not last as long.
Note: Always check the outside size, wall thickness, and roundness of pe pipes before welding. This helps you stop misalignment and makes the joint strong.

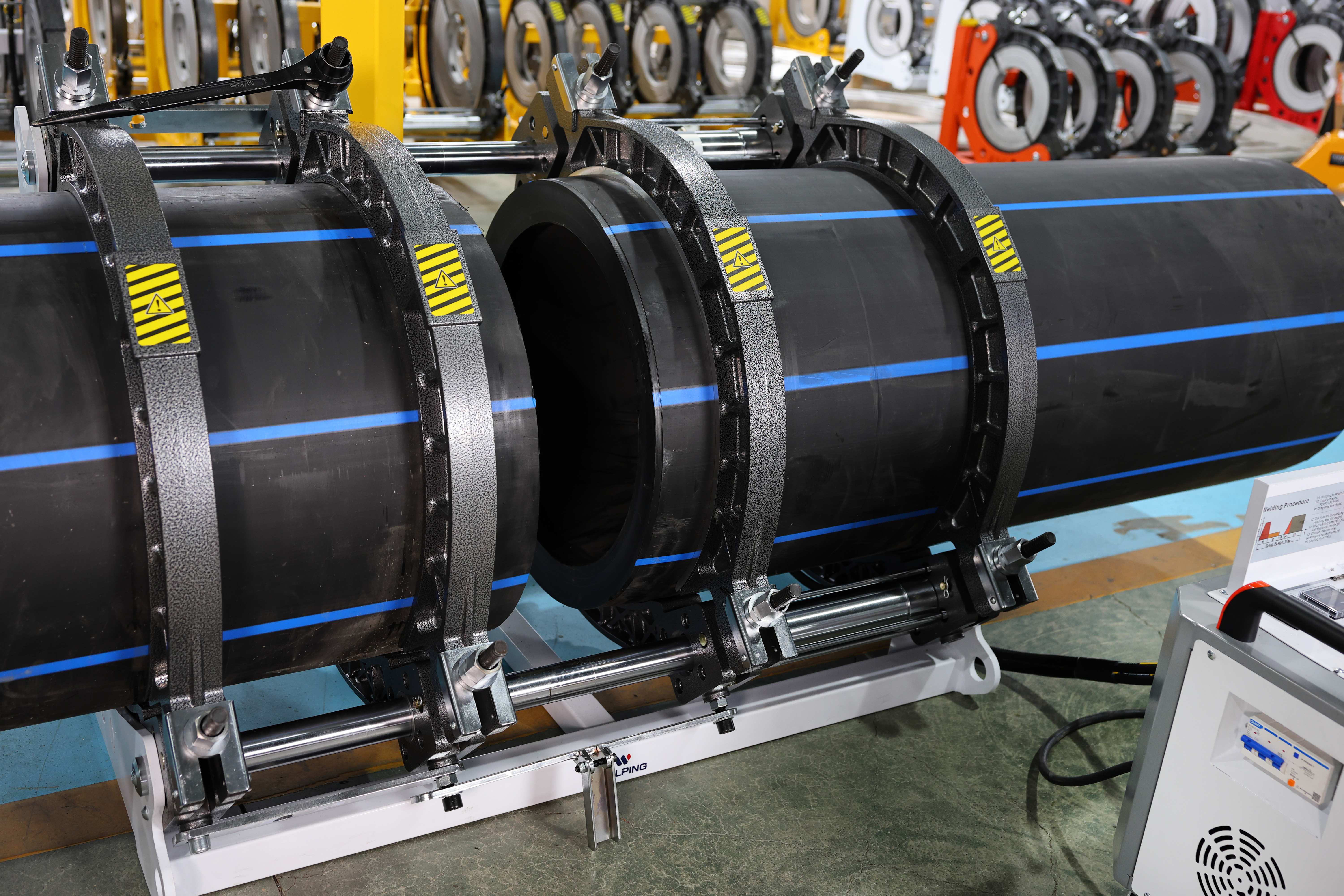

You can fix alignment problems by using good steps and the right tools. Start by getting the weld joint ready and fitting it well. Use alignment clamps or welding positioners to hold pe pipes steady. These tools help you line up pipes the same way every time.
Ways to fix misalignment:
Use shims and clamps to move pe pipes
Use welding positioners for strong support
Check alignment often while building
Teach your team how to fit and lay out pipes
Checking during work is very important. Look at alignment at each step to find mistakes early. Use a quality system that follows rules like ASME and AWS. This makes sure you use the right welding steps and keep the work good on every job.
Some new machines, like Welping’s Fully Automatic Hot Melt Butt Welding Machine, can line up pipes by themselves. These machines use real-time checks and fix the weld seam as you work. This keeps the pipes lined up and lowers the chance of weld problems in pe pipes.
Tip: Train your team often. Workers with good skills make fewer mistakes and help build better pipelines.
You can have problems with your welding equipment. These problems can slow your work and make welds worse. The Inspectioneering Journal says cracks, porosity, lack of fusion, incomplete penetration, and spatter happen a lot. These issues often come from bad work, design mistakes, or wrong materials. Sometimes, using the wrong welding steps or working in tough places causes trouble too.
You might hear odd sounds or see the machine get too hot. Sometimes, the heat is not steady. These things can mean problems with cables, connections, or the heating part. If you see incomplete fusion or cracks, the machine may not give the right heat or pressure. Reports say you should check your machine often and use special tests to find problems early. Some problems, like cracks starting, may only show up after using the machine for a while.
Tip: Always check your welding machine before you start. Look for loose wires, old parts, or signs of getting too hot. Finding problems early saves money and keeps welding safe.
You can stop most equipment problems by taking care of your machine. Good habits mean using daily, weekly, and monthly checklists. How often you use your machine tells you how much to check. Before you start, look at cables, connections, gas, electrodes, and the work area. While welding, listen for odd sounds and check if the weld looks right.
When you finish, clean every part and look for damage. Make sure the gas system is safe and put your machine in a dry place. Write down every time you do maintenance. This helps you see patterns and stop future problems.
Many companies use digital tools like CMMS and IoT sensors now. These tools help you plan checks, watch your machine, and find problems before they get big. Teaching your team about good care and safety also helps stop problems.
Note: Change your checklist when you learn new things. New tools and ideas help keep your welding machine working well.
You can have many problems in HDPE butt fusion welding. These can be joint defects or equipment faults. You can fix these problems by using good steps and checking your tools often. Advanced machines, like Welping’s automatic ones, help you get good results in every project.
You can use inspection methods like radiography and ultrasonic testing. These help you find problems and make the work better.
Learning fusion techniques and following rules like ASME and AWS keeps your work safe and strong.
Changing your work for the weather and using the right tools keeps joints good and helps them last longer.
Always learn more and follow the rules to build strong pipelines.
Weak joints often happen if you use the wrong heat or pressure. Dirty pipe ends can also make joints weak. Always clean the pipe ends well. Set the machine to the right settings before welding.
Use alignment clamps or an automatic butt fusion machine. These tools keep pipes steady and help line them up right. Always check if the pipes are lined up before you start welding.
Porosity means gas is trapped inside the weld. You can stop this by cleaning pipe ends well and using the right heat. Keep the work area clean and free from dust and oil.
Check your machine before every job. Clean it after you finish welding. Follow a plan to check it every week and month. This keeps your machine safe and helps stop sudden problems.
Yes, advanced machines like Welping’s Fully Automatic Hot Melt Butt Welding Machine control heat and pressure very well.
These machines help you make strong welds and lower mistakes from people.
