Gear-Driven Facer vs Chain Drive: What Makes the Difference in Stability

During the facing stage of butt fusion welding, instability is not always caused by the cutting blades.
In many cases, the source lies in the drive system itself.

The two most common designs are chain-driven and gear-driven facers.

Chain Drive: Typical Issues in Use

Chain-driven systems are relatively simple in structure.
However, in actual operation, several practical issues tend to appear over time.

Chains can gradually loosen with use, especially under repeated load changes.
This may introduce slight vibration during operation, which affects the smoothness of rotation.

At the same time, regular adjustment and lubrication are required to keep the system working properly.
When replacement is needed, the process can also be less convenient compared to more integrated designs.

Taken together, these factors can influence the overall consistency of the facing process.

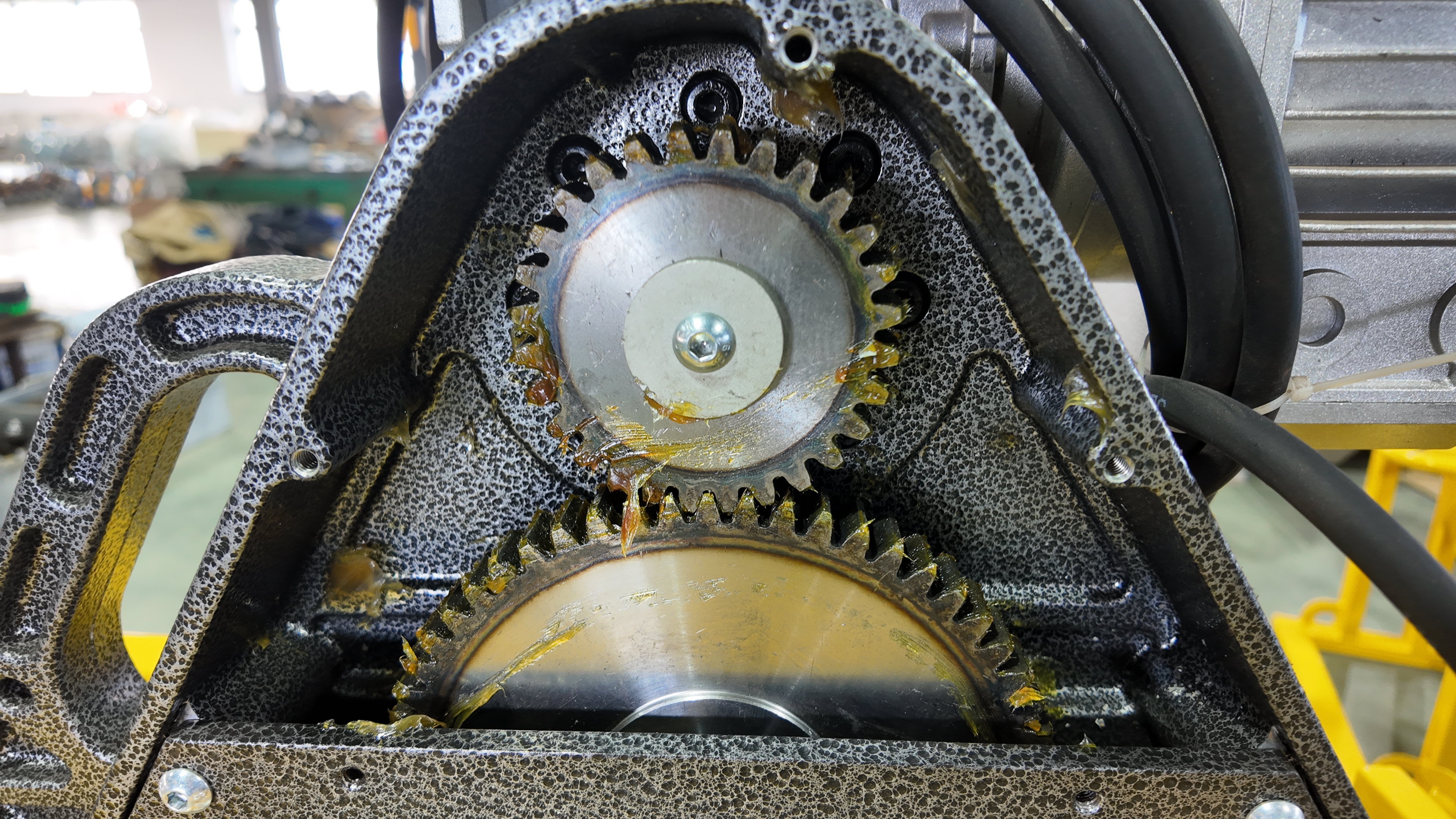

Gear Drive: A More Stable Transmission

Gear-driven facers transmit power through direct gear engagement.
In practice, this leads to a more controlled and stable transmission.

Rotation tends to be more uniform, with less variation under changing loads.
The larger contact area between gears helps maintain consistent movement throughout the process.

In addition, the structure generally requires less frequent maintenance and offers a longer service life over time.

Impact on Facing Quality

The difference between the two drive systems becomes more visible in the facing results.

Chain-driven systems may show slight inconsistencies, particularly when working with larger diameters or thicker pipe walls.
In contrast, gear-driven systems tend to produce smoother cuts and more even pipe ends.

As pipe size increases, this difference becomes more noticeable.

Why FX Uses Gear-Driven Facers

FX series machines are designed for medium to large diameter pipe welding, where stability plays a more critical role.

The use of gear-driven facers is not intended to add complexity, but to maintain a more stable and controllable process under real working conditions.

Conclusion

Both chain-driven and gear-driven systems are capable of completing the facing process.

However, under long-term use and higher load conditions, gear-driven facers generally provide more consistent performance.
This makes them better suited for applications involving larger pipe diameters.
