Data Logger for Butt Fusion Welding: Making the Process Traceable

In PE pipe butt fusion welding, final weld quality depends not only on the machine itself, but also on how consistently the welding parameters are applied.

In many engineering projects—especially municipal, gas, and large-scale pipeline systems—completing the weld is only part of the requirement. The welding process must also be documented and traceable.

This is where a data logger becomes a practical and valuable tool during butt fusion operations.

Positioning and Compatibility

The data logger is an optional accessory for butt fusion machines.

It is compatible with the A series, A Pro series, and FX series, and is intended for projects where welding records are required for quality control or documentation.

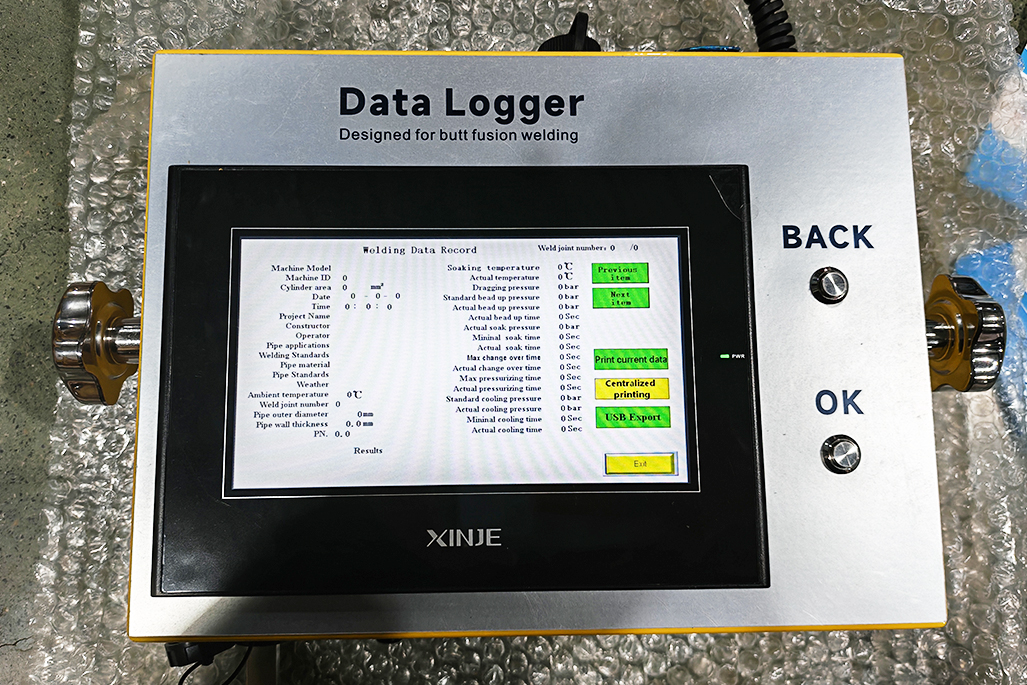

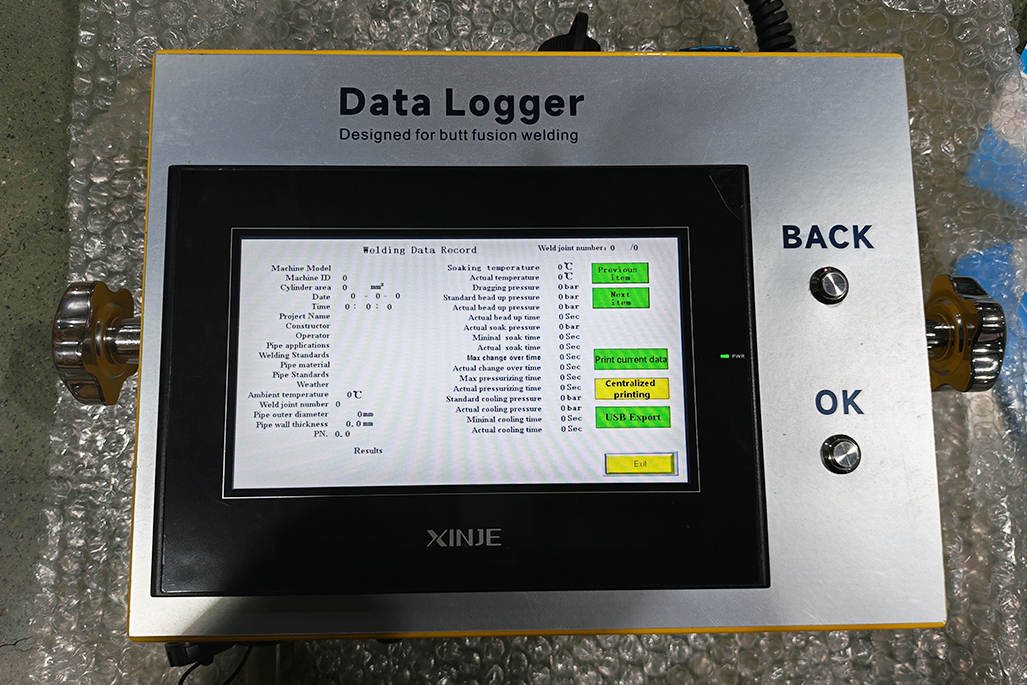

During welding, the device automatically records key process parameters and generates a structured record for each joint.

Key Welding Parameters Recorded

The data logger captures the main parameters involved in each butt fusion joint, including:

• Welding temperature

• Actual welding pressure

• Heating time

• Cooling time

These parameters directly correspond to the core requirements defined in ISO and DVS welding standards, and serve as the basis for evaluating whether the welding process has been carried out correctly.

Data Output and Record Management

All recorded data can be exported and stored for long-term use.

Individual weld records can also be printed when required.

In practical applications, these records are commonly used for:

• Project documentation and handover

• Quality inspection and audit processes

• Post-installation review and traceability

Compared with manual recording, automatically collected data provides better consistency, accuracy, and completeness.

Multi-Language Voice Support for On-Site Use

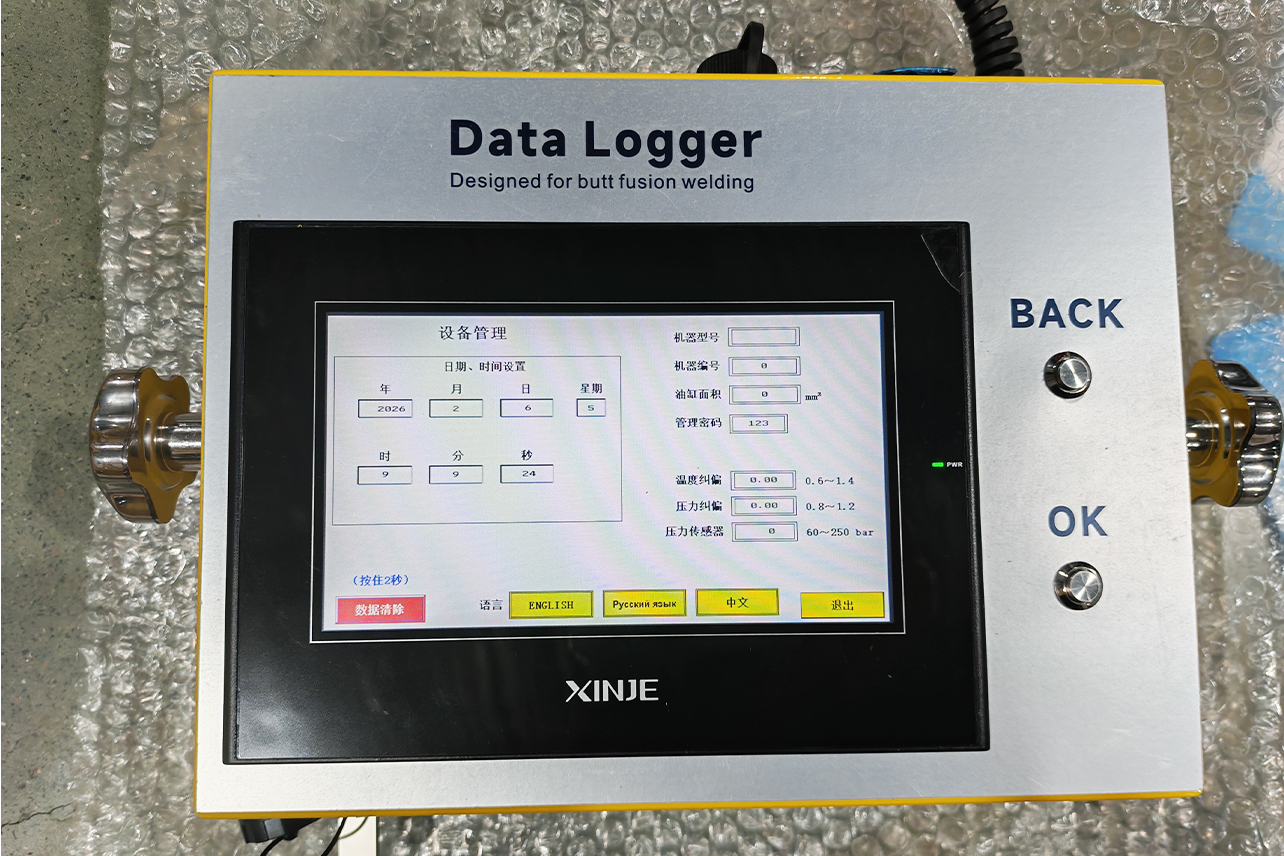

The data logger supports multi-language voice guidance, including Chinese, English, Russian, Polish, and Spanish.

Voice prompts provide real-time operational feedback during welding, helping reduce the risk of incorrect operation—especially in multi-national jobsite environments.

This feature is designed to improve usability on site without adding unnecessary complexity.

Standards and Typical Applications

The data logger supports welding procedures carried out in accordance with ISO and DVS standards.

It is suitable for applications such as:

• Municipal PE pipeline projects

• Industrial piping systems

• Installations requiring long-term quality traceability

Closing Note

A data logger is not required for every butt fusion project.

However, in applications where process control, documentation, and traceability are important, it provides a clear and reliable way to record what actually happens during welding.
