A Closer Look at WP1200A PRO in The Workshop

Large-diameter HDPE pipe welding requires more than basic machine capacity. Before welding starts, the pipe needs to be securely clamped, the working area should be well arranged, and the facer, heater, and hydraulic control system must be positioned in a practical way for efficient on-site operation.

Recently, we took a new set of workshop photos of the WP1200A PRO. The machine was photographed with large HDPE pipe in a real factory environment, offering a closer look at its machine structure, pipe clamping condition, control unit, and overall working layout.

WP1200A PRO in a Real Workshop Setting

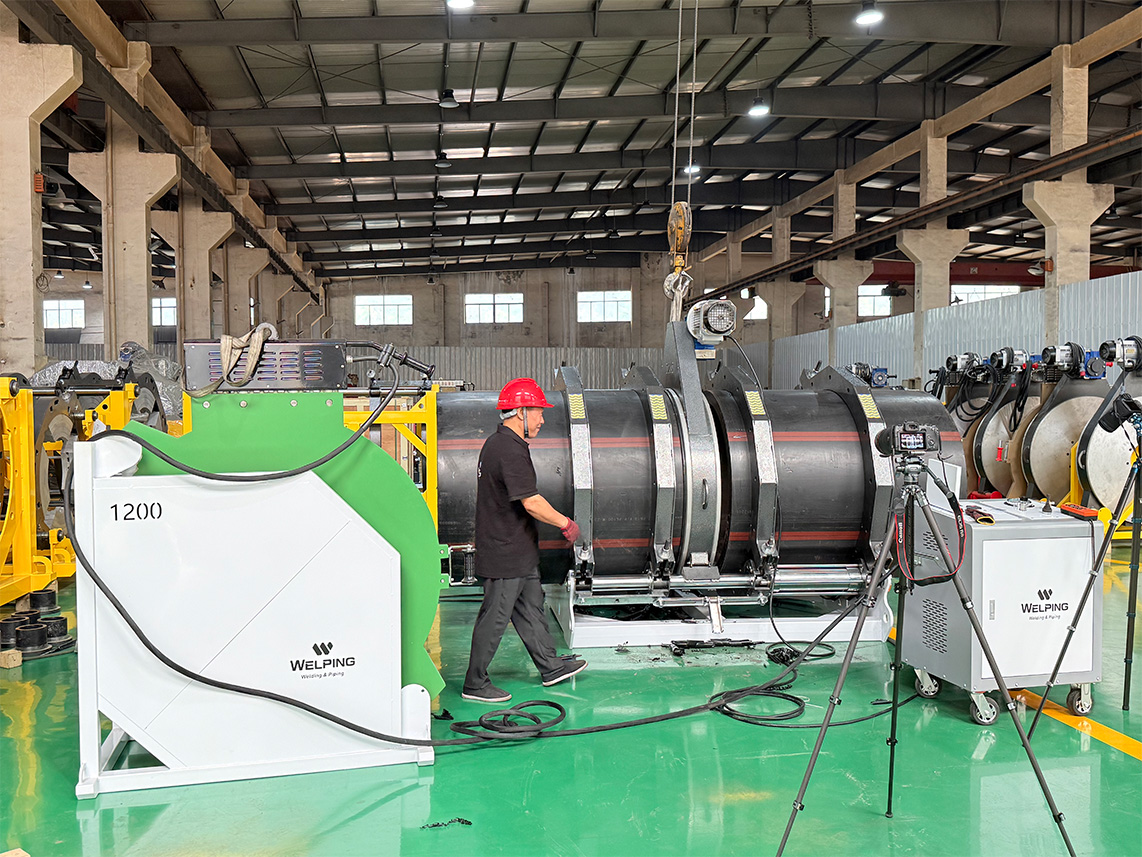

In the full-view photos, the WP1200A PRO is shown together with the main frame, heater, facer, hydraulic and electrical control unit, and large HDPE pipe. This complete setup gives a clearer idea of how the machine is arranged in the workshop and how much operating space is required around the equipment.

For large-diameter butt fusion machines, technical parameters are important. However, real workshop photos often show more practical details. They help customers better understand the actual machine size, pipe position, component layout, and how operators work around the equipment.

Large Pipe Clamping Before Welding

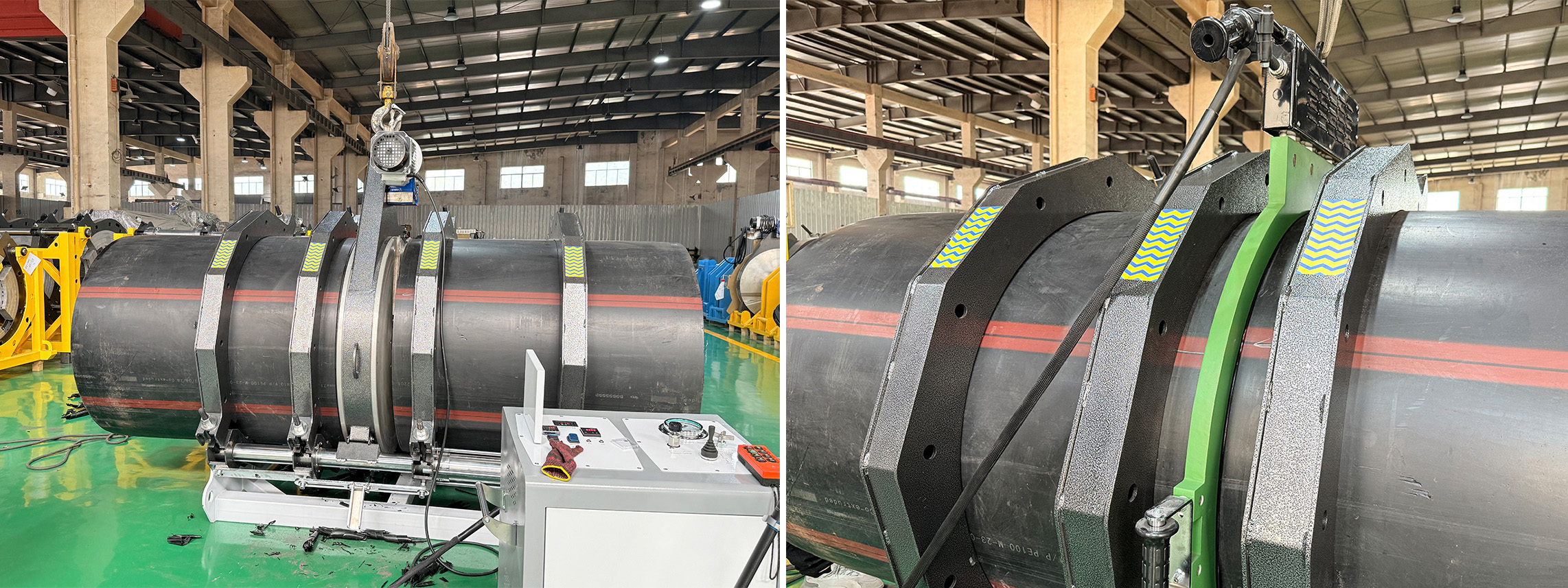

In the photos, the large HDPE pipe is placed inside the machine frame and held by multiple clamping inserts. The wide clamping inserts provide a larger contact area with the pipe surface, helping keep the pipe stable during preparation.

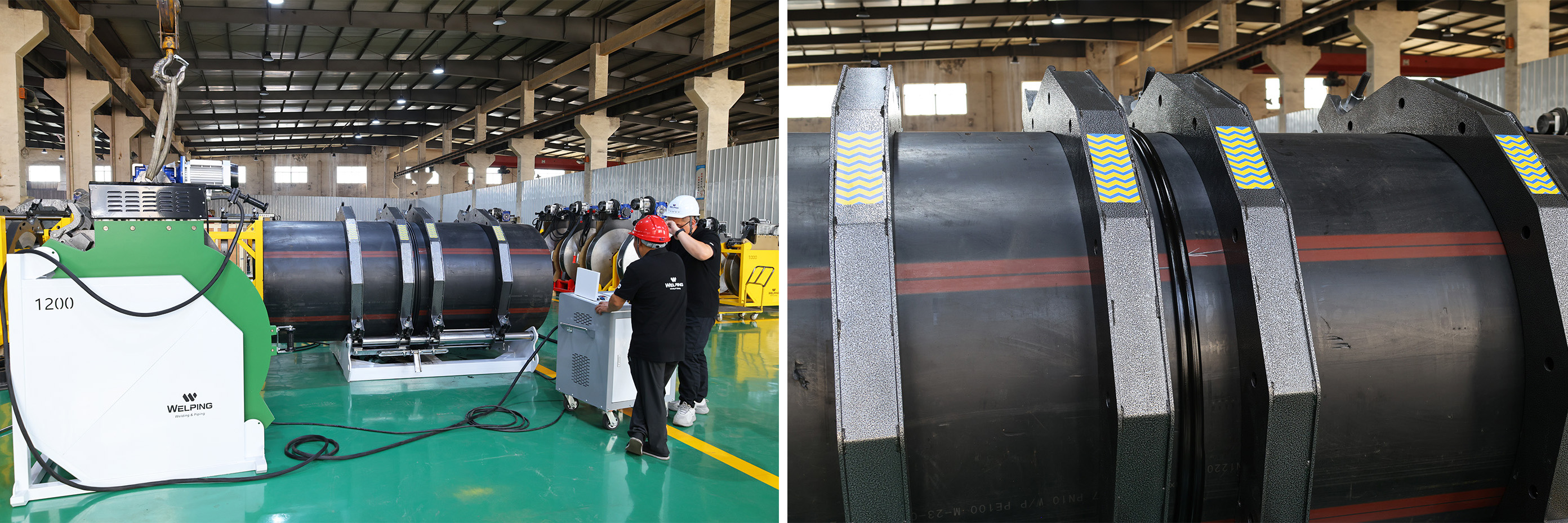

Reliable clamping is an important part of large-diameter pipe fusion. Before facing, heating, and jointing, the pipe ends must be properly positioned and firmly held in place. These photos clearly show how the WP1200A PRO supports large pipe sections during this stage.

Facer and Heater Positioning

For large pipe sizes, the facer and heater are also larger and heavier. Their movement and positioning can directly affect the convenience and safety of the welding process.

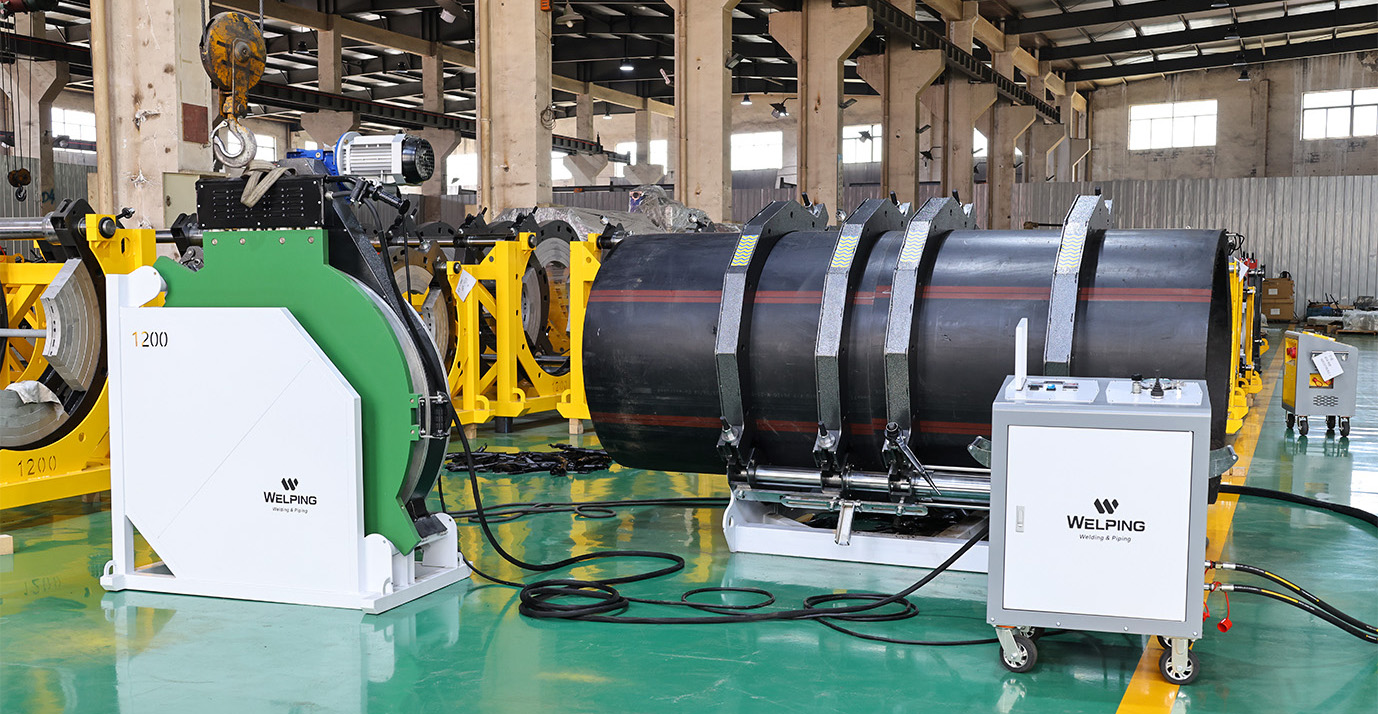

In this workshop setup, the facer and heater are arranged within the working area and can be handled with the assistance of lifting equipment. This helps reduce direct manual handling and makes preparation work more manageable for operators.

More detailed information about facer and heater handling on the WP1200A PRO will be introduced in a separate article.

Hydraulic and Electrical Control Unit

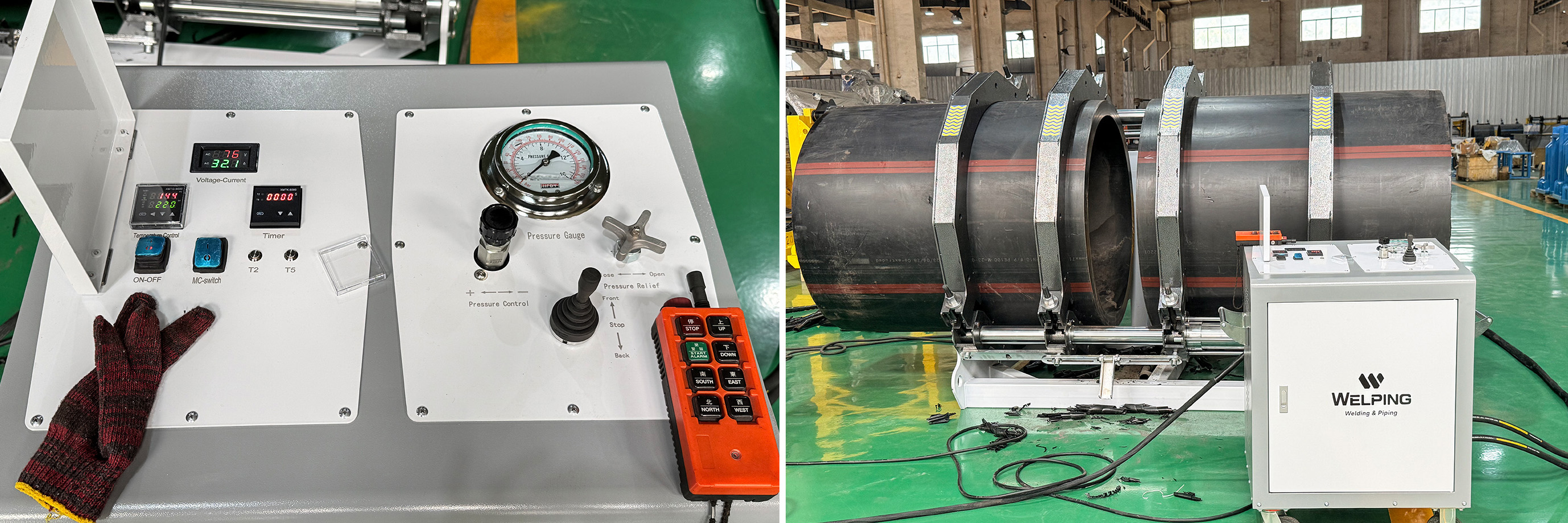

The WP1200A PRO is equipped with an independent hydraulic and electrical control unit. Through the control panel, operators can check and adjust key working parameters such as pressure, temperature, and welding time.

The panel integrates the pressure gauge, pressure adjustment, temperature control, timer, and operation controls in one area. This layout helps operators monitor the machine status and make necessary adjustments during welding preparation and operation.

Why Workshop Photos Are Useful

Product catalogs usually present machine specifications and standard product views. Real workshop photos provide another kind of value. They show the machine together with the pipe, the required working space, the control unit position, and how each part is arranged before operation.

For customers considering a large-diameter butt fusion machine, these practical details are helpful. They make it easier to understand how the WP1200A PRO works in a real workshop environment, instead of only seeing it as a product image in a catalog.

This article provides an overall view of the WP1200A PRO in the workshop. In the following updates, we will share more detailed articles about its pipe clamping structure, facer and heater handling, and integrated hydraulic and electrical control system.
