WP35F
WELPING
| Quantity: | |
|---|---|

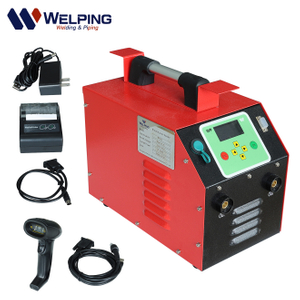

Electrofusion welding is widely used in PE and PP pipe jointing, with various kind of electrofusion fittings. With the tool of electrofusion welder, the connection job can be done efficiently. Our K & F series electrofusion welder can provide fexible choice of welding, ranging from 20mm to 1000mm.
WELPING had been developing, manufacturing and distributing thermoplastic welding equipment since 2005. It's our pleasure to help you build reputation in the piping project.
1. Control core of high lever MCU, for accurate welding control
2. Built-in Voltage stabilizer, for steady welding
3. Industrial level electrical parts, for steady performance
4. Over-load protection design, guarantee safe operation
Model | WP20F | WP35F |
Welding mode | automatic and manual | automatic and manual |
Suitable material | PE, PP | PE, PP |
Welding range | 20-200mm | 20-315mm |
Power supply | 220V±20%, 50~60 Hz | 220V±20%, 50~60 Hz |
Power | 2.5 KW | 3.5 KW |
Ambient temperature | -15~45℃ | -15~45℃ |
Voltage control mode | 10~50V adjustable | 10~50V adjustable |
Current control mode | 1~80A adjustable | 1~80A adjustable |
Time adjusting range | 1-9999 seconds | 1-9999 seconds |
| Data record | 100 | 100 |
| Duty rate | 80% | 80% |
| Data interface | optional: scanner, printer | optional: scanner, printer |
| N.W. | 18.5kg | 20kg |
Electrofusion welding is widely used in PE and PP pipe jointing, with various kind of electrofusion fittings. With the tool of electrofusion welder, the connection job can be done efficiently. Our K & F series electrofusion welder can provide fexible choice of welding, ranging from 20mm to 1000mm.
WELPING had been developing, manufacturing and distributing thermoplastic welding equipment since 2005. It's our pleasure to help you build reputation in the piping project.
1. Control core of high lever MCU, for accurate welding control
2. Built-in Voltage stabilizer, for steady welding
3. Industrial level electrical parts, for steady performance
4. Over-load protection design, guarantee safe operation
Model | WP20F | WP35F |
Welding mode | automatic and manual | automatic and manual |
Suitable material | PE, PP | PE, PP |
Welding range | 20-200mm | 20-315mm |
Power supply | 220V±20%, 50~60 Hz | 220V±20%, 50~60 Hz |
Power | 2.5 KW | 3.5 KW |
Ambient temperature | -15~45℃ | -15~45℃ |
Voltage control mode | 10~50V adjustable | 10~50V adjustable |
Current control mode | 1~80A adjustable | 1~80A adjustable |
Time adjusting range | 1-9999 seconds | 1-9999 seconds |
| Data record | 100 | 100 |
| Duty rate | 80% | 80% |
| Data interface | optional: scanner, printer | optional: scanner, printer |
| N.W. | 18.5kg | 20kg |
